Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

It is big and mobile

Collection card drive and space superiority, will form pre-installed in the car all the stage area, at the specified location for activities simply operation, can complete all kinds of display: large terminal promotion, large cultural tour, mobile exhibition, mobile cinema, such as ignoring the time limit to make everything is possible.

Sophisticated integration and efficient execution

The new cutting-edge integrated design concept is no longer satisfied with a single media broadcast, nor is it simply loaded, but according to the characteristics of the activity through modification, internal space optimization, no traditional stage construction and disassembly time consuming defects, more effective and faster.And other marketing communication means can be closely combined to achieve functional derivatives, professional TV editing equipment on-site studio car, equipped with professional entertainment equipment mobile carnival, mobile KTV, or according to the needs of brand customers can be modified into a brand theme store.

Parameters

Model

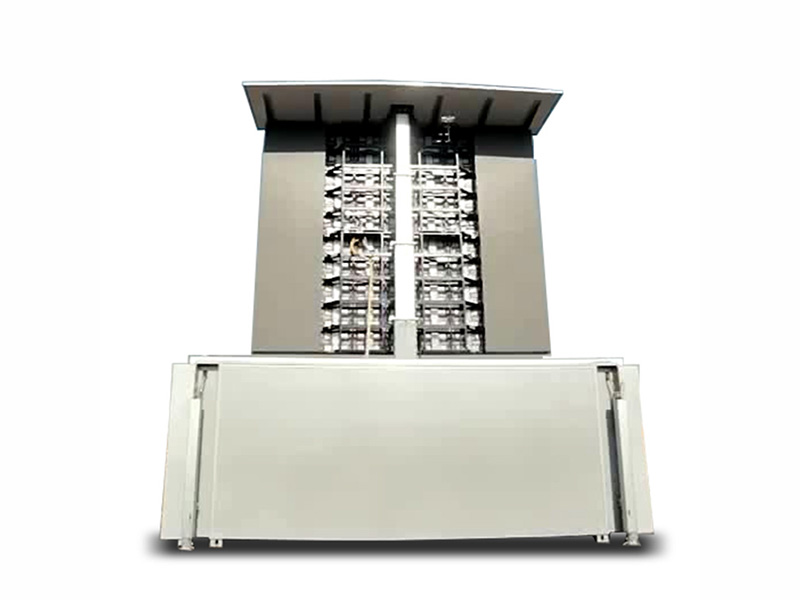

40 Square Meters Container Stage Truck

Chassis

Total mass

10000kg

Dimension

8000x2450x2600mm

Container Box

The dragon bone

8000*2450*2600

Exterior decoration

Bee cochlea board

Interior decoration

aluminum plastic board



Hydraulic Lifting and Supporting System

Hydraulic Lifting System

Lifting range 5000mm, bearing 12000KGS

LED display hydraulic lift cylinder and guide post

2 big sleeves, one 4-stage cylinder, travel distance 5500mm

Hydraulic Rotary support

Hydraulic motor + rotary mechanism

Four hydraulic support legs

Steady

Hydraulic pump station and control system

Steady

Hydraulic remote control

Yutu

Conductive ring

Custom type

Standard parts

screw

some

Other accessories

some

The steel structure

LED screen fixed steel structure

Custom type

The paint

Car paint, 80% black

LED Outdoor Full Screen (P5)

Screen dimension

10000*4000mm

Transmitter

Nova

receiving card

Nova

Dot pitch

5 mm

Electrical system

Electrical appliances and cables

Whole car wiring

Multimedia system

S-25 directional speakers for square

MAD

CA18full frequency amplifier for square

MAD

Custom cabinets

China

Automatic control

Siemens PLC PLC PLC 6es7-200 CPU 226 relay module

Power parameter

Input Voltage

380V

Output Voltage

220V

Current

30A

Average power consumption

0.3kwh/㎡
