Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

Core highlights:

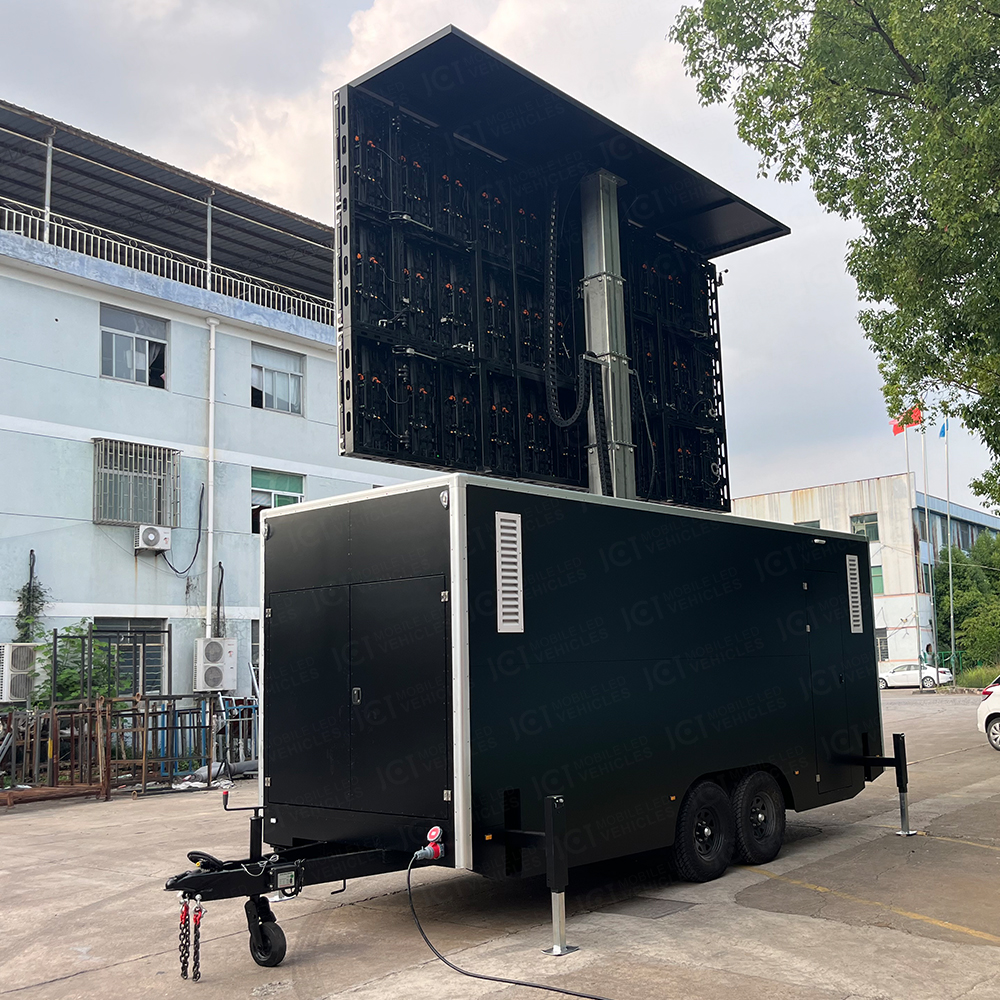

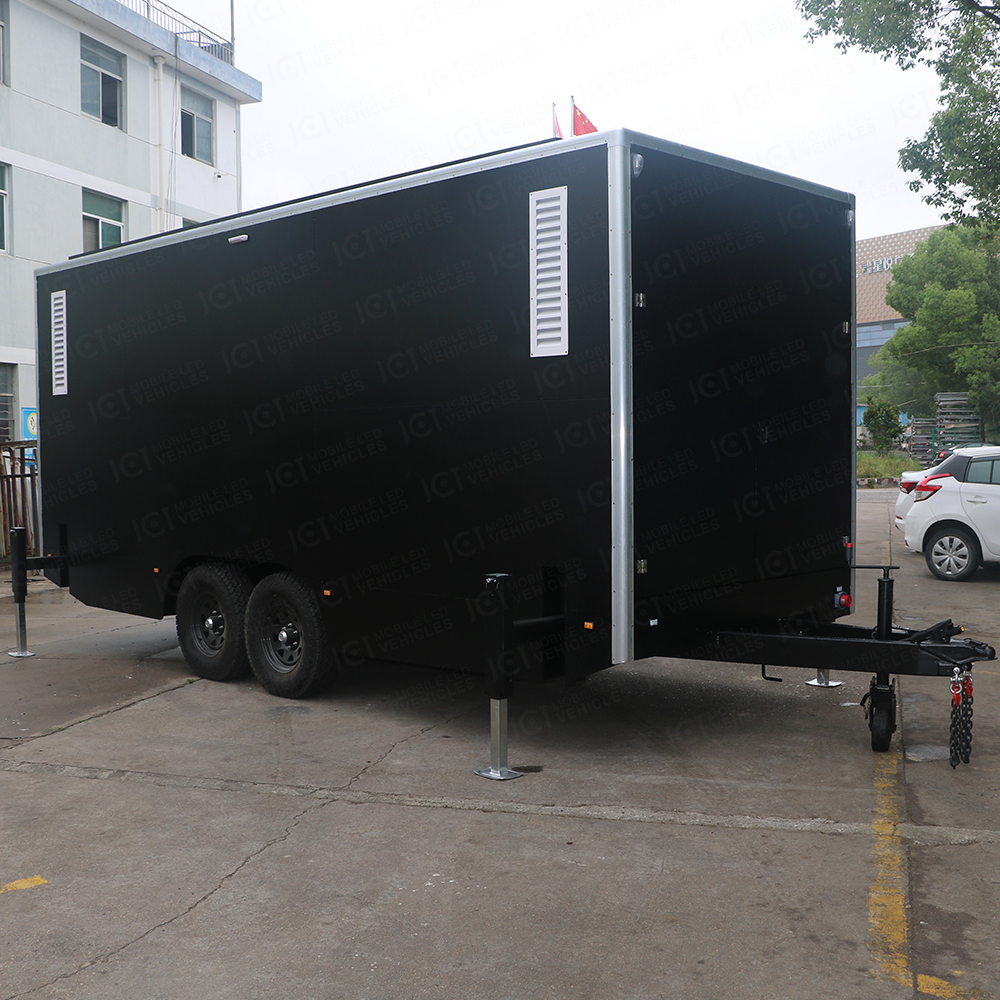

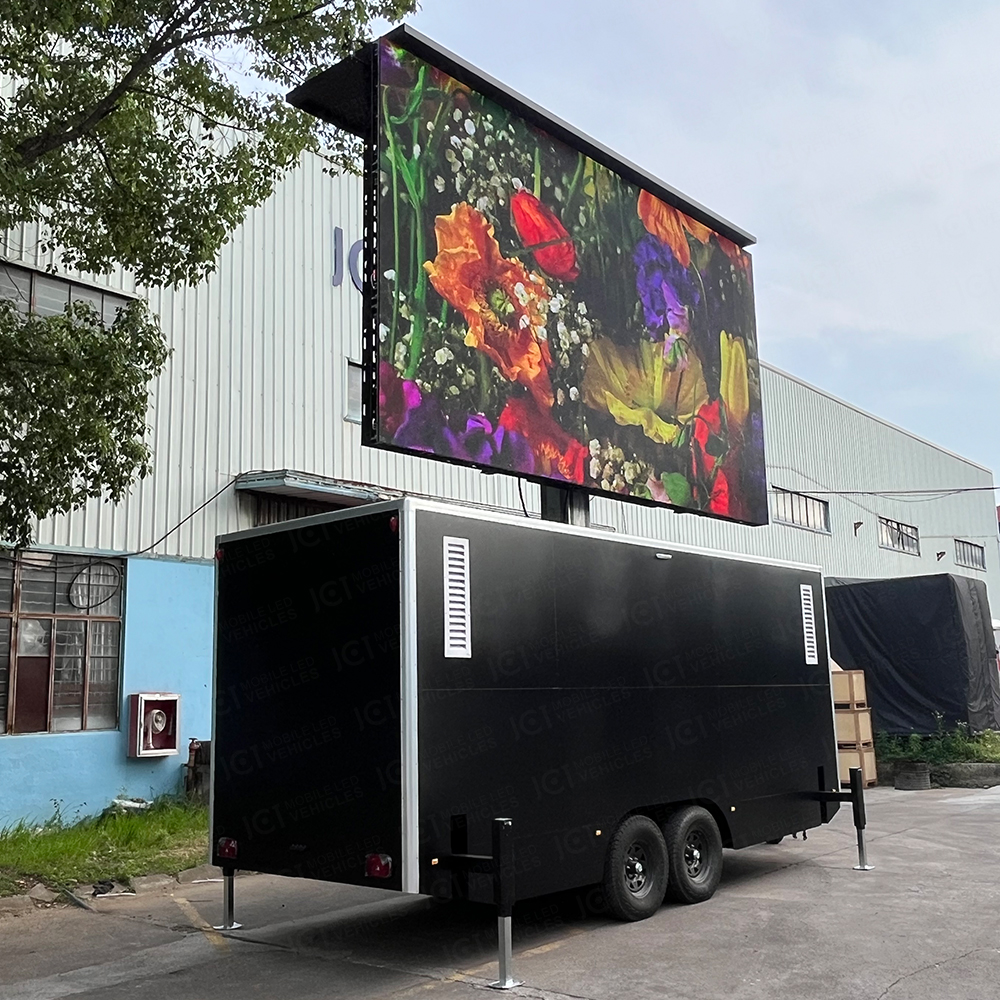

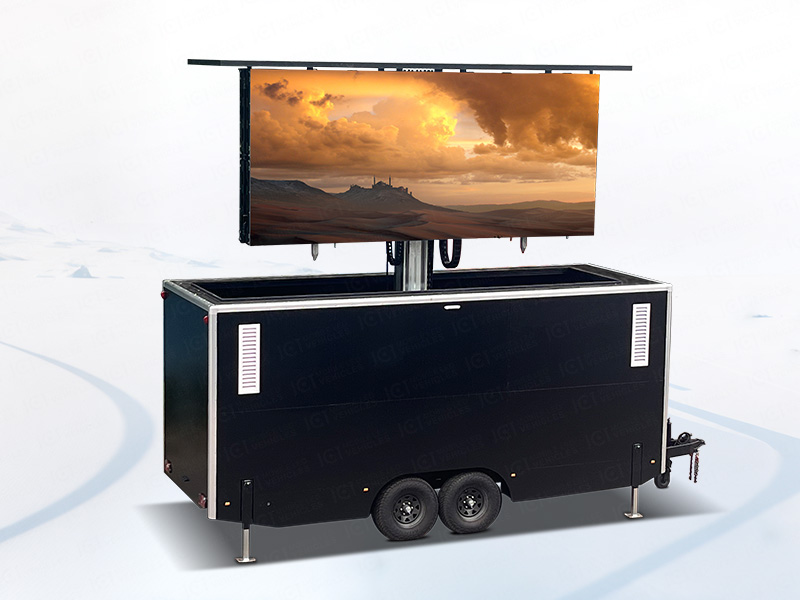

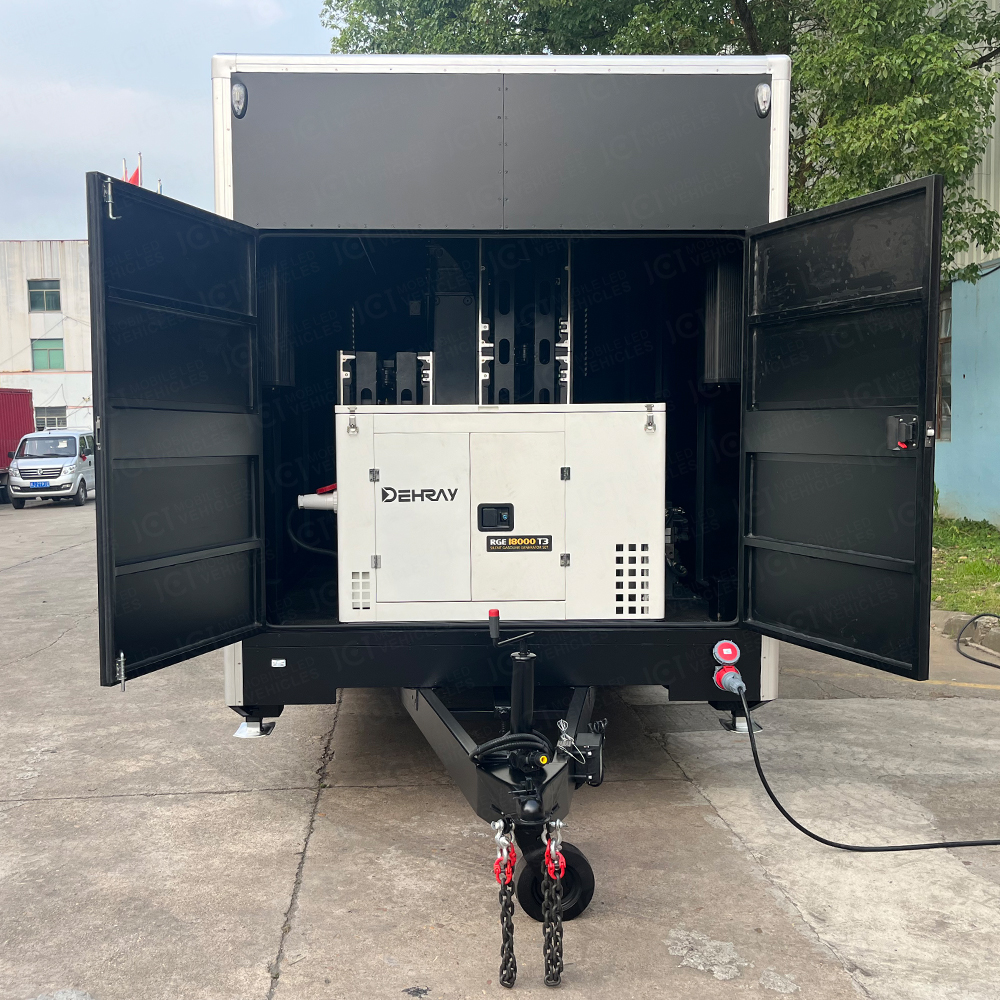

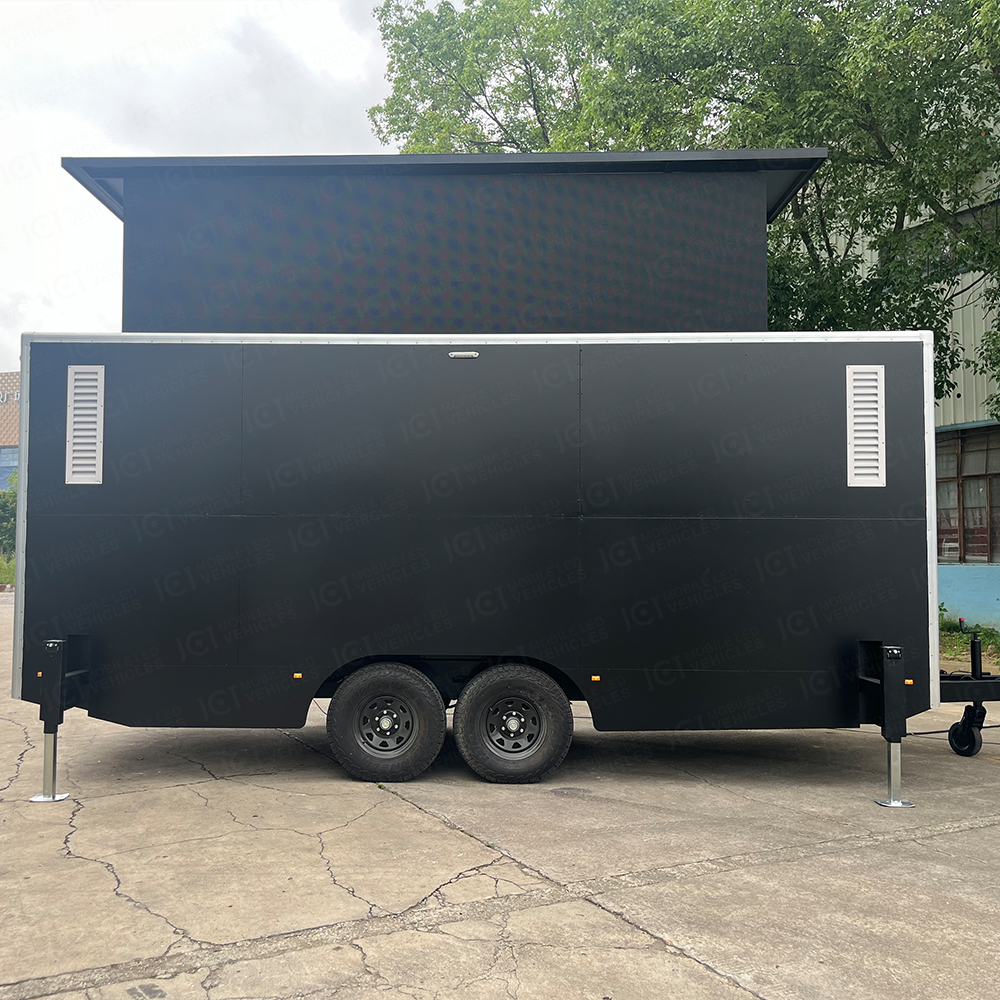

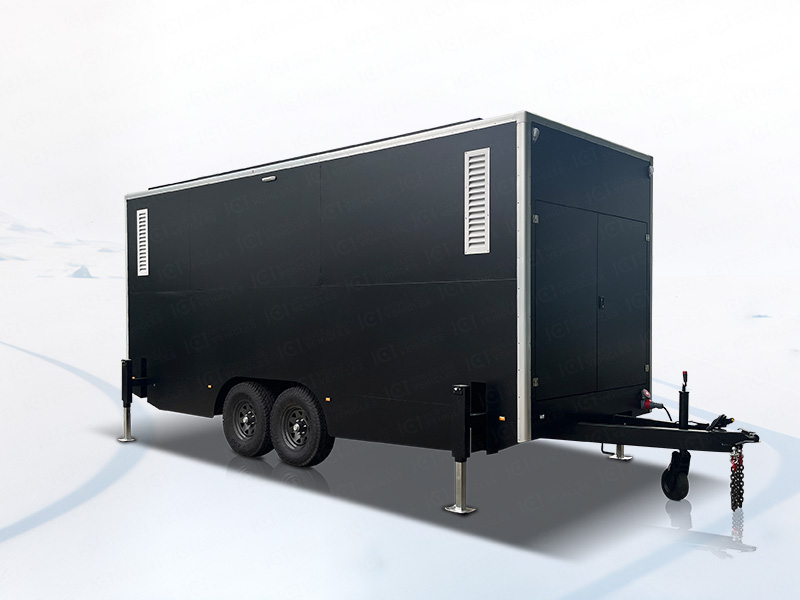

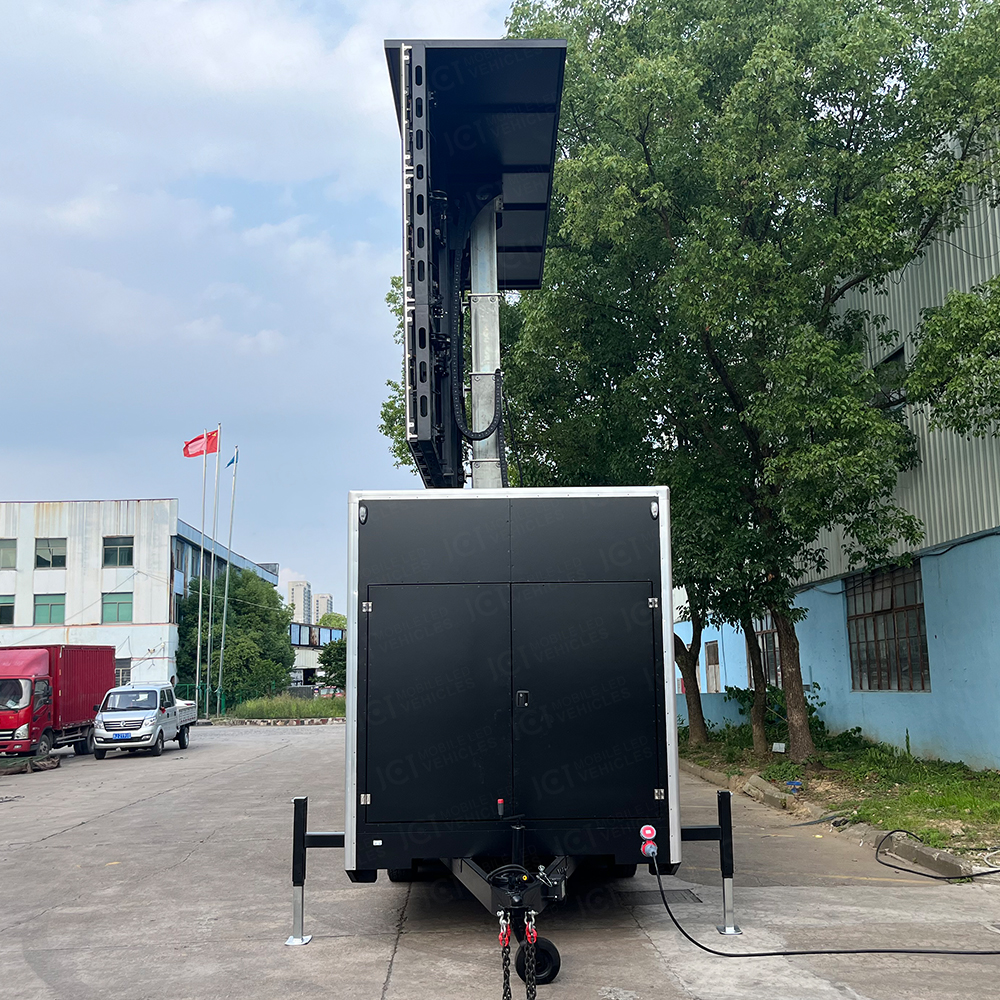

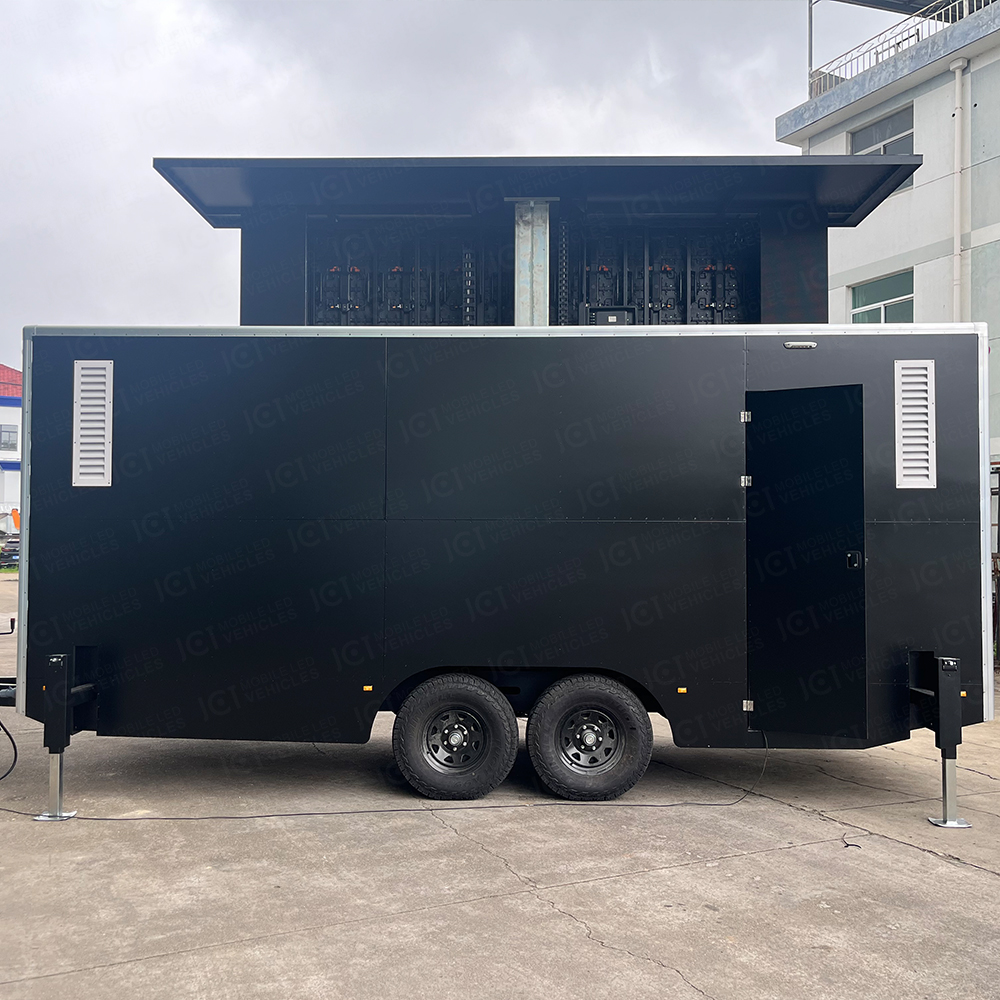

Closed box design: MBD-16S trailer has been designed with 7500x2100x2500mm closed box structure, internal integrated with two split LED outdoor display, integrated into a whole 5500mm (W) * 3000mm (H) LED large screen, box internal installed with a full set of multimedia system (including audio, power amplifier, industrial control, computer, etc.) and electrical facilities (such as lighting, charging socket, etc.), realize all the functions required for outdoor display, greatly simplify the activity publicity site layout process.

Outdoor protection performance: the box is made of strong steel structure frame and aluminum alloy outer frame, which can not only resist the erosion of bad weather (such as wind and rain, dust), but also protect the internal equipment from collision and impact in the process of transportation and storage, to ensure the long-term stable operation of the equipment.

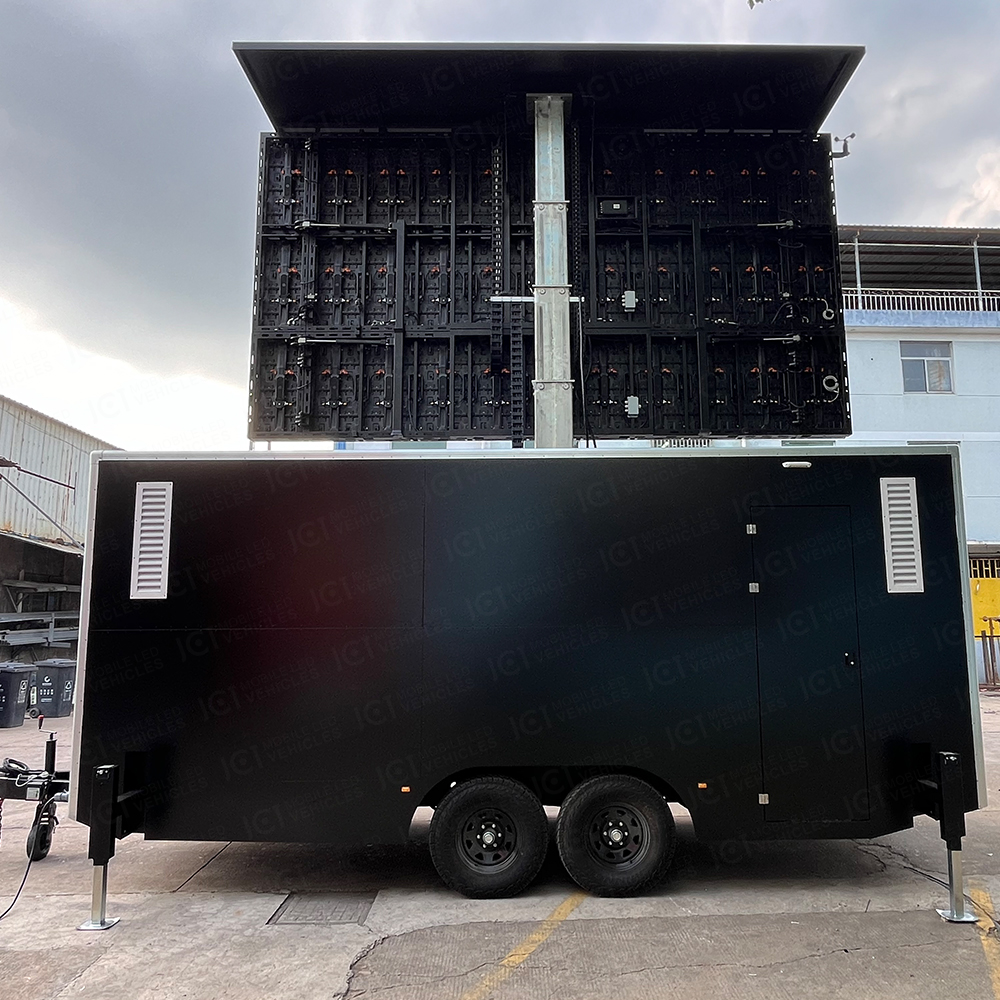

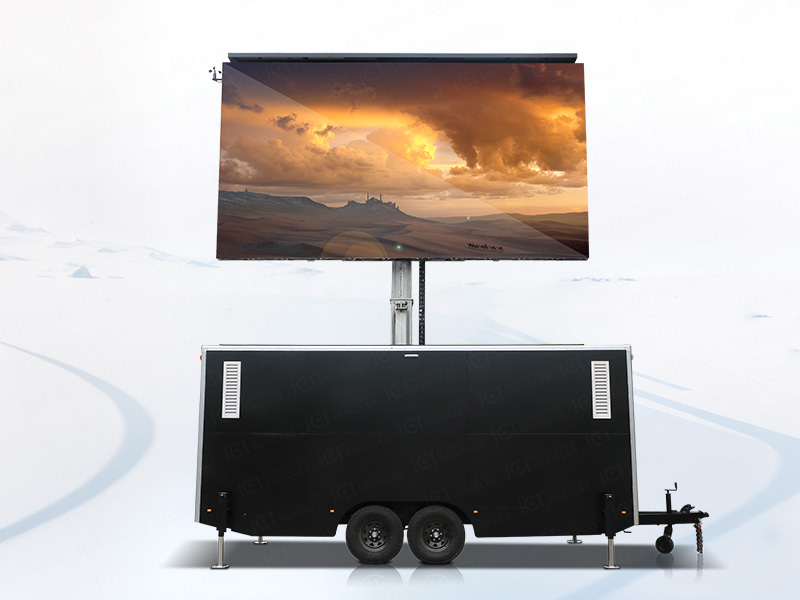

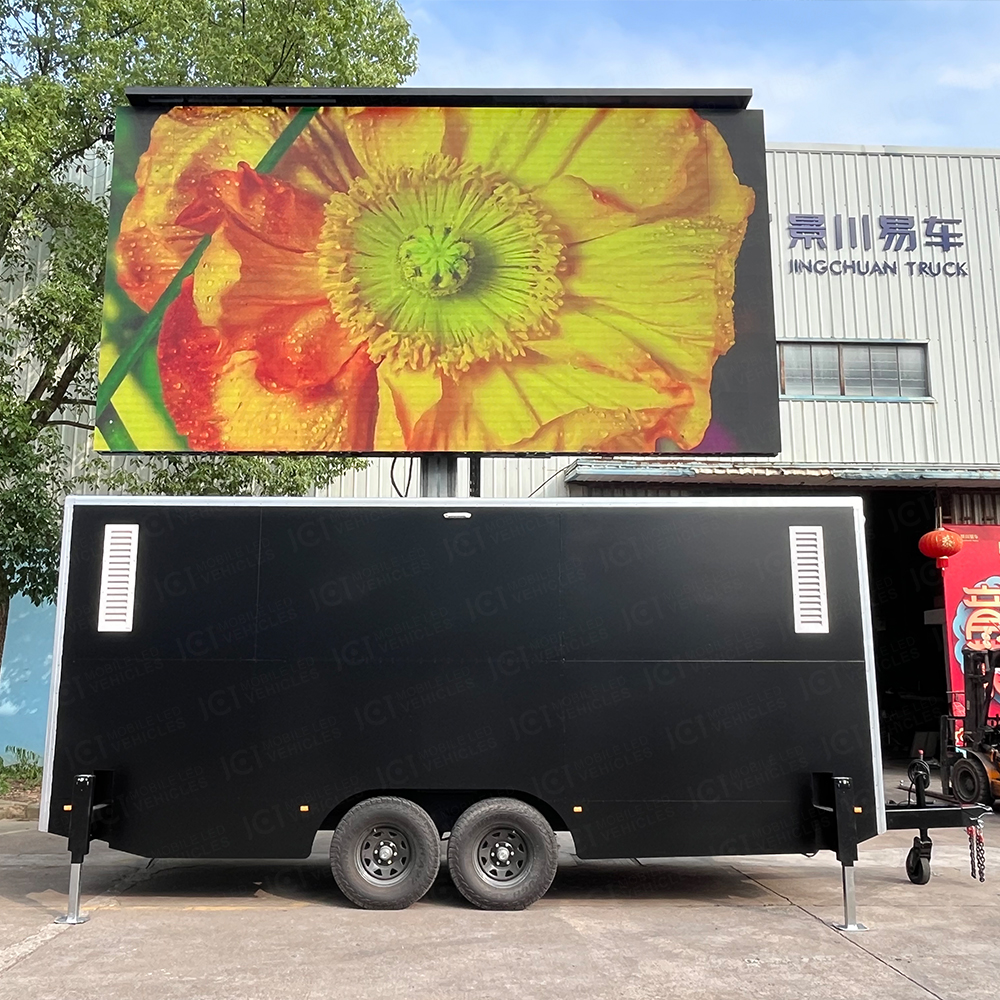

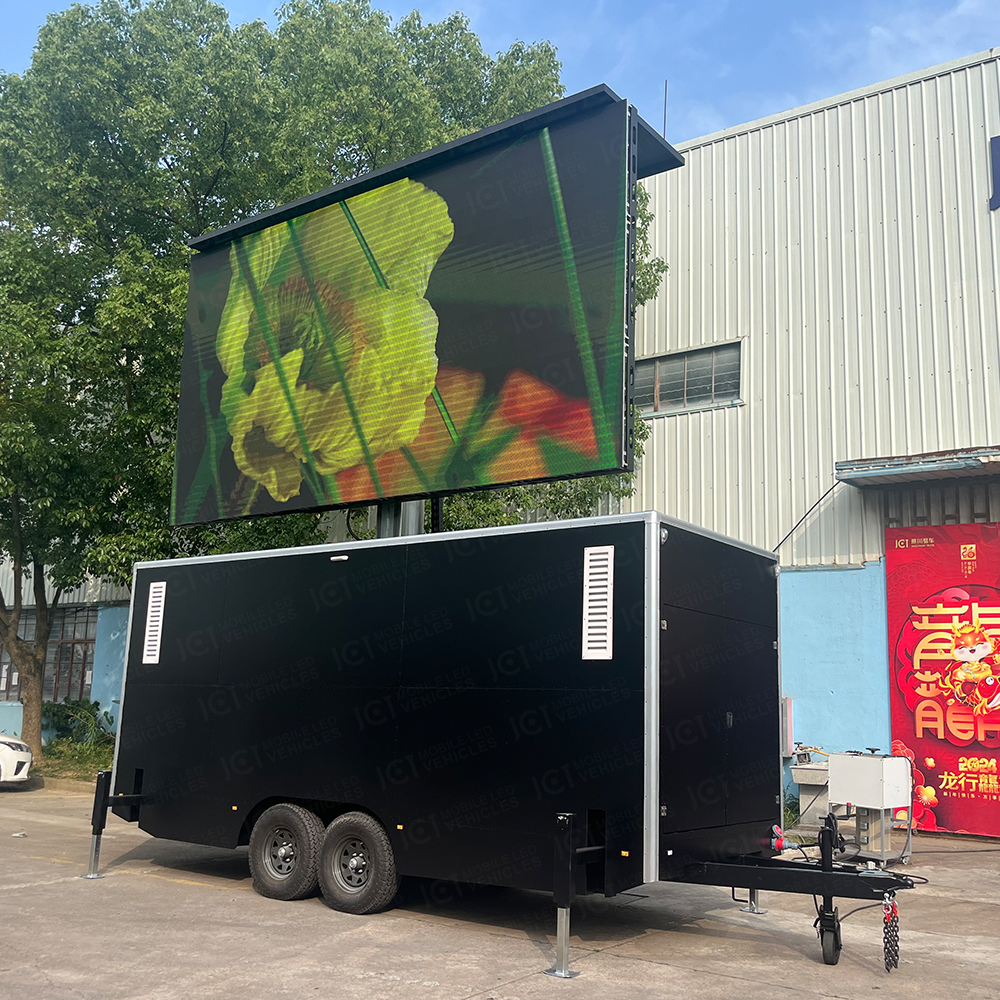

Flexible display form: The lifting and foldable design gives the MBD-16S Enclosed 16sqm box-type LED mobile trailer high flexibility, which can quickly adapt to different venues and display needs. Both flat and complex ground, can be easily installed and adjusted to a satisfactory viewing angle.

Strong mobility: Since the original design intention is for on-board use, MBD-16S box LED trailer can be easily installed on a variety of movable vehicles, such as vans, trucks or semi-trailers, for flexible mobile publicity across regions, especially suitable for activities that need frequent replacement of display locations.

Multimedia support: the built-in multimedia system supports the playback of audio, video, image and other formats files, combined with the high-definition display effect of LED screen, can present vivid and rich display content, greatly enhance the attraction of advertising and activity display.

Convenient operation and maintenance: Through the intelligent control system, users can easily realize the control and fault diagnosis, which greatly reduces the difficulty of field operation. At the same time, the modular design makes the equipment maintenance and upgrade easier and more convenient.

application scenarios:

MBD-16S 16sqm led box trailer can be widely used in all kinds of outdoor advertising, parade publicity, new product release, sports events, music festival, exhibition and other activities. Its excellent visual effects, flexible display form and protective performance, make it become the choice of outdoor mobile display equipment. Whether it is commercial promotion or cultural communication, MBD-16S led box trailer can bring users shocking visual feast with excellent performance and convenient operation.

Parameters

MBD-16S ENCLOSED
Specification
Trailer appearance
Gross weight 3500kg Dimension  (screen up) 7500×2100×2500mm
Chassis German-Made AIKO Max speed 100Km/h
Breaking Hydraulic breaking Axle 2 axles,Bearing 5000kg
LED Screen
Dimension 5500mm(W)*3000mm(H) Module Size 250mm(W)*250mm(H)
Light brand Nationstar Dot Pitch 3.91mm
Brightness 5000cd/㎡ Lifespan 100,000hours
Average Power Consumption 200w/㎡ Max Power Consumption 600w/㎡
Power Supply G-energy DRIVE IC ICN2153
Receiving card Nova MRV316 Fresh rate 3840
Cabinet material Die-casting aluminum Cabinet size/weight 500*500mm/7.5KG
Maintenance mode Rear service Pixel structure 1R1G1B
LED packaging method SMD1921 Operating Voltage DC5V
Module power 18W scanning method 1/8
HUB HUB75 Pixel density 65410 Dots/㎡
Module resolution 64*64Dots Frame rate/ Grayscale, color 60Hz,13bit
Viewing angle, screen flatness, module clearance H:120°V:120°、<0.5mm、<0.5mm Operating temperature -20~50℃
system support Windows XP,WIN 7
Power parameter
Input voltage Three phases five wires 415V Output voltage 220V
Inrush current 30A Average power consumption 250wh/㎡
Multimedia Control System
Video processor NOVA Model VX400S
Power amplifier 1000W Speaker 200W*4
Hydraulic System
Wind-proof level Level 8 Supporting legs Stretching distance 300mm
Hydraulic Lifting and folding system Lifting Range 4600mm, bearing 3000kg Fold the ear screens on both sides 4pcs electric pushrods folded
Rotation Electric rotation 360 degrees
Others
Wind speed sensor Alarm with mobile APP
remark
Maximum trailer weight :3500 kg
Trailer width:2.1m
Maximum Screen height (top):7.5m
Galvanized chassis made according to DIN EN 13814 and DIN EN 13782
Anti slip and waterproof floor
Hydraulic, galvanized and powder coated telescopic mast with automatic mechanical
safety locks
Hydraulic pump with manual control (knobs) to lift LED screen up,3 phase
360o screen manual rotation with mechanical lock
Auxilary emergency manual control - handpump - screen folding without power
according to DIN EN 13814
4 x manually adjustable sliding outriggers:For very large screens it may be necessary to put out the outriggers for transport (you can take it to the car pulling the trailer).
