Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

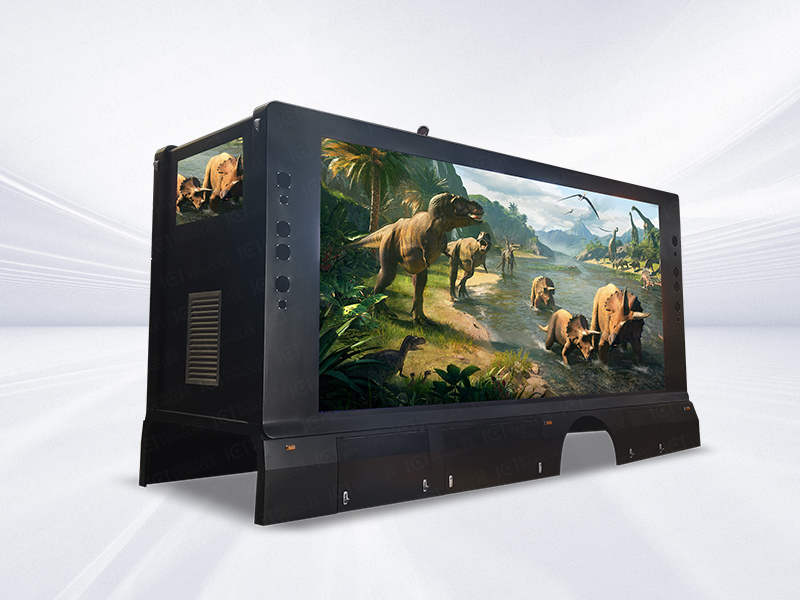

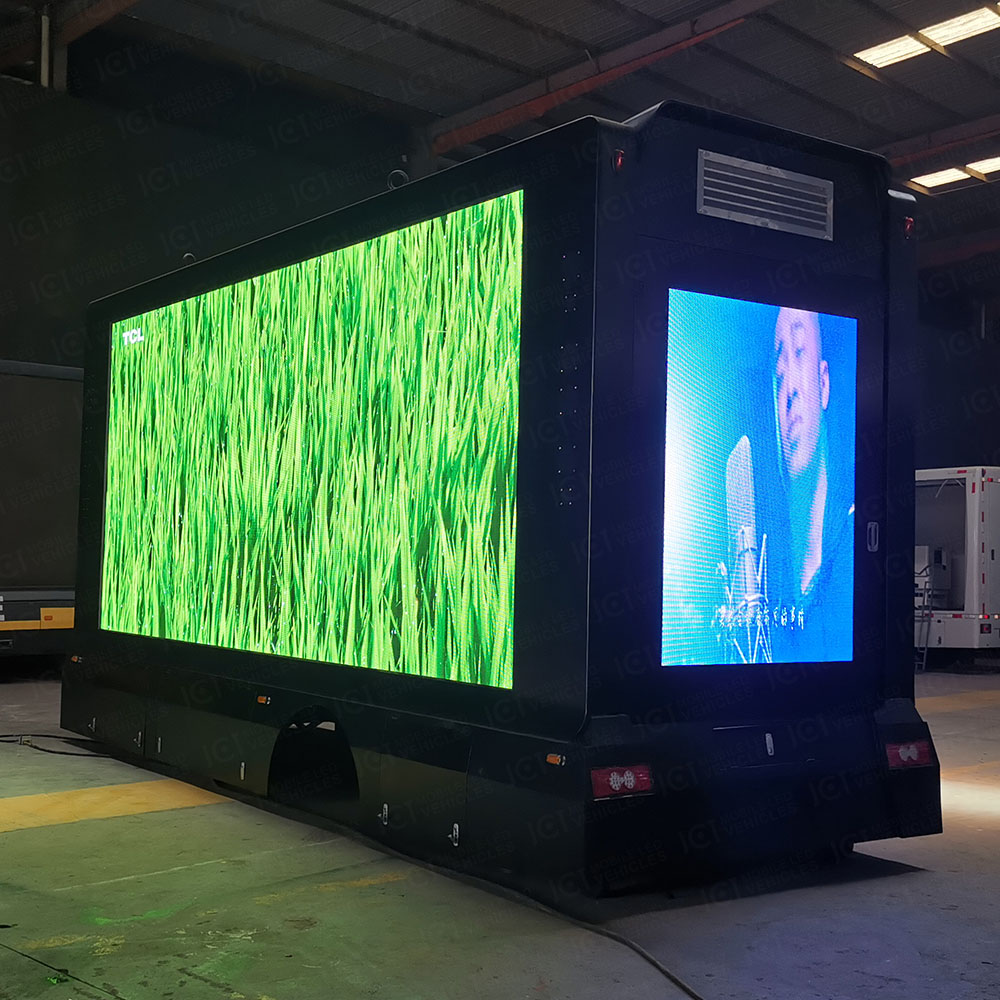

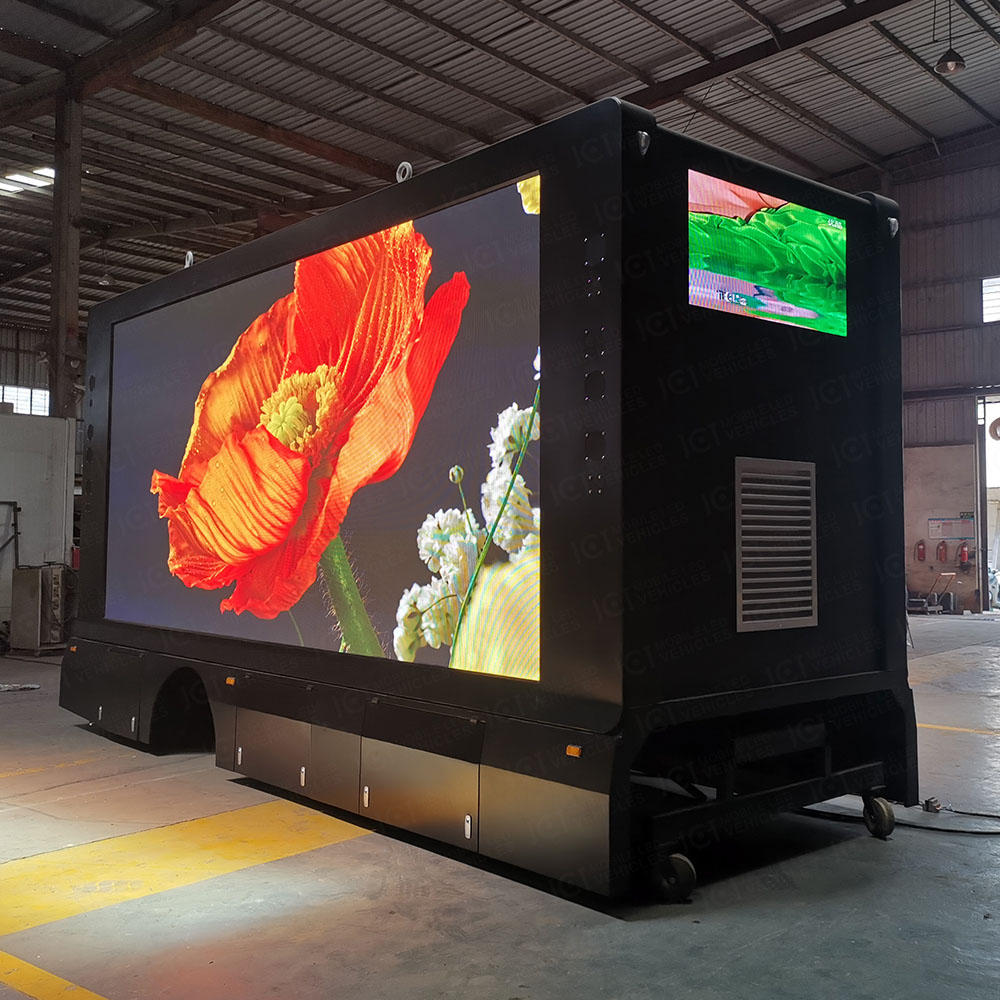

JCT Corporation launches the 4800 LED Truck Body. This LED truck body can be equipped with single-sided or double-sided large outdoor LED full-color display, with a screen area of 5440*2240mm. Not only single-sided or double-sided displays are available, but also a fully automatic hydraulic stage can be equipped as an option according to the customer's needs. When the stage is expanded, it immediately becomes a mobile stage truck. This outdoor advertising vehicle not only has a beautiful appearance, but also powerful functions. It can display three-dimensional video animation, play rich and diverse content, and display graphic and text information in real time. It is very suitable for product promotion, brand publicity and large-scale activities.
JCT is deeply aware of the certification difficulties faced by Chinese truck chassis exported to Europe and the United States. In order to bring a better business process to our customers, we provide an innovative solution: we focus on the production of LED advertising truck body, so that our customers can buy the suitable truck chassis locally. This strategy not only solves the problem of export certification, but also saves the customer a lot of cost of importing LED advertising trucks. What's more, the installation process of the LED truck body will be quick and easy as long as the chassis drawings are followed.
This Model 4800 LED Truck Body is an innovative product from JCT that combines advanced technology and innovative solutions to provide customers with a complete range of solutions. Its features include:

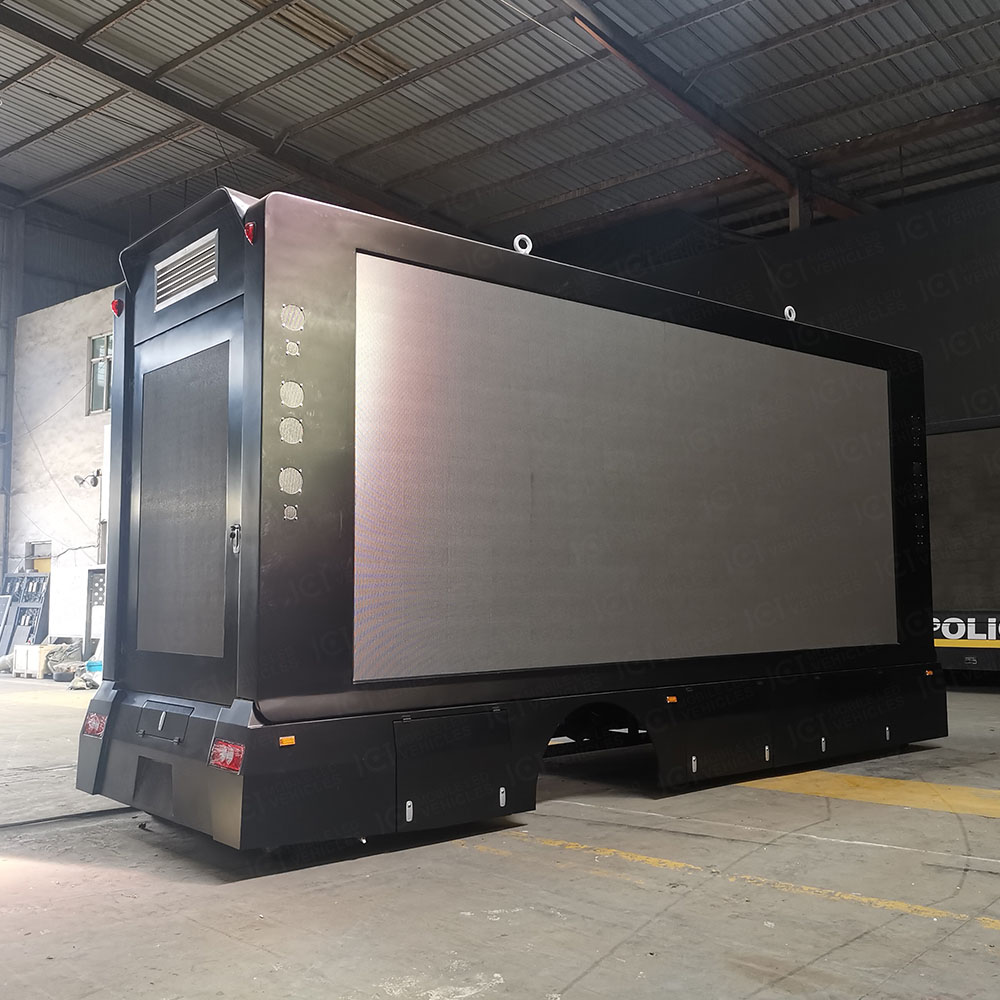

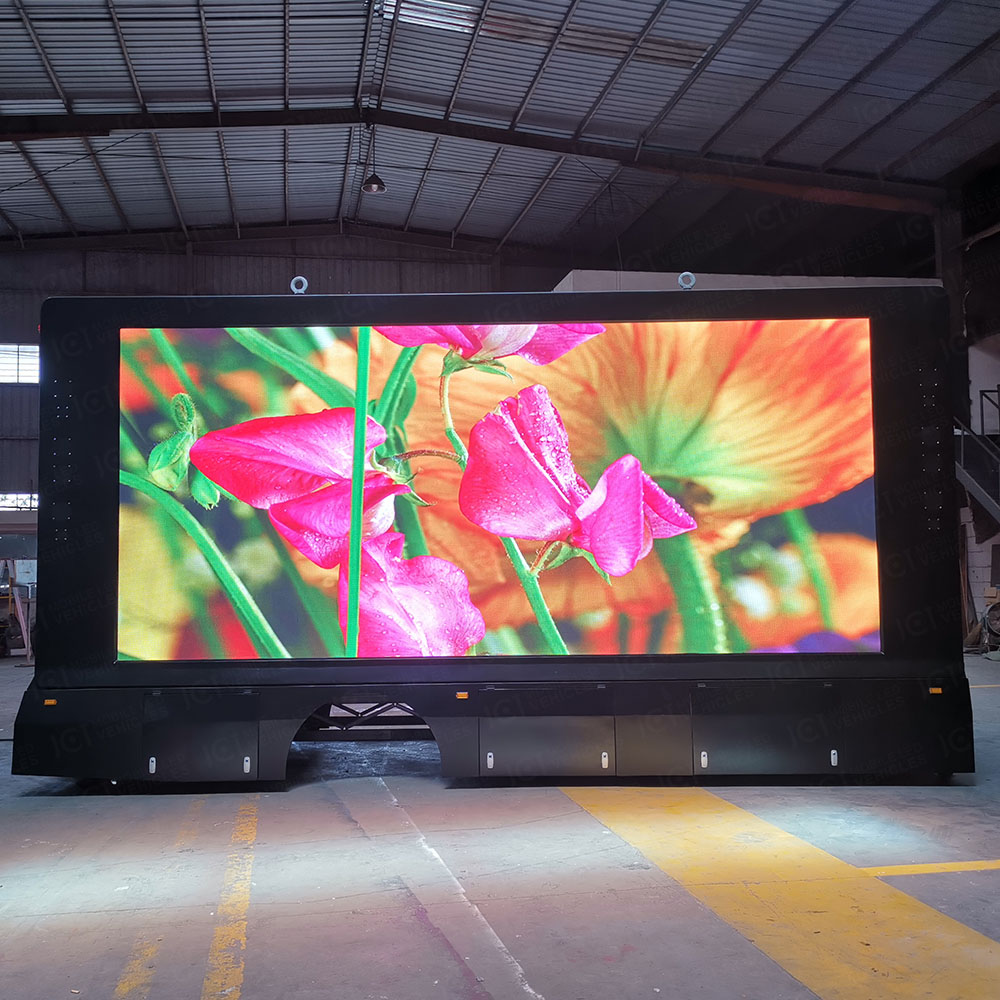

Large Screen Size: The LED Truck Body is equipped with a large 5440*2240mm outdoor LED full-color display, which can show high-definition video and images to attract people's attention.

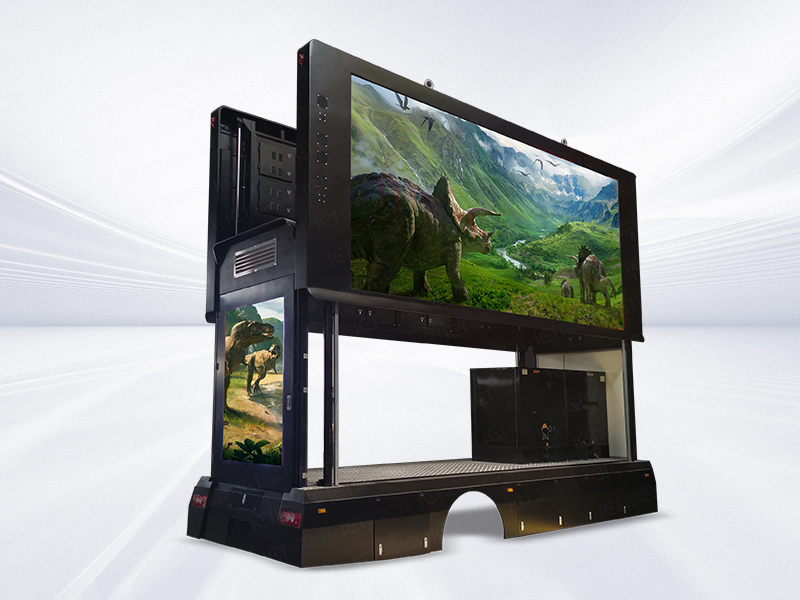

Three sides display: Model 4800 LED truck body can choose single side or double sides or three sides display according to customer's demand, which can meet the needs of different scenes and enhance the advertising effect.

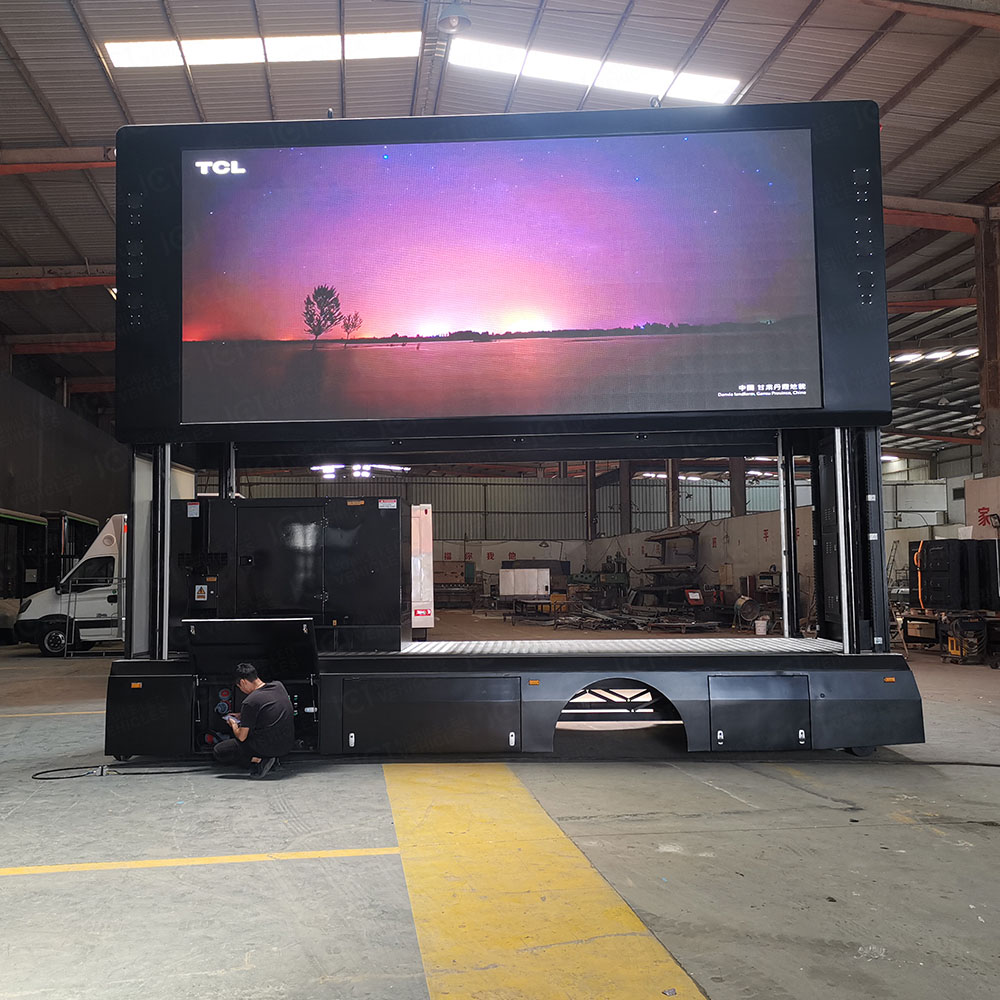

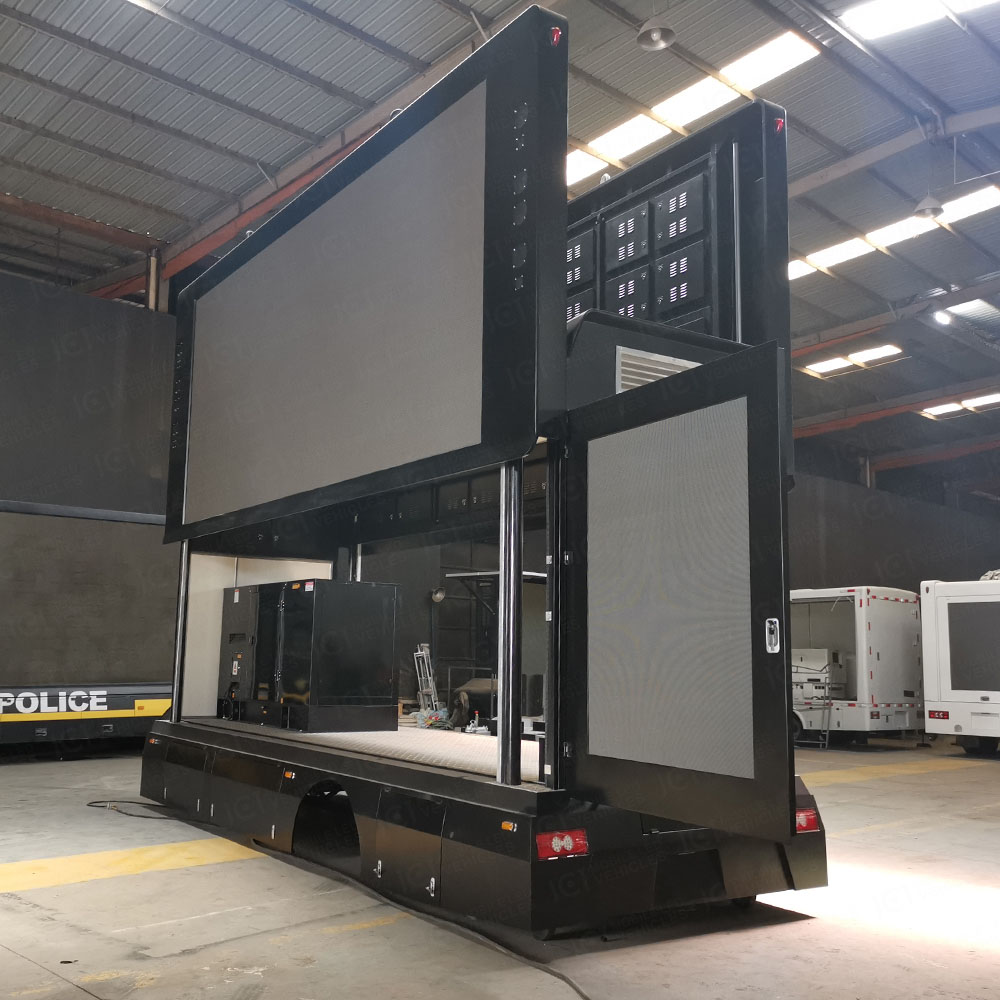

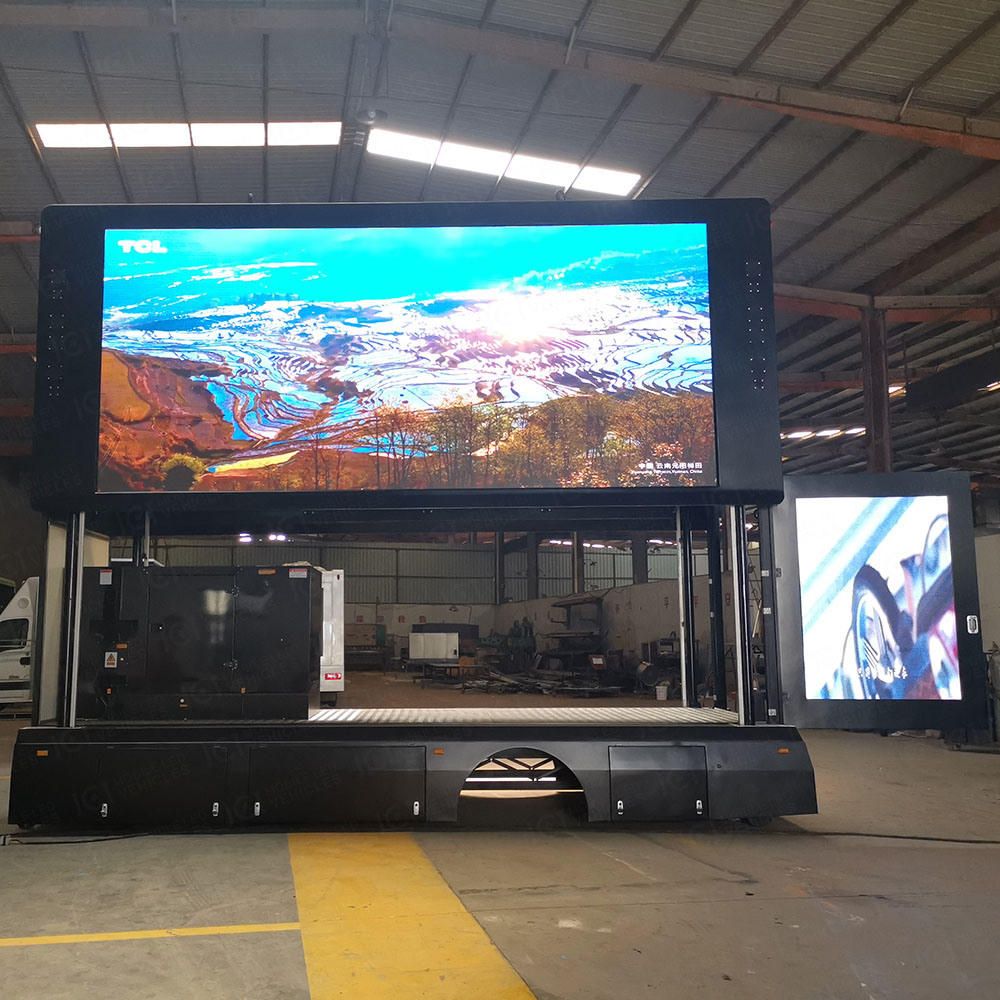

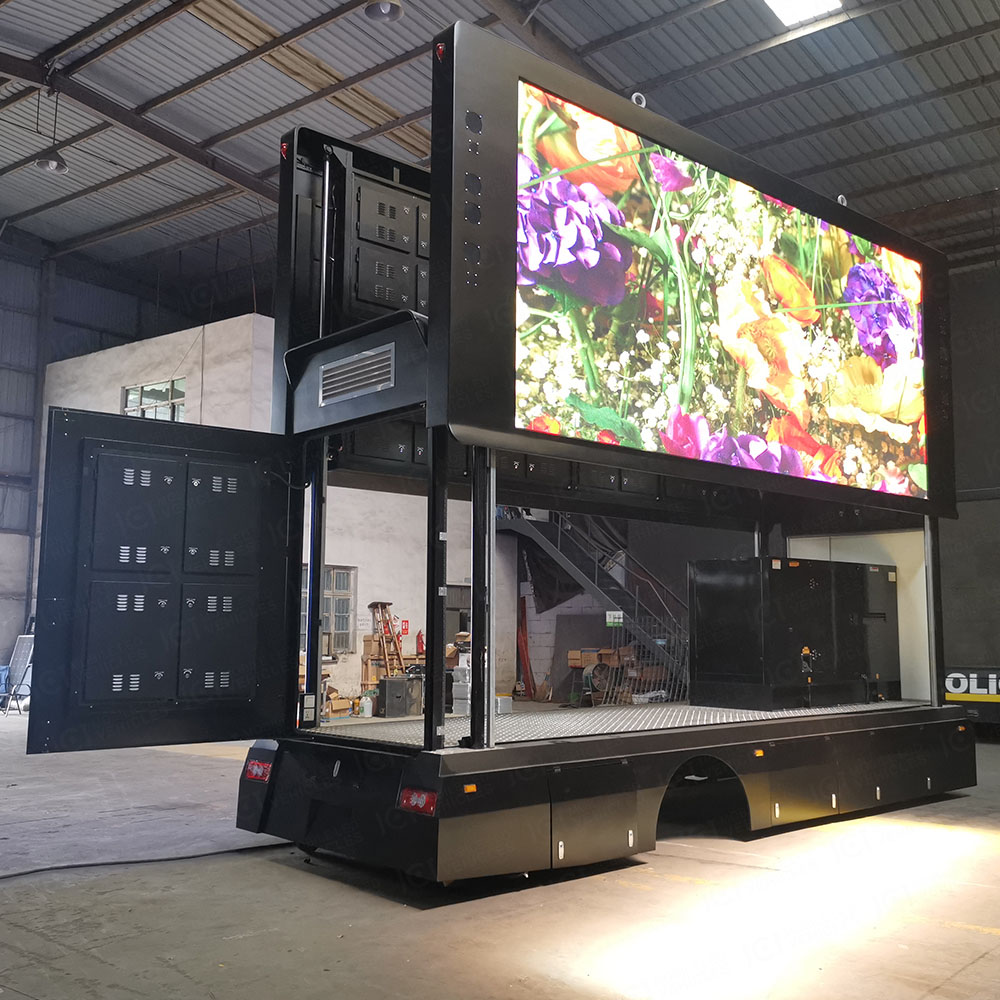

Fully Automatic Hydraulic Stage: Model 4800 LED truck body can be equipped with optional fully automatic hydraulic stage, which can be quickly unfolded into a mobile stage truck to provide convenience for the event site.
Multi-functional display: 4800 LED truck body can display 3D video animation, play diversified contents, and display graphic and text information in real time to meet different promotional needs.
Solve the problem of export certification: JCT provides the production of LED truck body so that customers can purchase the suitable truck chassis locally, solving the problem of export certification and saving costs for customers.
Simple and fast installation: As long as the chassis is manufactured according to the design drawings, the installation process of LED truck bodies will be simple and fast, providing convenience for customers.
The 4800 LED Truck Body is a powerful and beautiful product that is perfect for product promotion, branding and large-scale events. Whether it's for outdoor advertising or event setup, the 4800 LED Truck Body can bring better promotional effect and smoother business process to our customers. JCT is committed to providing the best LED Truck Body solutions to meet different customers' needs. We believe that through our products and services, you will achieve greater success in the European and American markets. Please feel free to contact us for more details about our products and services.
|
4800 TRUCK body 3 sides screen |
|||
|
Specification |
|||
|
Chassis（Customer provided） |
|||
|
Brand |
Foton Aumark |
Dimension |
8730mm*2370mm*3990mm |
|
Power |
Commins |
Total mass |
11695KG |
|
Axle base |
4800mm |
Unladen mass |
10700KG |
|
Truck body |
|||
|
Brand |
JCT |
Dimension |
6600mm*2200mm*3700mm |
|
Weight |
5600KG |
|
|
|
Silent generator group |
|||
|
Generator set |
24KW,Cummins |
dimension |
2200*900*1350mm |
|
Frequency: |
60HZ |
Voltage: |
415V/3 phase |
|
Generator: |
Stanford PI144E (full copper coil, brushless self-excitation, including automatic pressure regulating plate) |
LCD controller: |
Zhongzhi HGM6110 |
|
Micro break: |
LS, relay: Siemens, indicator light + wiring terminal + key switch + emergency stop: Shanghai Youbang Group |
Maintenance-free DF battery |
CAMEL |
|
LED full color screen (Left and right side) |
|||
|
Dimension |
5440mm(W)*2400mm(H) |
Module size |
320mm(W) x 160mm(H) |
|
Module resolution |
64 x32 Pixel |
Lifespan |
100,000 hours |
|
Light brand |
Kinglight light |
Dot pitch |
5mm |
|
Light brand |
Kinglight |
Brightness |
≥6500cd/㎡ |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
40000 Dots/㎡ |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
system support |
Windows XP,WIN 7， |
Operating temperature |
-20~50℃ |
|
LED full color screen (Rear side) |
|||
|
Dimension(rear side) |
1280mm*1760mm |
Module size |
320mm(W) x 160mm(H) |
|
Module resolution |
64 x32 Pixel |
Lifespan |
100,000 hours |
|
Light brand |
Nationstar/Kinglight light |
Dot pitch |
5 mm |
|
Light model |
SMD2727 |
Refresh rate |
3840 |
|
Power supply |
Meanwell |
Brightness |
≥6500cd/ m² |
|
Average power consumption |
300w/㎡ |
Max power consumption |
700w/㎡ |
|
Power parameter (external prower supply) |
|||
|
Input voltage |
3 phase 5 wire 415V |
Output voltage |
240V |
|
Inrush current |
28A |
Average power consumption |
300wh/㎡ |
|
Multimedia control system |
|||
|
Video processor |
NOVA |
Model |
VX600 |
|
Luminance sensor |
NOVA |
|
|
|
Sound system |
|||
|
Power amplifier |
1500W |
Speaker |
200W,4 pcs |
|
hydraulic lifting |
|||
|
distance of travel |
2000 mm |
bearing |
3000KG |
