Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

Stage board

The stage plate of this stage car is configured with a double folding stage plate, and the left and right stage plates have a double folding structure, and are vertically built on both sides of the inner floor of the car body. This design not only saves space, but also adds flexibility to the stage. The adjustable stage legs built into the inside of the two stage boards are expanded and supported on the ground along with the expansion of the stage board to ensure the stability and safety of the stage surface.

The stage panel uses 18mm coated plywood, a material that is robust and durable to withstand frequent use and various climatic conditions.


Interior layout of the wing body

The interior of the car is cleverly divided into two parts: the front is the generator room, the rear is the stage car structure. This layout not only optimizes the use of space, but also ensures the independence and non-interference between the generator and the stage area.


Fender plate with aluminum alloy truss

The two sides of the fender can not only be turned up hydraulic open, but also equipped with a spliced wing aluminum alloy truss, which not only enhances the stability and bearing capacity of the fender, but also increases the beauty and appreciation of the stage.


Hydraulic leg and remote control

The bottom of the stage car is equipped with 4 hydraulic legs, which can easily open the hydraulic legs by operating the hydraulic remote control and lift the whole vehicle to the horizontal state. This design ensures the stability and safety of the vehicle, so that the stage performance is more secure and smooth.


Stage surface expansion dimensions

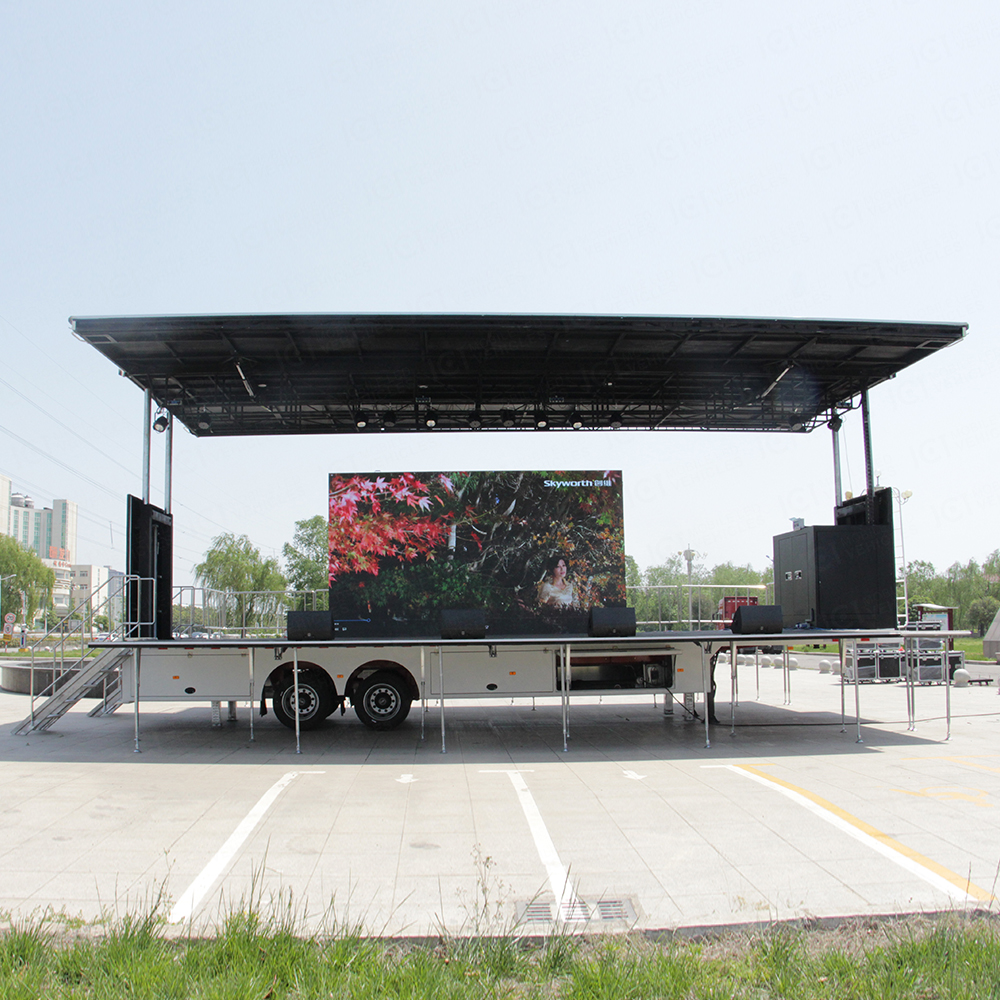

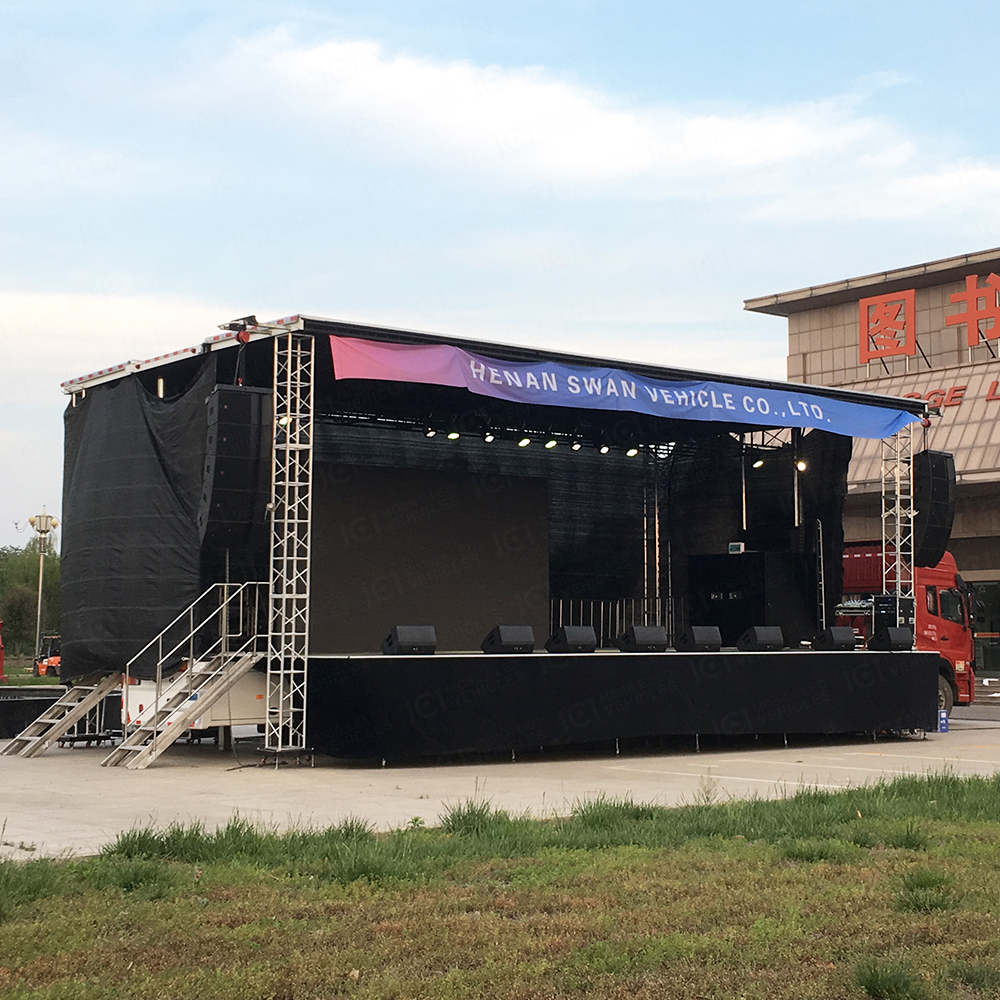

When the two fenders are deployed, the two stage panels are deployed outward through the hydraulic system, while the built-in adjustable stage legs also unfold and support the ground. At this point, the folding stage board and the box bottom board together to form a spacious stage surface. The front end of the stage board is also made with an artificial flip auxiliary platform. After the expansion, the size of the whole stage surface is 11900mm wide and 8500mm deep, which is enough to meet the needs of various large-scale stage performances.


In short, this 13-meter stage semi-trailer has become an ideal choice for a variety of large outdoor stage performances with its spacious stage space, flexible stage board design, stable support structure and convenient operating system. Whether it is concert, outdoor promotion or celebration exhibition, it can present you a wonderful stage world.


Parameters

13m stage truck configuration

Product name

semi-trailer stage truck

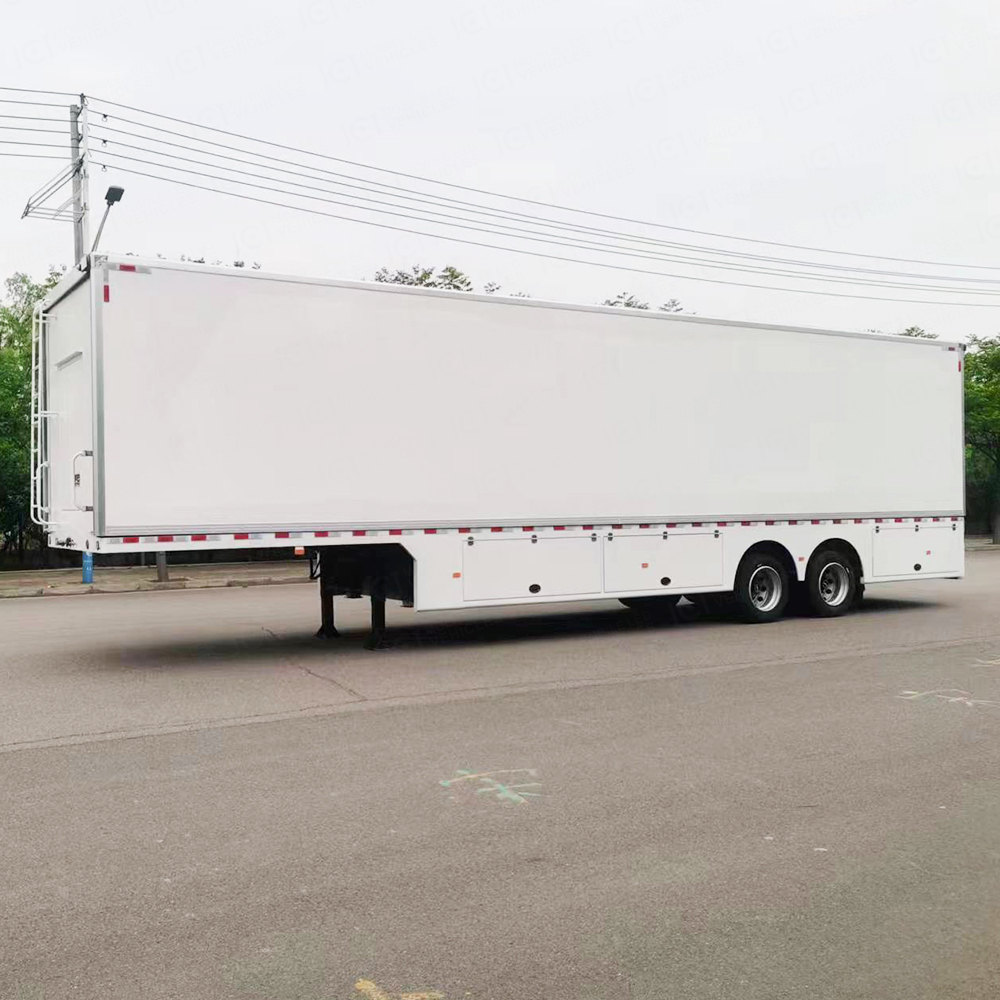

Overall truck size

L(13000)mm 、 W(2550)mm、 H(4000)mm

Chassis

Flat semi-trailer structure, 2 axles, φ50mm traction pin, equipped with 1 spare tire;

Structure overview

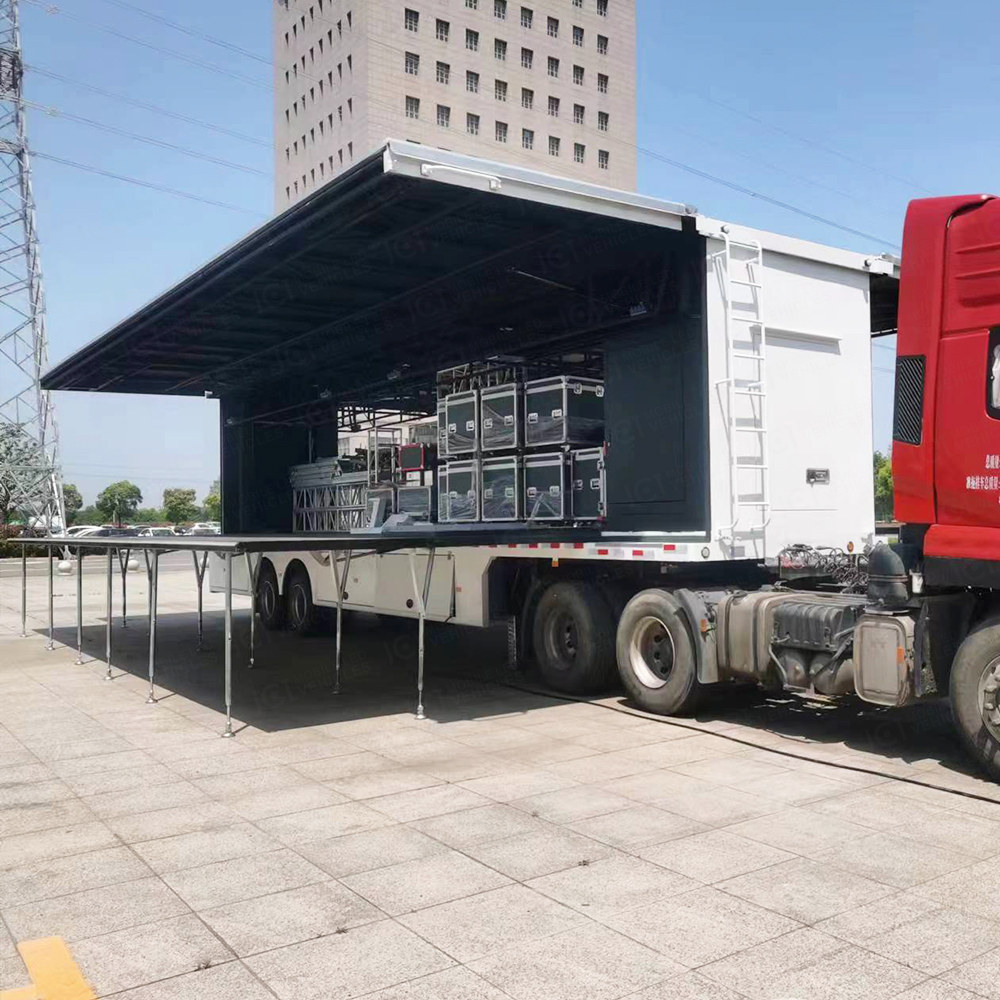

The wings on both sides of the semi-trailer stage truck can be hydraulically flipped upward to open, and the built-in folding stage panels on both sides can be hydraulically unfolded outward. The interior of the carriage is divided into two parts: the front part is the generator room, and the rear part is the stage carriage structure; There is a single door in the middle of the panel, the whole vehicle is equipped with 4 hydraulic outriggers, and the four corners of the wing panel are each equipped with a spliced wing aluminum alloy truss;

Stage truck configuration parameters

Generator room

Side panels: single doors with shutters on both sides, built-in stainless steel door locks, and bar-shaped stainless steel hinges; the door panels open toward the cab; generator dimensions: 1900mm long × 900mm wide × 1200mm high.

Step ladder: The pull-out step ladder is made at the lower part of the right door. The step ladder is made of stainless steel frame and patterned aluminum plate tread.

The top plate is an aluminum flat plate, the outer skin is a steel frame, and the interior is a color-plated plate;

The lower part of the front panel is made into a double-door double door with blinds, and the door height is 1800mm;

A single door is made in the middle of the back panel and opens towards the stage area.

The bottom plate is a hollow steel plate, which is conducive to heat dissipation;

The roof of the generator room and the surrounding side panels are filled with rock wool boards with a filling density of 100kg/m³, and sound-absorbing cotton is pasted on the inner wall;

Hydraulic support leg

The bottom of the stage truck is equipped with 4 hydraulic outriggers. Before parking and opening the car body, operate the hydraulic remote control to open the hydraulic outriggers and lift the entire vehicle to a horizontal state to ensure the stability and safety of the entire truck;

Wing panel

1.The panels on both sides of the car body are called wing panels. The wing panels can be flipped upward through the hydraulic system to form a stage ceiling with the top panel. The overall ceiling is lifted vertically upward to a height of about 4500mm from the stage panel through the front and rear gantry frames;

2.The outer skin of the wing panel is a fiberglass honeycomb panel with a thickness of 20mm (the outer skin of the fiberglass honeycomb panel is a fiberglass panel, and the middle layer is a polypropylene honeycomb panel);

3.A manual pull-out light hanging rod is made on the outside of the wing panel, and a manual pull-out audio hanging rod is made on both ends;

4.A truss with diagonal braces is added to the inside of the lower side beam of the wing panel to prevent the wing panel from deforming.

5、The wing panels are edged with stainless steel;

Stage panel

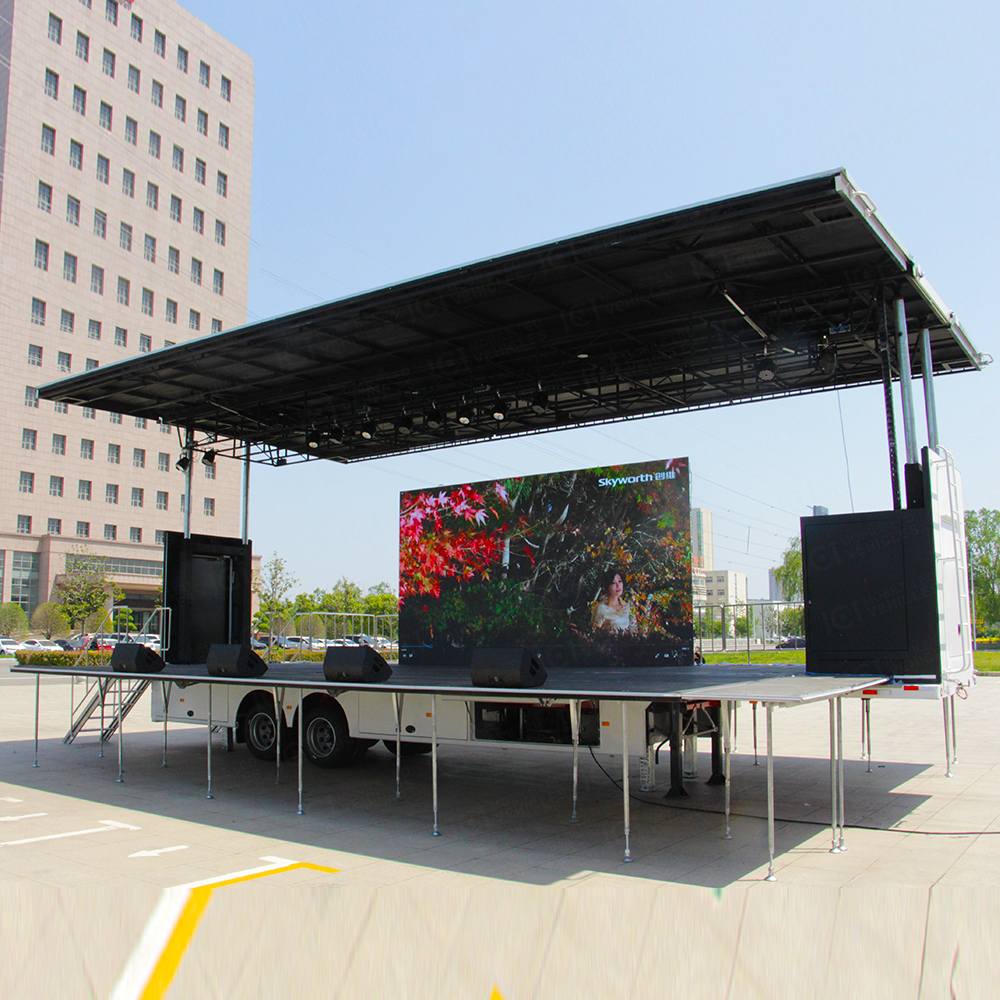

The left and right stage panels have a double-folding structure and are vertically built into both sides of the inner floor of the car body. The stage panels are made of 18mm film-coated plywood. When the wing panels on both sides are unfolded, the stage panels on both sides unfold outward through the hydraulic system. At the same time, the adjustable stage legs built into the inside of the two stage panels expand and support the ground in conjunction with the unfolding of the stage panels. The stage panels and the car are folded. The body and base plates together form the stage surface. A manually flipped auxiliary stage is made at the front end of the stage board. After unfolding, the stage surface size reaches 11900mm wide x 8500mm deep.

Stage fencing

The stage backstage is equipped with plug-in stainless steel guardrails with a height of 1000mm and a guardrail storage rack;

Stage ladder

The stage board is equipped with 2 sets of hook-type step ladders for going up and down the stage. The frame is a stainless steel frame and a millet pattern aluminum plate tread. Each step ladder is equipped with 2 plug-in stainless steel handrails;

Front panel

The front panel is a fixed structure, the outer skin is a 1.2mm iron plate, and the frame is a steel pipe. The inside of the front panel is equipped with an electric control box and 2 dry powder fire extinguishers;

Back panel

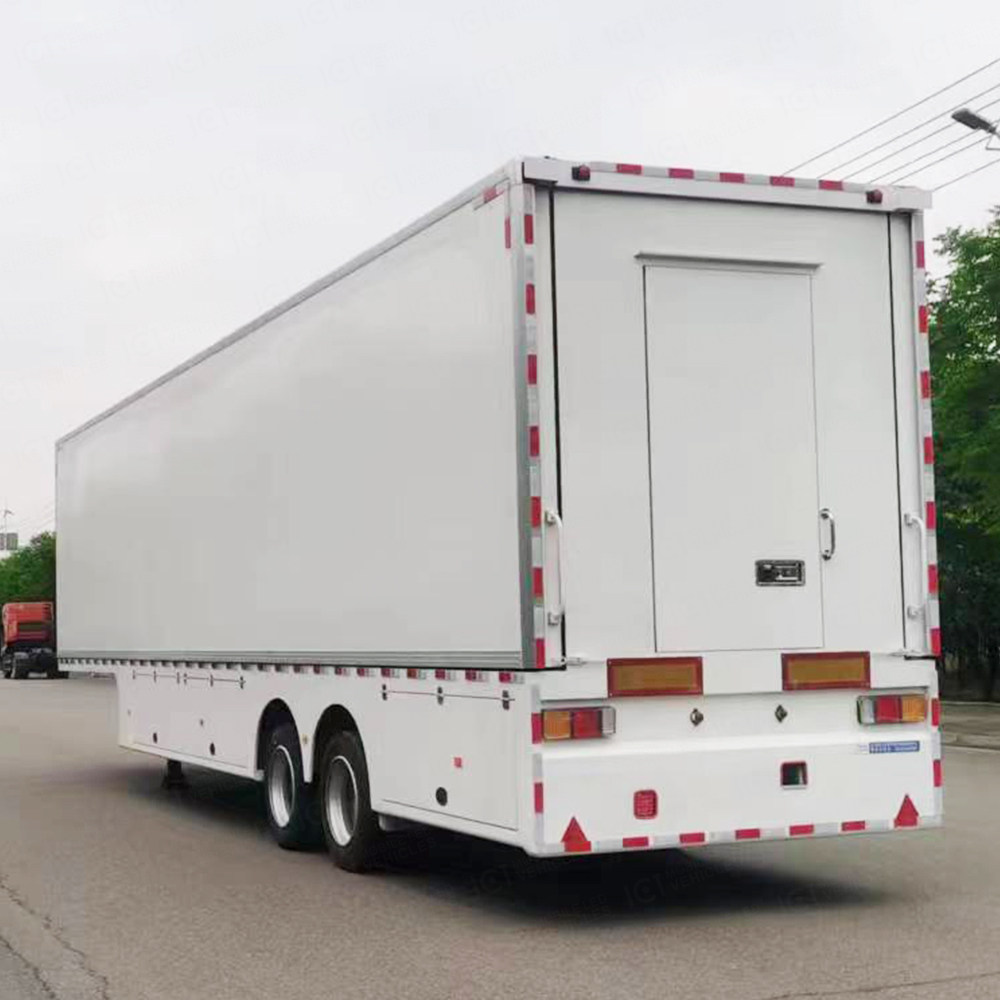

Fixed structure, the middle part of the back panel is made into a single door, with built-in stainless steel hinges and strip stainless steel hinges.

Ceiling

There are 4 lighting poles on the ceiling, and a total of 16 lighting socket boxes are installed on both sides of the lighting poles (junction box sockets are British standard). The stage lighting power supply is 230V, and the lighting power line branch line is 2.5m² sheathed wire; there are 4 An emergency light.

Inside the frame of the ceiling light frame, diagonal braces are added to strengthen it to prevent the ceiling from deforming.

Hydraulic system

The hydraulic system consists of a power unit, wireless remote control, wire-controlled control box, hydraulic support leg, hydraulic cylinder and oil pipe. The working power of the hydraulic system is provided by a vehicle-mounted 230V generator or an external power supply of 230V, 50HZ;

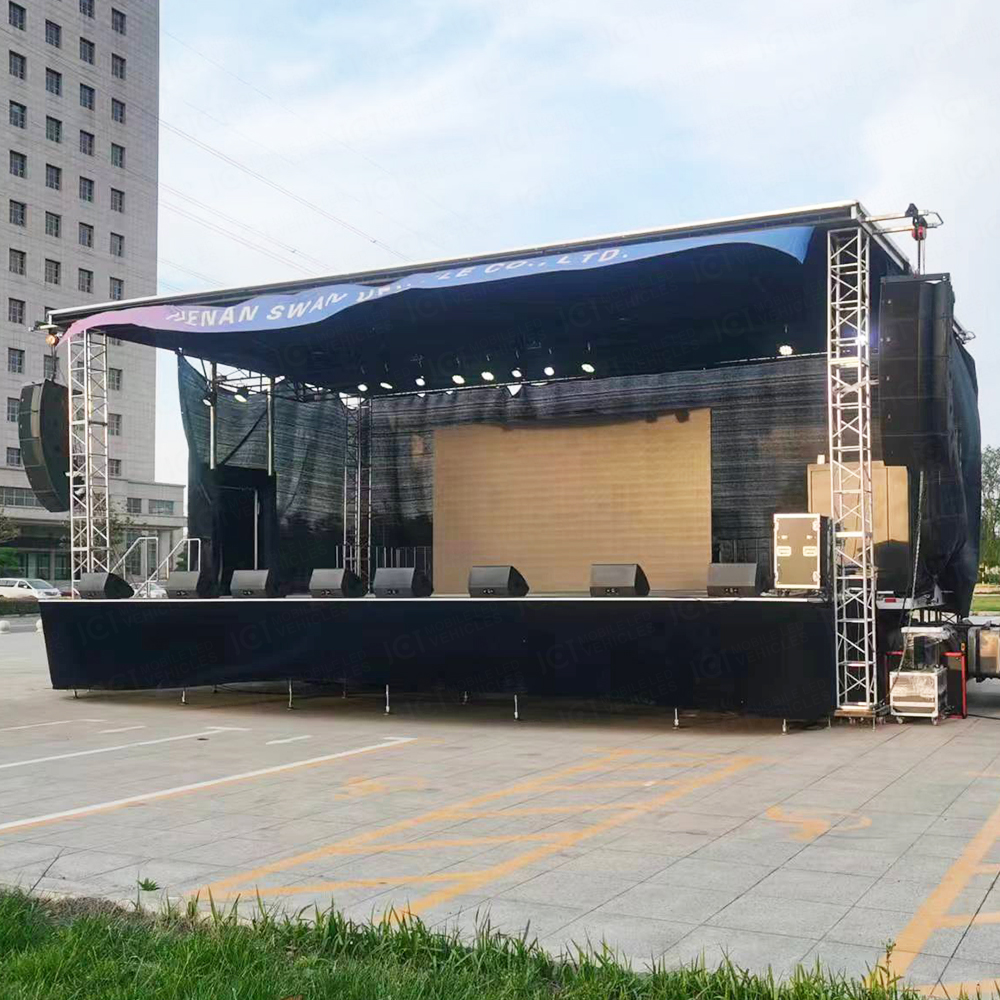

Truss

Equipped with 4 aluminum alloy trusses to support the ceiling, specifications: 400mm × 400mm. The height of the trusses meets the four corners of the upper end of the trusses to support the wing panels. The lower end of the trusses is equipped with a base. The base has 4 adjustable legs to prevent the ceiling from being damaged due to the mounting of lighting and audio equipment. Sagging. When the truss is being built, the uppermost section is hung on the wing plate first. As the wing plate rises, the lower trusses are connected in sequence.

Electrical circuit

There are 4 lighting poles on the ceiling, and a total of 16 lighting socket boxes are installed on both sides of the lighting poles. The stage lighting power supply is 230V (50HZ), and the lighting power line branch is a 2.5m² sheathed wire; there are 4 24V emergency lights on the inside of the roof. .

There is a main power box for lighting sockets on the inside of the front panel.

Ladder

A steel ladder is made on the right side of the front panel of the car to lead to the roof of the car.

Curtain

A hook-type semi-transparent curtain is installed around the rear stage to enclose the upper space of the rear stage. The upper end of the curtain is attached to three sides of the wing plate, and the lower end is attached to three sides of the stage board. The curtain color is black.

Stage fencing

The stage fence is mounted on three sides of the front stage board, and the fabric is made of gold velvet curtain material; it is mounted on three sides of the front stage board, and the lower end is close to the ground.

Toolbox

The tool box is designed with a transparent one-piece structure, making it easy to store large items.

Color

The outside of the car body is white and the inside is black;







src="../uploads/image/20240514/20240514170818_61899.jpg" alt="" />
