P16 Single yellow highlighted VMS trailer for 24/7

Model:VMS300

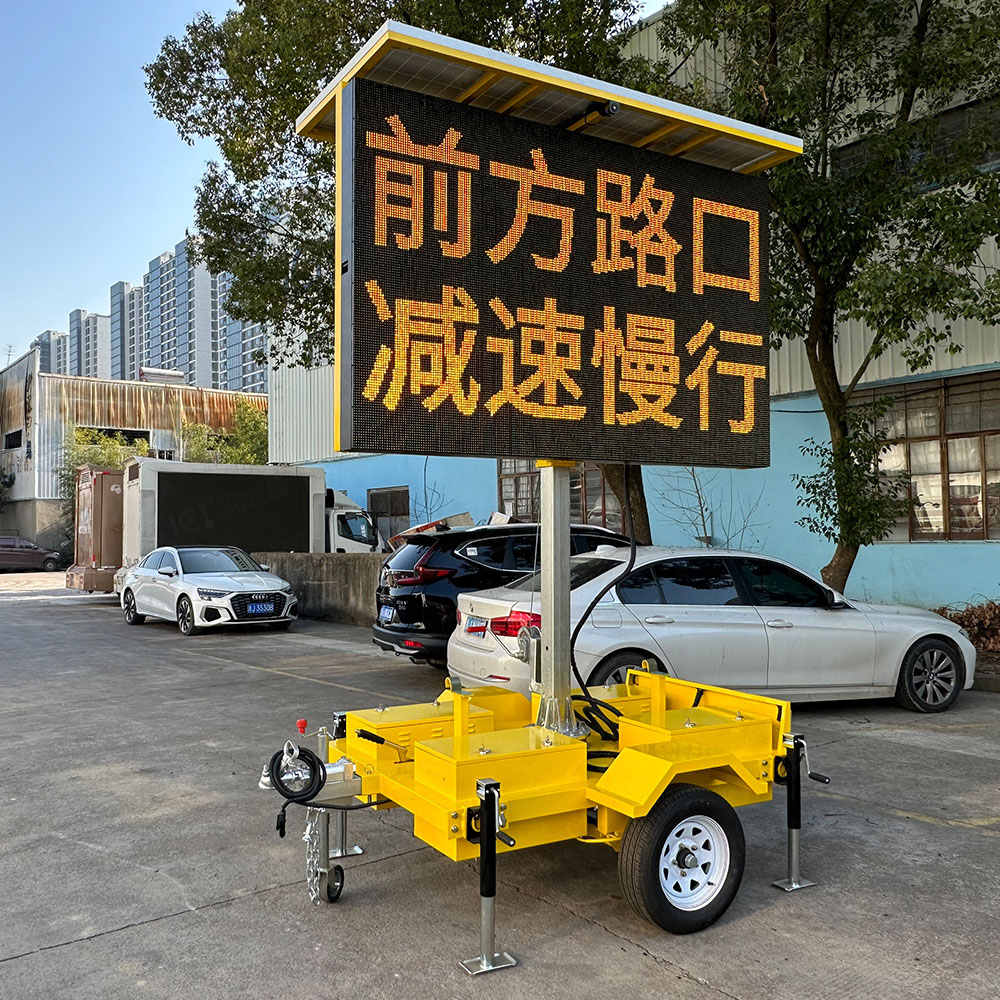

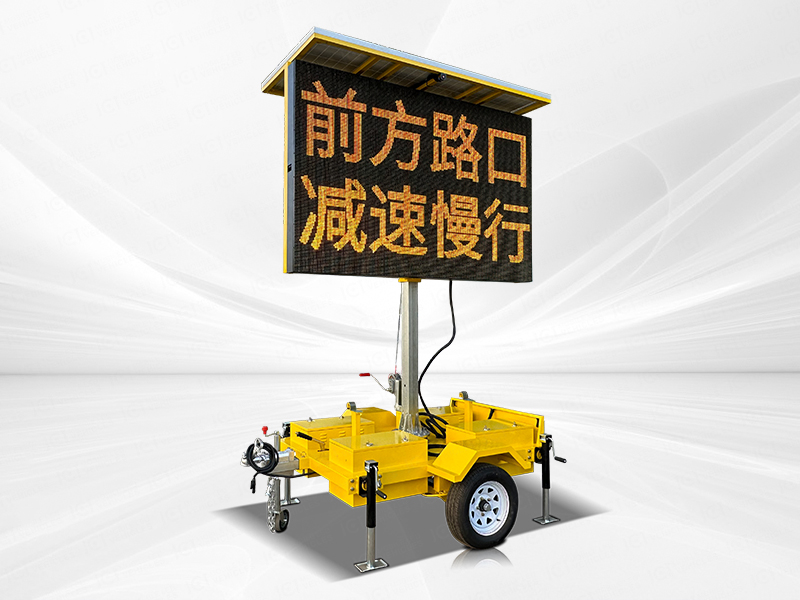

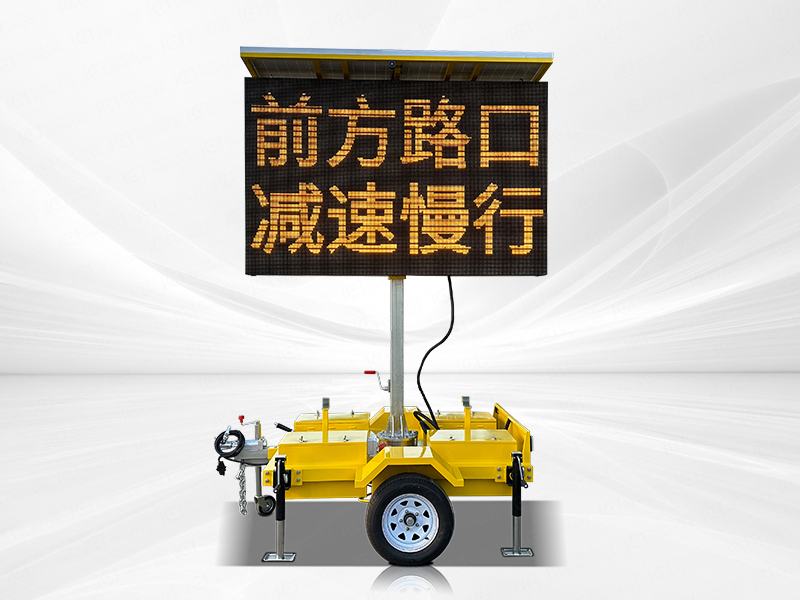

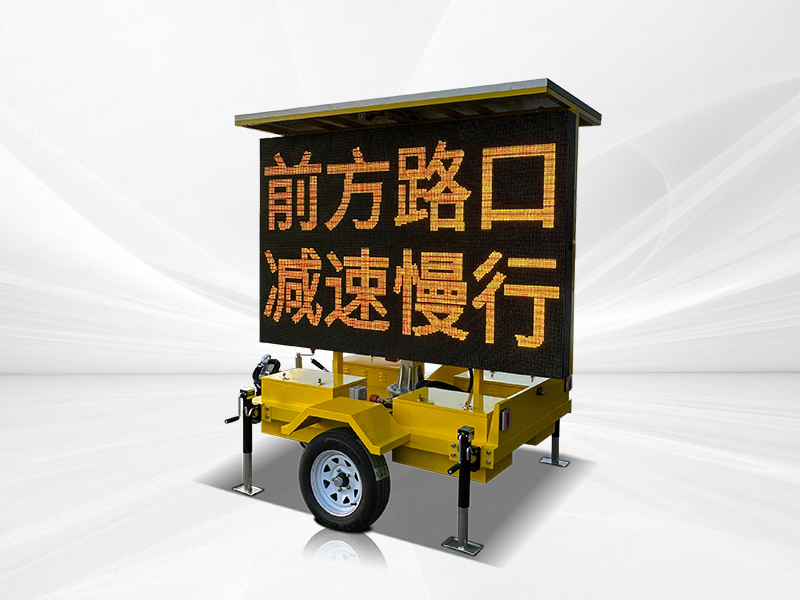

VMS300 P16 single yellow highlighted VMS trailer: the perfect combination of leading technology and practicality

As a multi-functional and highly flexible mobile device, VMS trailer has been playing an increasingly important role in modern urban life. Its wide application scope covers traffic management, urban activities, municipal publicity, commercial advertising and emergency handling and other fields, and has become an indispensable part of modern urban operation. Today, we will introduce the VMS300 P16 single yellow highlighted VMS trailer produced by JCT company.

Configured with outdoor single yellow screen, bright colors

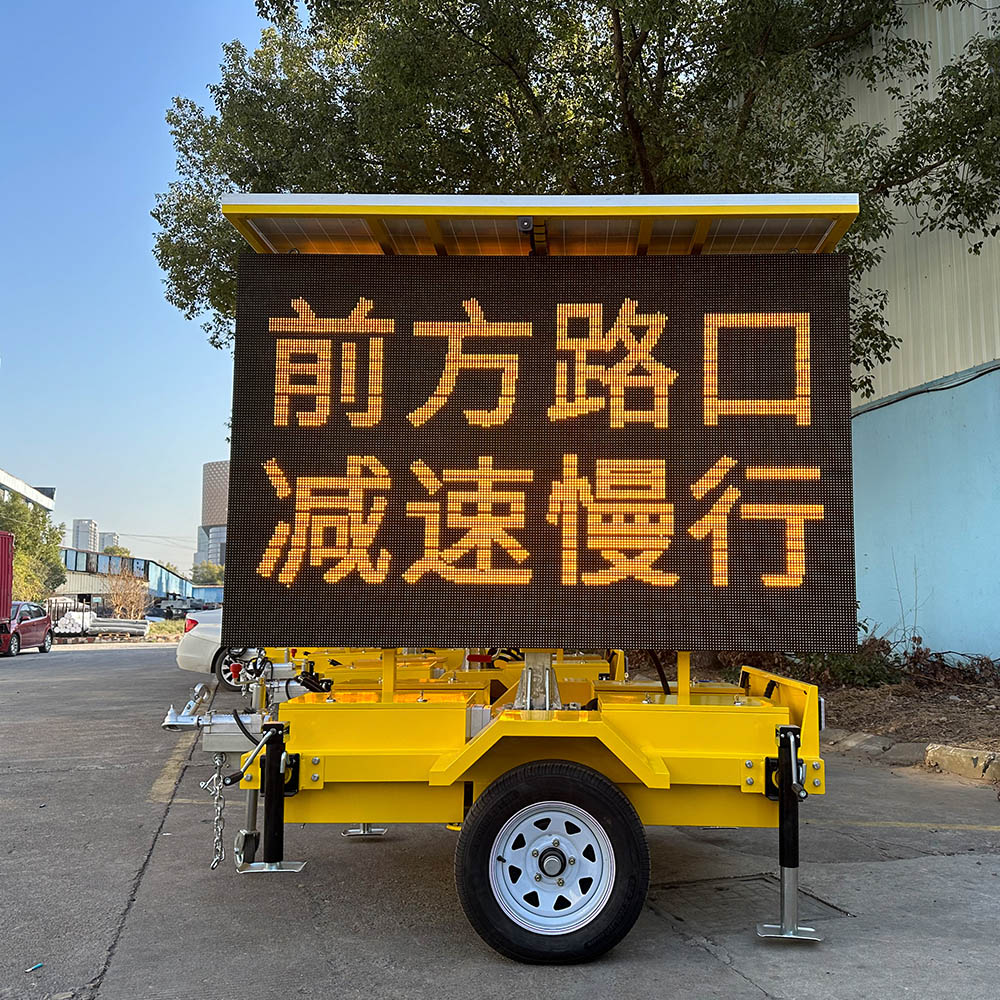

The VMS300 solar single yellow highlighted VMS trailer uses P16 single yellow screen, the size of 2304 * 1280mm, high-definition display technology, can present clear, sharp text and images. This is crucial for the release of traffic information, because drivers need to obtain traffic information accurately and quickly. The screen has excellent visibility and can maintain a good display effect even under strong outdoor light. This means that drivers can clearly see the information on the screen, either during the day or at night. The P16 single yellow screen response speed is fast, and it can quickly update the display content. This is particularly important for real-time traffic information release, to ensure that drivers have timely access to the latest traffic dynamics.

Excellent structural performance

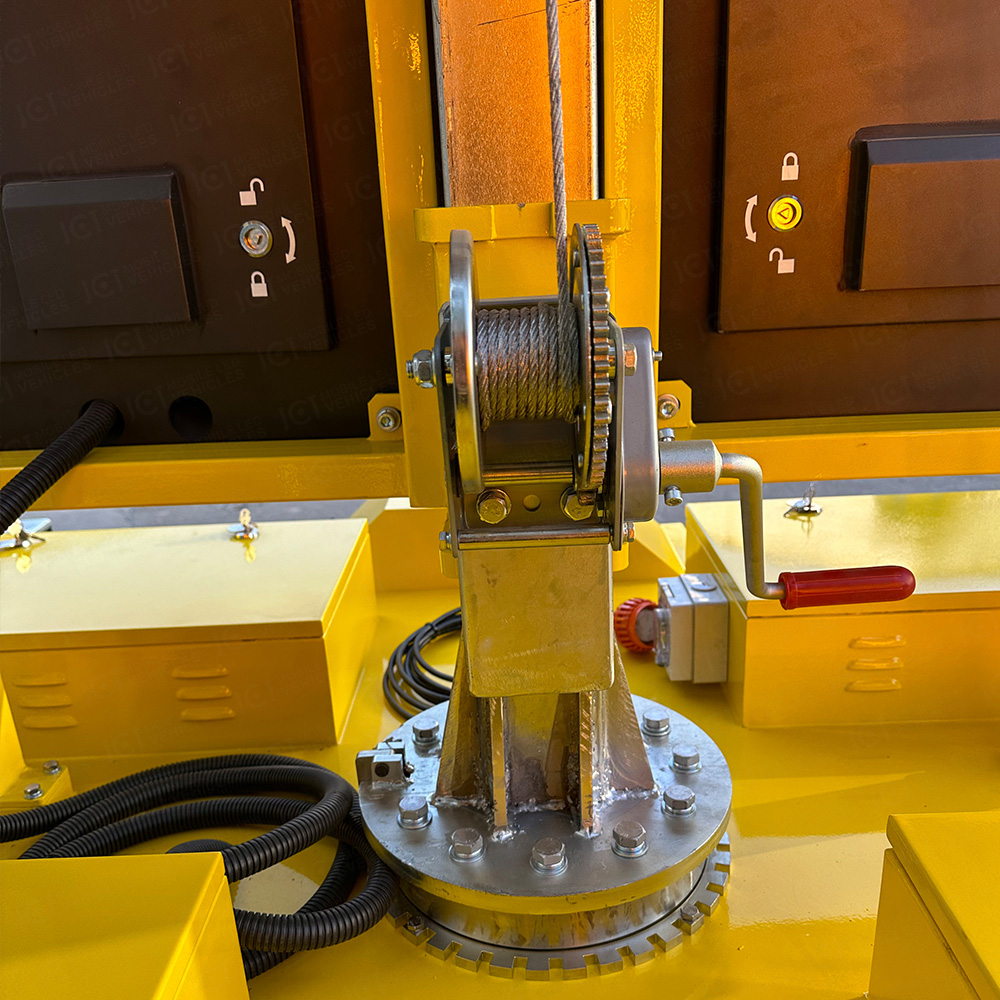

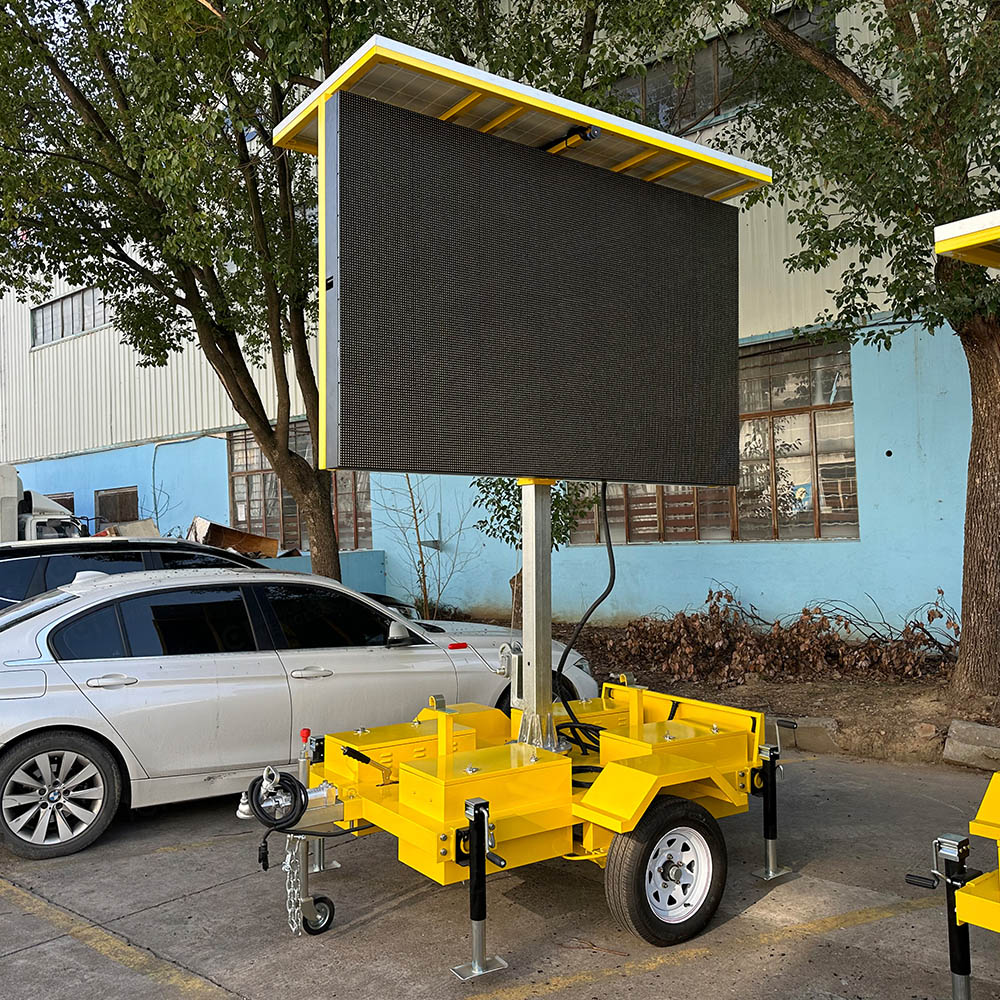

The single yellow highlighted VMS trailer is equipped with a manual lift function of 900mm; the LED screen can manually rotate 330 degrees, and the gear buckle at the bottom of the body guide column allows the user to adjust the best display Angle. This flexibility ensures clarity and visibility of information, attracting the attention of larger viewers.

Solar power supply system, energy saving and environmental protection

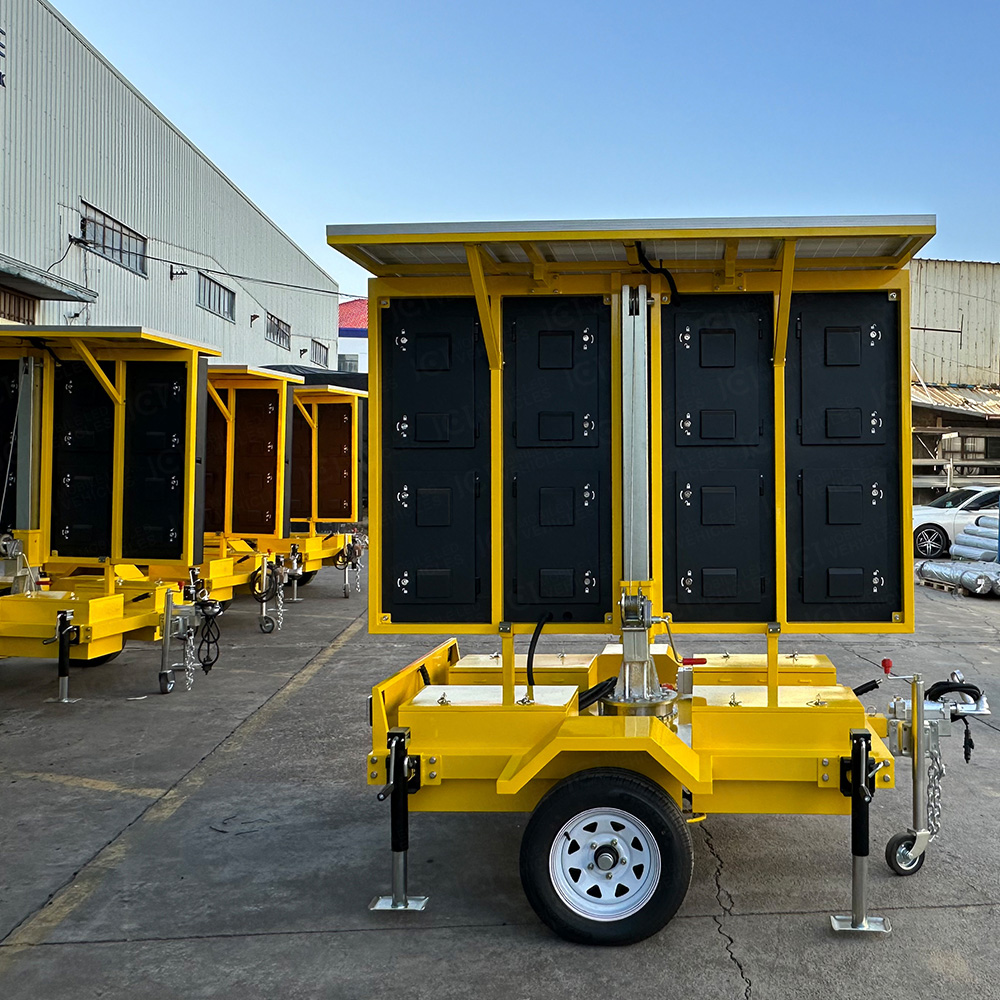

Equipped with solar panels and converters and 9600 AH high-performance batteries, the single yellow highlighted VMS trailers provide continuous power supply for 365 days a year, working steadily even on cloudy days or at night. At the same time, the screen also uses advanced energy-saving technology, which can ensure the display effect while reducing energy consumption. This not only helps to reduce operating costs, but also is in line with the current trend of green development.

High flexibility and strong adaptability

Thanks to the traction towing and mobile design, the VMS300 solar single yellow highlighted VMS trailer can be easily moved to different locations as needed. This gives it high flexibility in dealing with temporary traffic conditions or special activities.

It can also adapt to a variety of environments and use scenarios, whether it is expressways, urban roads or large-scale activities, can play a good induction and guidance effect.

In short, the VMS300 solar single yellow highlighted VMS trailer, with its excellent performance, flexible portability and powerful function, has become a beautiful scenery in the modern city. Whether it is traffic management, urban activities, municipal publicity or commercial advertising, it can bring you unlimited possibilities, making information transmission more efficient, convenient and attractive.

Parameters

Specification
Trailer appearance
Trailer size	2350×1800×2280mm	LED screen size:	2304*1280MM
Torsion shaft	1 ton 5-114.3，1 pce	Tire	185R14C 5-114.3，2 pcs
Supporting leg	440~700 load 1.5 tons，4 PCS	Connector	50mm ball head, 4 hole Australian impact connector, wire brake
Max speed	100Km/h	Axle	Single axle，Torsional axle
Breaking	Hand brake	RIM	SIZE:145.5、PCD:5114.3、CB:84、ET:0
LED Screen
Dimension	2304mm*1280mm	Module Size	256mm(W)*256mm(H)
light brand	Gold wire light	Dot Pitch	16 mm
Brightness	6500cd/㎡	Lifespan	100,000hours
Average Power Consumption	20w/㎡	Max Power Consumption	60w/㎡
Drive IC	ICN2069	Fresh rate	3840
Power Supply	LAVALEE	Receiving card	NOVA MRV416
Cabinet size	2384*1360mm	system support	Windows XP,WIN 7，
Cabinet material	Iron	Cabinet weight	Iron 50kg/m2
Maintenance mode	Rear service	Pixel structure	2Yellow
LED packaging method	HZ-4535RGB4MEX-M00	Operating Voltage	DC 4.2、3.8V
Module power	4W	scanning method	1/8
HUB	HUB75	Pixel density	3906 Dots/㎡
Module resolution	16*16Dots	Frame rate/ Grayscale, color	60Hz,13bit
Viewing angle, screen flatness, module clearance	H：100°V：100°、＜0.5mm、＜0.5mm	Operating temperature	-20~50℃
Solar panel
Dimension	1380mm700mm4PCS	Power	200W*4=800W
Solar controller（Tracer3210AN/Tracer4210AN）
input voltage	9-36V	Output voltage	24V
Rated charging power	780W/24V	Maximum power of photovoltaic array	1170W/24V
The battery
Dimension	181mm192mm356mm	Battery specification	12V200AH*4Pcs，9.6KWH
Power parameter (external prower supply)
Input voltage	Single phase 220V	Output voltage	24V
Inrush current	8A
Multimedia control system
Player	Nova JT50-4G	receiving card	NOVA MRV316
Luminance sensor	NOVA NS060
Hydraulic lifting
Hydraulic lifting:	1000mm	Manual rotation	330 degrees
Advantages:
1, can lift 900MM, can rotate 360 degrees. 2, equipped with solar panels and converters and 9600AH battery, can achieve 365 days a year continuous power supply LED screen. 3, with brake device! 4, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. 5, with 7 core signal connection head! 6, with tow hook and telescopic rod! 7,two tire fenders 8, 10mm safety chain, 80 grade rated ring; 9, reflector, 2 white front, 4 yellow sides, 2 red tail 10, the whole vehicle galvanized process 11, brightness control card, automatically adjust brightness. 12，VMS can be controlled wirelessly or wirelessly! 13. Users can remotely control LED SIGN by sending SMS messages. 14, equipped with GPS module, can remotely monitor the position of VMS.
