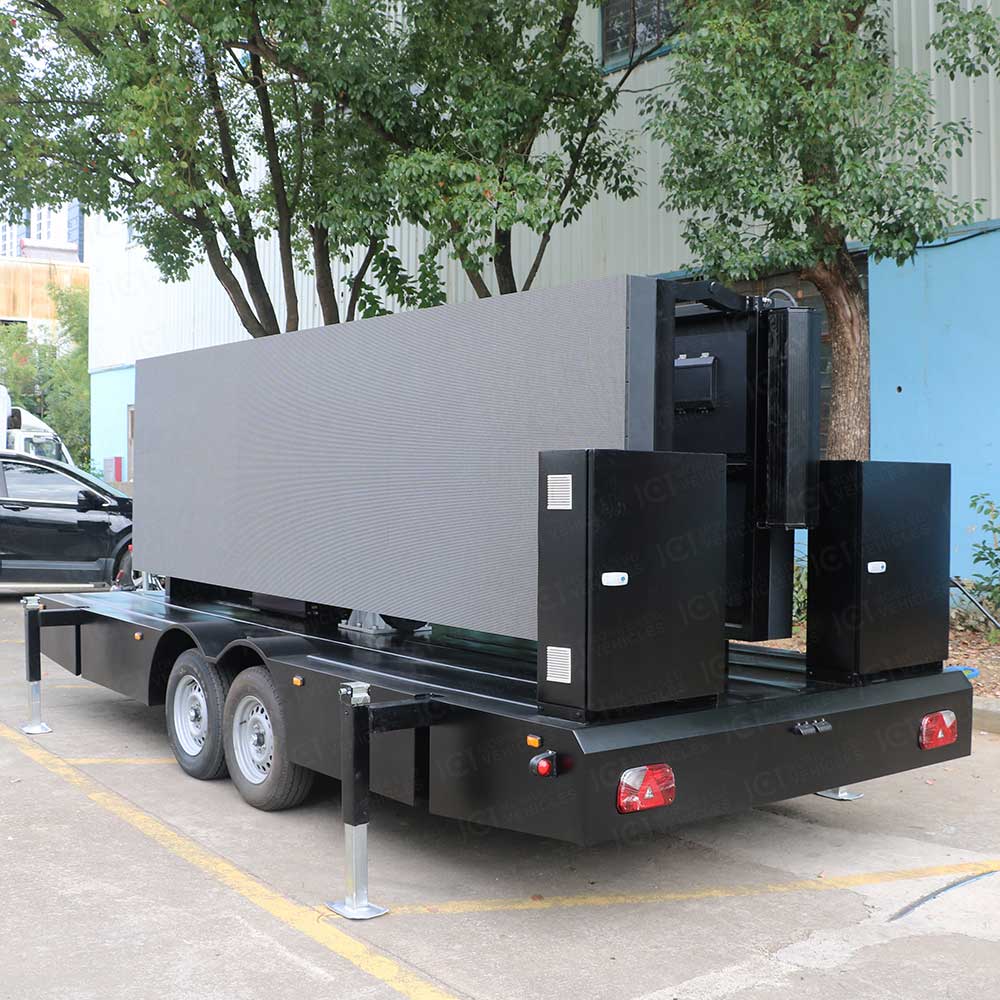

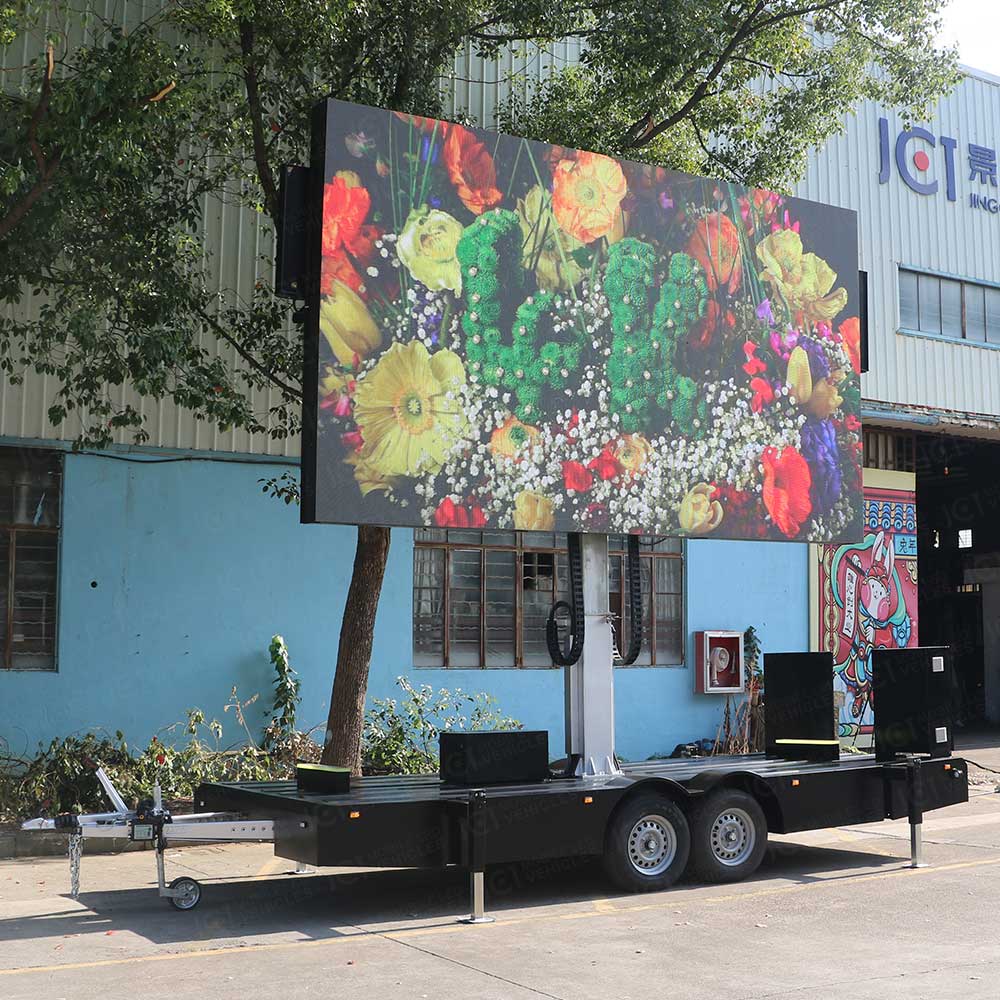

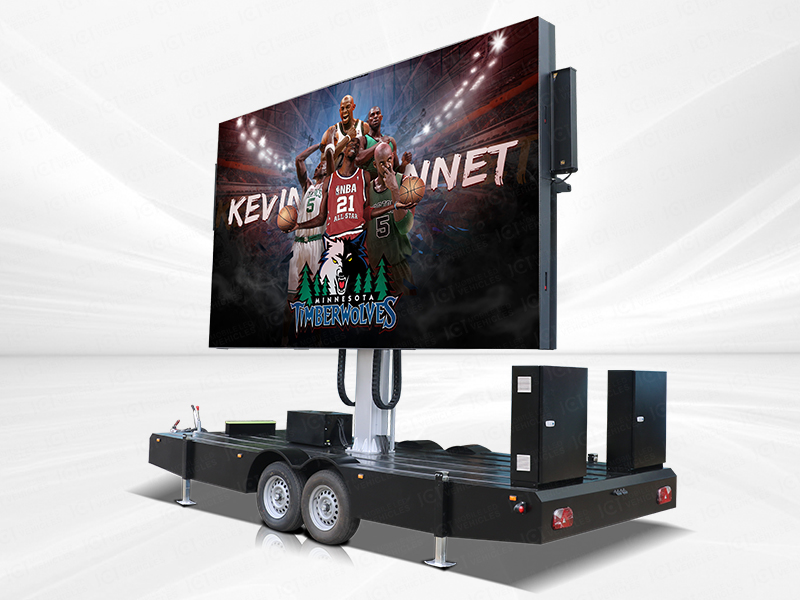

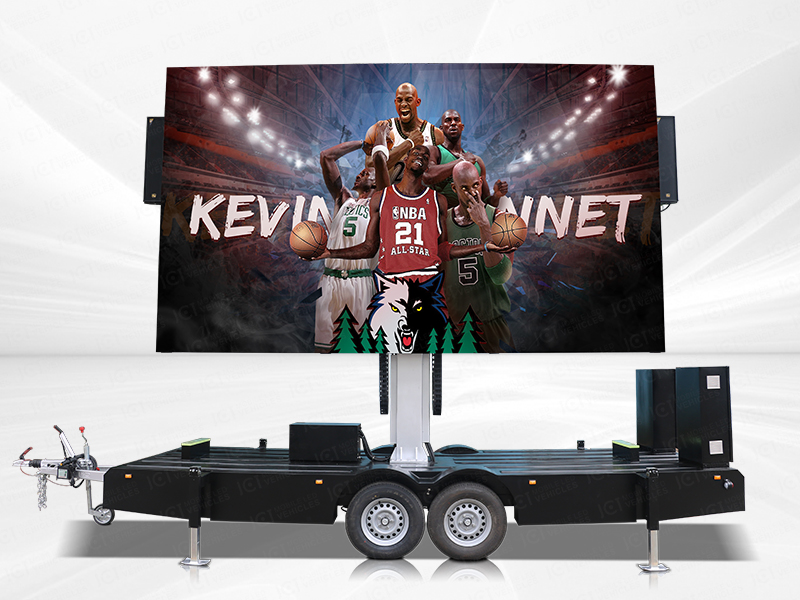

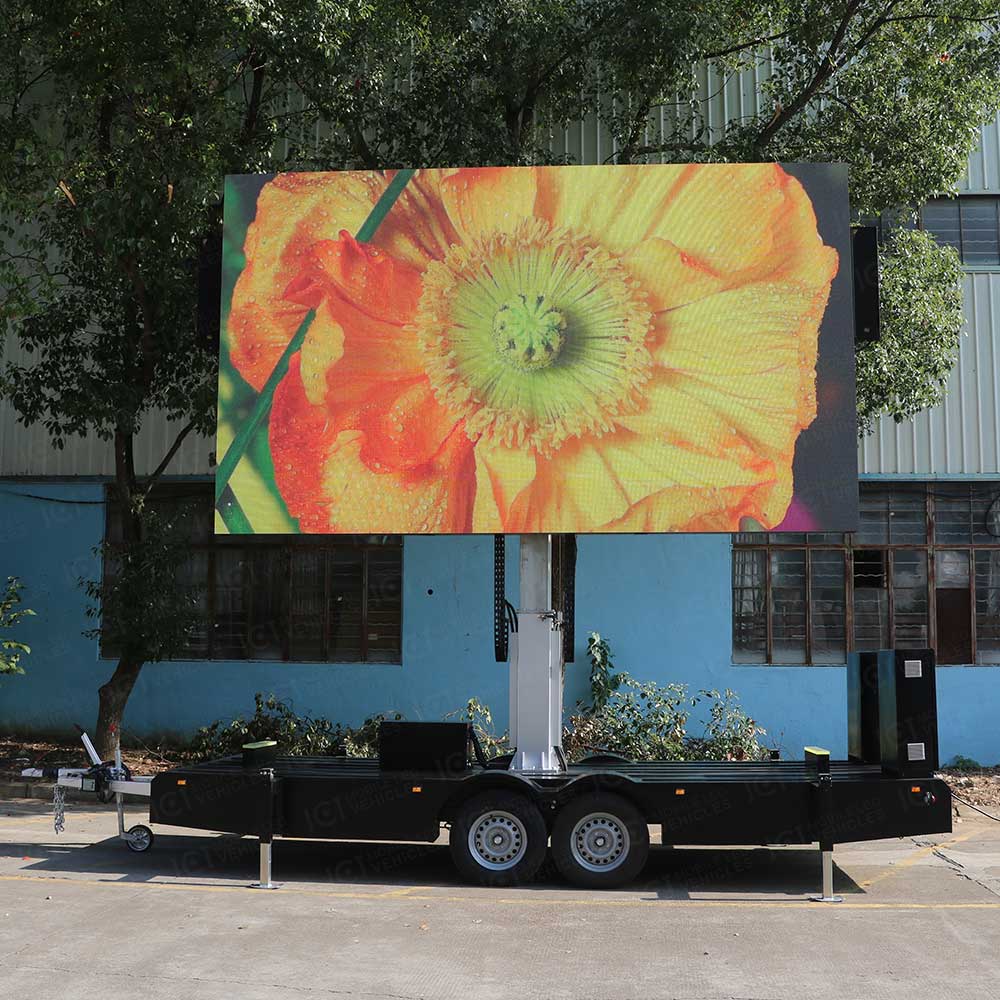

The EF12 LED trailer is 6720 X 2200 X 2100mm and equipped with a full color HD LED display of 6000mm * 3500mm. The high definition and high quality screen ensure that the picture is kept clear and bright even during the day with direct sunlight. This display not only has all the standard functions of an LED screen, but also can easily respond to a variety of outdoor weather and climate conditions due to its powerful environmental adaptability. The screen control system also supports the synchronization to large screens through wireless transmission means such as drones or 5G. This advanced transmission mode not only ensures the real-time performance of the picture, but also greatly expands its application possibilities in various outdoor environments.
The EF12 LED trailer: An efficient and safe mobility display solution

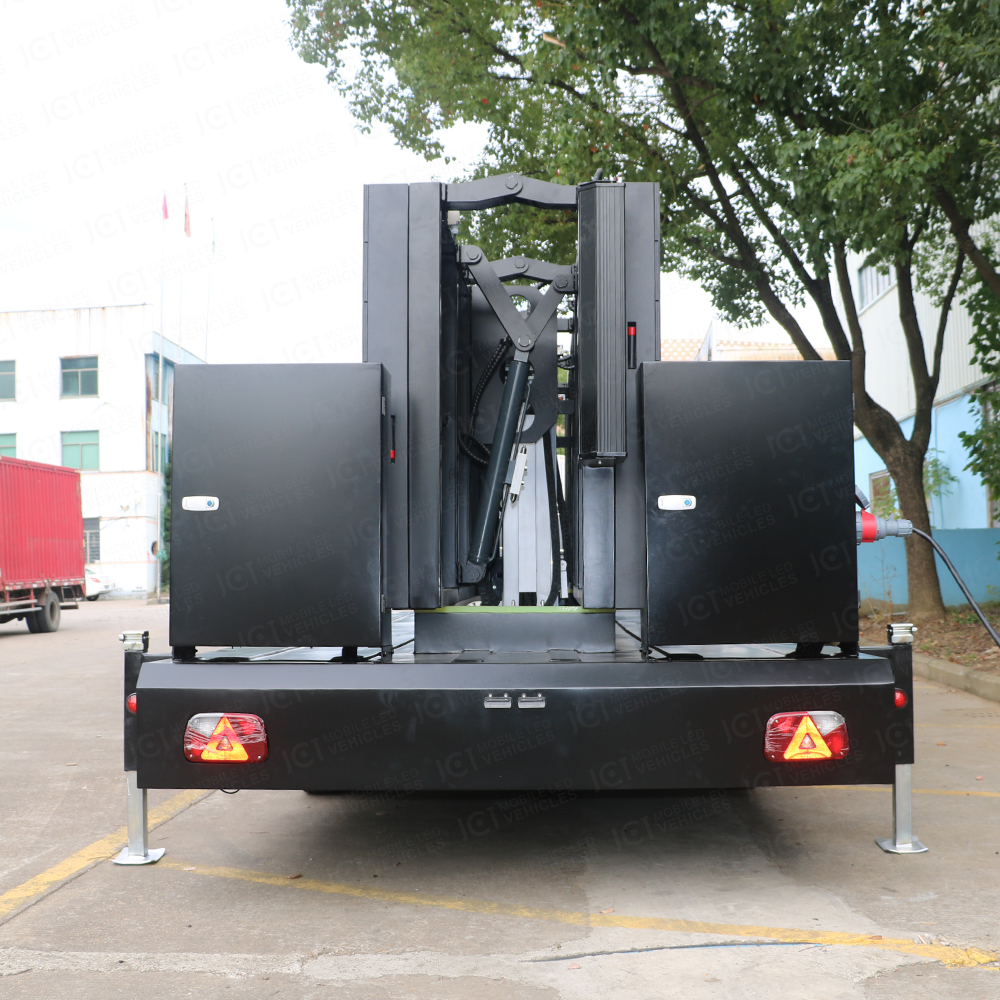

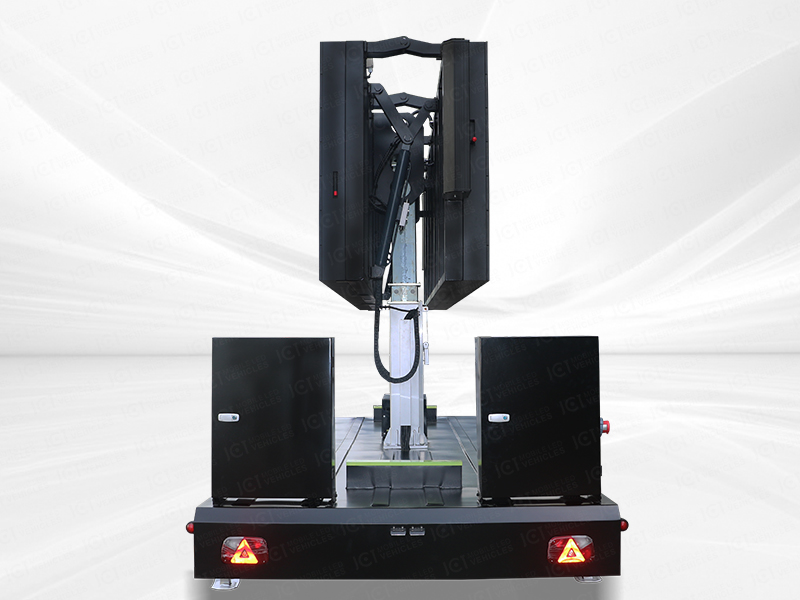

The 12-square-meter LED trailer features advanced towing and traction motion, a unique design that allows it to pull only on power vehicles, greatly improving transportation efficiency and flexibility. In order to ensure the safety of the driving process, its braking device and the tractor to achieve intelligent interconnection, can synchronize braking when needed, effectively avoid the occurrence of accidents. It is worth mentioning that the screen can be cleverly folded into two pieces when long-distance transportation or site transfer is required, which greatly reduces space occupancy and facilitates mobile transportation.

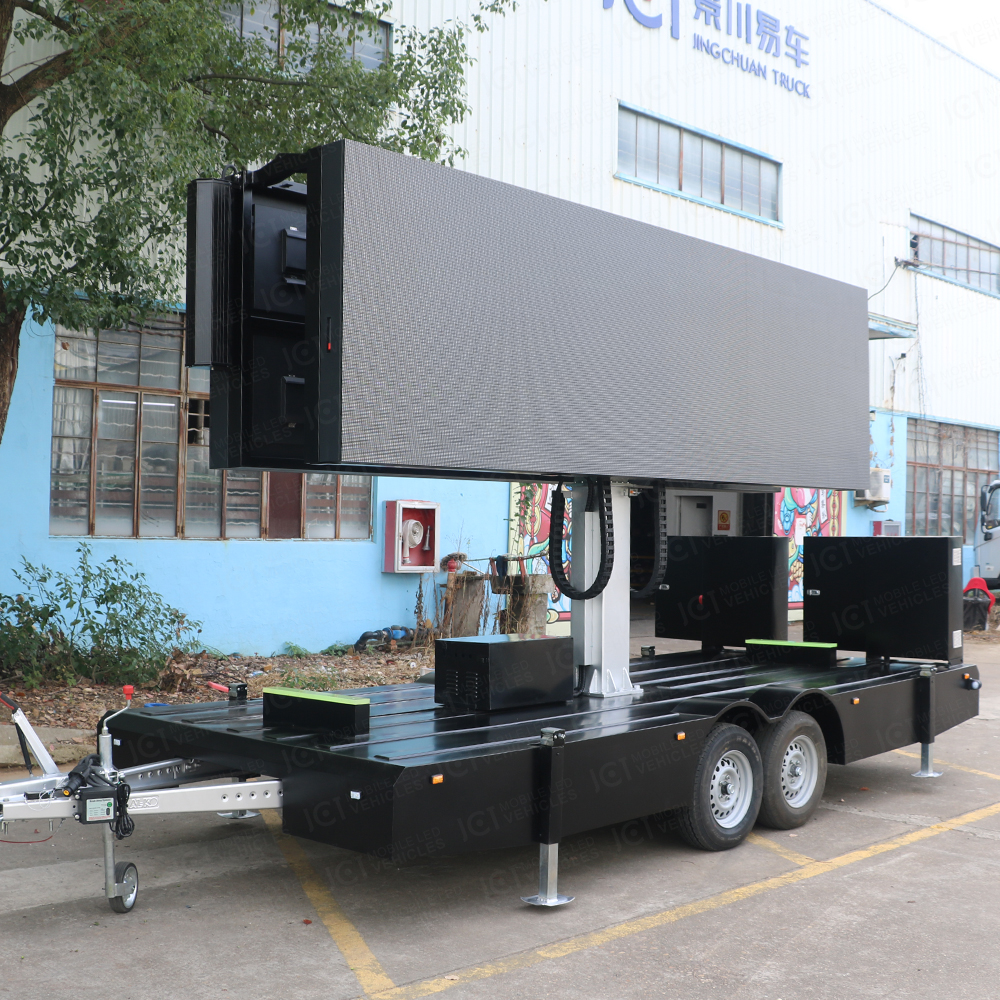

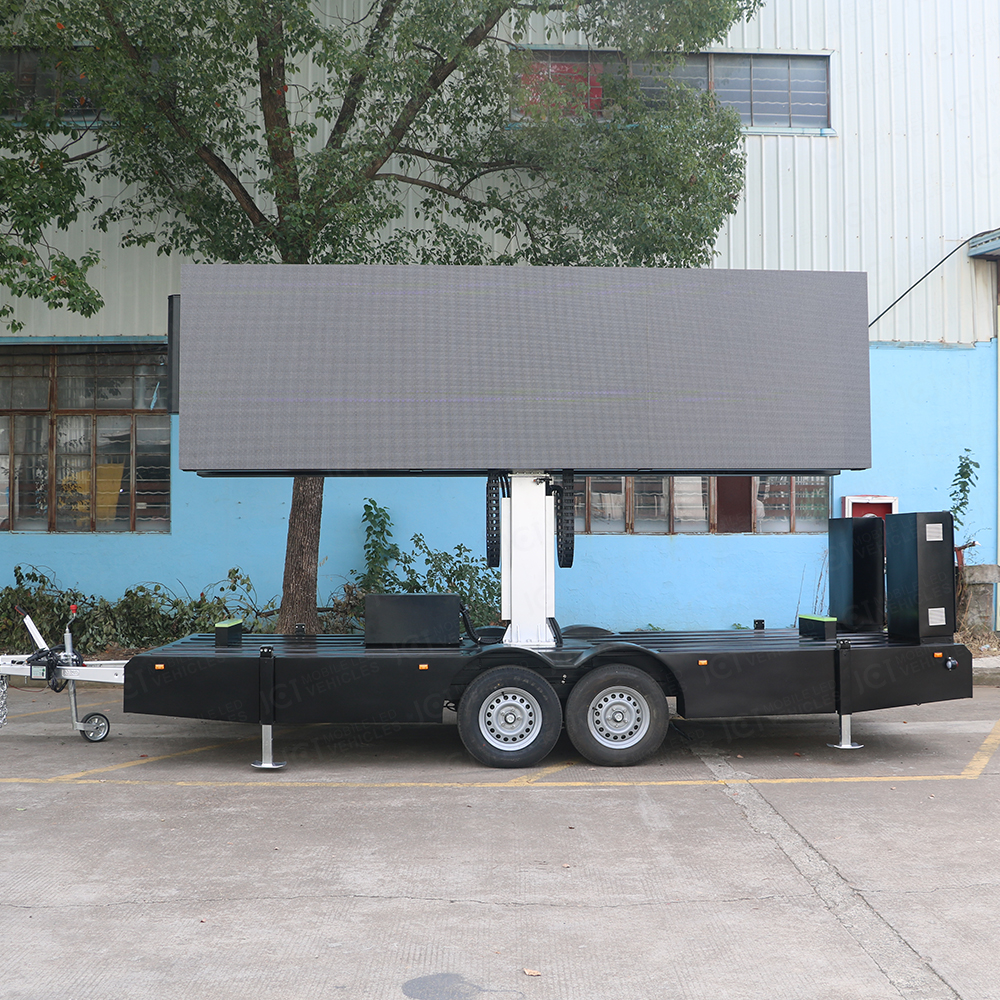

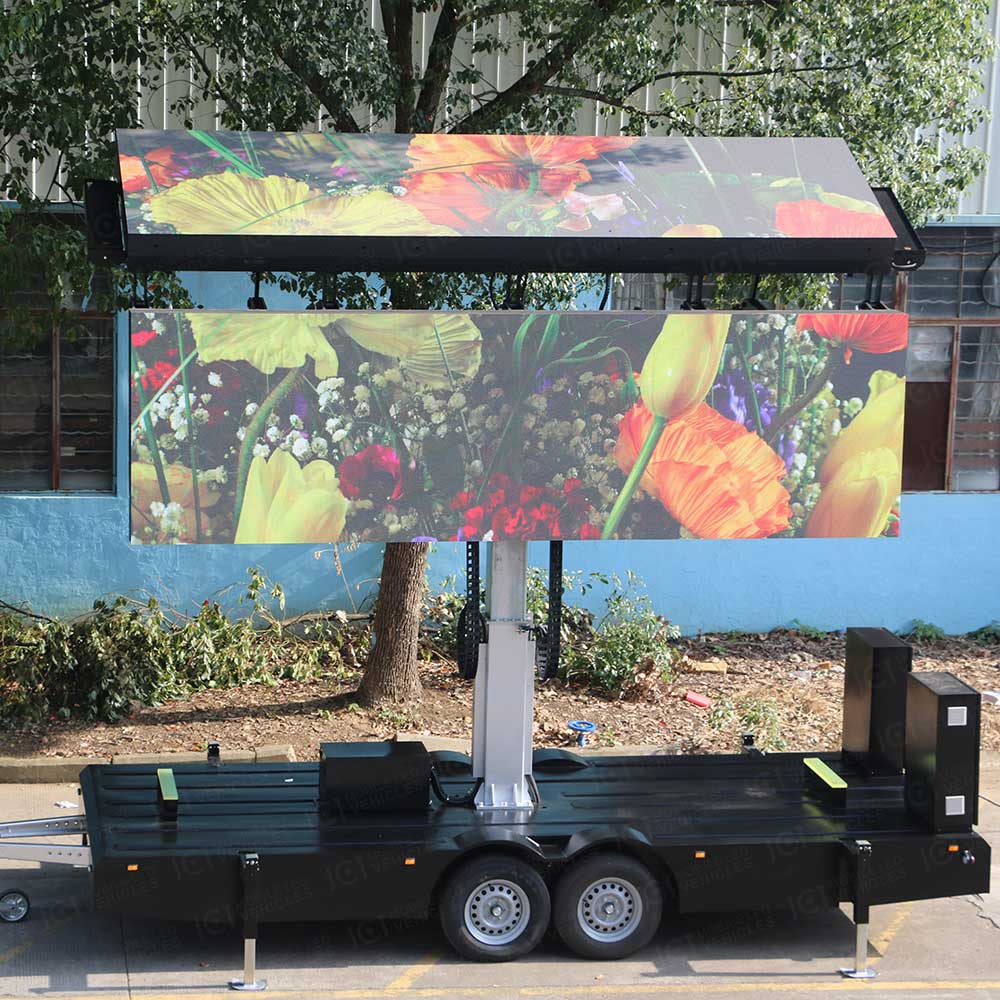

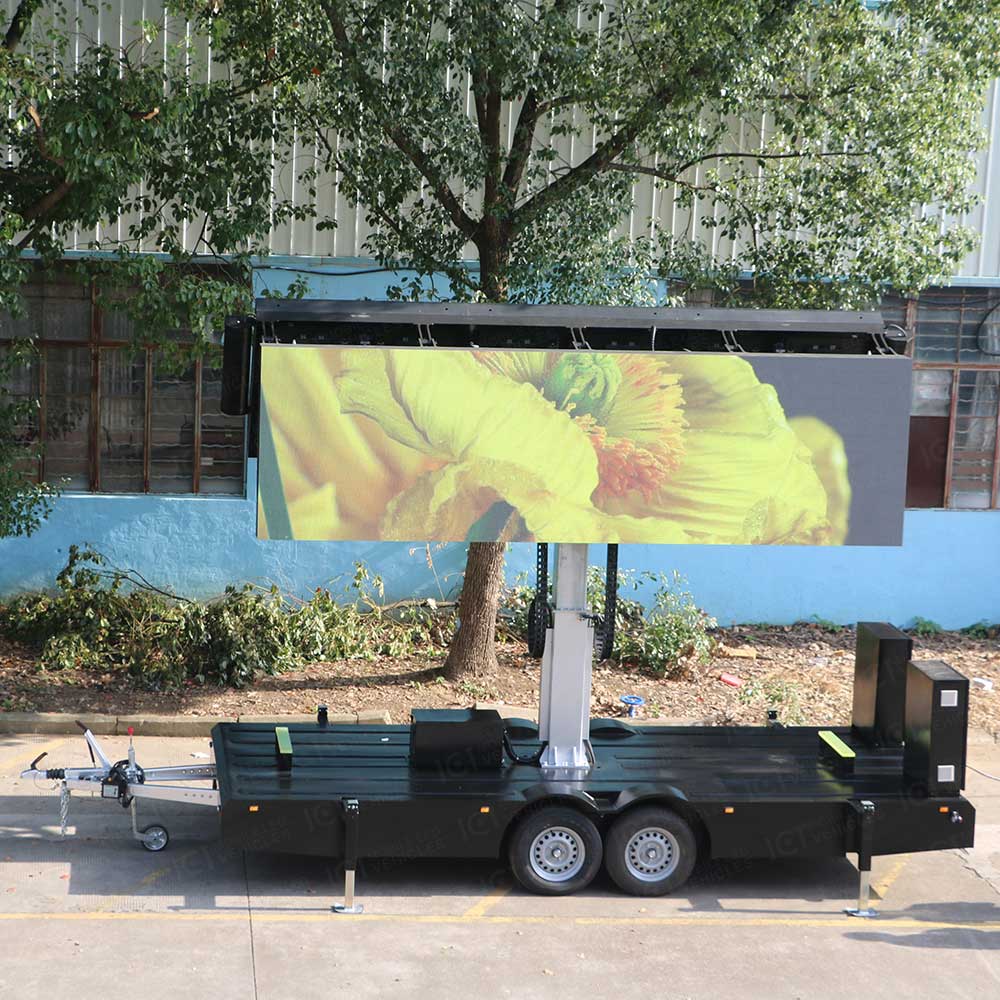

In addition, the integrated hydraulic guide column design allows the screen to be lifted, rotated and folded with one click. The lifting height reaches 1800mm, and the bearing capacity is up to 3000kg. Through the hydraulic lifting system, the large screen can easily achieve height adjustment to meet the needs of various sites. The screen can be folded up and down, flipped 180 degrees, and rotated 360 degrees when opened. This means that no matter where the audience is located, the screen can easily adjust its direction to ensure optimal viewing results.
In terms of chassis selection, EF12 LED trailer adopts the strictly screened chassis of German ALKO vehicle, which not only ensures the high quality and stability of the vehicle, but also provides a solid guarantee for its stable driving under various complex road conditions. In addition, the box has four solid mechanical legs around the box, which not only enhance the overall stability of the device, but also provide additional support if necessary to ensure that the LED screen remains flat and free in a variety of environments.
The EF12 LED trailer is ideal for outdoor activities with its excellent all-weather adaptability, powerful wireless transmission capability, and flexible screen regulation. As an efficient and safe mobile display solution, whether it is a large concert, sports event or other public activities, EF12 LED trailer can bring you a stunning visual effect and enhance the appeal and influence of the event.
|
Specification |
|||
|
Trailer appearance |
|||
|
Gross weight |
2300kg |
Dimension (screen up) |
6720×2200×2100mm |
|
Chassis |
German ALKO |
Max speed |
120Km/h |
|
Breaking |
Impact brake and hand brake |
Axle |
2 axles |
|
LED Screen |
|||
|
Dimension |
4480mm(W)*2560mm(H) |
Module Size |
320mm(W)*160mm(H) |
|
Light brand |
Kinglight |
Dot Pitch |
4mm |
|
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
700w/㎡ |
|
Power Supply |
MEANWELL |
DRIVE IC |
ICN2503 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
62500 Dots/㎡ |
|
Module resolution |
80*40Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
Power parameter |
|||
|
Input voltage |
3 phases 5 wires 208V |
Output voltage |
120V |
|
Inrush current |
26A |
Average power consumption |
250wh/㎡ |
|
Player System |
|||
|
Video processor |
NOVA |
Model |
TB50-4G |
|
Luminance sensor |
NOVA |
|
|
|
Sound System |
|||
|
Power amplifier |
Unilateral power output:250W*1 |
Speaker |
Max power consumption:100W*2 |
|
Hydraulic System |
|||
|
Wind-proof level |
Level 8 |
Supporting legs |
Stretching distance 300mm |
|
Hydraulic Lifting and folding system |
Lifting Range 1800mm, bearing 3000kg, hydraulic screen folding system |
|
|
