Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

This strategy not only cleverly bypassed the export certification problem, but also saves customers a lot of costs. Customers do not need to pay high tariffs and freight charges for the overall truck import, but just need to customize the LED truck body according to the chassis drawings we provide. This not only simplifies the process, but also reduces the delivery time, bringing great convenience to customers.

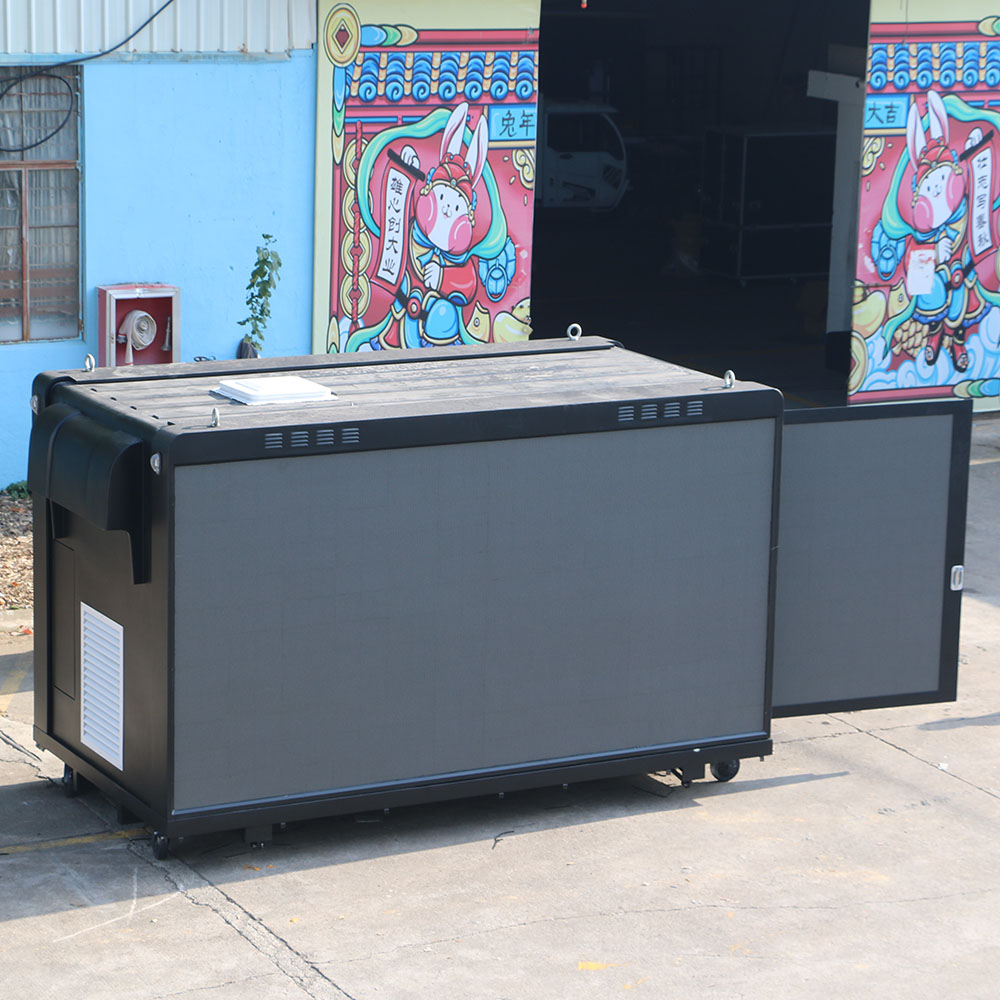

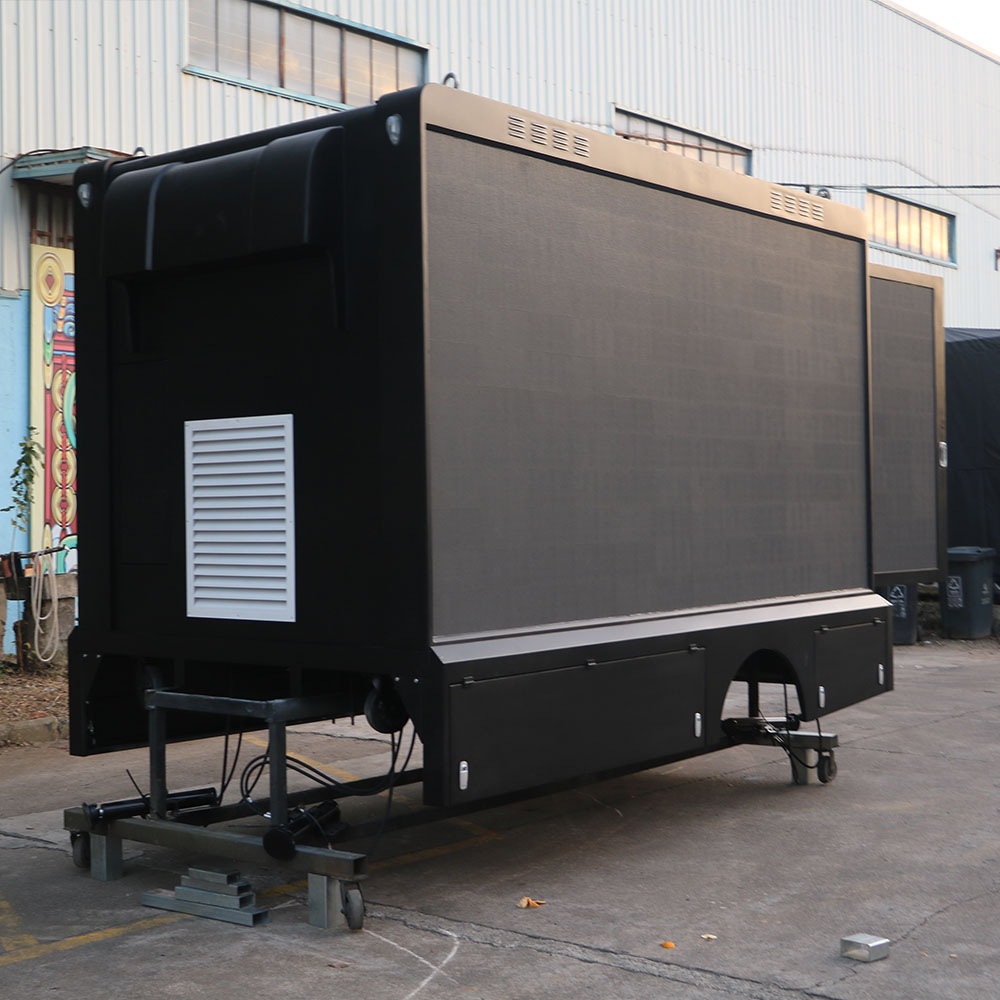

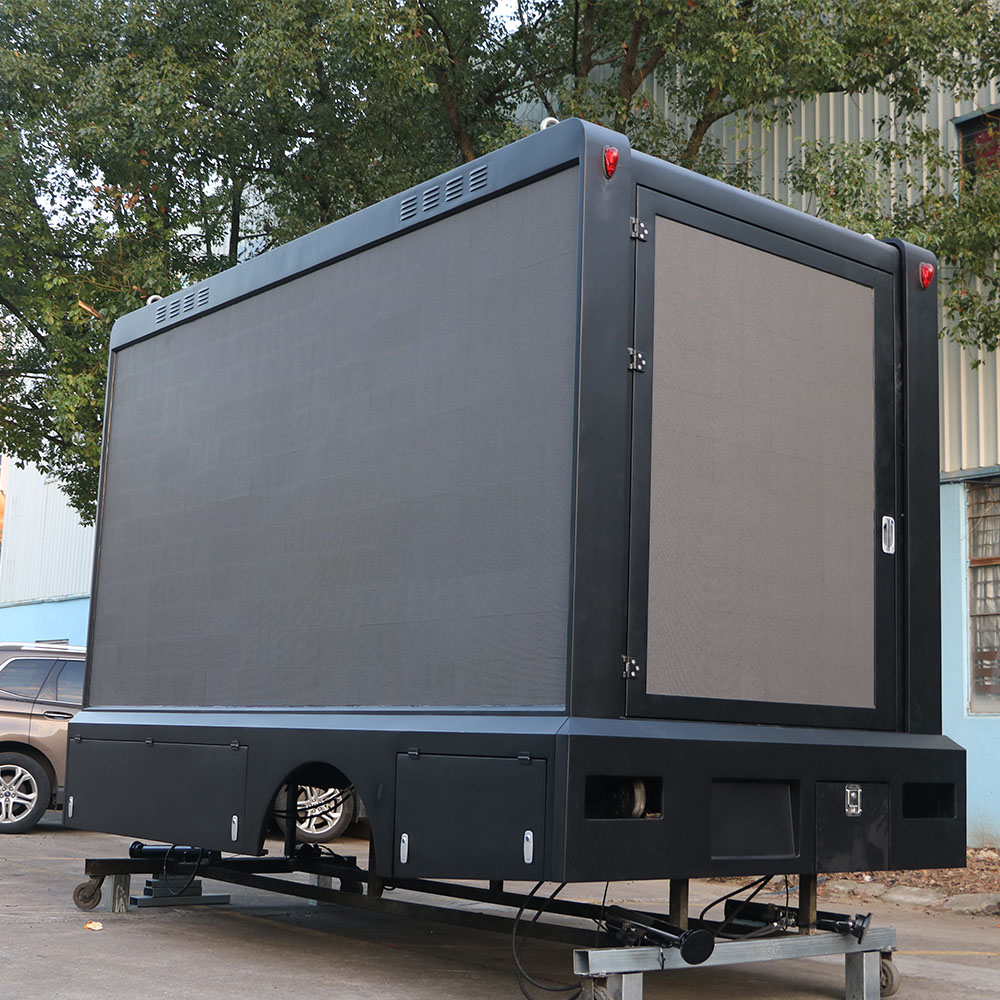

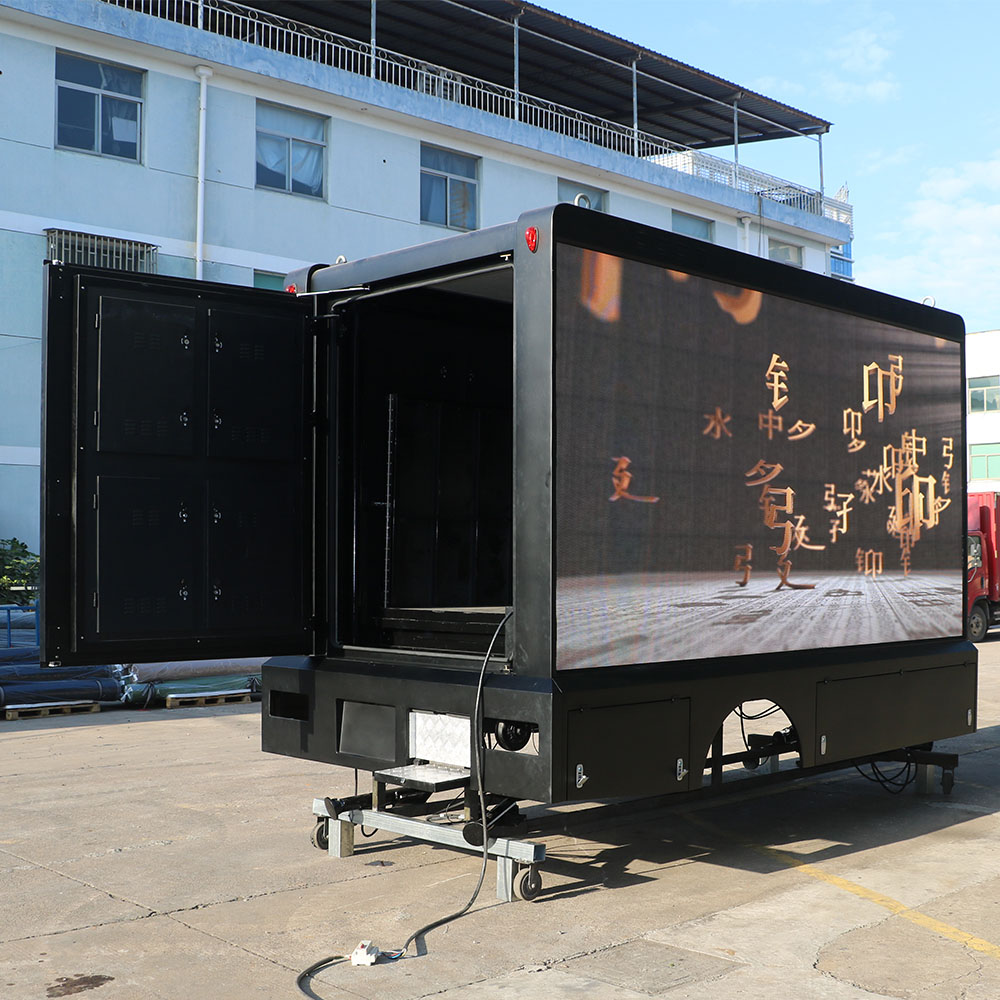

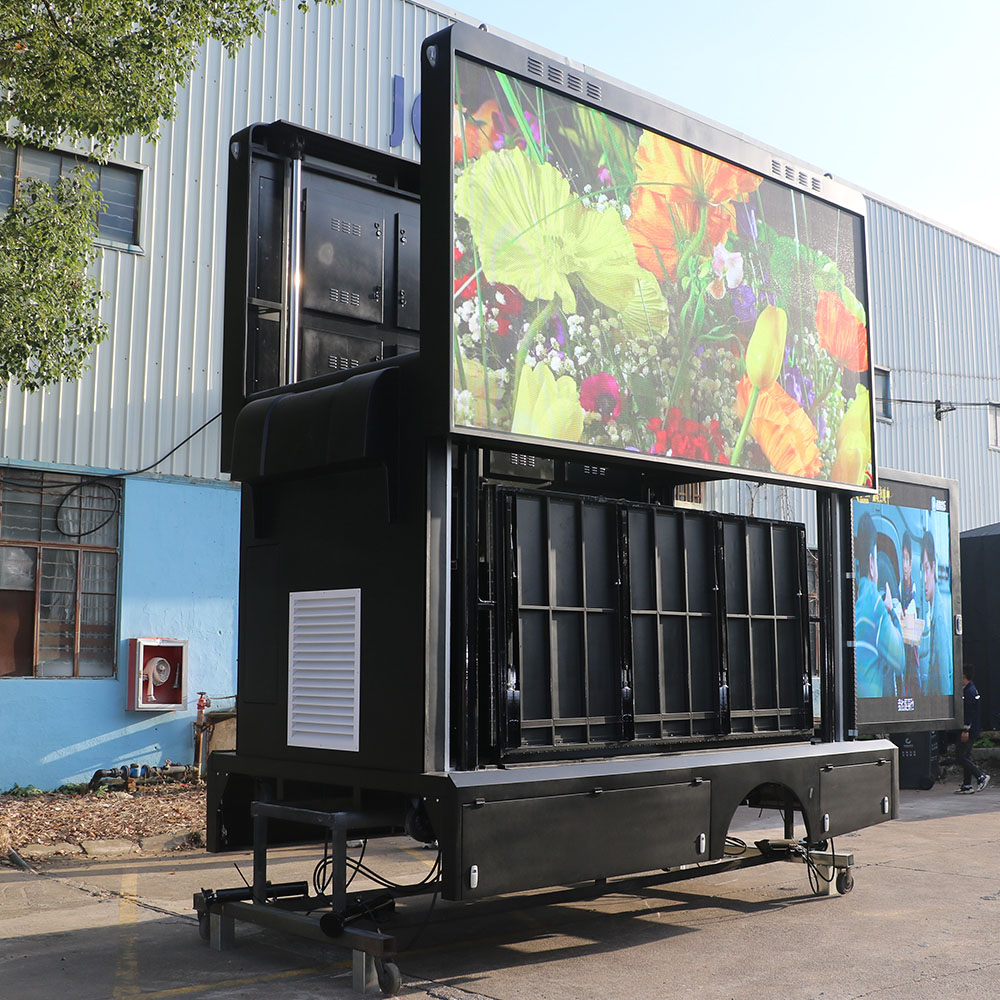

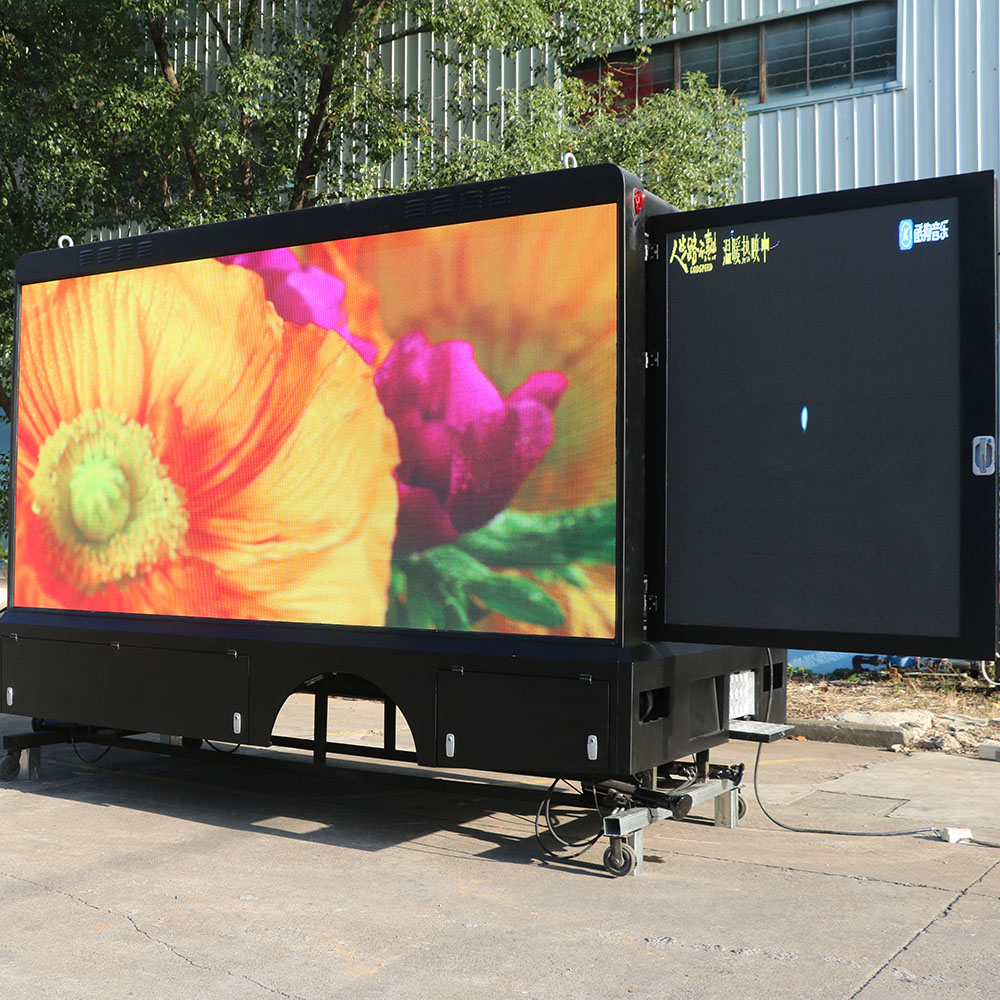

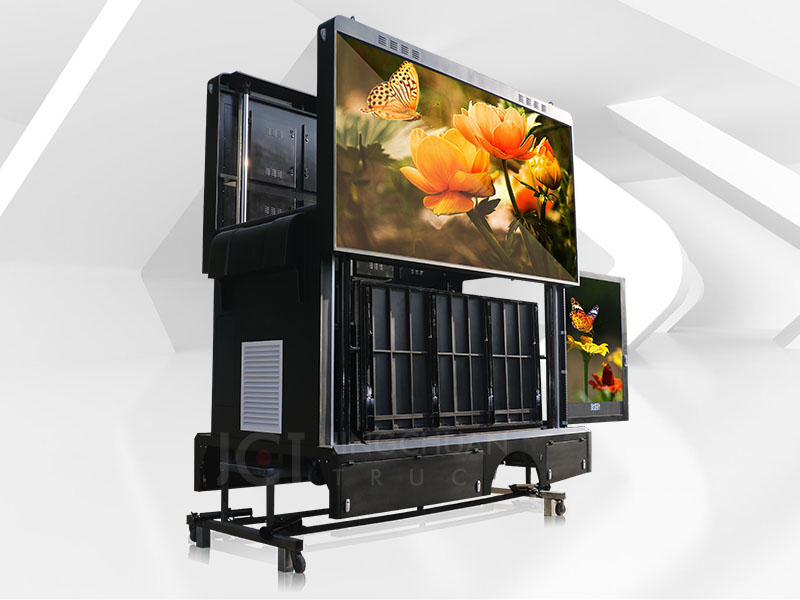

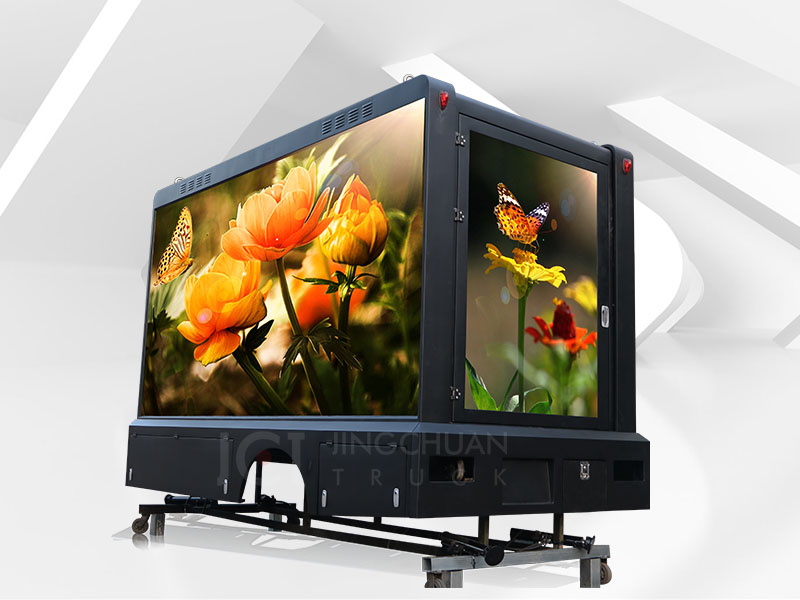

The Model 3360 LED truck body is not only equipped with an advanced multimedia playback system, supporting U disk playback and mainstream video format, but also reshaping the pattern of advertising and brand communication with its high degree of mobility and flexibility. As a portable advertising terminal, the Model 3360 LED truck body can adjust the display location according to the market demand and publicity strategy at any time to ensure that the information is transmitted to the target audience at the most needed time and place. This not only greatly improves the coverage and reach rate of advertising, but also makes the brand information more vivid and vivid in front of the public. In terms of commodity publicity, the LED truck role is particularly significant. It can accurately convey product characteristics and brand value through high-definition and shocking audio-visual effects, effectively attract the attention of potential customers, and stimulate the desire to buy.


In order to meet the diversified needs of the market, our model 3360 LED truck body design is flexible, can be configured with P2.5, P3, P4, P5 and other specifications of the screen. These high definition screens guarantee the visual impact of advertising, making your brand or campaign message stand out in a busy city. Whether it is long-term brand image building, or temporary event promotion, our LED truck box can provide excellent publicity effect.


The process of buying LED truck body is simple and clear, ensuring that you can easily access the advertising tools you need. Here are the specific purchase steps:

Step 1: Chassis confirmation and drawing confirmation

We will communicate with you in depth to ensure that we understand the model and specific truck chassis requirements you choose. Once the chassis drawings have been determined, we will use this as a benchmark to tailor the LED truck box for you.

Step 2: Factory Production

After confirming the chassis drawings, our professional factory will quickly start the production process to ensure that the LED truck boxes are manufactured with high precision according to your needs.

Step 3: Packing and port transportation

After production is completed, we will conduct rigorous quality inspection to ensure that each LED truck box meets the high quality standards. Afterwards, the boxes will be properly packed and arranged for delivery from our factory to the designated port.

Step 4: Port to Warehouse Transportation

Once arriving at the designated port, we will ensure that the box is safely and quickly transferred to your warehouse. You can flexibly arrange the transportation and reception of the boxes according to your own schedule.

Step 5: Easy Installation

In order to facilitate you to install LED truck boxes, we will provide detailed installation video and remote guidance from technicians. You just need to follow the steps in the video, you can easily complete the installation of the box.


Choosing the LED truck box of JCT not only means that you choose an efficient and eye-catching advertising method, but also means that you choose a way to innovate with us and constantly break through the difficulties. Let's join hands to open a new chapter of outdoor advertising, and create more business possibilities together!


Parameters

3360 LED truck body

Specification

Cargo box parameters

Dimension

4585*2220*2200mm

Total weight

2500KG

Silent generator group

Dimension

1260*750*1040mm

Power

16KW diesel generator set

Voltage and frequency

380V/50HZ

Engine:

Yang Dong, engine model: YSD490D

Motor

GPI184ES

Noise

Super silent box

Others

electronic speed regulation





Outdoor full color screen (left and right)

Dimension

3840*1920mm

Dot pitch

5mm

Light brand

kinglight

Module Size

320mm(W)*160mm(H)

Brightness

≥6500cd/㎡

Lifespan

100,000hours

Average Power Consumption

250w/㎡

Max Power Consumption

750w/㎡

Power Supply

Meanwell

DRIVE IC

ICN2053

Receiving card

Nova MRV316

Fresh rate

3840

Cabinet material

Iron

Cabinet weight

Iron 50kg

Maintenance mode

Rear service

Pixel structure

1R1G1B

LED packaging method

SMD2727

Operating Voltage

DC5V

Module power

18W

scanning method

1/8

HUB

HUB75

Pixel density

40000 Dots/㎡

Module resolution

64*32Dots

Frame rate/ Grayscale, color

60Hz,13bit

Viewing angle, screen flatness, module  clearance

H:120°V:120°、<0.5mm、<0.5mm

Operating temperature

-20~50℃

system support

Windows XP,WIN 7,





Outdoor full color screen (rear side)

Dimension

1280*1760mm

Dot pitch

5 mm

Light brand

kinglight

Module Size

320mm(W)*160mm(H)

Brightness

≥6500cd/㎡

Lifespan

100,000hours

Average Power Consumption

250w/㎡

Max Power Consumption

750w/㎡

Power parameter (external prower supply)

Input voltage

Single phase 240V

Output voltage

240V

Inrush current

30A

Average power consumption

300wh/㎡

Player control system

Video processor

Nova

Model

TB60-4G

Sound system

Speaker

CDK 100W,4 pcs

Power amplifier

CDK 500W

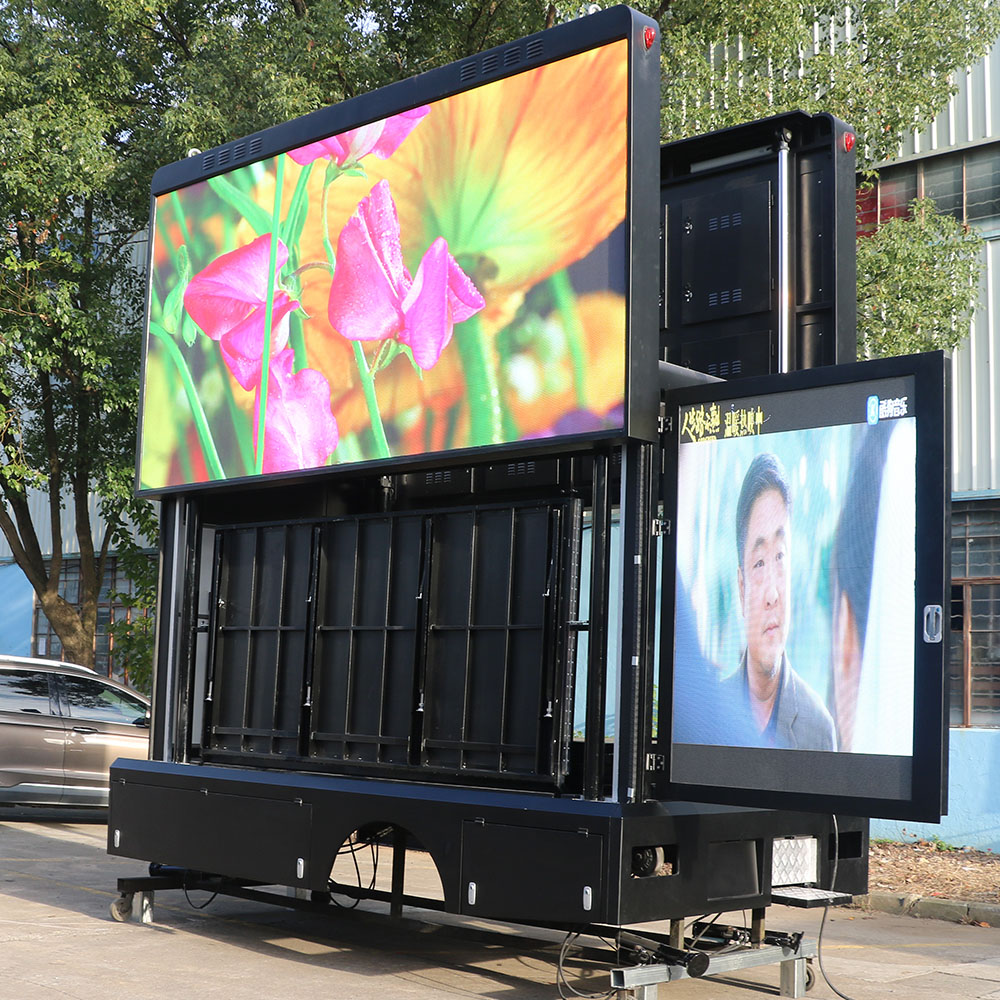

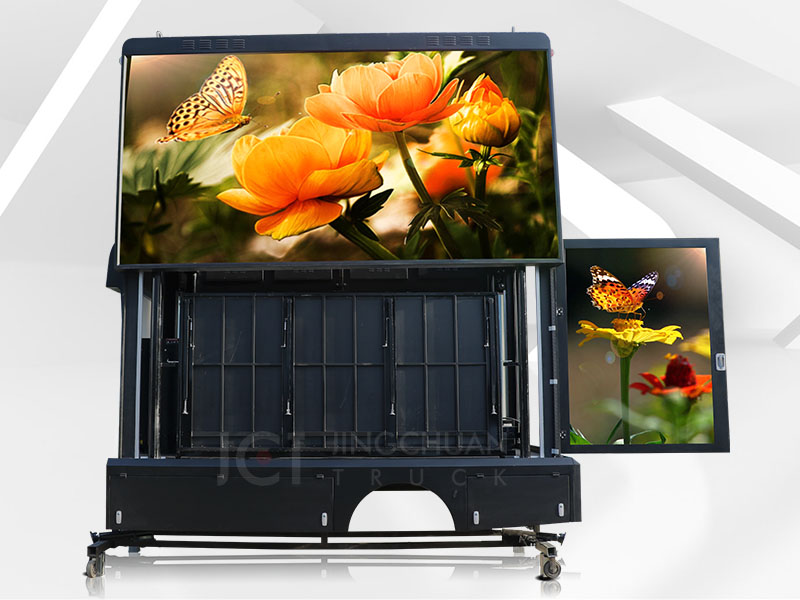

hydraulic lifting

distance of travel

1700 mm

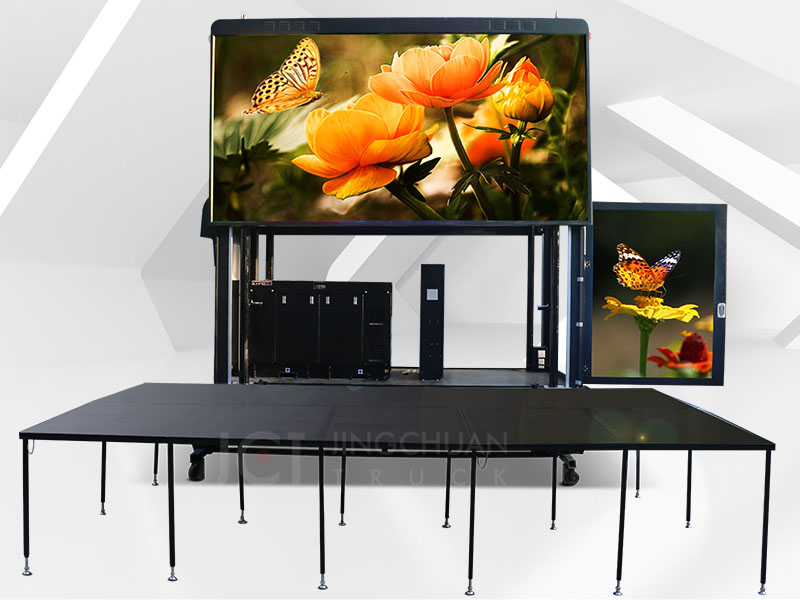

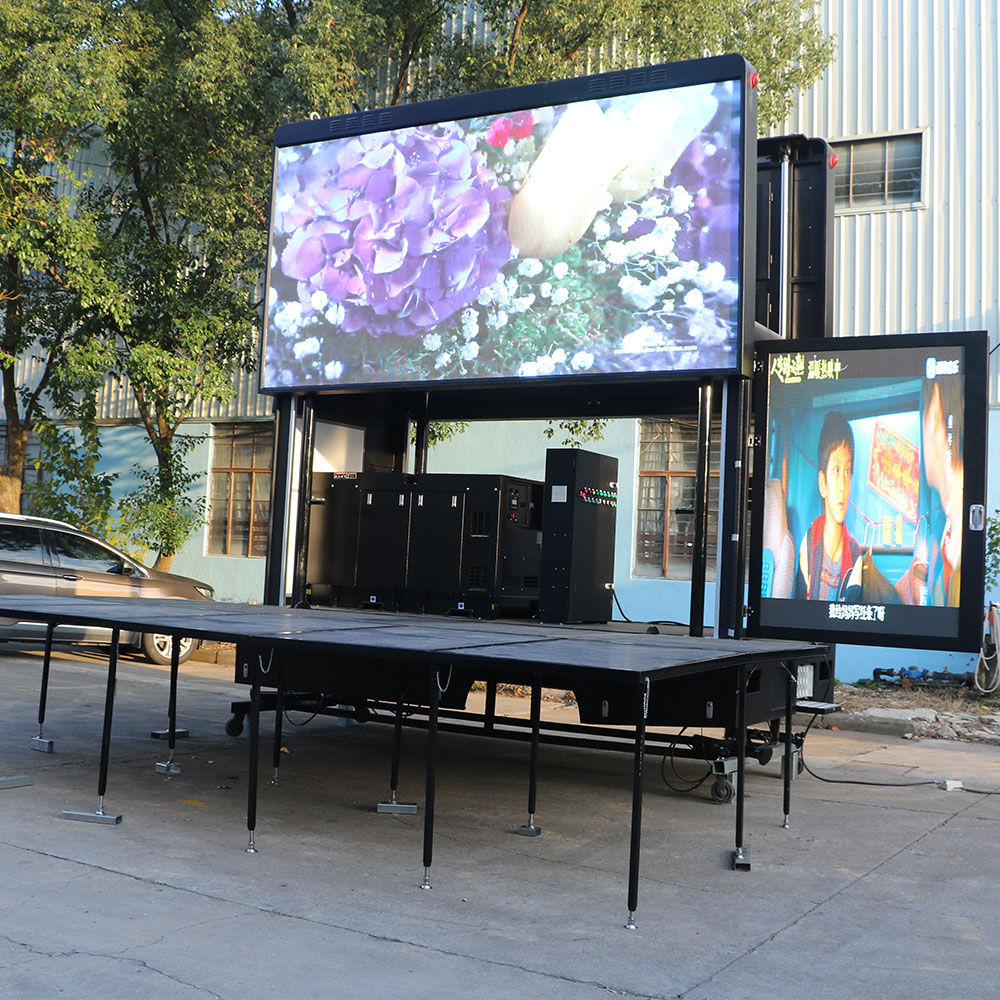

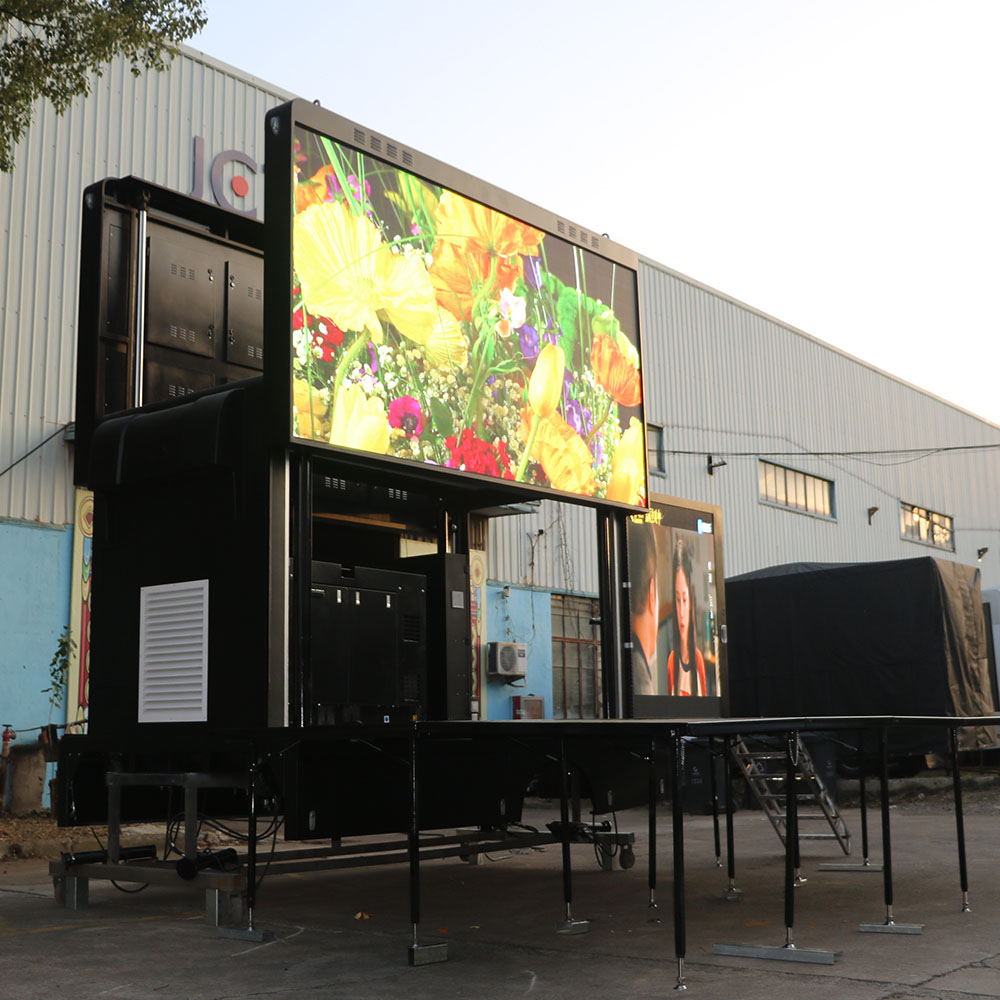

Hydraulic stage

Size

5200 mm*1400 mm

stairs

2 pecs

guardrail

1 set
