The EF-6 LED trailer, with its excellent performance and multifunctional design, became the ideal choice for modern event publicity and display. Its core highlight lies in mobility, the outdoor publicity screen and professional mobile traction chassis combined, so that the product is not only an outdoor screen, but also a flexible publicity tool. What is unique is that it can adjust the position according to the density of the crowd, and realize the precision marketing of "where more people go". This flexibility allows it to show its charm in every corner of the city.
EF6 high quality LED trailer: excellent performance, unlimited possibilities

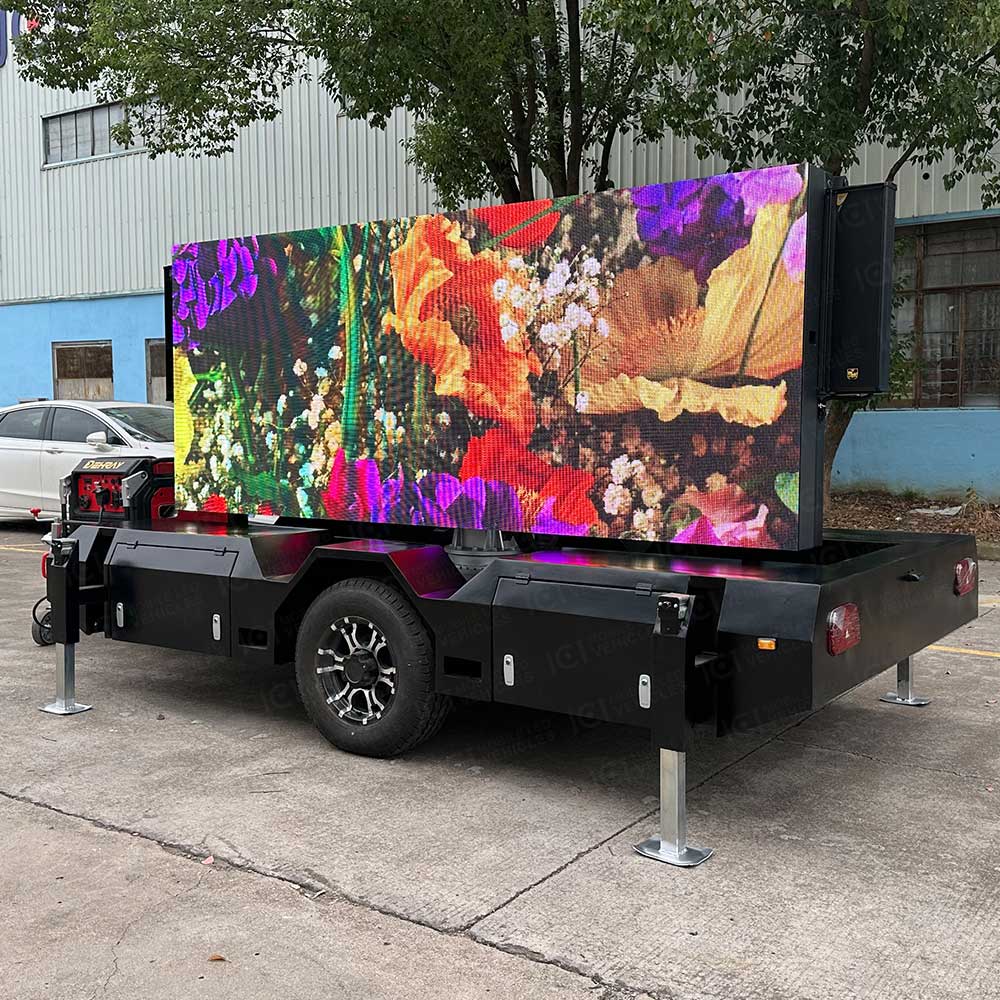

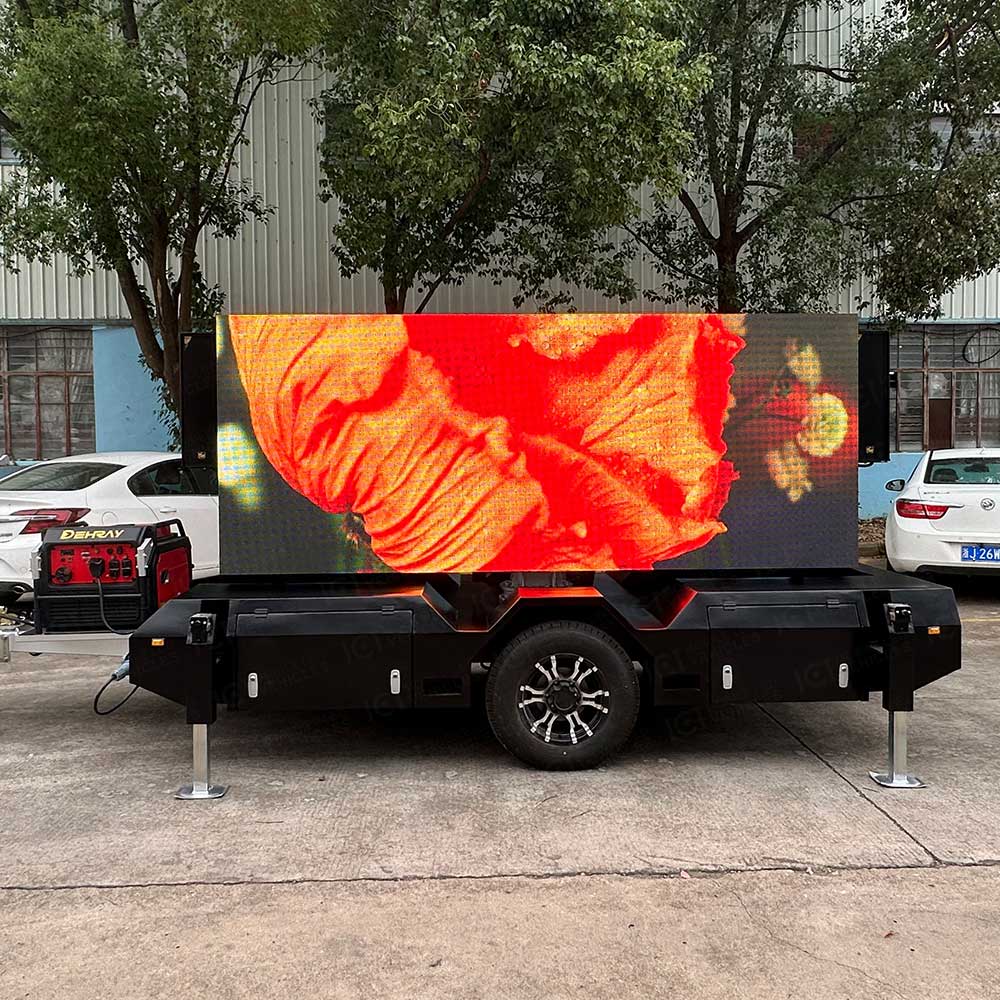

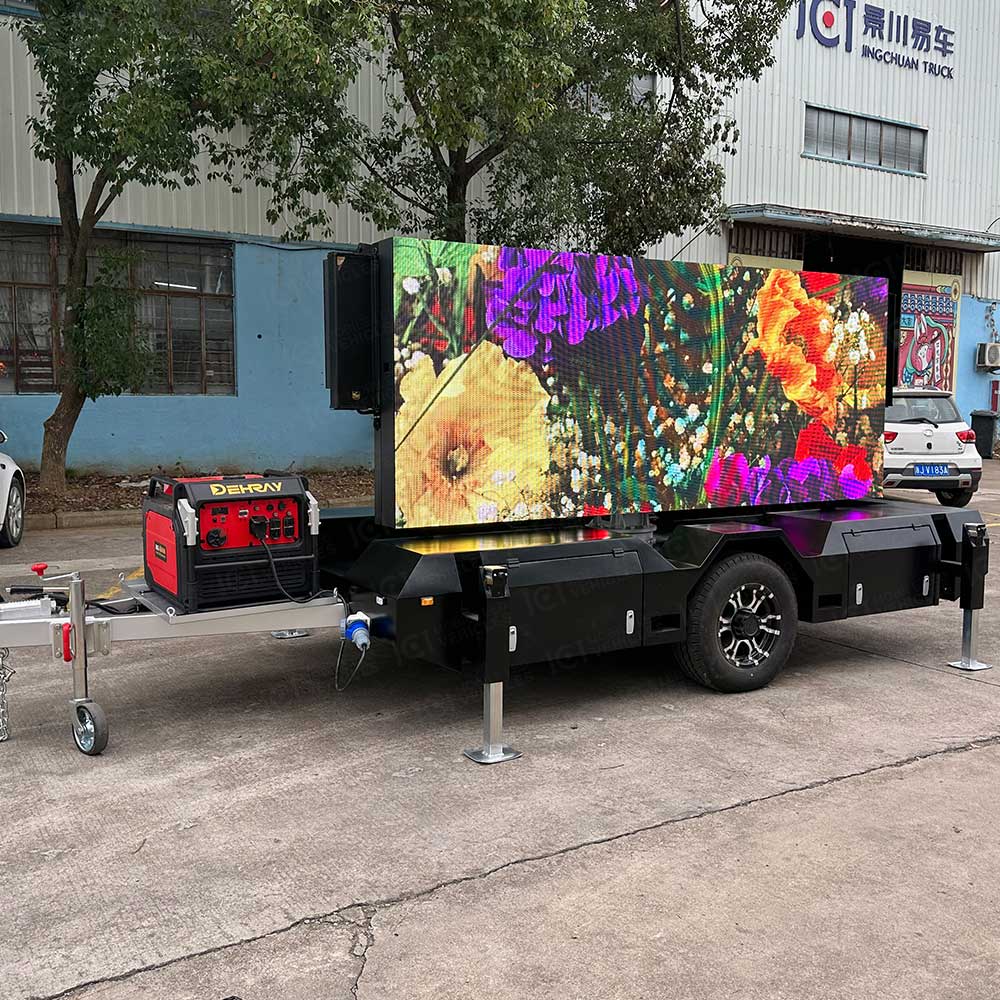

The 6 ㎡ LED trailer is equipped with a 3200mm x 1920mm HD outdoor waterproof full-color screen, which can meet customer needs both in terms of color saturation and resolution. At the same time of ensuring the display effect, the vehicle size is also carefully controlled at
4965 x 1800 x 2050mm, which not only ensures the mobility, but also meets the various transportation and site requirements.

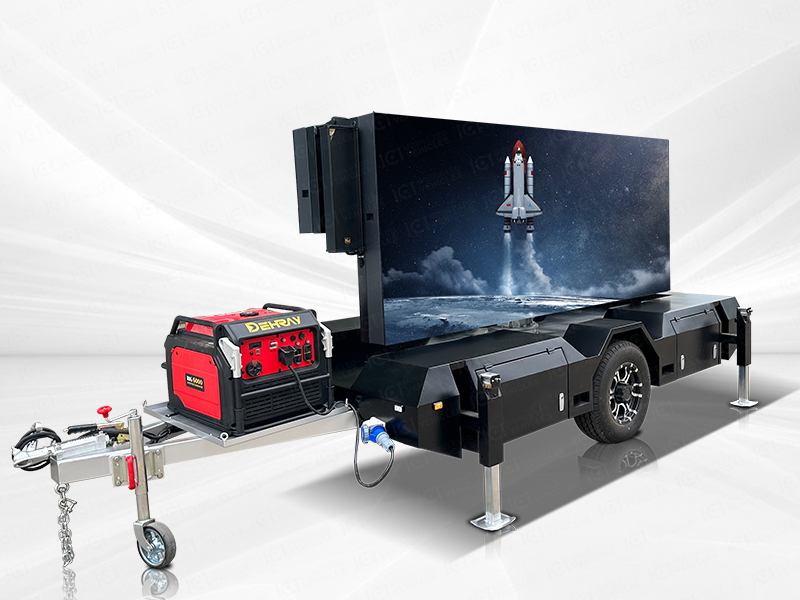

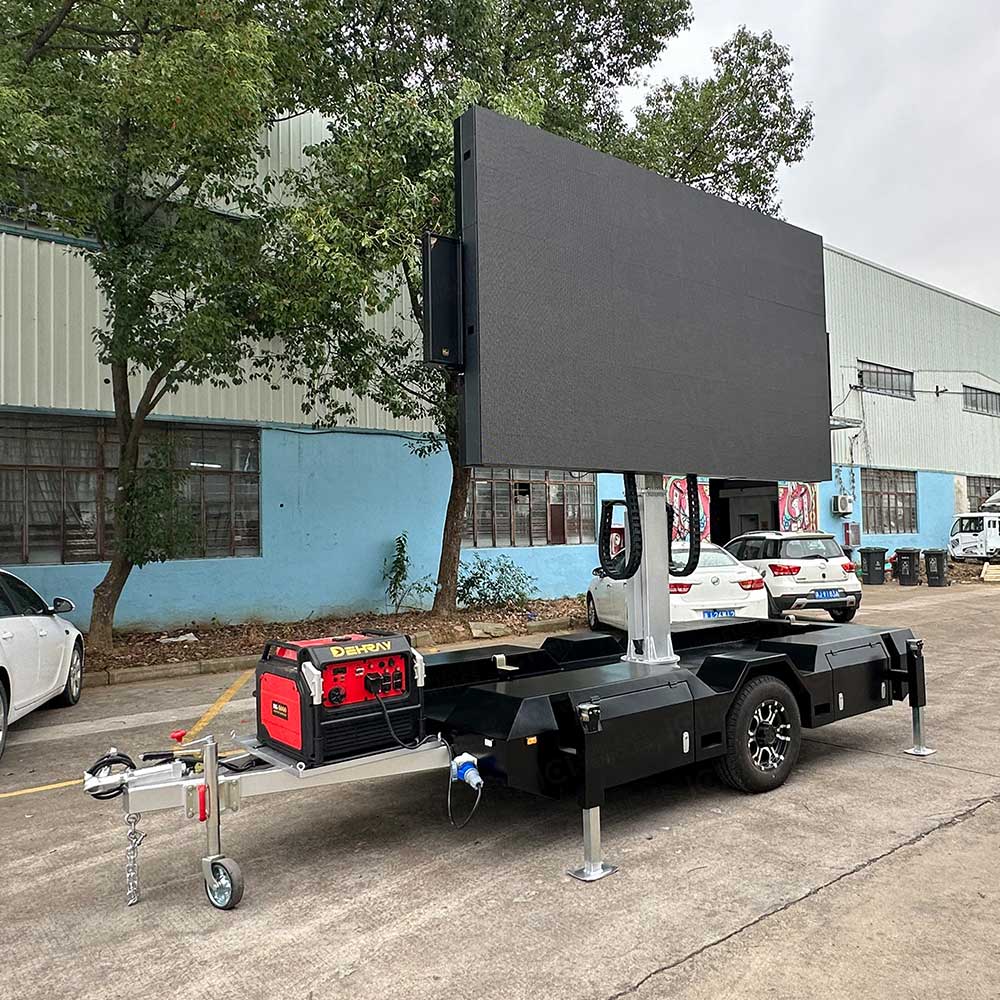

The mobile chassis of EF6 LED trailer adopts German high quality ALKO brand, with excellent quality and guaranteed safety. Its traction rod not only makes the connection of the trailer with various vehicles more convenient, but also enhances the overall beauty and practicality. Whether with a car or any other traction device, you can easily take the EF6 type LED trailer wherever you need it.

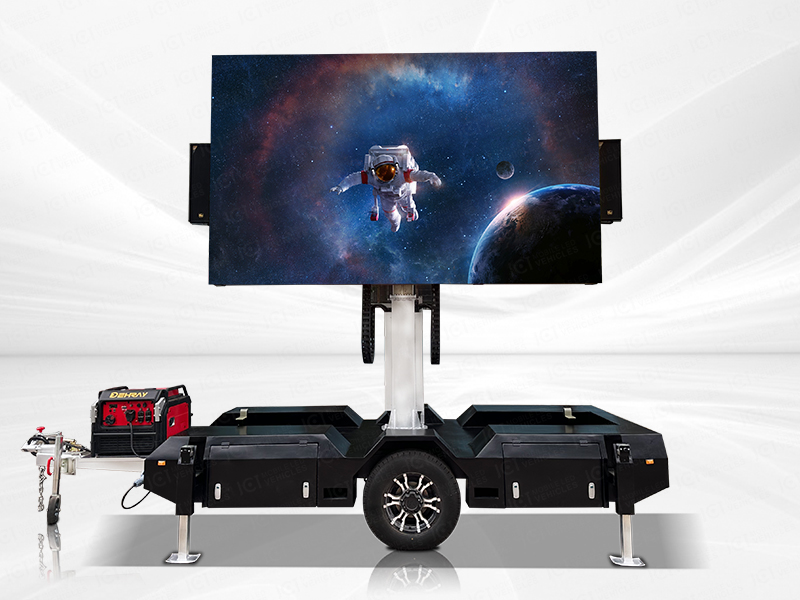

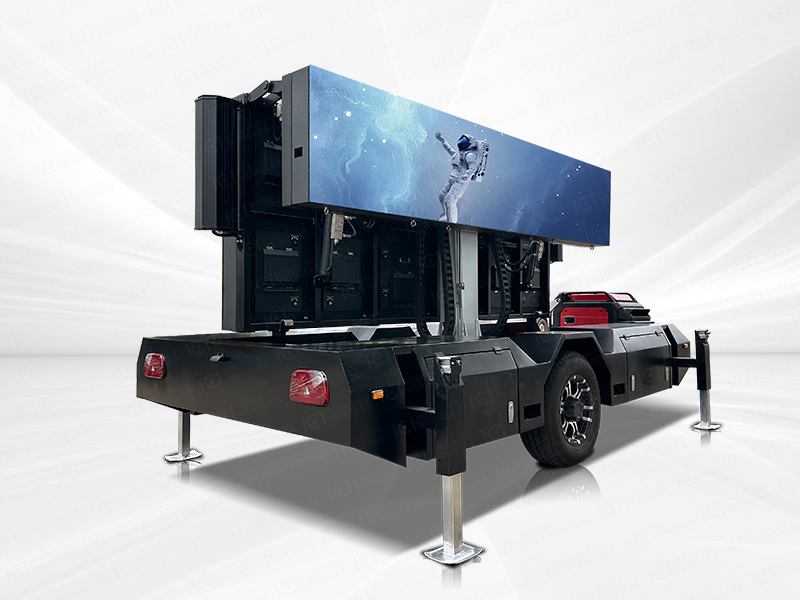

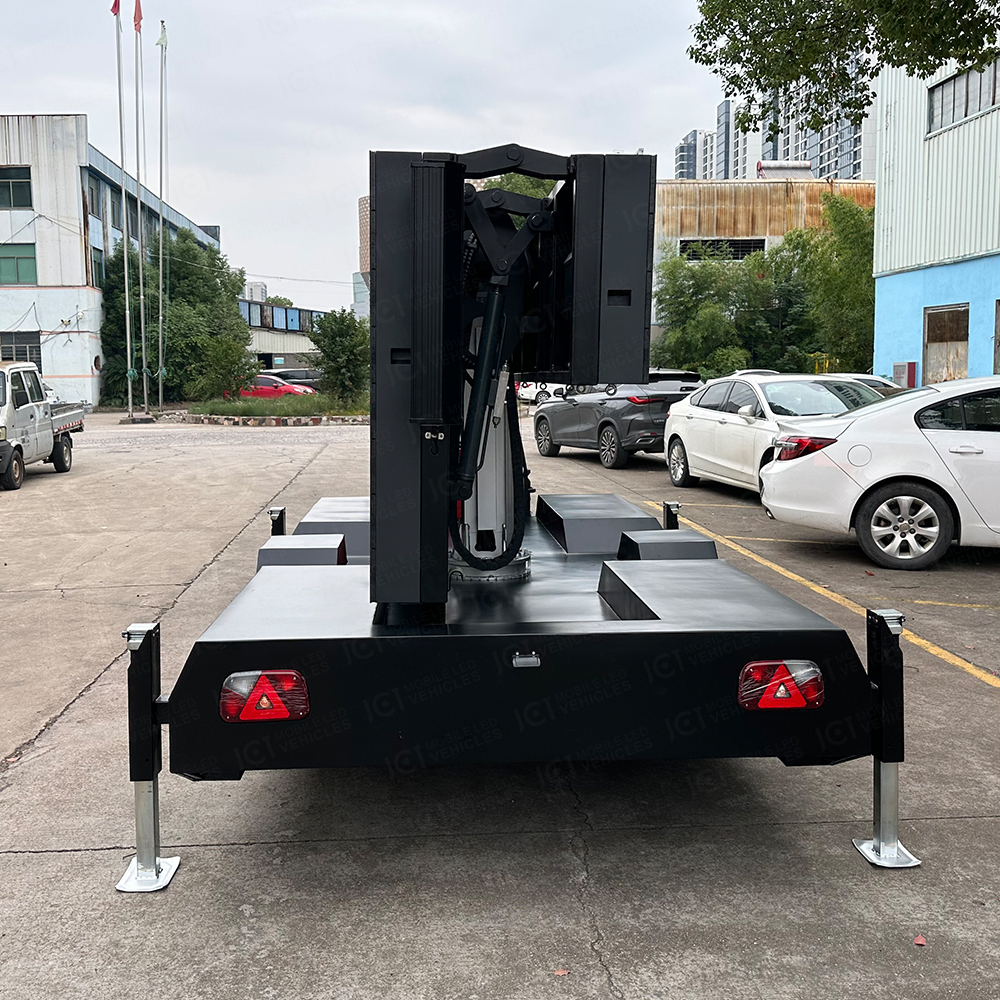

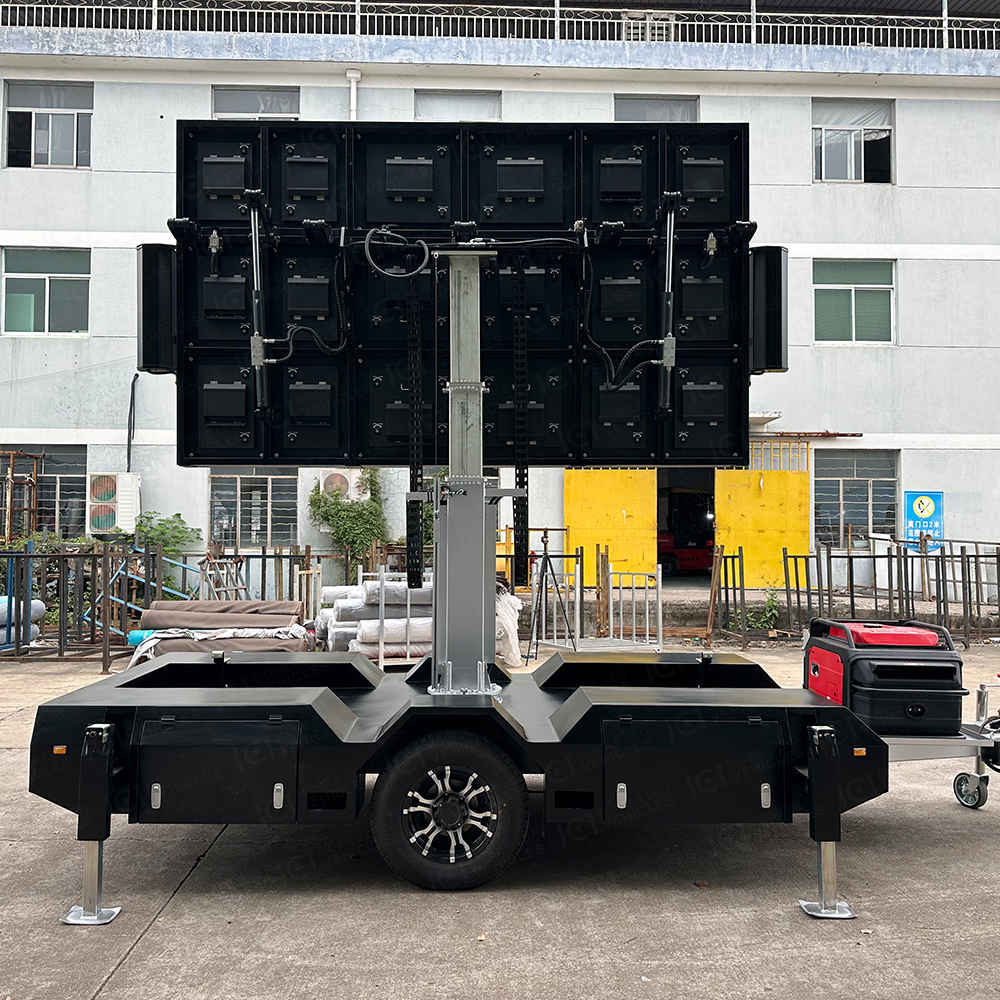

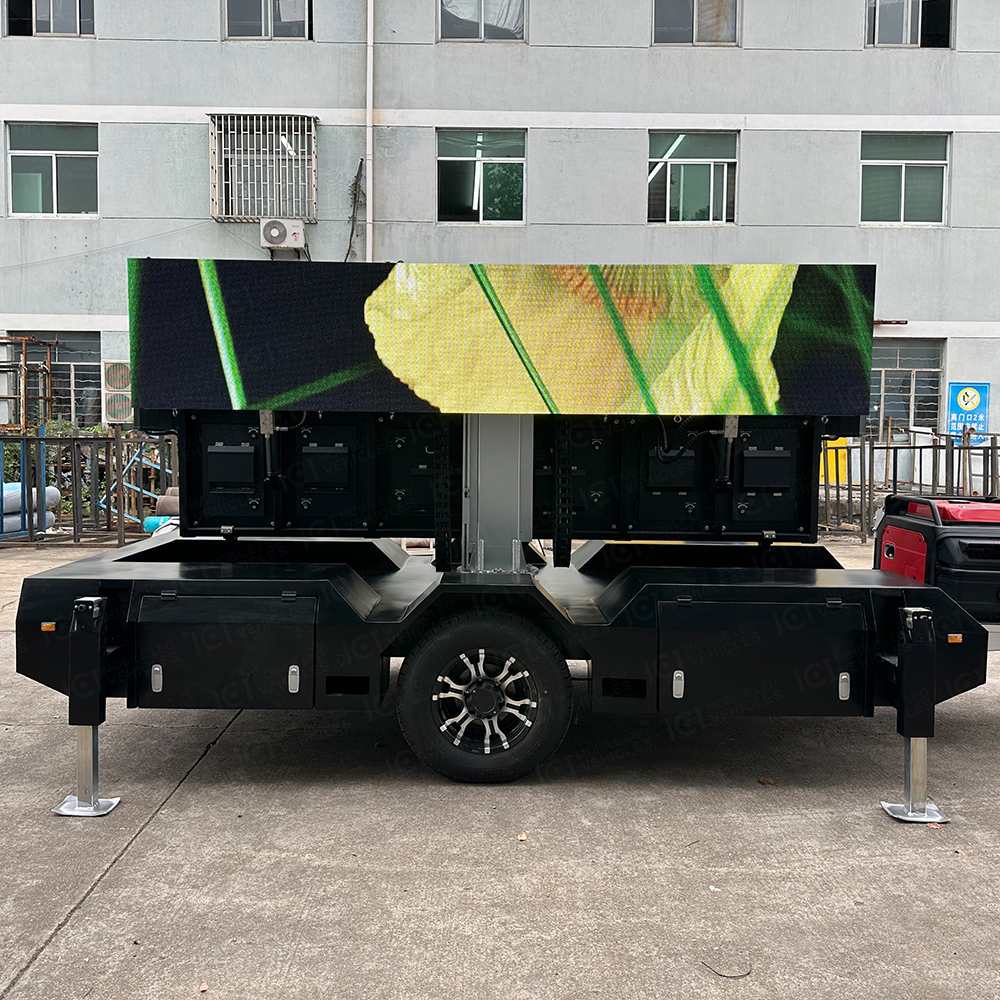

It is worth mentioning that the EF6 LED trailer is equipped with an integrated hydraulic guide column, which integrates hydraulic lifting, screen folding and screen rotation functions. After many verification, the structure is safe and stable, not only can the LED screen up and down up to 1300mm; but also has manual 330 degree rotation function, the viewing perspective of the LED screen can be flexibly adjusted according to the needs of the environment, to ensure that every audience can get the best viewing Angle, bring them an unparalleled visual feast; the screen also has 960mm folding function, when the LED screen is not used, not only save space, but also greatly enhance the stability and security during transportation.
To ensure the safe driving process, the EF6 mobile LED trailer is also equipped with an inertial device and a handbrake. These safety devices can provide you with additional protection at critical moments to ensure the safety of personnel and equipment.
In terms of operation, the mechanical structure of the manual legs makes the whole process simple and fast. No professional skills, anyone can easily start, easy to complete the layout and storage of the equipment.
In the areas of commercial promotion, cultural events and sporting events, the EF6 mobile LED trailer is undoubtedly a powerful publicity assistant. Its extensive coverage and strong attraction, can help you quickly catch the attention of the audience, and realize the efficient communication of the brand. Choose this EF6 type LED trailer, make your activities more vivid and interesting, and bring an unforgettable visual feast for the audience!
|
EF6 |
|||
|
Specification |
|||
|
Trailer appearance |
|||
|
Gross weight |
1280kg |
Dimension |
4965×1800×2050mm |
|
Max speed |
120Km/h |
Single axle |
1500kg,German ALKO |
|
Breaking |
Crash brake and hand brake |
|
|
|
LED Screen |
|||
|
Dimension |
3200mm*1920mm |
Module Size |
320mm(W)*160mm(H) |
|
Light brand |
kinglight |
Dot Pitch |
4mm |
|
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
1/8 |
|
HUB |
HUB75 |
Pixel density |
62500Dots/㎡ |
|
Module resolution |
80*40Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
system support |
Windows XP,WIN 7， |
|
|
|
Inrush current |
20A |
Average power consumption |
250wh/㎡ |
|
Player System |
|||
|
Player |
NOVA |
Modle |
TB50-4G |
|
Luminance sensor |
NOVA |
|
|
|
Sound System |
|||
|
Power amplifier |
Unilateral power output:250W |
Speaker |
Max power consumption:50W*2 |
|
Hydraulic System |
|||
|
Wind-proof level |
Level 8 |
Supporting legs |
4 pcs |
|
Hydraulic lifting: |
1300mm |
Fold LED screen |
640mm |
|
Advantages: |
|||
|
1, can lift 1300MM, can rotate 360 degrees. |
|||
|
2, with Electric brake and hand brake！ |
|||
|
3, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. |
|||
|
4, with 7 core signal connection head! |
|||
|
5. two tire fenders |
|||
|
6, 10mm safety chain, 80 grade rated ring |
|||
|
7,Trailer lights with US standard, EMARK certification |
|||
|
8,the whole vehicle galvanized process |
|||
|
9, brightness control card, automatically adjust brightness. |
|||
|
11，LED Play can be controlled wirelessly! |
|||
|
12. Users can remotely control LED SIGN by sending SMS messages. |
|||
|
13, equipped with GPS module, can remotely monitor the position of led trailer. |
|||
