Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
With the booming cultural performing arts industry today, the performance form is constantly innovating, and the requirements for performance equipment are also increasing. An equipment that can break through the limitation of venue and flexibly show wonderful performances has become the eager expectation of many performing arts teams and event organizers. The 15.8m mobile performance stage truck emerged at the historic moment. It is like a clever artistic messenger, injecting new vitality into various performance activities and completely changing the traditional performance mode.

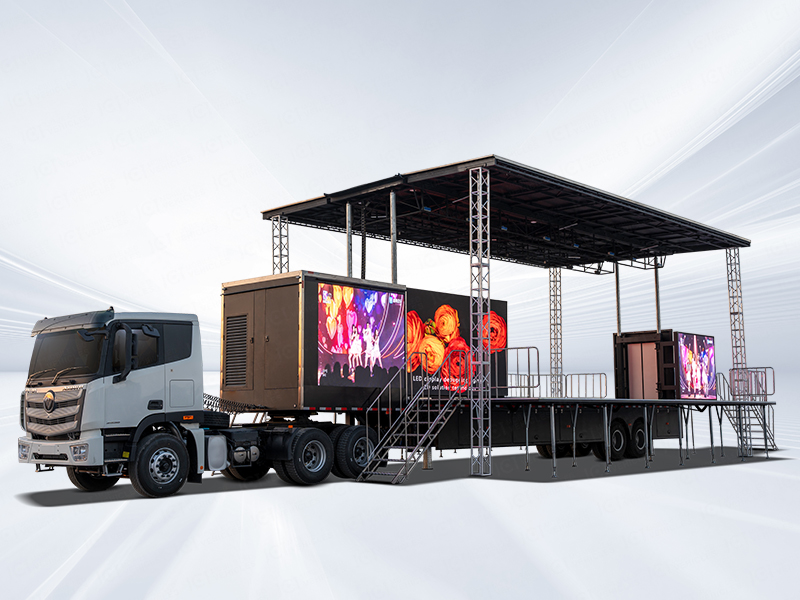

Appearance design: majestic, attract countless eyes

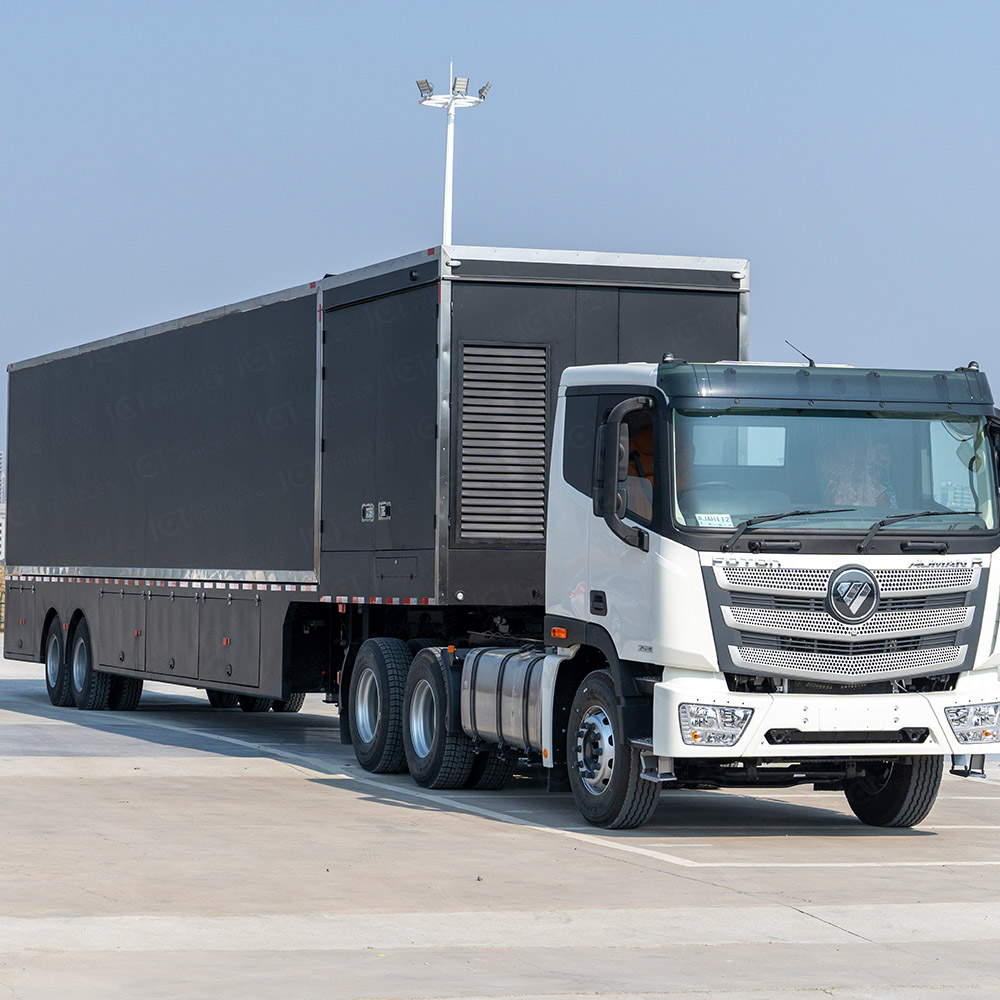

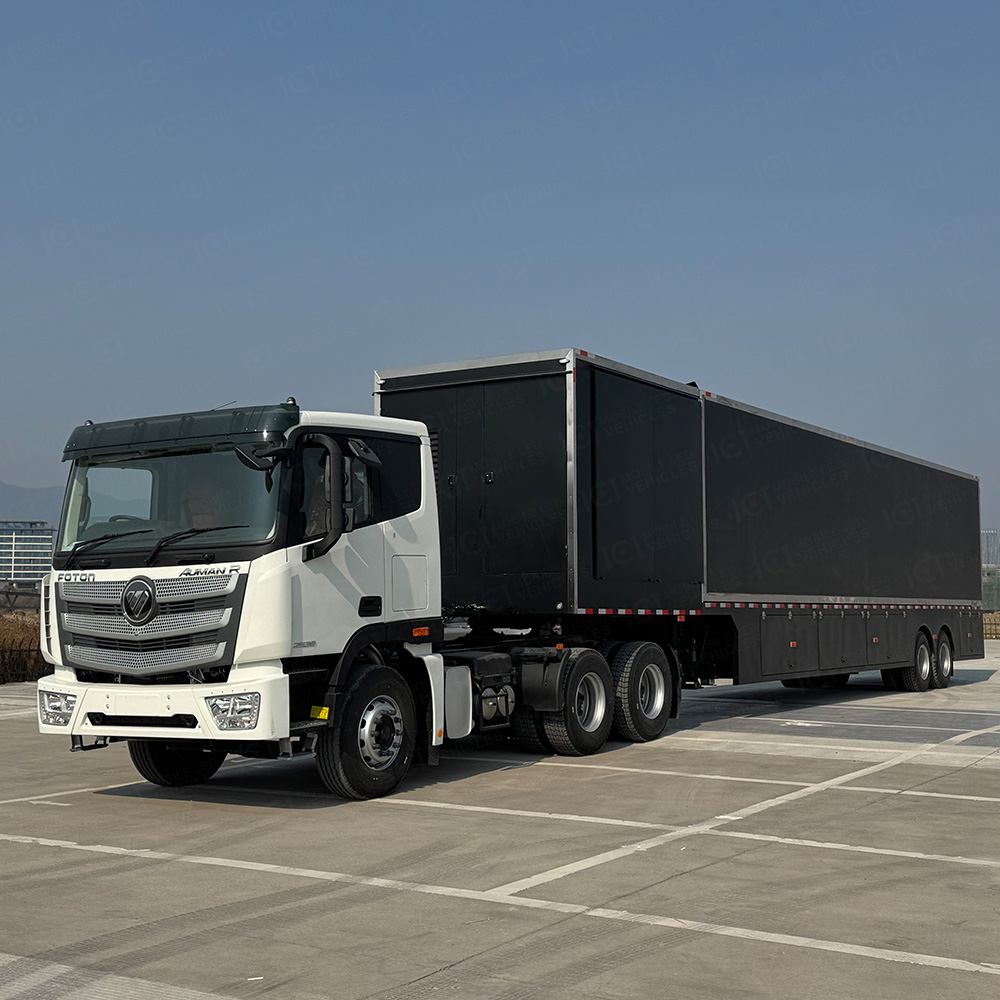

The exterior design of this mobile performance stage truck is a must. Its huge body size not only provides sufficient space for its rich internal equipment configuration, but also gives people a strong visual impact. The streamlined outline of the body, with exquisite details, makes the whole stage car on the road, like an elegant giant, attracting the eyes of all people along the way. When it arrives at the performance venue and unfolds its huge body, the shocking momentum is more irresistible, instantly becoming the focus of the audience, creating a grand and spectacular atmosphere for the performance.
Expand the method: convenient and efficient, save time

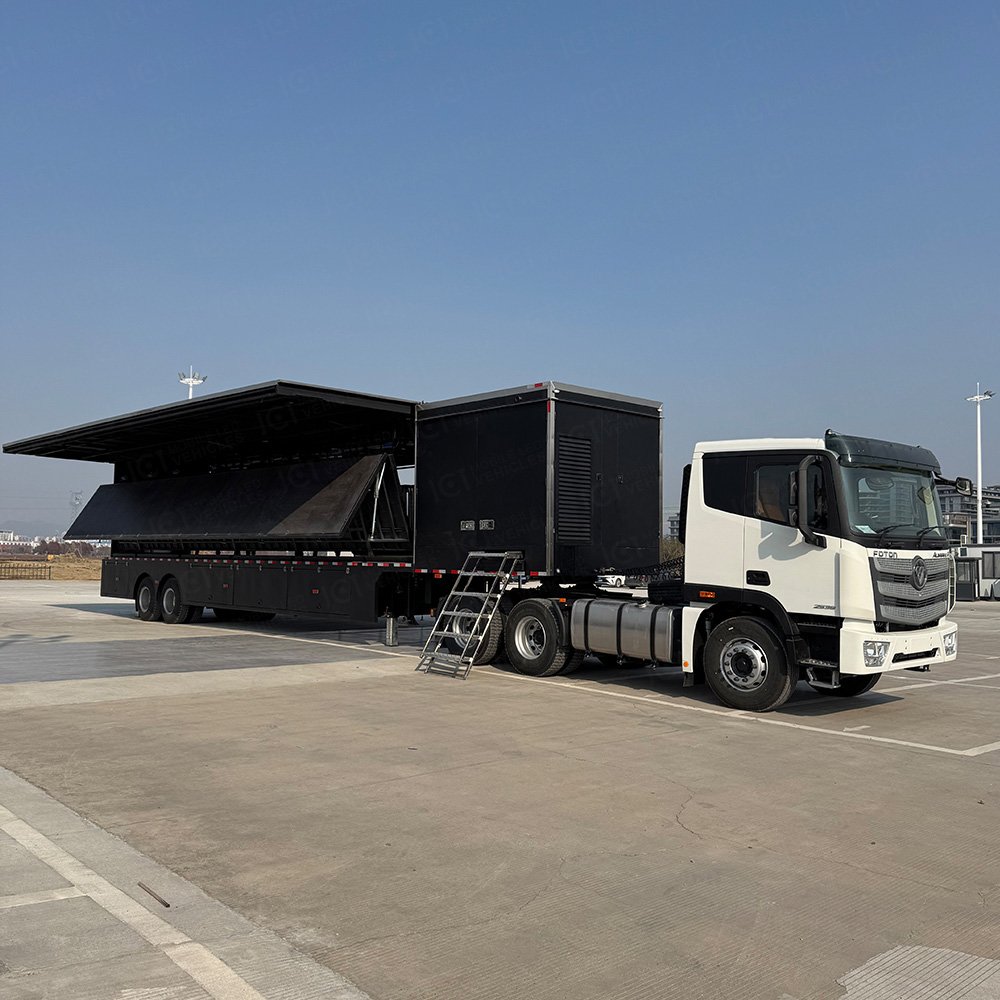

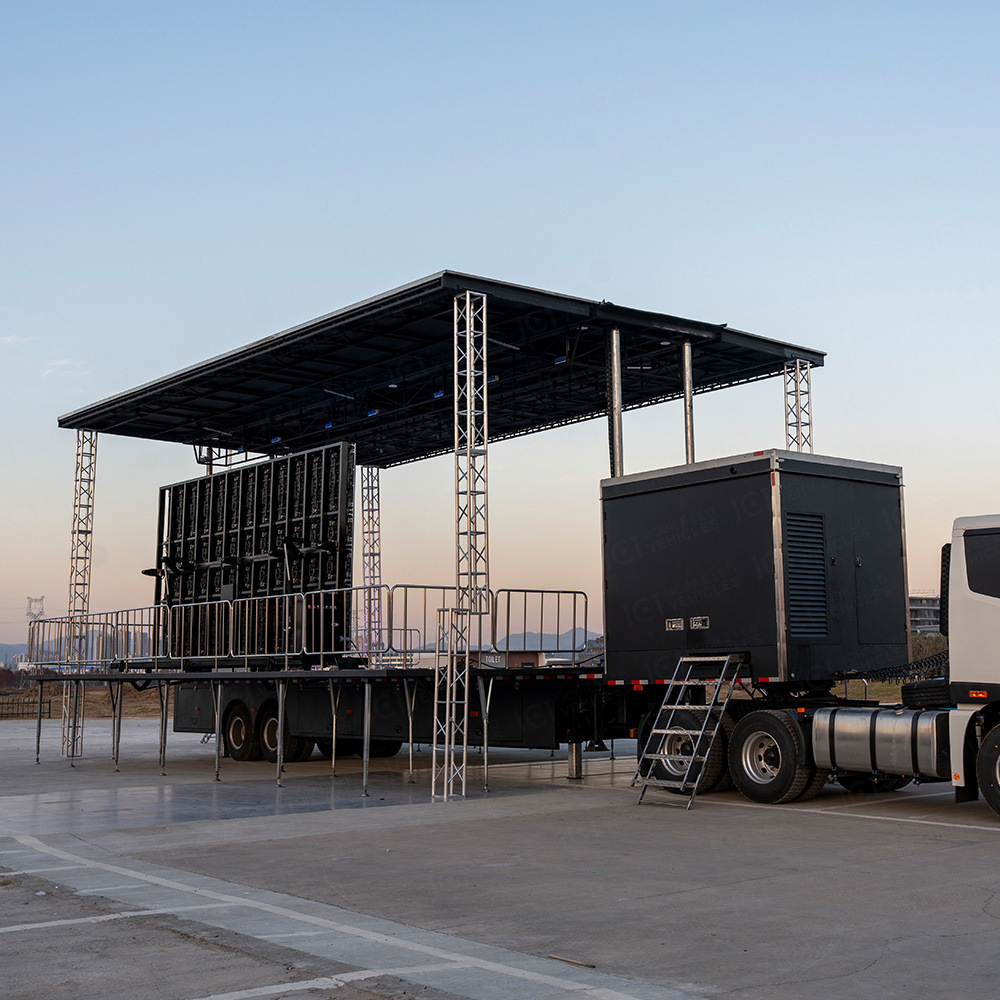

The wing panels on both sides of the car use the hydraulic flip design, this clever design makes the deployment and storage of the stage panels become easy and abnormal. Through the precise control of the hydraulic system, the fender can be opened quickly and smoothly, saving a lot of valuable time for the construction of the performance stage. Moreover, this hydraulic flip mode is simple to operate, only a few staff can complete the whole expansion and storage process, greatly reducing the labor cost, improve the work efficiency, to ensure that the performance can be on time and smoothly.
Stage configuration: spacious space, to meet the needs of various performances

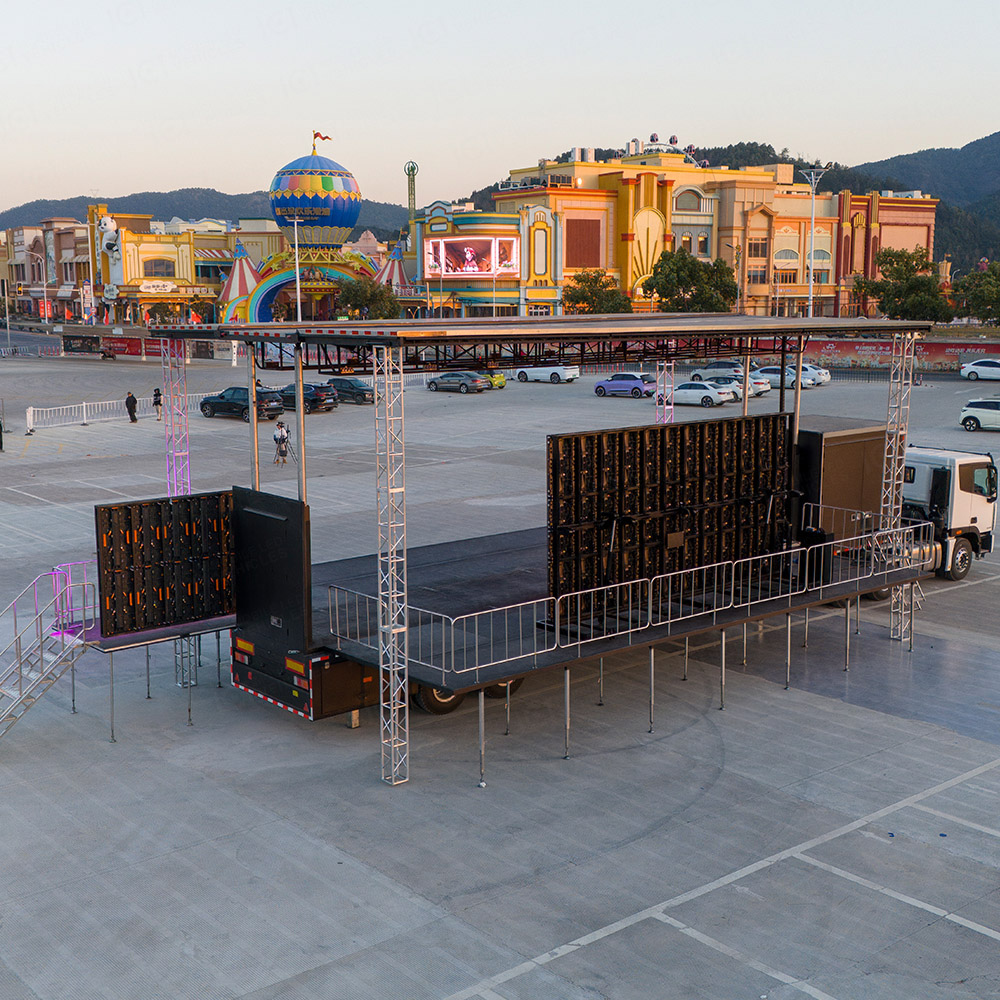

The double folding stage board design on both sides is one of the highlights of the mobile performance stage truck. The wing panels on both sides of the truck are humanized design, which can be easily opened by hydraulic flipping. This structural design makes the deployment and storage of the stage board very convenient. The staff only need to gently operate the hydraulic device, the wing plate can be opened smoothly opened, then the stage board is launched, and a spacious and stable performance stage will be quickly built. The whole process is efficient and smooth, which greatly saves the preparation time before the performance, so that the performance can start more timely and smoothly.
The design of the double folding stage board on both sides provides a strong guarantee for the expansion of the stage area of the performance. When the double folding stage board is fully unfolded, the performance stage area is greatly increased, providing sufficient space for the actors to perform. Whether it is a large-scale song and dance performance, a wonderful band performance, or a shocking group exercise performance, it can easily deal with it, so that the actors can show their talents on the stage, and bring more wonderful performance effect to the audience. Moreover, the spacious stage space is also convenient for the arrangement of various stage props and equipment, to meet the needs of different forms of performance, adding more possibilities for the performance.
LED HD display screen: visual feast, shocking presentation

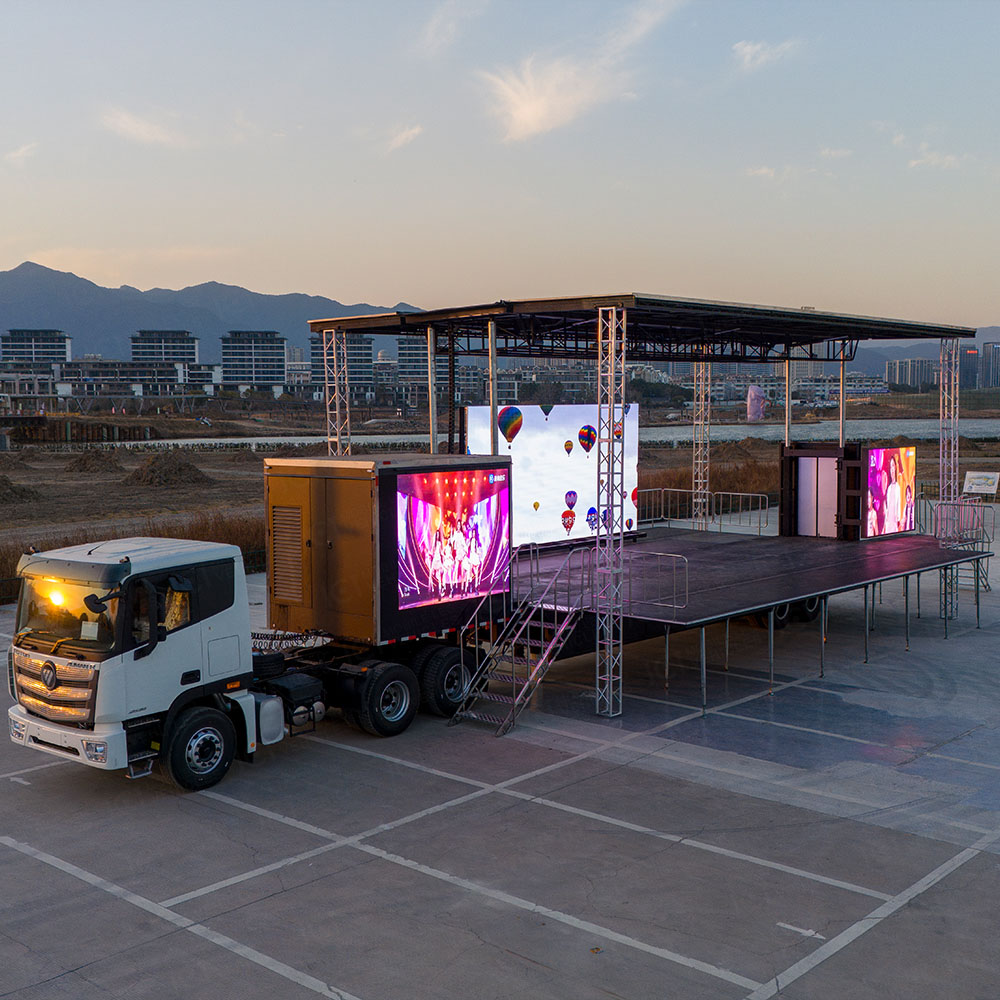

The mobile stage truck has three built-in LED HD displays, bringing a new visual experience for the performance. Stage in the middle of the configuration of a 6000 * 3000mm folding home screen, its large size and HD quality can clearly show every performance details, whether the actors expression, action, or stage effect every change, as if close, let the audience no matter in what position, can enjoy the perfect visual feast. Moreover, the high-definition picture quality of the main screen can present rich and delicate colors and realistic picture effects, creating a more immersive atmosphere for the performance.

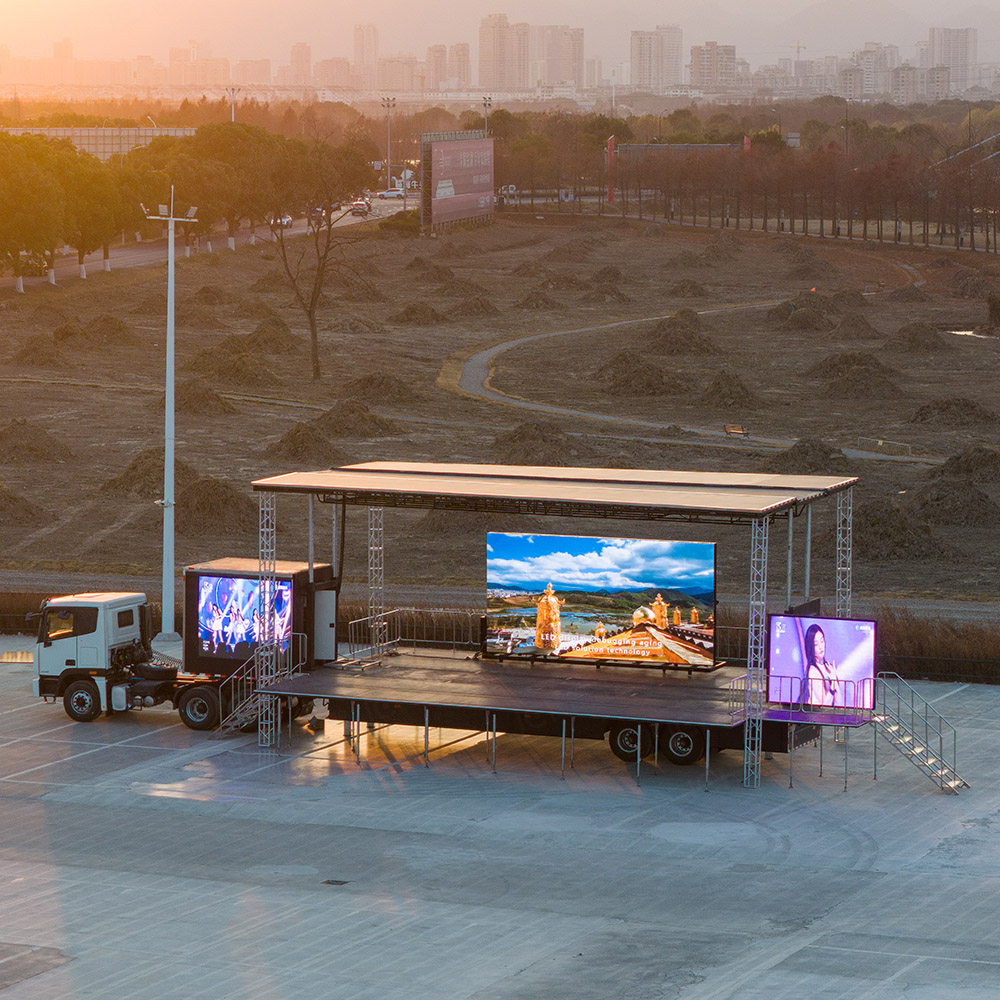

On the left and right sides of the truck, there is a 3000 * 2000mm secondary screen. The two secondary screens cooperate with the main screen to form an all-round visual enclosure. During the performance, the secondary screen can synchronously display the content of the main screen, and can also play other pictures related to the performance, such as performance trivia and behind-the-scenes production, which enriches the visual experience of the audience and increases the interest and interactivity of the performance. In addition, the existence of the sub-screen also makes the stage more visual full, enhancing the overall effect of the performance.

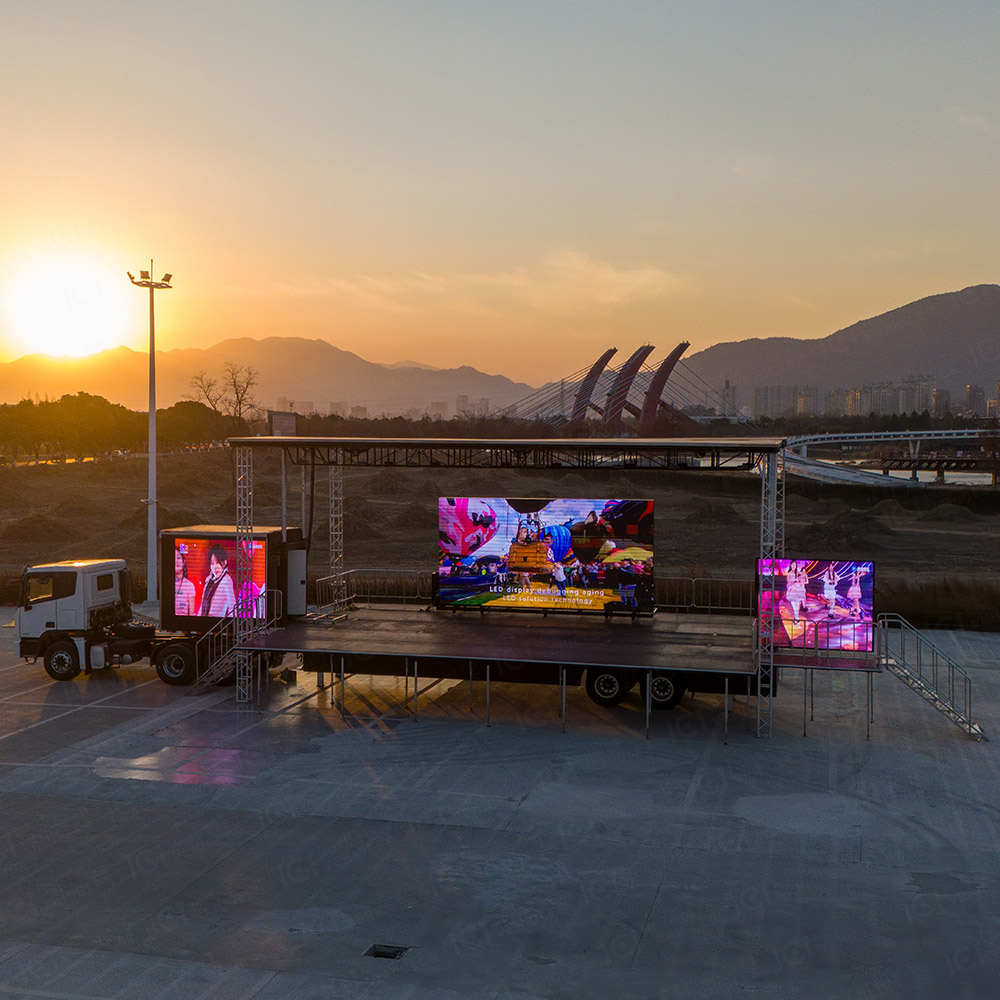

The appearance of the 15.8 m mobile performance stage truck has brought various conveniences and advantages to all kinds of performance activities. For a touring acting team, it is a mobile art circuit. The team can drive the stage car around various cities and towns, without having to worry about finding a suitable performance venue. Whether it is a concert, a drama performance, or a variety party, the stage truck can bring high-quality performance to the audience anytime and anywhere. For the event organizers, this stage truck provides a new way of event planning. In commercial promotion activities, stage trucks can be driven directly out to the entrance of the shopping mall or the commercial street, attracting a large number of customers through wonderful performances, and enhancing the popularity and influence of the activities. In the community cultural activities, the stage truck can provide the residents with colorful cultural programs, enrich their spare time life, and promote the prosperity and development of the community culture.
In some large-scale celebrations, the 15.8m mobile performance stage truck has become the focus. It can be used as a performance platform for the opening and closing ceremonies, with its unique appearance and powerful function, adding a strong festive atmosphere for the event. For example, in the anniversary celebration of the city, the stage truck set up a stage in the central square of the city, and the wonderful performance attracted thousands of citizens to come to watch, becoming the most beautiful scenery in the city celebration.
The 15.8m mobile performance stage truck has become the best choice for all kinds of performance activities with its magnificent appearance design, convenient and efficient unfolding mode, spacious and flexible stage configuration and stunning LED high-definition display screen. It not only provides a broad platform for the actors to show their talents, but also brings an unparalleled audio-visual feast to the audience. Whether it is a large-scale commercial performance, outdoor music festival, or cultural celebration activities, this mobile performance stage truck can become the highlight and focus of the activity with its excellent performance and excellent performance, adding luster to every performance moment.

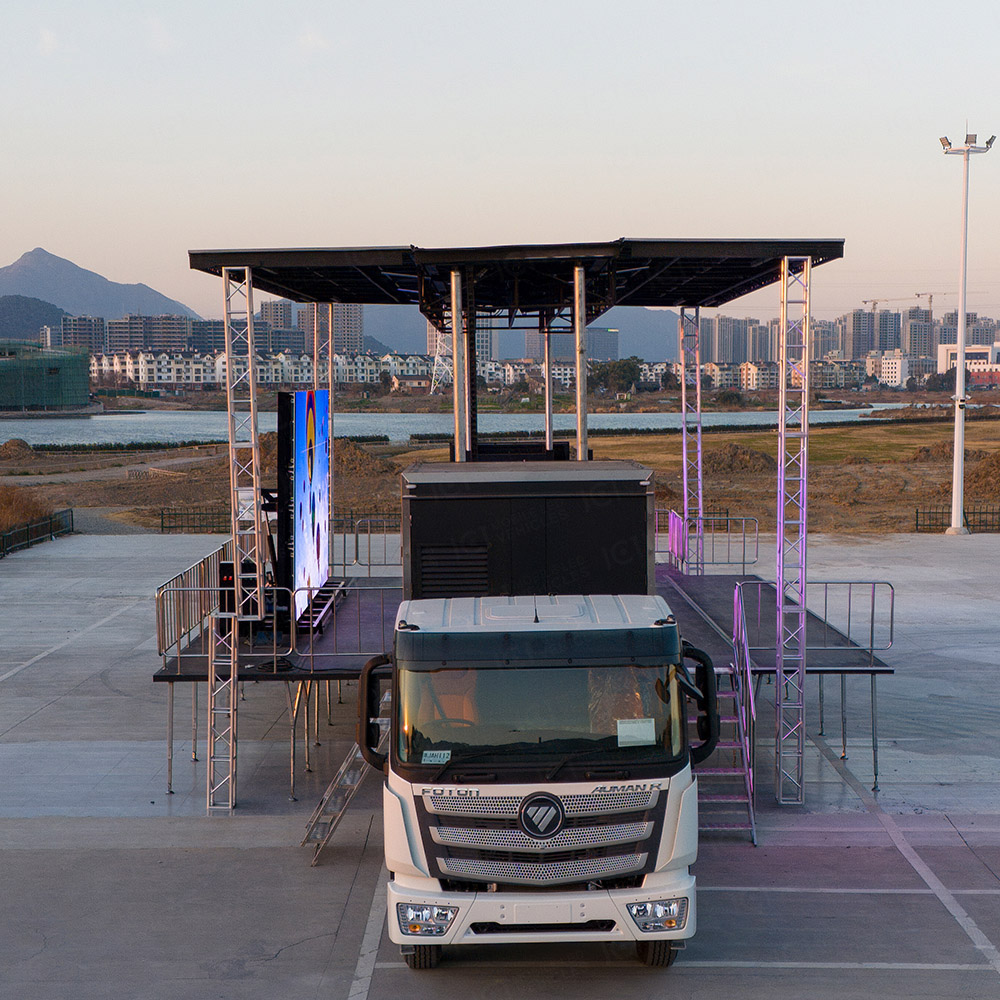

| 15.8 m stage truck | ||||
| Stage truck configuration | ||||
| The vehicle dimensions | L*W*H:15800 mm *2550 mm*4000 mm | |||
| Chassis configuration | Semi-trailer chassis, 3 axles, φ50mm traction pin, equipped with 1 spare tire; | |||
| Structure overview | The two wings of the stage semi-trailer can be hydraulically turned upward to open, and the two sides of the built-in folding stage can be hydraulically expanded outwards; The interior part is divided into two parts: the front part is the generator room, and the back part is the stage body structure; The middle of the rear plate is a single door, the whole vehicle is equipped with 4 hydraulic legs, and the four corners of the wing plate are equipped with 1 splicing aluminum alloy wing truss; | |||
| Generator room | Side panel: single door with shutters on both sides, built-in stainless steel door lock, bar stainless steel hinge; The door panel opens towards the cab; Generator size: length 1900mm× width 900mm× height 1200mm. | |||
| Step ladder: The lower part of the right door is made of pull step ladder, step ladder is stainless steel skeleton, patterned aluminum tread | ||||
| The top plate is aluminum plate, the skeleton is steel skeleton, and the interior is color plated plate. | ||||
| The lower part of the front panel is made with shutters to open the door, the height of the door is 1800mm; | ||||
| Make a single door in the middle of the back plate and open it in the direction of the stage area. | ||||
| The bottom plate is hollow steel plate, which is conducive to heat dissipation; | ||||
| The top panel of the generator room and the surrounding side panels are filled with rock wool with a density of 100kg/m³, and the inner wall is pasted with sound absorbing cotton | ||||
| Hydraulic leg | The stage car is equipped with 4 hydraulic legs at the bottom. Before parking and opening the car, operate the hydraulic remote control to open the hydraulic legs and lift the vehicle to the horizontal state to ensure the stability and safety of the vehicle; | |||
| Wing side plate |
1. The panels on both sides of the car body are called wings, which can be turned upward through the hydraulic system to form a stage ceiling with the top plate. The overall ceiling is lifted vertically to a height of about 4500mm from the stage board through the front and rear gantry frames; 2. The outer skin of the wing board is a glass fiber honeycomb board with a thickness of 20mm (the outer skin of the glass fiber honeycomb board is a glass fiber panel, and the middle layer is a polypropylene honeycomb board); 3. Make manual pull light hanging rod on the outside of the wing board, and make manual pull sound hanging rod on both ends; 4. The trusses with diagonal braces are added to the inside of the lower beam of the wing plate to prevent the deformation of the wing plate. 5, the wing plate is covered with stainless steel edge; |
|||
| Stage board | The left and right stage panels are double-folded structures, vertically built into both sides of the interior bottom plate of the car body, and the stage panels are 18mm laminated plywood. When the two wings are unfurled, the stage boards on both sides are unfurled outwards by the hydraulic system. At the same time, the adjustable stage legs built into the inside of the two stages are jointly unfurled with the stage boards and support the ground. The folding stage boards and the bottom plate of the car body form the stage surface together. The front end of the stage board is manually turned over, and after unfolding, the size of the stage surface reaches 11900mm wide × 8500mm deep. | |||
| Stage guard | The background of the stage is equipped with plug-in stainless steel guardrail, the height of the guardrail is 1000mm, and one guardrail collection rack is configured. | |||
| Stage step | The stage board is equipped with 2 sets of hanging steps up and down the stage, the skeleton is stainless steel skeleton, the aluminum tread of small rice grain pattern, and each step ladder is equipped with 2 plug-in stainless steel handrails | |||
| Front plate | The front plate is a fixed structure, the outer skin is 1.2mm iron plate, the skeleton is steel pipe, and the inside of the front plate is equipped with an electric control box and two dry powder fire extinguishers. | |||
| Back plate | Fixed structure, the middle part of the back plate makes a single door, built-in stainless steel hinge, strip stainless steel hinge. | |||
| ceiling | The ceiling is arranged with 4 light hanging poles, and 16 light socket boxes are configured on both sides of the light hanging poles (junction box socket is British standard), the stage light power supply is 230V, and the light power cord branch line is 2.5m² sheathing line; Four emergency lights are installed inside the top panel.The roof light frame is reinforced with a diagonal brace to prevent the roof from deformation. | |||
| Hydraulic system | The hydraulic system is composed of power unit, wireless remote control, wire control box, hydraulic leg, hydraulic cylinder and oil pipe. The working power supply of the hydraulic system is provided by the 230V generator or 230V, 50HZ external power supply. | |||
| truss | Four aluminum alloy trusses are configured to support the ceiling. The specifications are 400mm×400mm. The height of the trusses meets the four corners of the upper end of the trusses to support the wings, and the lower end of the trusses is configured with a base with four adjustable legs to prevent the ceiling from sagging due to the hanging of lighting and sound equipment. When the truss is built, the top section is first hung to the wing plate, and with the wing plate raised, the following trusses are connected in turn. | |||
| Electrical circuit |
The ceiling is arranged with 4 light hanging poles, and 16 light socket boxes are configured on both sides of the light hanging poles. The power supply of the stage light is 230V (50HZ), and the branch line of the light power cord is 2.5m² sheathing line. Four 24V emergency lights are installed inside the top panel. One light socket is installed in the inner side of the front panel. |
|||
| Crawling ladder | A steel ladder leading to the top is made on the right side of the front panel of the car body. | |||
| Black curtain | The surrounding of the rear stage is equipped with a hanging semi-transparent screen, which is used to enclose the upper space of the rear stage. The upper end of the curtain is hung on three sides of the wing board, and the lower end is hung on three sides of the stage board. The screen color is black | |||
| Stage enclosure | The front stage board is connected to the stage enclosure on three sides, and the cloth is canary curtain material; Hung on three sides of the front stage board, with the lower end close to the ground. | |||
| Toolbox | The toolbox is designed as a transparent one-piece structure for easy storage of large goods. | |||
| Specification | |||||
| Vehicle parameters | |||||
| Dimension | 15800*2550*4000mm | Weight | 15000 KG | ||
| Semi-trailer chassis | |||||
| Brand | CIMC | Dimension | 15800*2550*1500mm | ||
| Cargo box dimension | 15800*2500*2500mm | ||||
| LED Screen | |||||
| Dimension | 6000mm(W)*3000mm(H) | Module Size | 250mm(W)*250mm(H) | ||
| Light brand | Kinglight | Dot Pitch | 3.91mm | ||
| Brightness | 5000cd/㎡ | Lifespan | 100,000hours | ||
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 700w/㎡ | ||
| Power Supply | MEANWELL | DRIVE IC | 2503 | ||
| Receiving card | Nova MRV316 | Fresh rate | 3840 | ||
| Cabinet material | Die-casting aluminum | Cabinet weight | aluminum 30kg | ||
| Maintenance mode | Rear service | Pixel structure | 1R1G1B | ||
| LED packaging method | SMD1921 | Operating Voltage | DC5V | ||
| Module power | 18W | scanning method | 1/8 | ||
| HUB | HUB75 | Pixel density | 65410 Dots/㎡ | ||
| Module resolution | 64*64Dots | Frame rate/ Grayscale, color | 60Hz,13bit | ||
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ | ||
| system support | Windows XP,WIN 7， | ||||
| Lighting and sound system | |||||
| Sound system | Attachment 1 | Lighting system | Attachment 2 | ||
| Power parameter | |||||
| Input Voltage | 380V | Output Voltage | 220V | ||
| Current | 30A | ||||
| The hydraulic system | |||||
| Double-wing hydraulic cylinder | 4 pcs 90 - degree flip | Hydraulic jacking cylinder | 4 pcs stroke 2000 mm | ||
| Stage 1 flip cylinder | 4 pcs 90 - degree flip | Stage 2 flip cylinder | 4 pcs 90 - degree flip | ||
| Remote control | 1 set | Hydraulic control system | 1 set | ||
| Stage and guardrail | |||||
| Left stage size（Double fold stage） | 12000*3000mm | Right stage size（Double fold stage） | 12000*3000mm | ||
| Stainless steel guardrail | (3000mm+12000+1500mm)*2 sets，The stainless steel circular tube has a diameter of 32mm and a thickness of 1.5mm | The ladder（with Stainless steel handrail) | 1000 mm wide*2 pcs | ||
| Stage structure（Double fold stage） | All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board | ||||
