EW3815 LED advertising vehicle: the perfect integration of multimedia publicity and multi-functional display
JCT company to build the production of EW3815 LED advertising vehicle is an application in the new type of outdoor advertising media, it will be outdoor led display and the effective combination of mobile car, and outdoor advertising function show form, in the form of mobile communication in the streets marketing, to the global outdoor advertising media brought new marketing ideas, the future can become a powerful new trend of advertising propaganda.
High-quality mobile chassis, a stable foundation
The EW3815 LED advertising vehicle adopts Futon Isuzu chassis as the mobile carrier, to ensure the stability and durability of the body. This high-quality chassis not only ensures the smooth driving of the advertising car in various road conditions, but also provides stable support for all kinds of equipment on the car.
Three huge screen, shock audio-visual

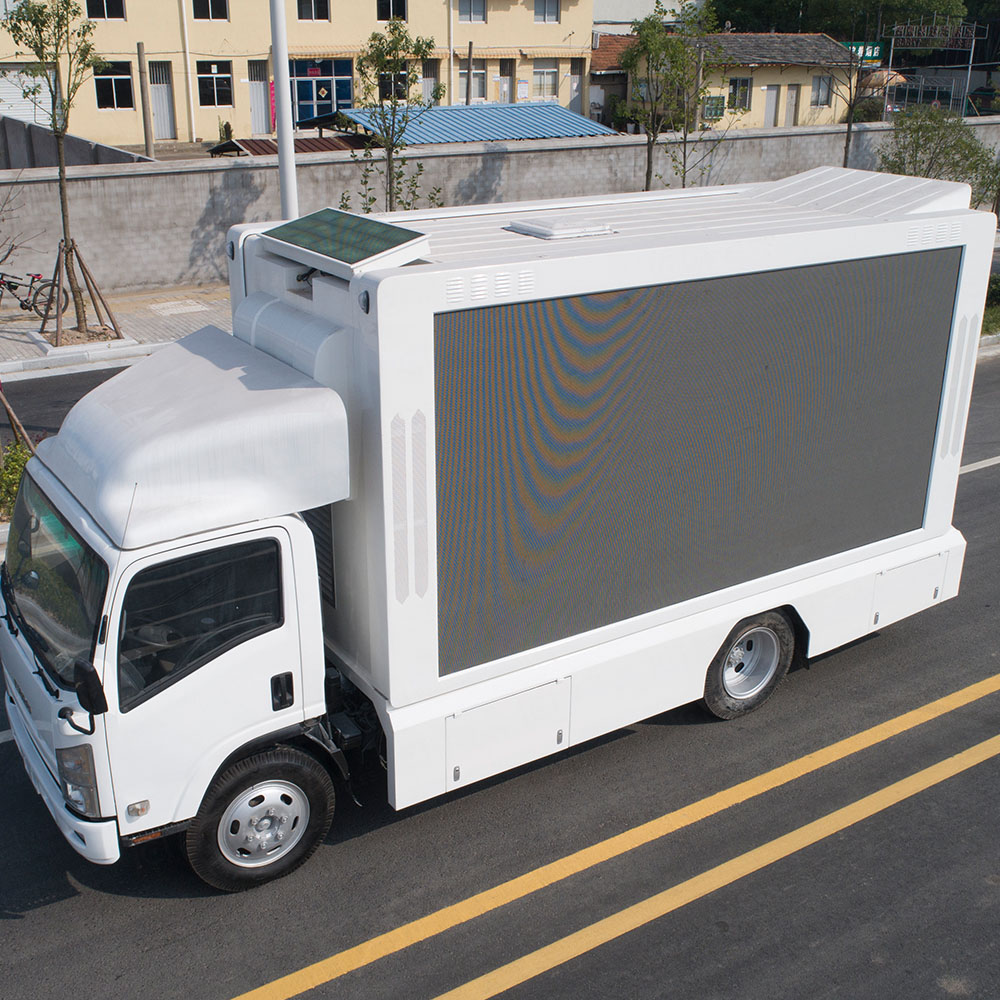

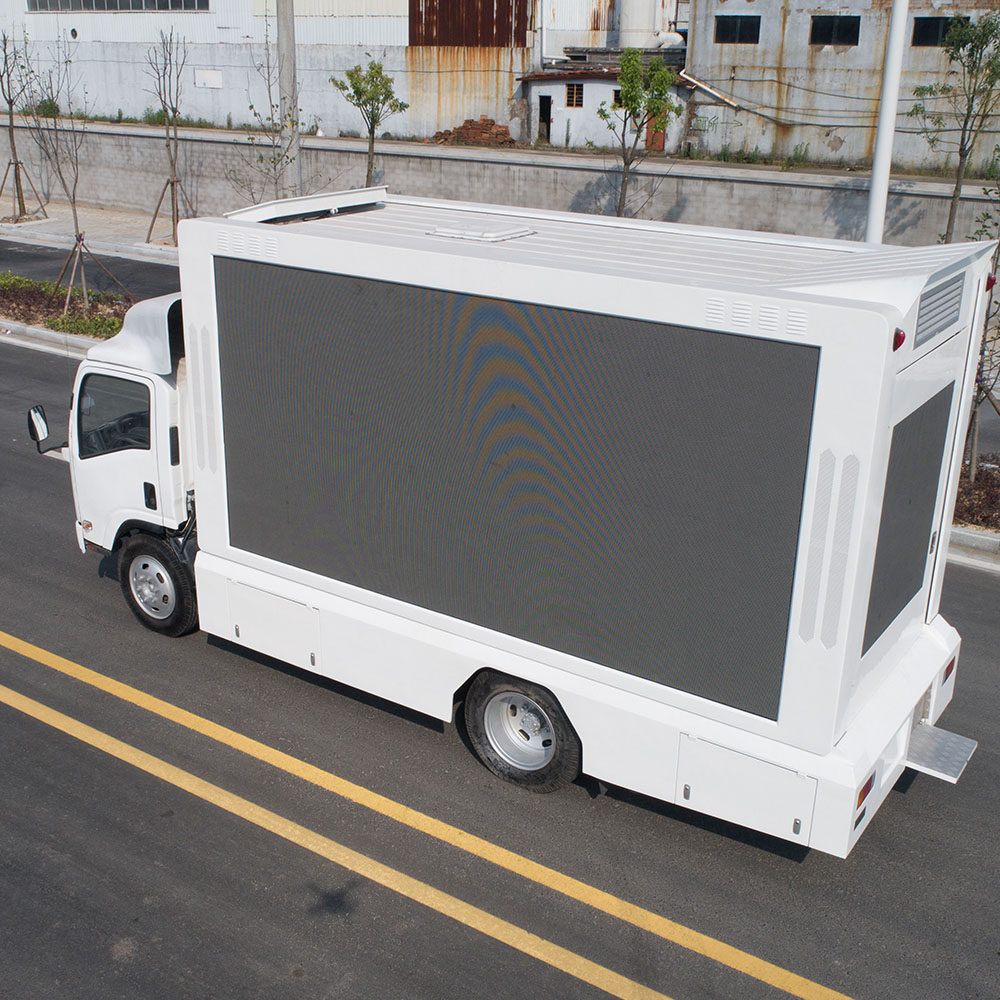

The EW3815 LED advertising vehicle has a 4480mm * 2240mm on each side of the outdoor LED display, with a 1280mm * 1600mm full color display at the rear of the vehicle. These three-sided HD giant screens not only provide a wide display space, but also ensure the clarity and visibility of the advertising, even in the outdoor environment, can attract a lot of attention.
Flexible power supply, carefree operation
The EW3815 LED advertising vehicle offers two power supply modes, both with an external power supply and a 24KW silent generator. This flexible power supply method ensures that the advertising vehicle can operate smoothly in all kinds of environments, without power restrictions. The super high power of 24KW meets the strict demand of outdoor power supply, so that the advertising car can be perfectly displayed in any place.
Multi-functional stage, innovative publicity

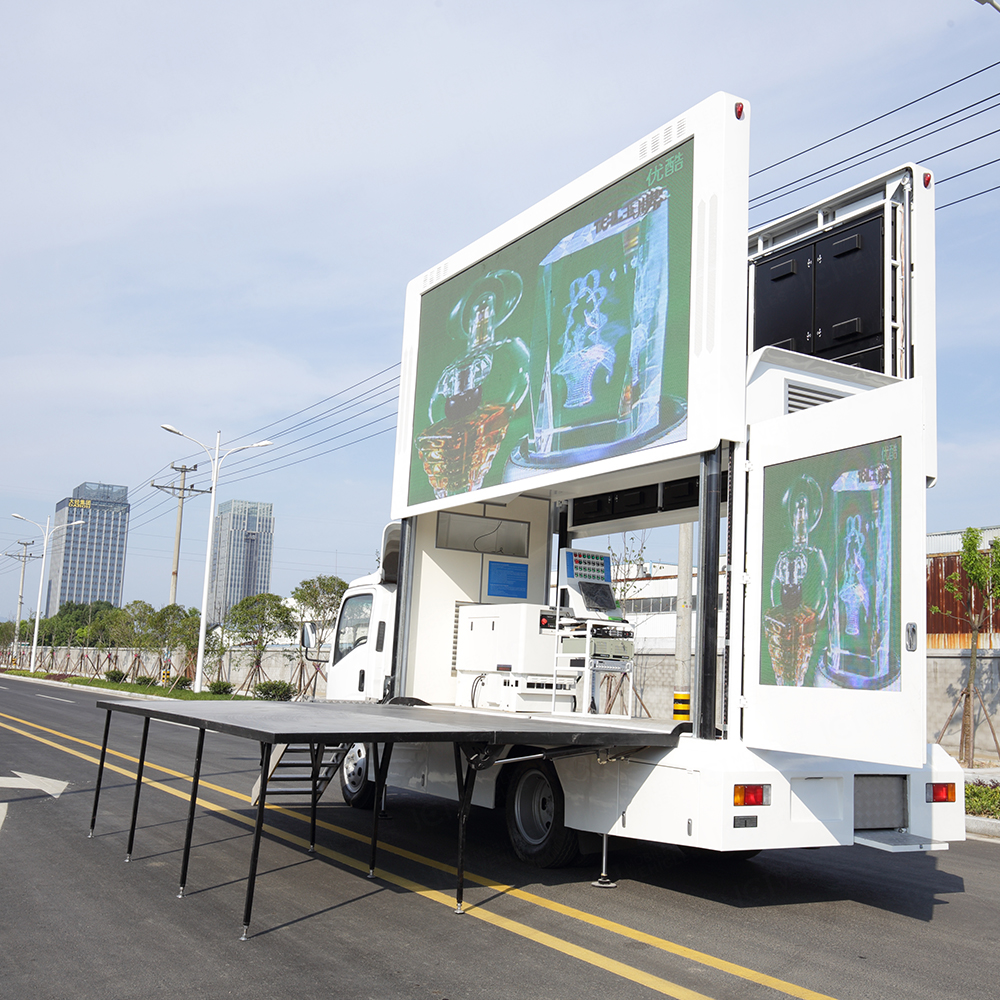

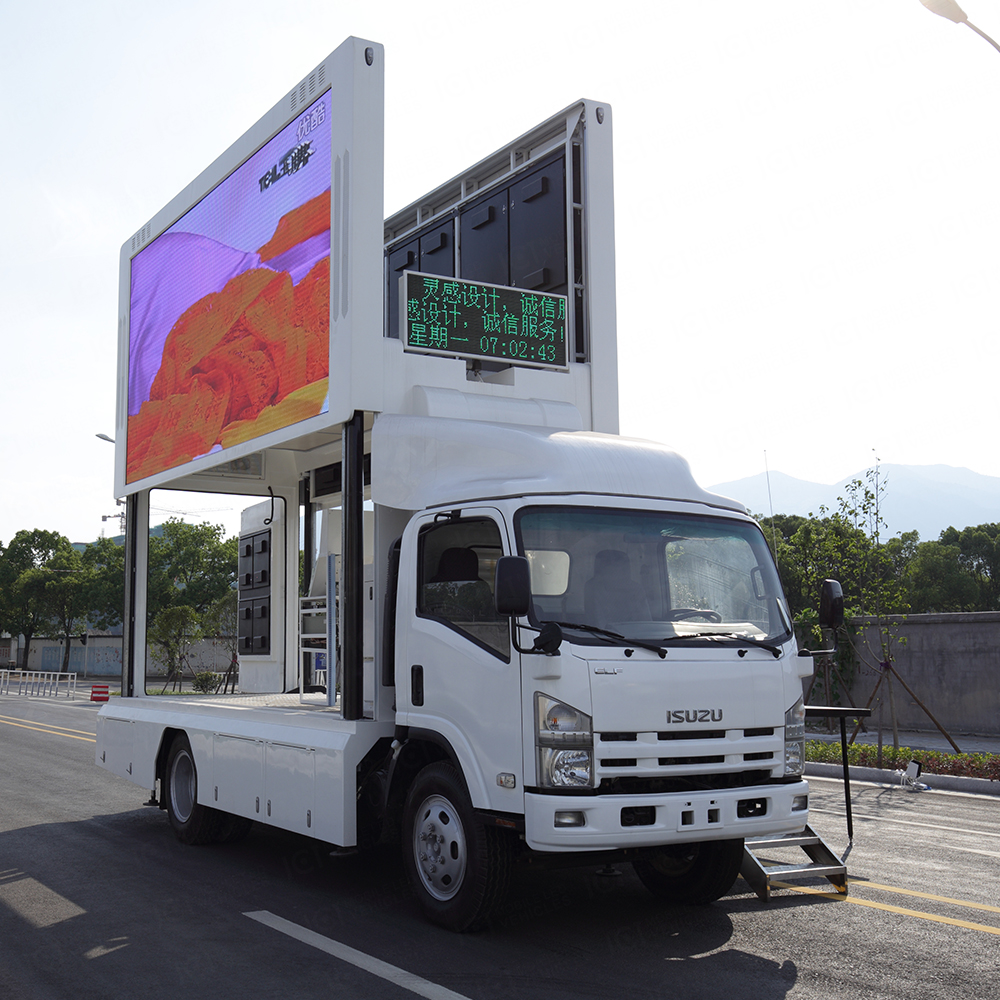

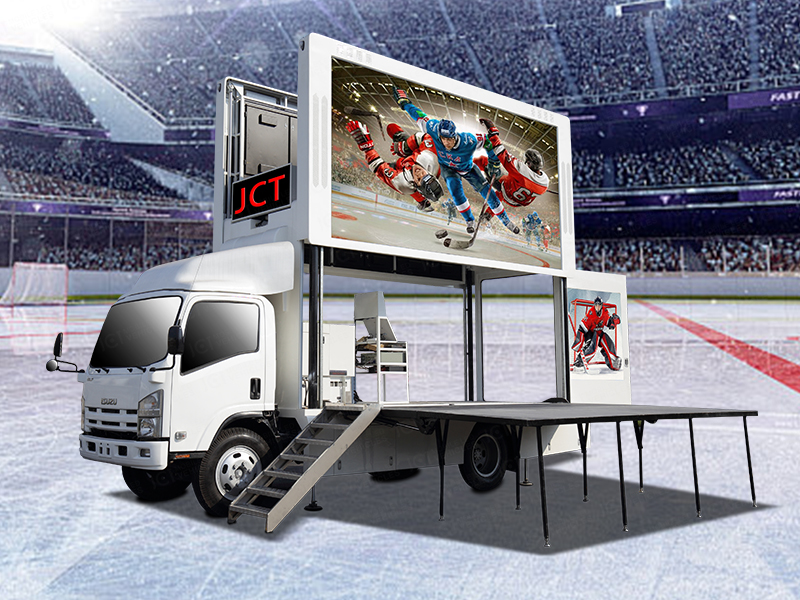

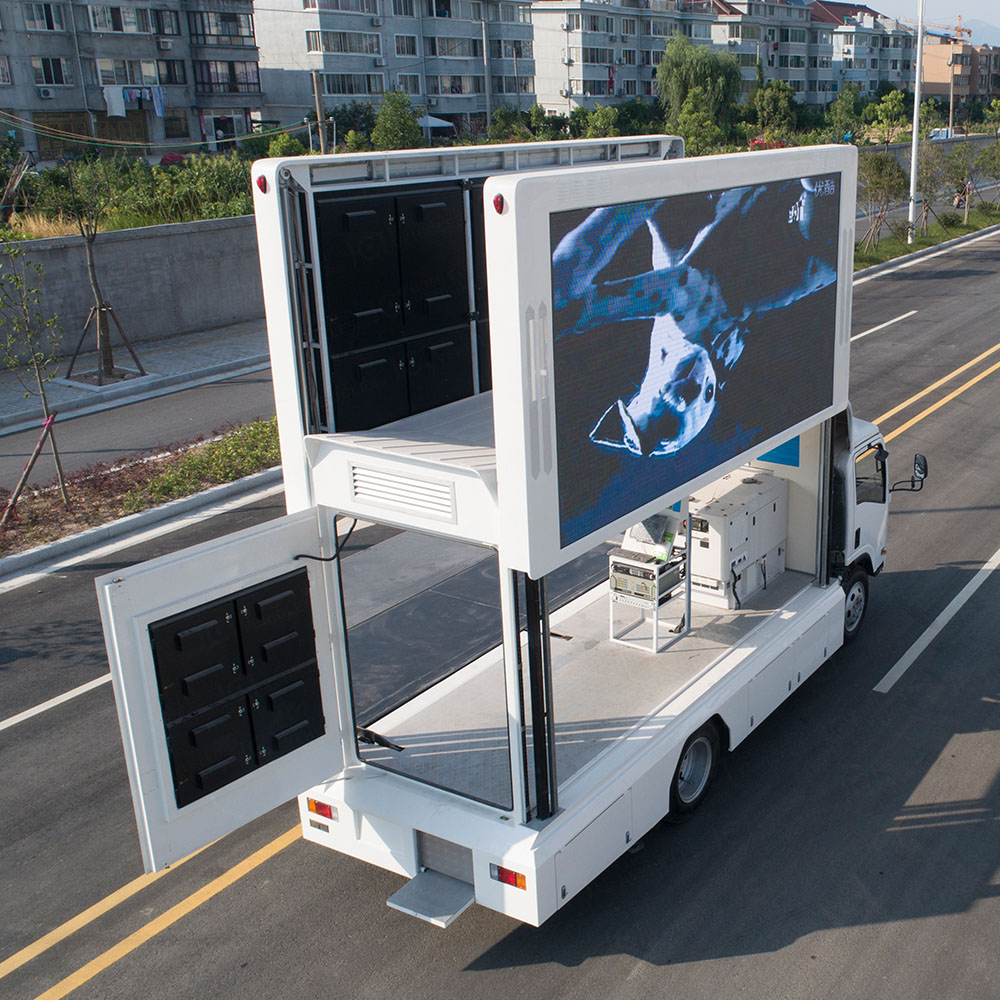

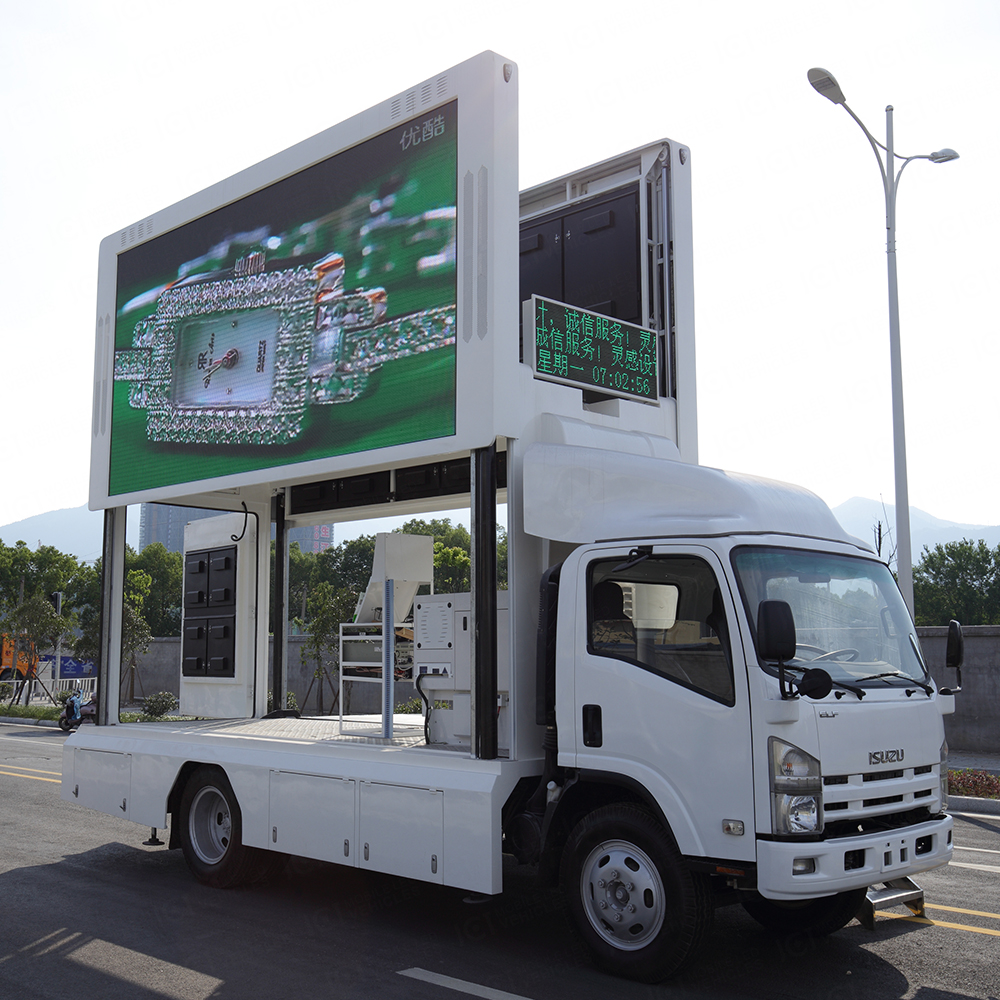

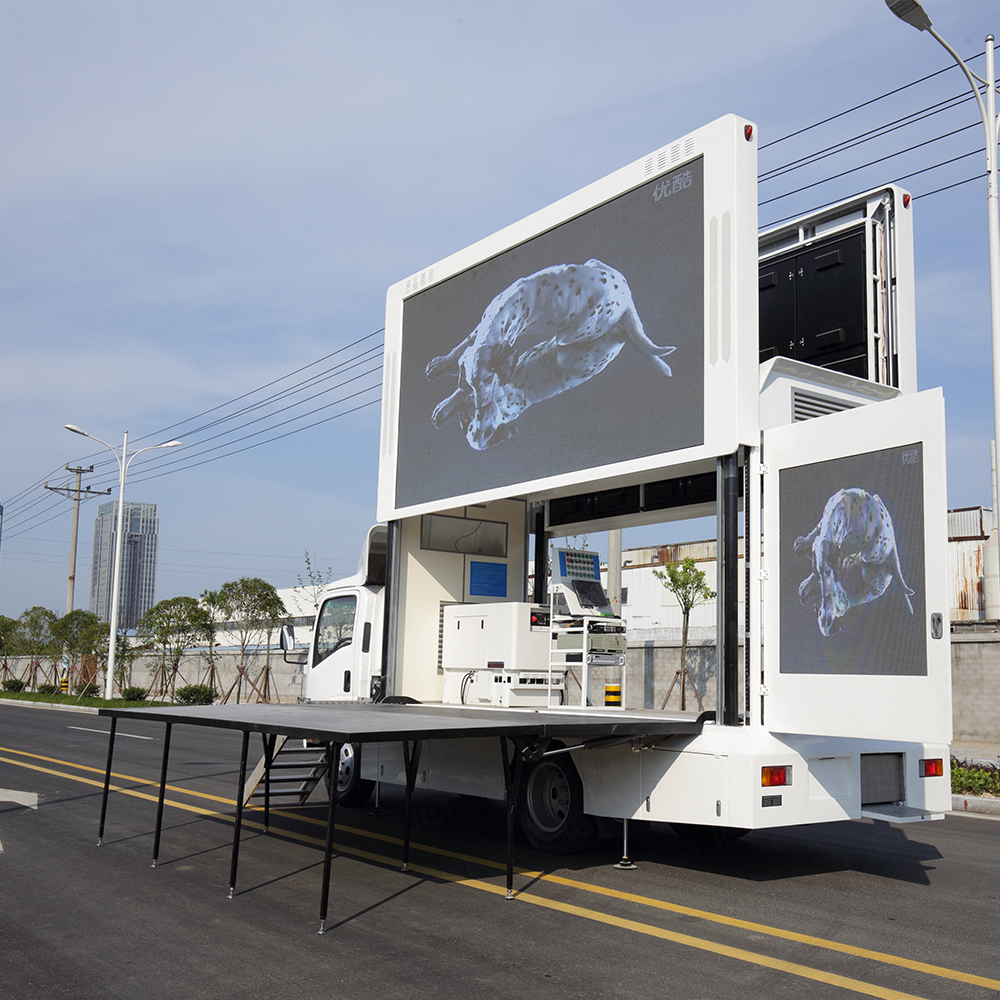

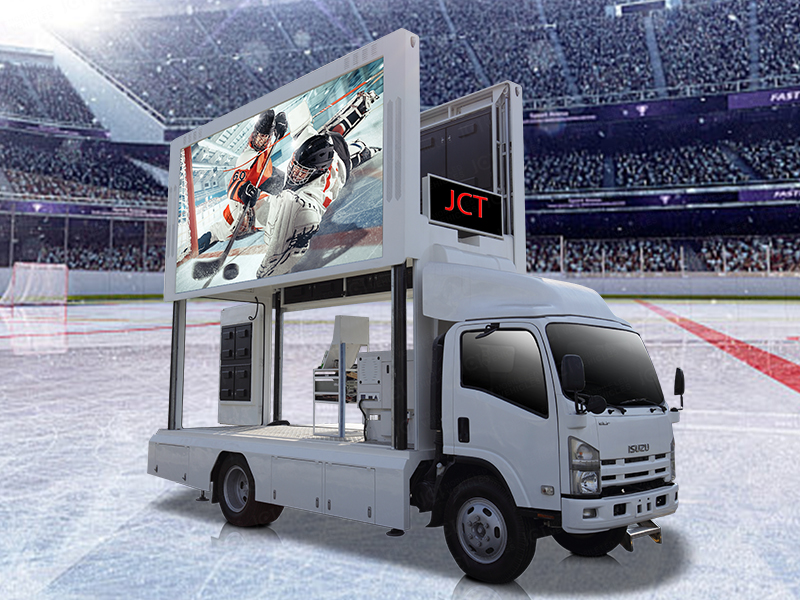

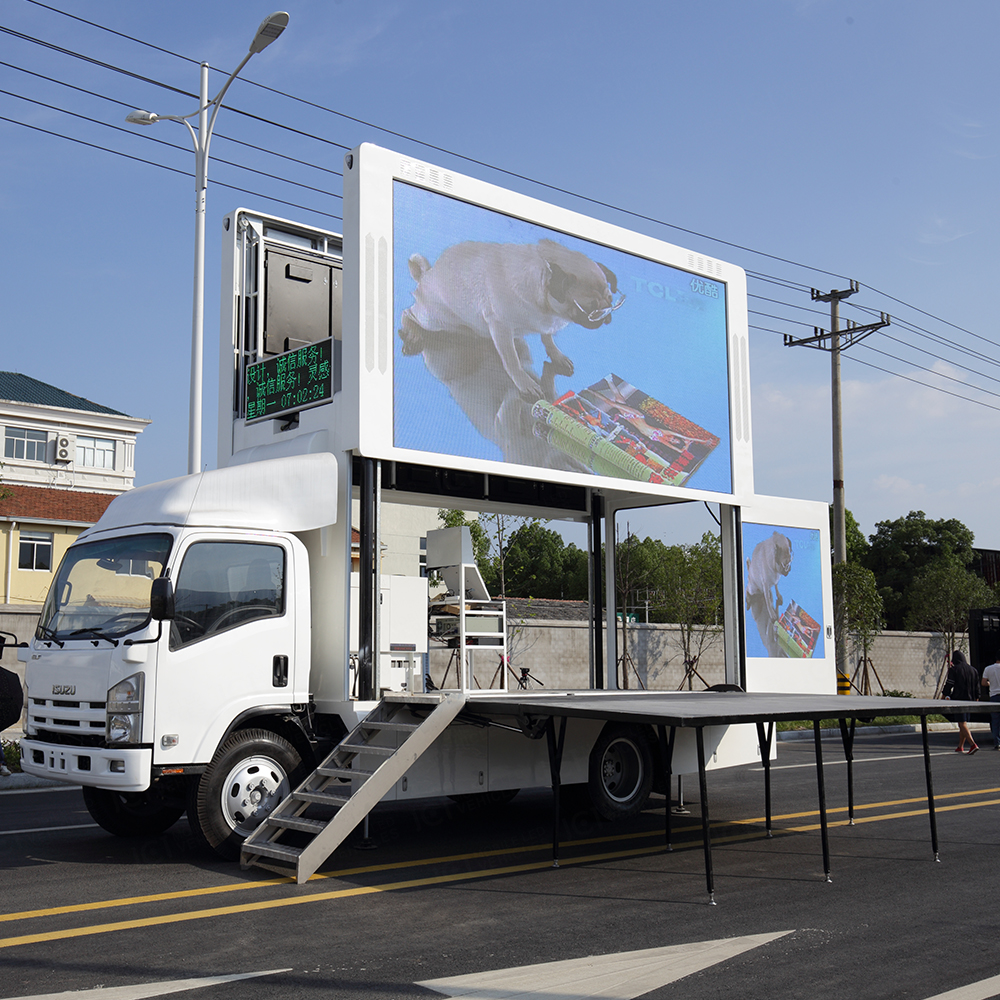

The EW3815 LED advertising vehicle is not only an advertising display platform, but also a multi-functional publicity stage. Through the hydraulic operation, the advertising vehicle can be quickly transformed into a mobile stage display vehicle. When the large screen on the left and right sides of the advertising car rises 2000mm, the hydraulic stage can be quickly displayed in a short time. Then the stage area can reach 5000mm * 3000mm, which can accommodate many people on the same stage at the same time. The entire unfolding process takes only 10 minutes. This innovative publicity method can not only attract more audiences, but also provide a more diversified display space for the brand. Whether it is a new product promotion, promotional activities or small concerts, EW3815 LED advertising car can be perfect.
The EW3815 LED advertising vehicle, with its stable chassis, shocking audio-visual effects, flexible power supply mode and innovative multi-functional stage, has become a new force in the field of advertising. It not only provides more diversified ways of publicity for the brand, but also brings more convenience and surprise to users.
|
EW3815 |
|||
|
Specification |
|||
|
Chassis |
|||
|
Brand |
FOTON-BJ1088VFJEA-F |
chassis dimensions |
6920×2135×2320MM |
|
Driving type |
4*2 |
Displacement（L） |
3.8 |
|
Engine |
F3.8s3141 |
Rated Powe[kw/HP] |
105 |
|
Emission standards |
Euro III |
Total weight |
8500kgs |
|
Seat |
Single row 3 seats |
Wheelbase |
3810mm |
|
Wheels and tyre size |
7.50R16 |
Displacement and power（ml/kw) |
5193 / 139 |
|
Optional configuration |
Front + rear stabilizer bar/central control lock + electric window + remote control/manual air conditioning/reversing radar/flat cargo box/flow shield |
||
|
Screen Lifting and Supporting System |
|||
|
Hydraulic Lifting System: |
lifting range 2000mm, bearing 3000KGS，Double lift system |
||
|
Wind-against Level: |
Against level 8 wind after screen lift up 2 meters |
||
|
Support Legs |
Stretch distance 300mm |
||
|
Silent generator group |
|||
|
Generator set |
24KW/YANGDOGN |
dimension |
1400*750*1040mm |
|
Frequency |
60HZ |
Voltage: |
415V/3 phase |
|
Generator |
Stanford PI144E (full copper coil, brushless self-excitation, including automatic pressure regulating plate) |
LCD controller: |
Zhongzhi HGM6110 |
|
Micro break |
LS, relay: Siemens, indicator light + wiring terminal + key switch + emergency stop: Shanghai Youbang Group |
Maintenance-free DF battery |
CAMEL |
|
LED Screen Full color (left side and right side) |
|||
|
Left side and Right side: |
4480mm x 2240mm |
Module Size |
320mm(W) x 160mm(H) |
|
Module resolution |
80x40Pixel |
Lifespan |
100,000 hours |
|
Light brand |
Kinglight light |
Dot pitch |
4 mm |
|
|
|
Brightness |
≥6500cd/㎡ |
|
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
|
Power Supply |
G-energy |
DRIVE IC |
ICN2153 |
|
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
|
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
|
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
|
LED packaging method |
SMD1921 |
Operating Voltage |
DC5V |
|
Module power |
18W |
scanning method |
0.125 |
|
HUB |
HUB75 |
Pixel density |
62500Dots/㎡ |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
system support |
Windows XP,WIN 7， |
Operating temperature |
-20~50℃ |
|
LED Screen Full color (Rear side) |
|||
|
Rear Side |
1280mm x 1760mm |
Module Size |
320mm(W) x160mm(H) |
|
Module resolution |
80x40 Pixel |
Lifespan |
100,000 hours |
|
Light brand |
Kinglight light |
Dot pitch |
4mm |
|
Light model |
SMD2727 |
Refresh rate |
3840 |
|
Power supply |
G-energy |
Brightness |
≥6500cd/ m² |
|
Average power consumption |
300w/㎡ |
Max power consumption |
900w/㎡ |
|
Power parameter |
|||
|
Input Voltage |
3 phases 5 wires 380V |
Output Voltage |
220V |
|
Current |
32A |
Power |
Average power consumption:300wh/㎡ |
|
Sound System |
|||
|
Speaker |
4pcs 100W |
Power Amplifier |
1pcs 500W |
|
Player System |
|||
|
Video processor |
NOVA |
Model |
TB60 |
|
Hydraulic stage |
|||
|
Stage size: |
5000 * 3000 |
Open the way |
Hydraulic folding |
