Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

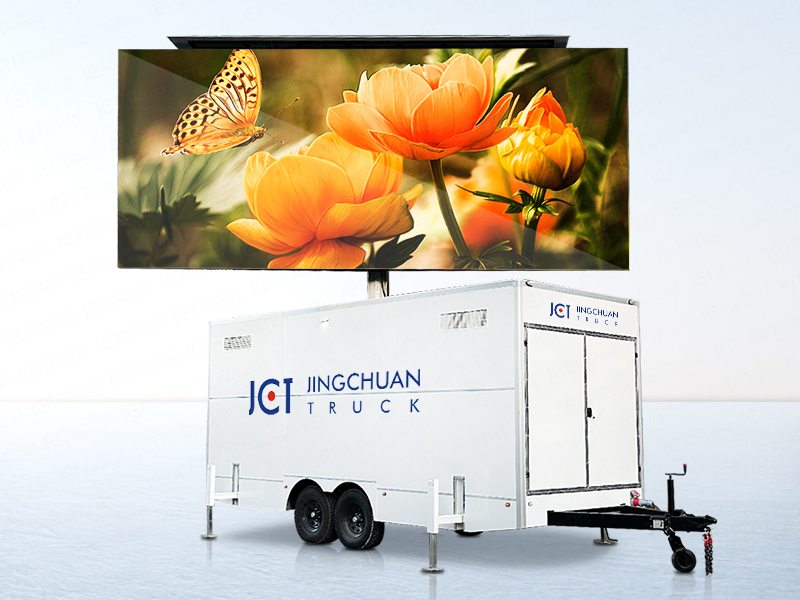

Container-box LED trailer

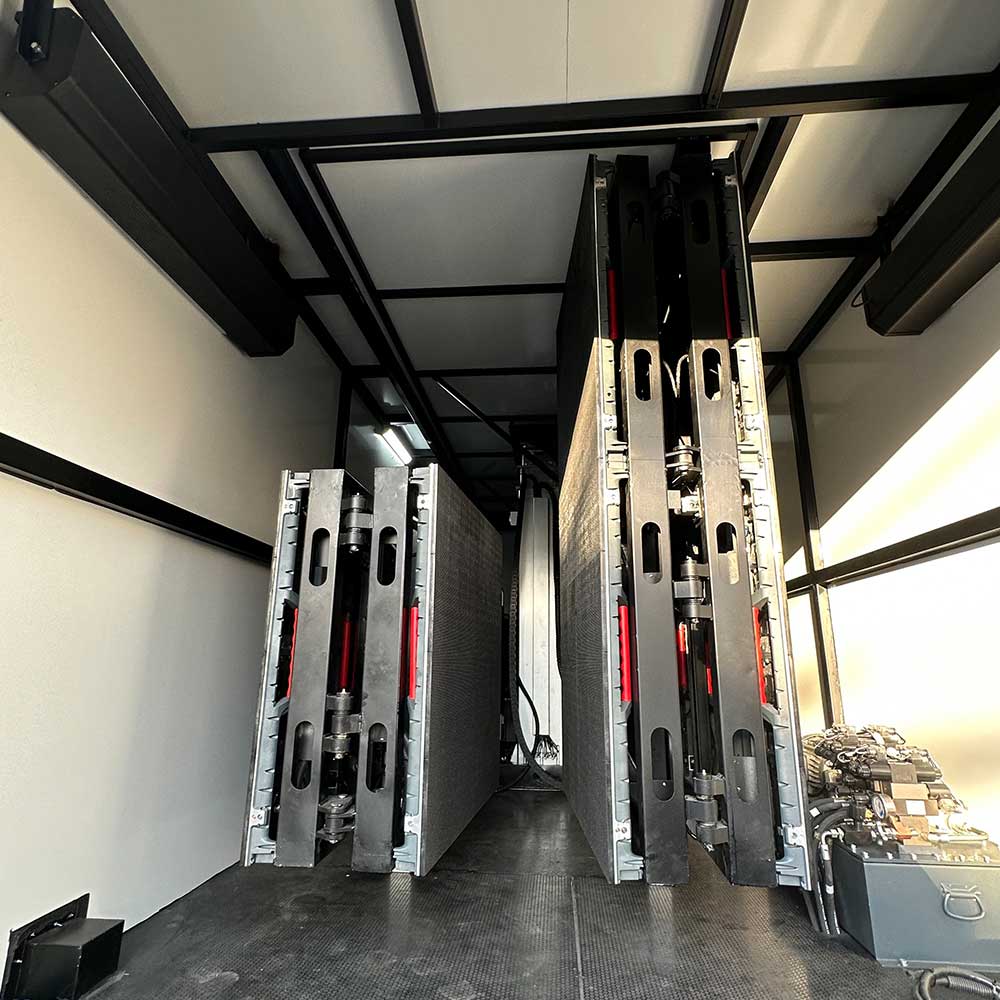

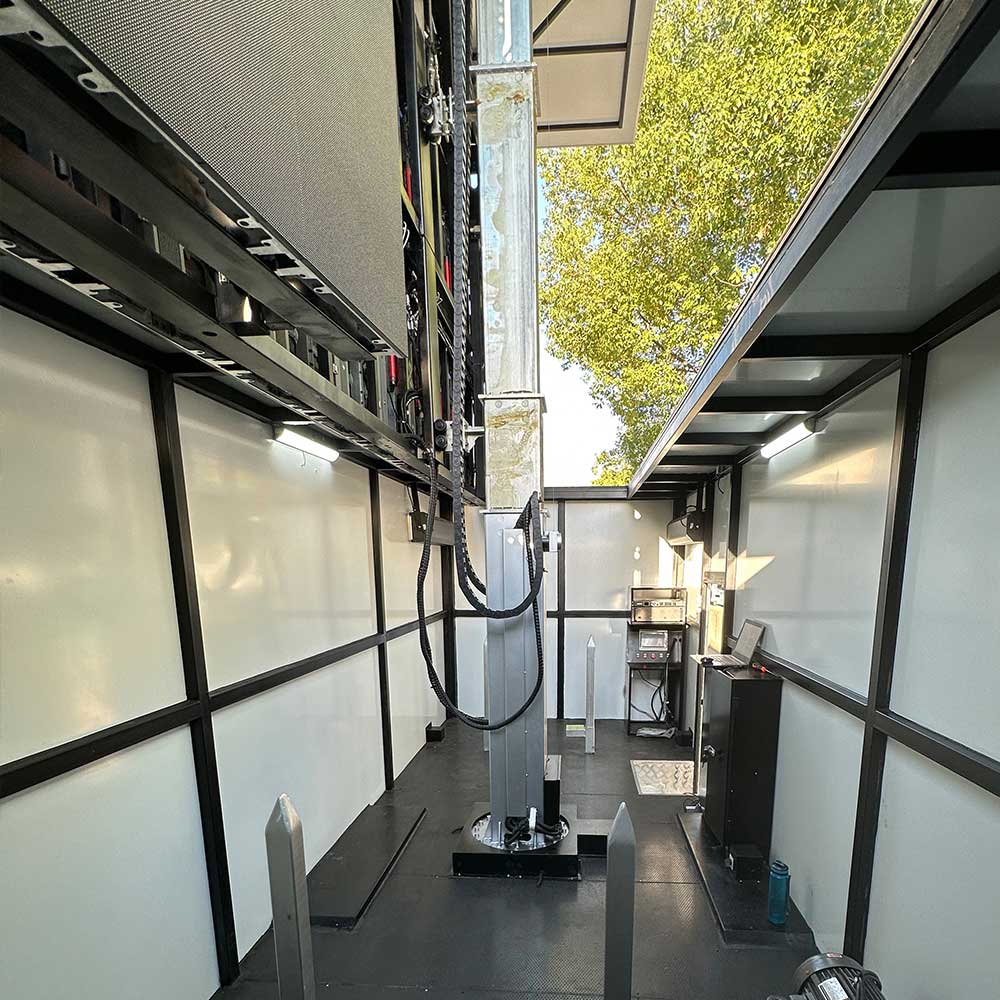

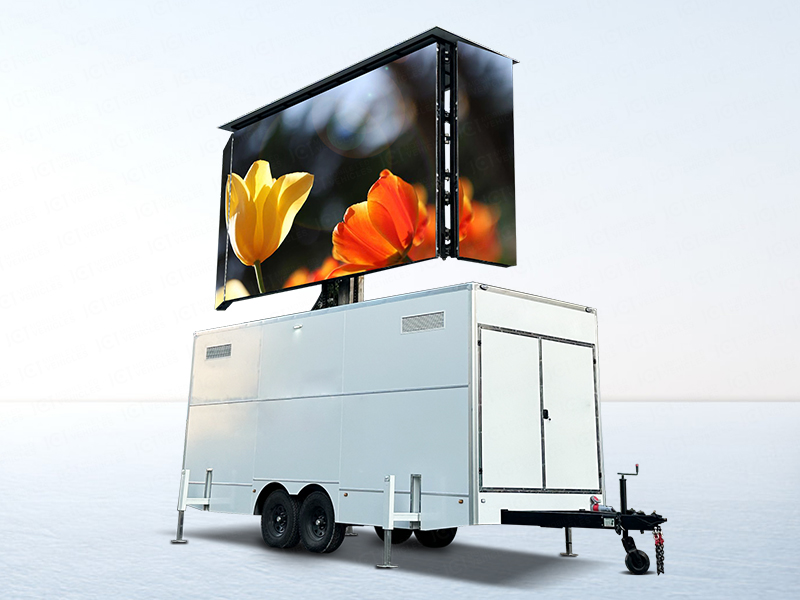

21㎡ Enclosed Mobile Led Trailer continues the quality characteristics of JCT products, Added a closed box, Inside the box installed with two large pieces of split type LED outdoor display screens and speakers, power amplifier, industrial control machine, computer and other multimedia equipment, as well as lighting, charging sockets and other electrical equipment, Install all the display forms required for the outdoor LED display screen inside a (6300x2400x 3100mm) enclosed structure box, which can protect the LED screen and the multimedia equipment from the external environment, Not being afraid of the harsh environment. The closed container is made of hard steel structure frame and aluminum alloy outer frame, which can protect the equipment inside the box from external collision and blow to a certain extent, and is convenient for transportation and storage by customers.


One-key remote control operation of hydraulic lifting and rotating lock screen

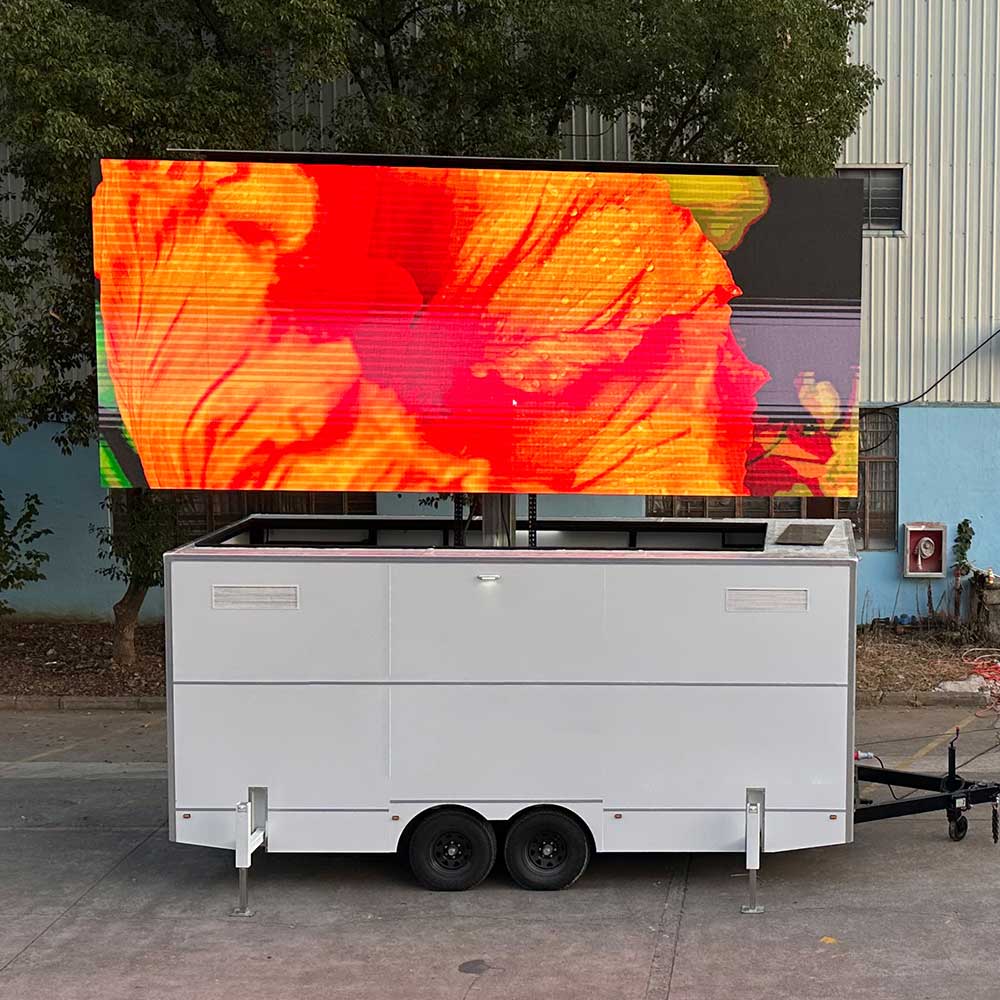

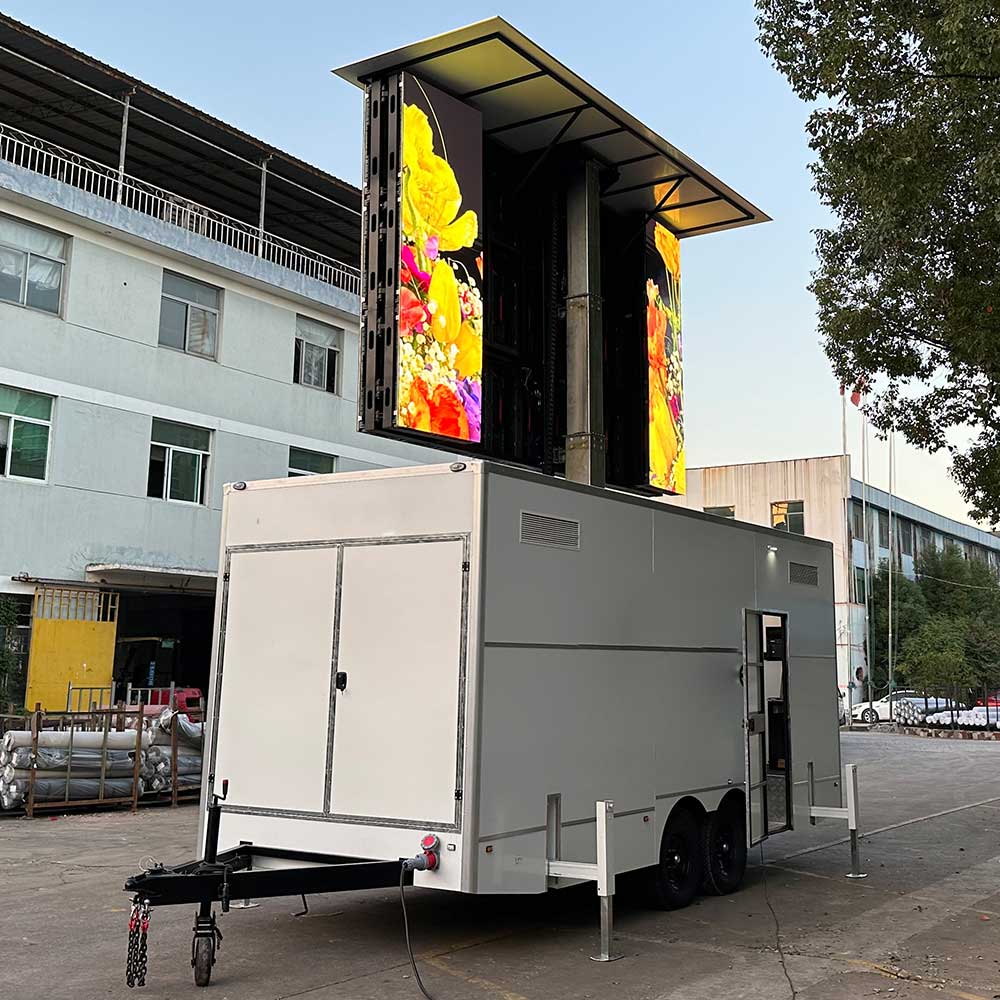

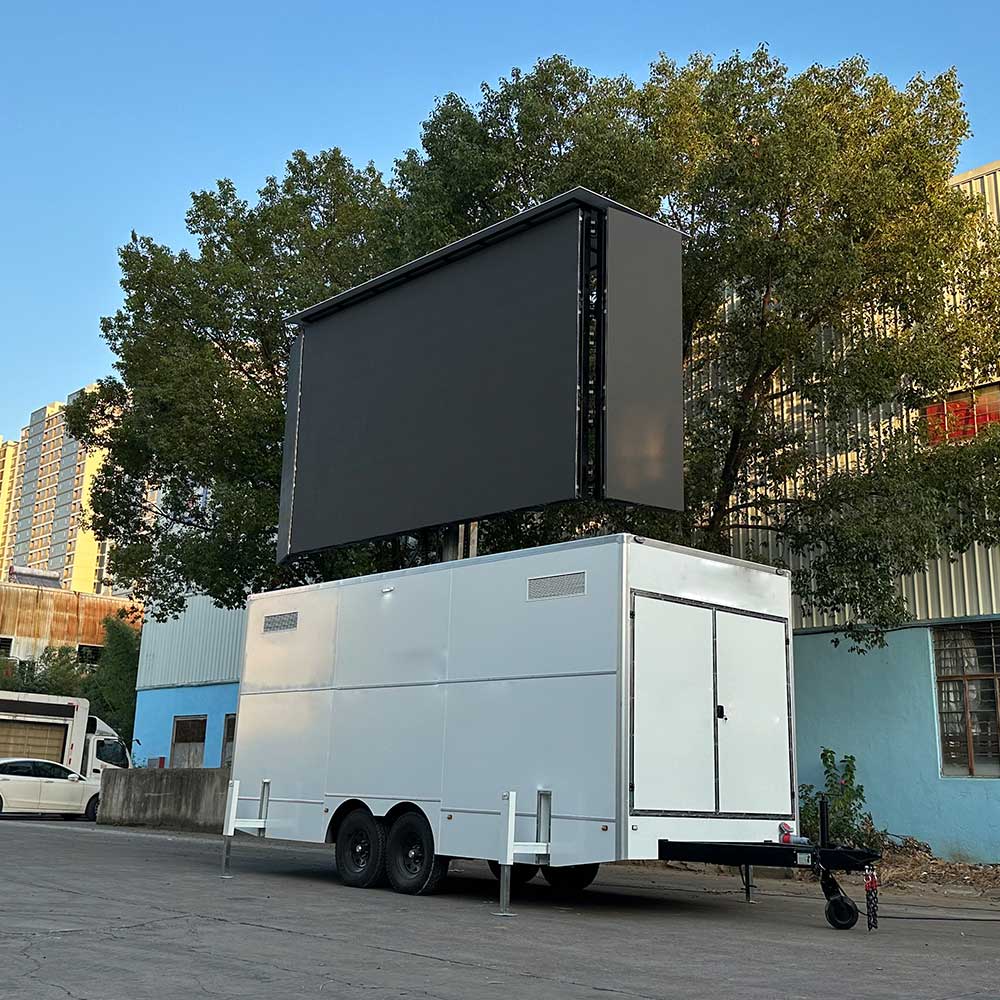

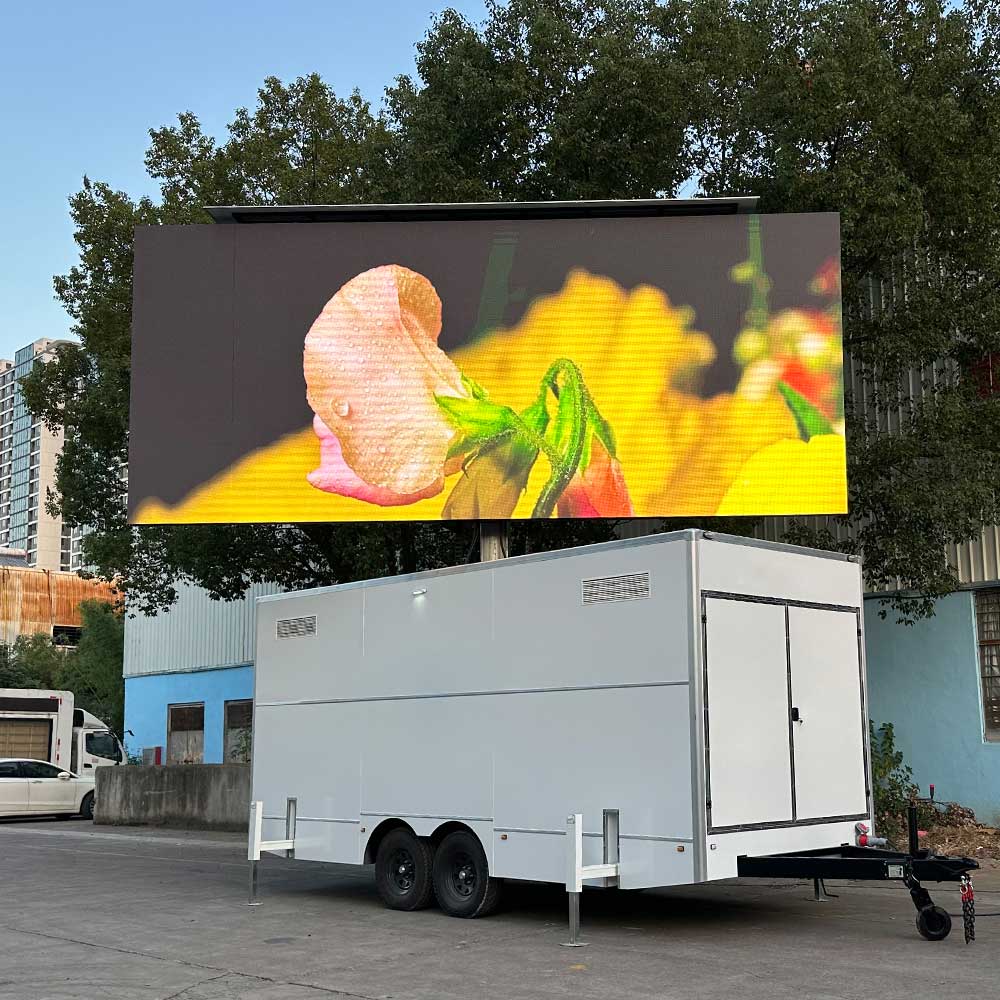

The 21㎡ Enclosed Mobile Led Trailercreated by JCT is designed with a one-button remote control for customer convenience. Customer simply gently presses the start button, The roof of the closed box connected to the LED screen will automatically rise and fall up, The screen will automatically rotate the lock screen after rising to the height set by the program, Lock up another large LED screen below, Hydraulic drive upward rise; After the screen rises to the specified height, The left and right folded screens can be expanded, Turn the screen into a large overall size of 7000x3000mm, Bring the audience a super-shocking visual experience, Greatly enhance the publicity effect of businesses; LED screen can also be operated hydraulically 360degree rotation, Regardless of where the Mobile LED Trailer is parked, Can adjust the height and rotation angle by remote control, Put it in the optimal visual position. This one-button remote control button operation, all hydraulic devices are safe and reliable operation, the structure is durable, no need for the user to carry out other dangerous manual operation, only 15 minutes, the whole Mobile LED Trailer can be put into use, so that can save users time and no worries.


Drag-type chassis, mobile transportation is fast and convenient

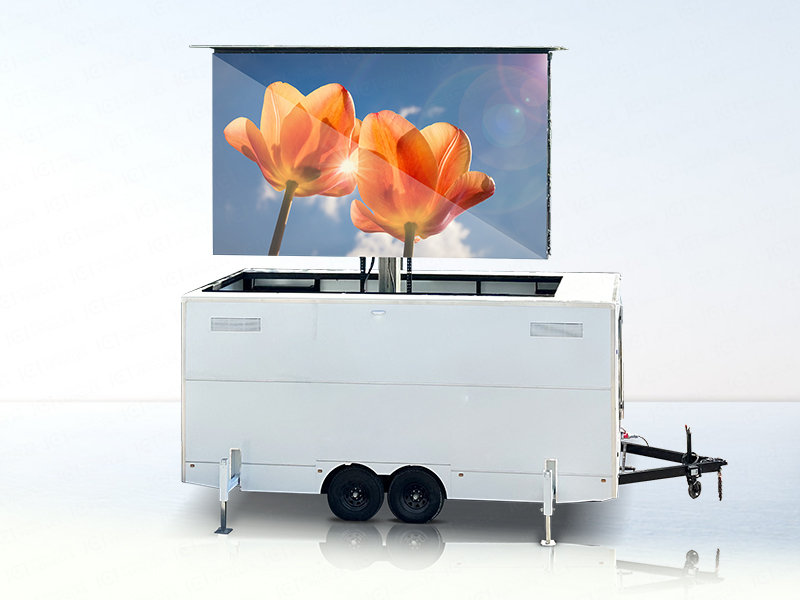

21㎡ Enclosed Mobile Led Trailer(Model:MBD-21S) with closed box is installed on a removable trailer above the chassis, very convenient for users to move, easy to transport —— just connected to the traction rod, it is a moving box, a moving digital billboard.


JCT is a large production enterprise, mainly engaged in the research and development, sales and service of mobile LED trailers, mobile LED trucks, and customized LED vehicles. As a professional outdoor advertising vehicle and screen supplier, we have an excellent team focusing on product development, design, quality control and QC. JCT can provide users with a variety of solutions for customers to choose their ideal Mobile LED Trailer. Customers can not only choose the size, resolution, media processor and the brand specifications of the mobile chassis, but also customize the appearance style, customize the company brand logo and so on. Our experienced staff is committed to strict quality control and thoughtful customer service, always meeting your requirements, providing you with high quality outdoor LED display solutions and ensuring complete customer satisfaction.


Parameters

Specification

Trailer appearance

Gross weight

3200kg

Dimension (screen up)

7800×2100×2800mm

Chassis

German-Made AIKO

Max speed

100Km/h

Breaking

Hydraulic breaking

Axle

2 axles,Bearing 3500kg

LED Screen

Dimension

7000mm(W)*3000mm(H)

Module Size

250mm(W)*250mm(H)

Light brand

Kinglight

Dot Pitch

4.81mm

Brightness

5000cd/㎡

Lifespan

100,000hours

Average Power Consumption

200w/㎡

Max Power Consumption

600w/㎡

Power Supply

MEANWELL

DRIVE IC

ICN2153

Receiving card

Nova MRV316

Fresh rate

3840

Cabinet material

Die-casting aluminum

Cabinet size/weight

500*500mm/7.5KG

Maintenance mode

Rear service

Pixel structure

1R1G1B

LED packaging method

SMD2727

Operating Voltage

DC5V

Module power

18W

scanning method

1/8

HUB

HUB75

Pixel density

43222 Dots/㎡

Module resolution

64*64Dots

Frame rate/ Grayscale, color

60Hz,13bit

Viewing angle, screen flatness, module  clearance

H:120°V:120°、<0.5mm、<0.5mm

Operating temperature

-20~50℃

Power parameter

Input voltage

Three phases five wires 415V

Output voltage

220V

Inrush current

30A

Average power consumption

250wh/㎡

Multimedia Control System

Video processor

NOVA

Model

VX400S

Luminance sensor

NOVA

Multi-function card

NOVA

Power amplifier

Unilateral power output:200W

Speaker

Max power consumption:120W*2

Hydraulic System

Wind-proof level


Supporting legs

Stretching distance 300mm

Hydraulic Lifting and folding system

Lifting Range 2000mm, bearing 3000kg, hydraulic screen folding system

other

Maximum trailer weight :3500kg;
Trailer width:2.4m;
Maximum Screen height (top):7.8m;
Galvanized chassis made according to DIN EN 13814 and DIN EN 13782;
Anti slip and waterproof floor;

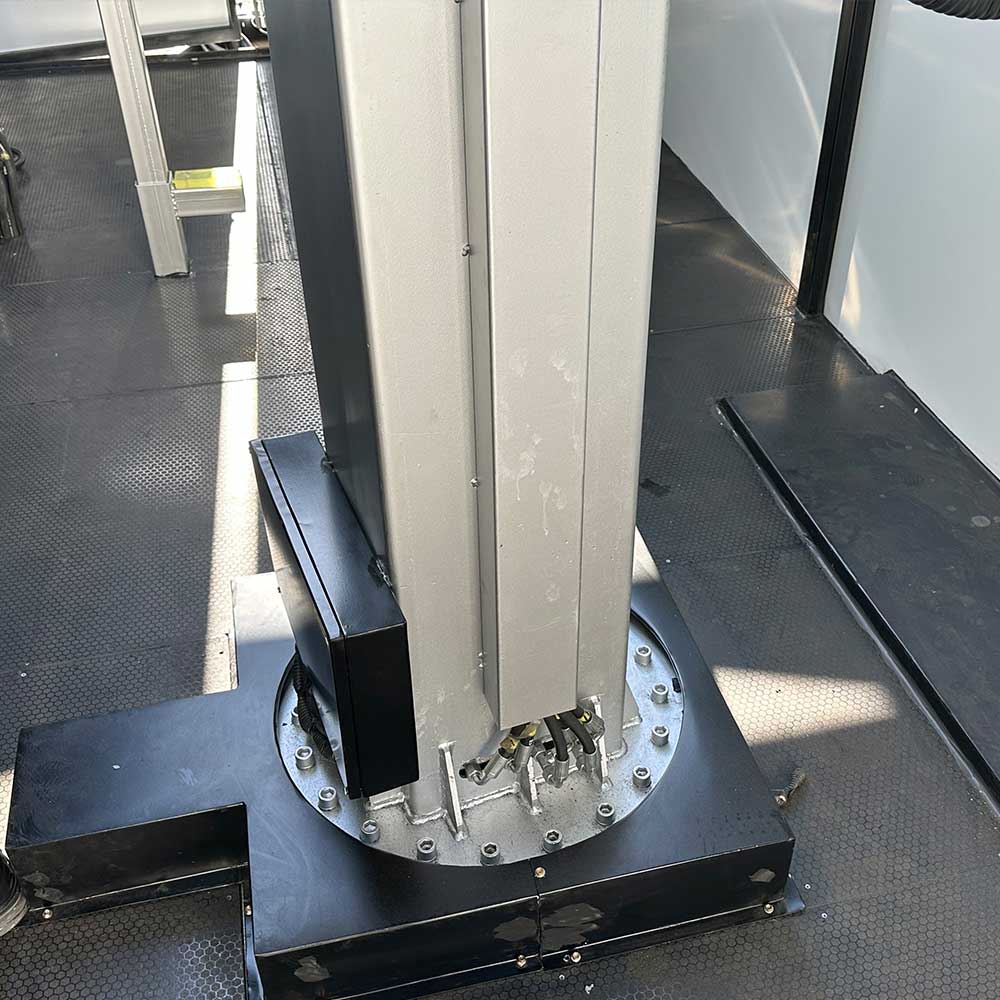

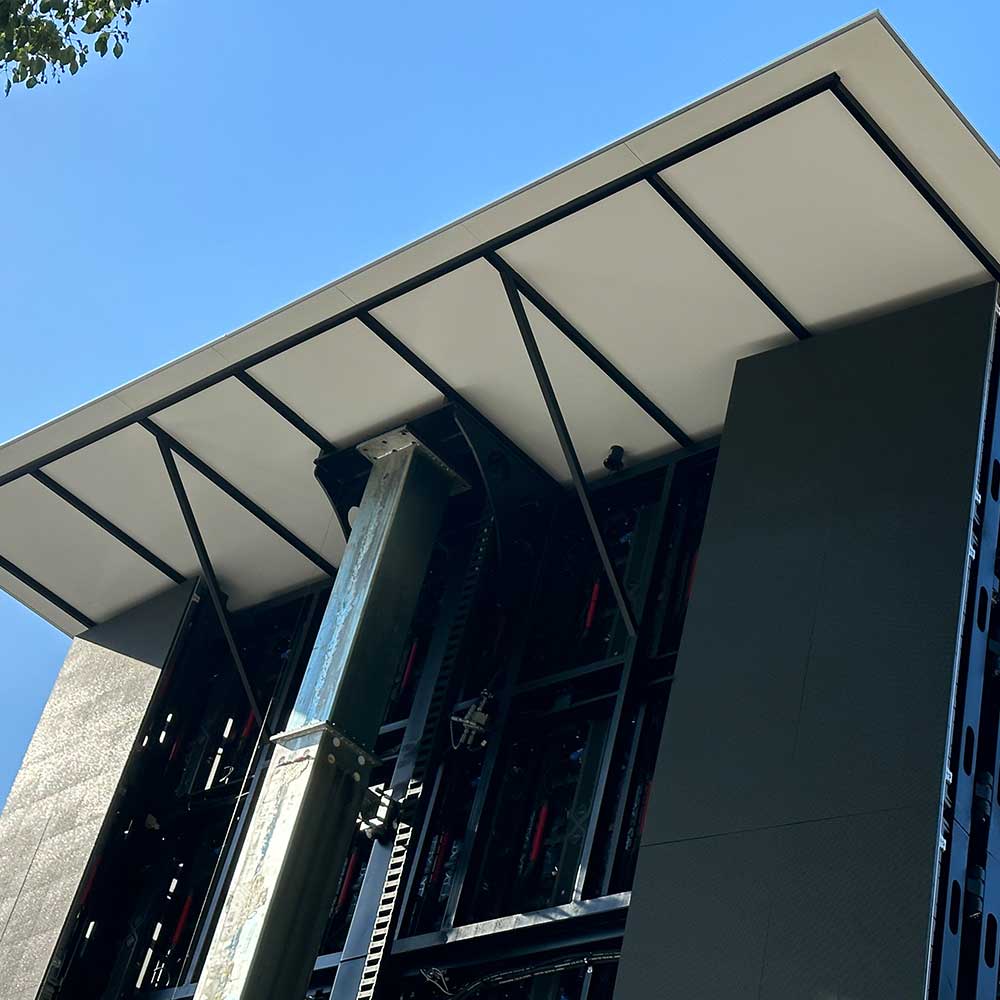

Hydraulic, galvanized and powder coated telescopic mast with automatic mechanical safety locks ;
Hydraulic pump with manual control (knobs) to lift LED screen up:3 phase;
360°screen manual rotation with mechanical lock;
Auxilary emergency manual control - handpump - screen folding without power according to DIN EN 13814;
4 x manually adjustable sliding outriggers:For very large screens it may be necessary to put out the outriggers for transport (you can take it to the car pulling the trailer).
