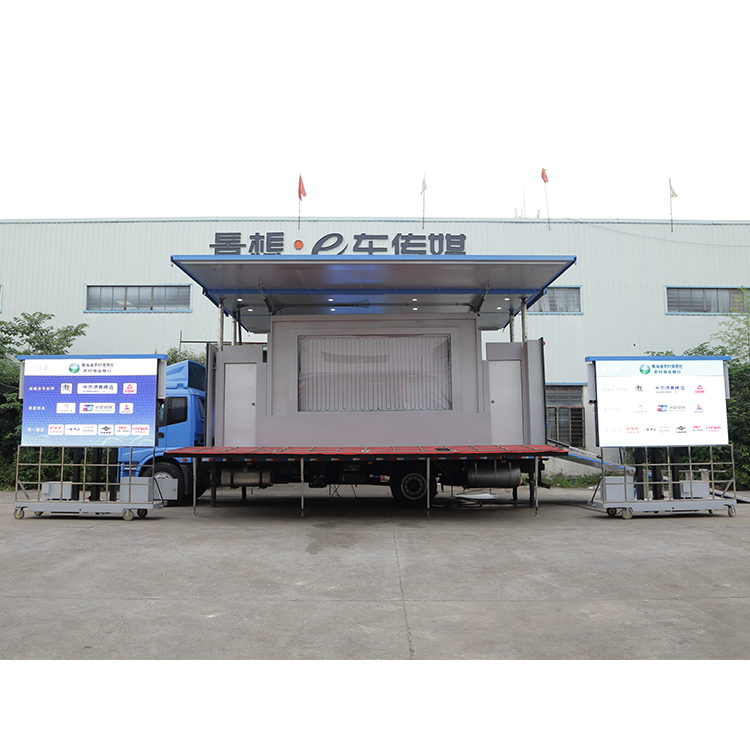

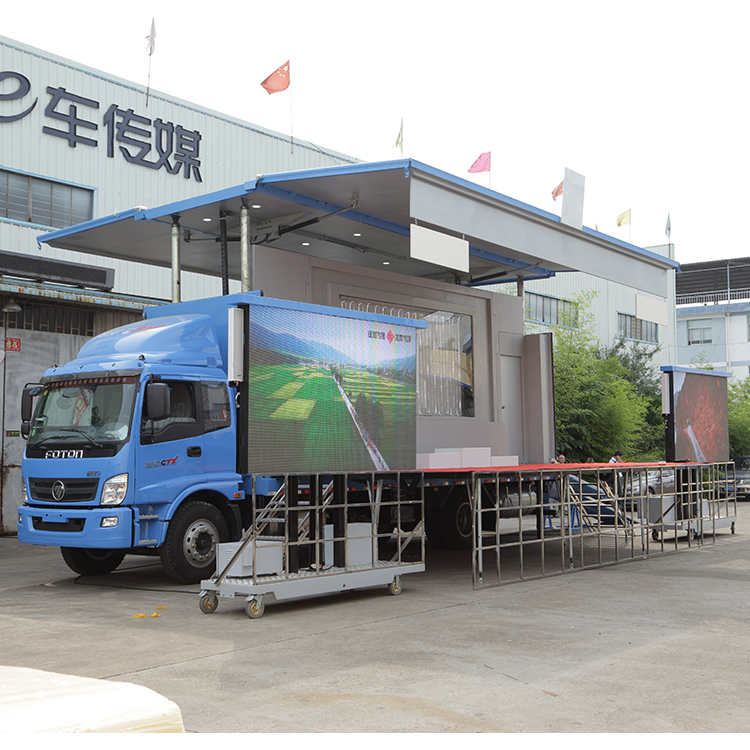

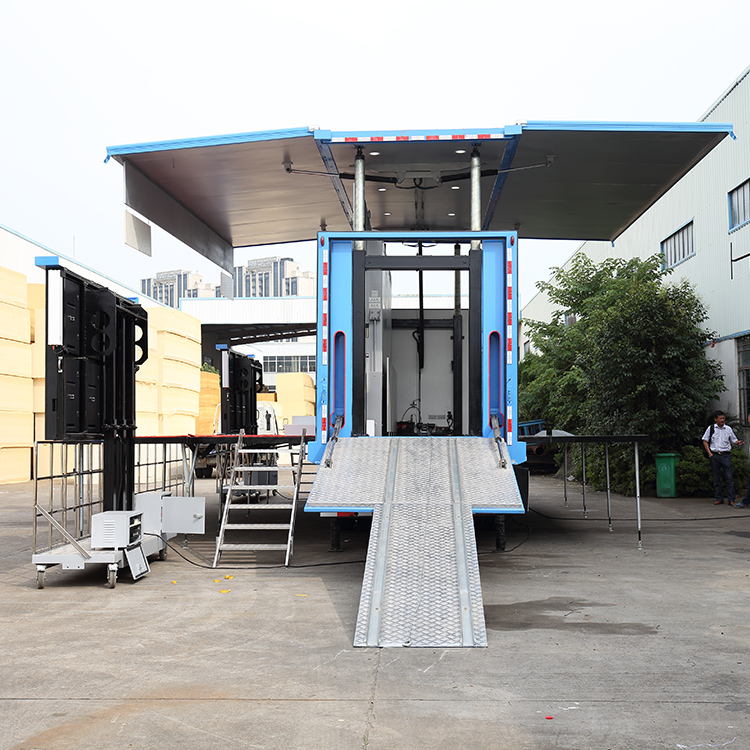

E-WT7600 led stage truck: a flexible performance on the professional stage
With the diversification and frequency of modern performance activities, the stage equipment has become the key factor in determining the success of the activities. In this context, the E-WT7600 10m long led stage truck launched by JCT company has become the right-hand man of modern performance with its efficient, convenient and comprehensive features.

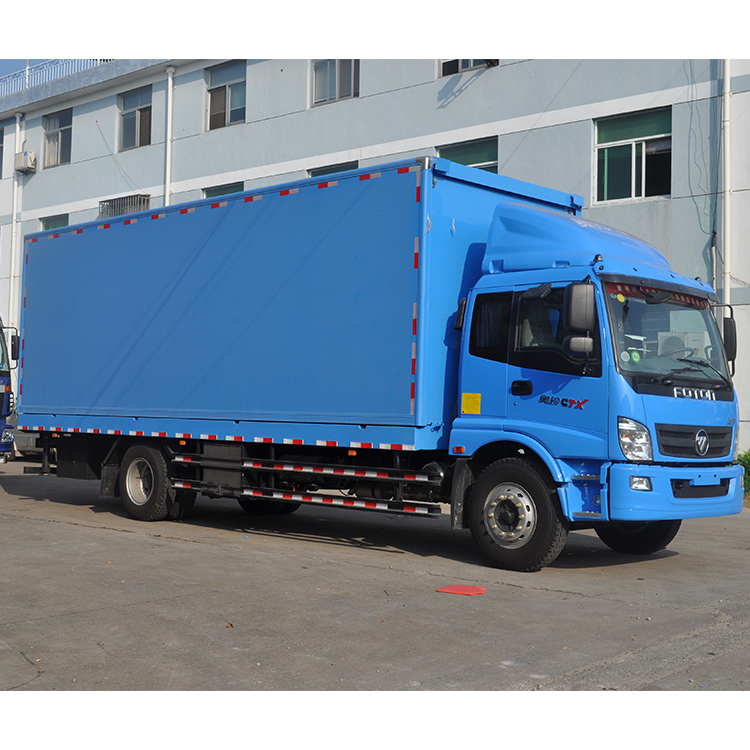

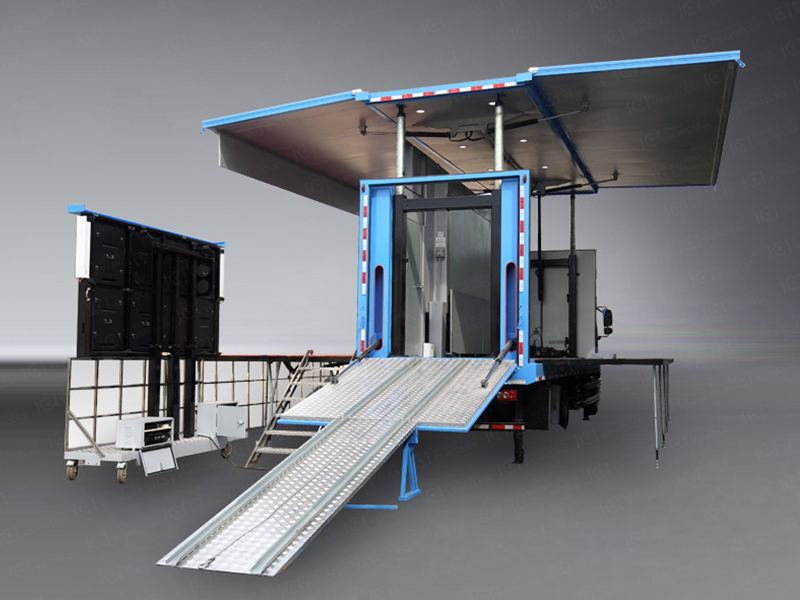

Professional chassis and exterior design
E-WT7600 The led stage truck selects the special chassis, which not only provides a solid foundation for the vehicle, ensures its stability and durability, but also provides a strong guarantee for the changeable performance demand. The external size of the vehicle is 9995 x 2550 x 3860mm, which not only optimizes the internal space layout, but also facilitates the transportation and movement. Whether on busy city streets or on rugged country trails, the E-WT7600 can be easily handled, demonstrating its excellent adaptability and mobility.

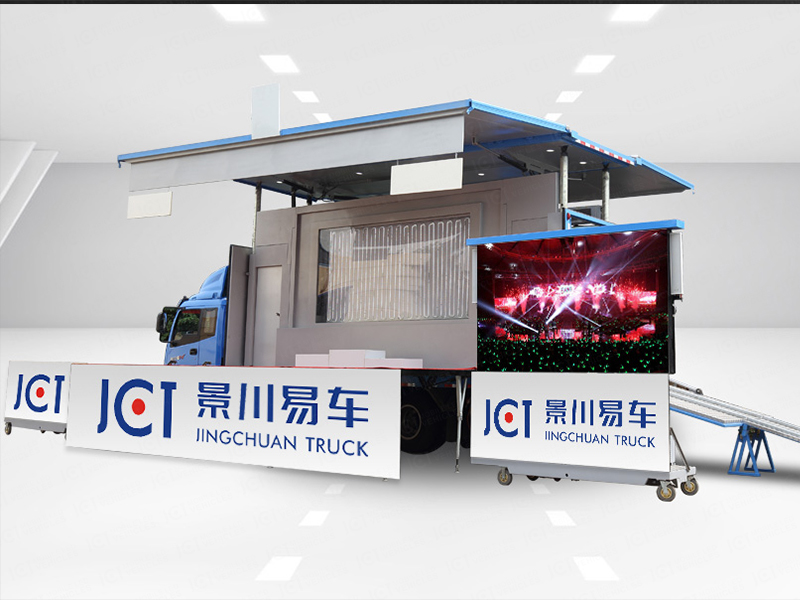

Hd display and audio-visual feast

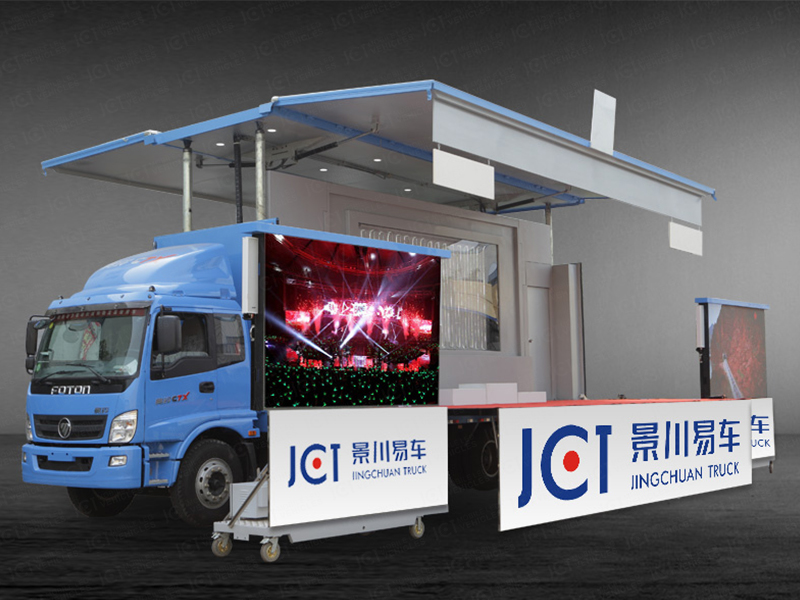

The HD outdoor LED screen is one of the highlights of the E-WT7600, with its size of 5760x2112mm, reaching the industry-leading level in terms of brightness, color and clarity. Whether it is clear under the sun, or the gorgeous under the night, it can bring unprecedented audio-visual feast for the audience. At the same time, combined with professional sound, lighting equipment and multimedia playback and image processing systems, E-WT7600 ensures the professional level and high quality effect of each performance.
Intelligent control and convenient operation
This led stage truck not only performs well in hardware configuration, but also shines brilliantly in software technology. The truck is equipped with an intelligent timing power-up system, which can set the switching time of the LED screen according to the actual demand, which is both energy-saving and efficient. In addition, the addition of the remote control device greatly improves the convenience of operation. The simple remote control operation can easily control the lifting of the hydraulic stage, making the whole performance process is more smooth and the efficiency is significantly improved.

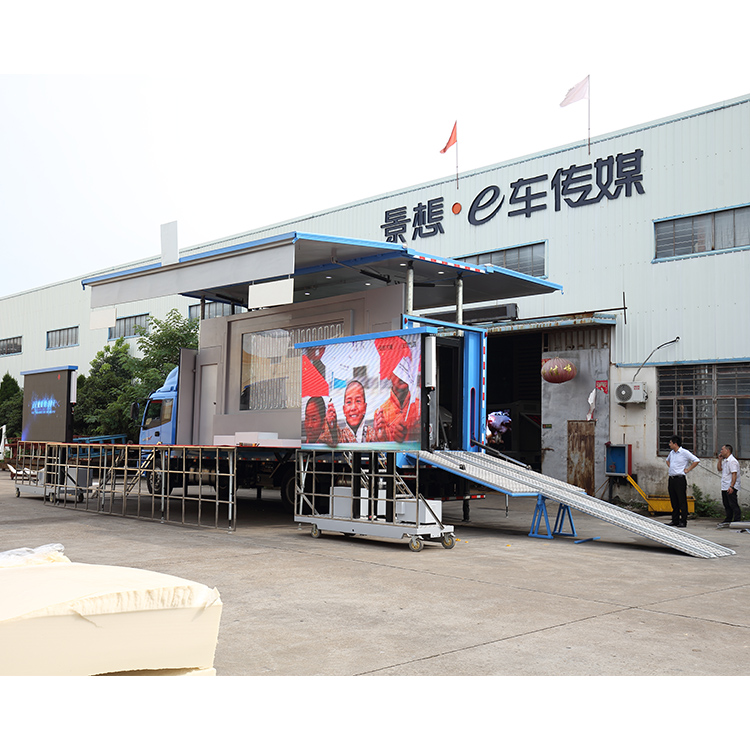

Flexible space and efficient use
The interior space is carefully designed to pre-install and configure various stage expression forms. According to the different characteristics of the activity, more functions can also be derived through the modification and optimization of the internal space. Such a design not only enables the E-WT7600 to adapt to a variety of different types of performance activities, but also greatly improves the efficiency and effect of the performance
The E-WT7600 10m led stage truck, with its professional design, excellent configuration and intelligent control system, brings a brand new experience for modern performance activities. It is not only a mobile stage, but also an efficient marketing tool to show the brand image and attract the attention of the audience. Whether it is a music festival, concert, product launch, or other types of events, E-WT7600 can bring unexpected surprises and value to the event organizers.
|
7.6m stage truck |
|||
|
Specification |
|||
|

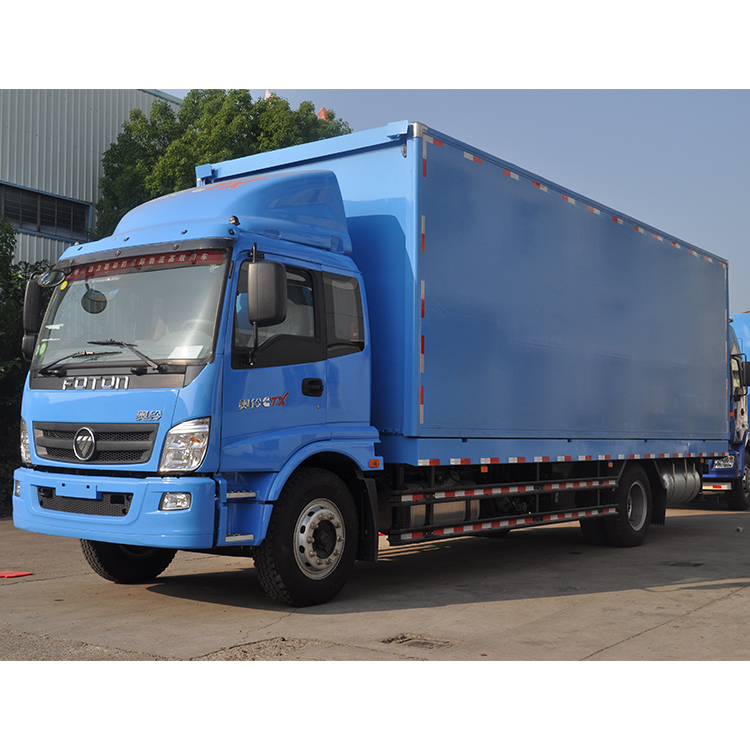

Truck chassis |
|||
|
Overall vehicle dimensions |
9950x2500x3990mm |
Chassis |
DF AUTO,LD98-001 |
|
Total mass |
16000KG |
Engine |
CUMINNS B170-33 (125KW/ 560NM), Euro II |
|
Wheelbase |
5600mm |
Box dimension |
7600x2500x2600mm |
|
Transmission: |
Fast manual 8 speed 8JS75 |
Bridge |
Dana 4.5/10T |
|
Tyre: |
9.00R20 16PR vacuum tyre |
Other configuration: |
Right rudder/air conditioning /232mm frame/air brake/rear transverse stabilizer bar |
|
LED full color screen |
|||
|
Dimension |
5760mm(W)*2240mm(H) |
Module size |
320mm(W) x 160mm(H) |
|
Module resolution |
64 x32 Pixel |
Lifespan |
100,000 hours |
|
Light brand |
Kinglight light |
Dot pitch |
5mm |
|
Brightness |
≥6500cd/㎡ |
Max Power Consumption |
750w/㎡ |
|
Average Power Consumption |
250w/㎡ |
DRIVE IC |
ICN2153 |
|
Power Supply |
Meanwell |
Fresh rate |
3840 |
|
Receiving card |
Nova MRV316 |
Cabinet weight |
Iron 50kg |
|
Cabinet material |
Iron |
Pixel structure |
1R1G1B |
|
Maintenance mode |
Rear service |
Operating Voltage |
DC5V |
|
LED packaging method |
SMD2727 |
scanning method |
1/8 |
|
Module power |
18W |
Pixel density |
40000 Dots/㎡ |
|
HUB |
HUB75 |
Frame rate/ Grayscale, color |
60Hz,13bit |
|
Viewing angle, screen flatness, module clearance |
H：120°V：120°、＜0.5mm、＜0.5mm |
Operating temperature |
-20~50℃ |
|
Silent generator group |
|||
|
Generator set |
20KW,Yangdong |
dimension |
2000*850*1350mm |
|
Frequency: |
60HZ |
Voltage: |
380V/3 phase |
|
Generator: |
Stanford PI144E (full copper coil, brushless self-excitation, including automatic pressure regulating plate) |
LCD controller: |
Zhongzhi HGM6110 |
|
Micro break: |
LS, relay: Siemens, indicator light + wiring terminal + key switch + emergency stop: Shanghai Youbang Group |
Maintenance-free DF battery |
CAMEL |
|
Player system |
|||
|
Video processor |
NOVA |
Model |
VX400 |
|
Luminance sensor |
NOVA |
Multi-function card |
NOVA |
|
Sound system |
|||
|
The power amplifier |
800 W |
Speaker |
2 *400 W |
|
Sound console |
USB-10M |
Wireless microphone |
HD-08D |
|
Power parameter |
|||
|
Input Voltage |
380V |
Output Voltage |
220V |
|
Current |
30A |
|
|
|
Electrical system |
|||
|
Circuit control and electrical appliances |
|
National standard |
|
|
The hydraulic system |
|||
|
Roof lift hydraulic cylinder |
4 pcs travel 2000mm |
Wingspan side flap |
4 pcs |
|
Hydraulic leg |
4 pcs |
Tail door turns cylinder |
2 pcs |
|
Stage 1 flip cylinder |
2 pcs 90 - degree flip |
Stage 2 flip cylinder |
2 pcs 90 - degree flip |
|
Led background screen lifting cylinder |
2 pcs travel 1600mm |
Remote control |
1 set |
|
Hydraulic control system |
1 set |
|
|
|

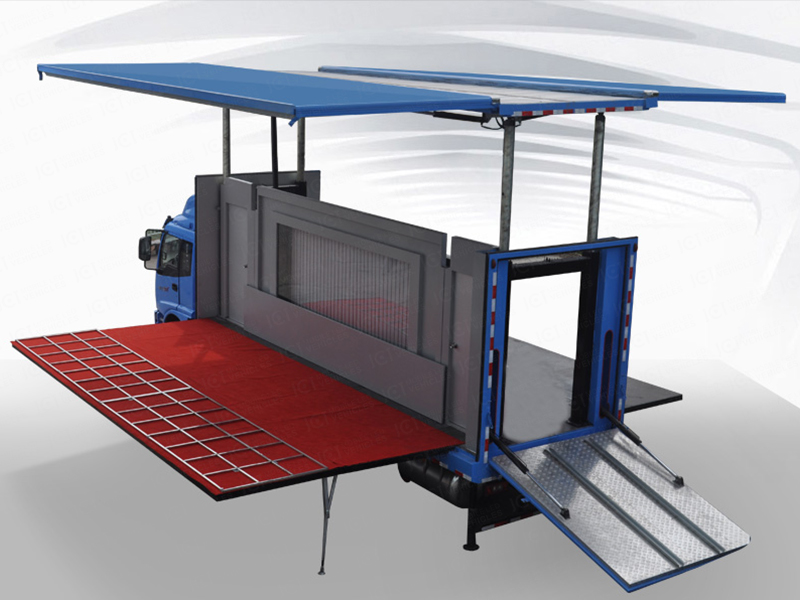

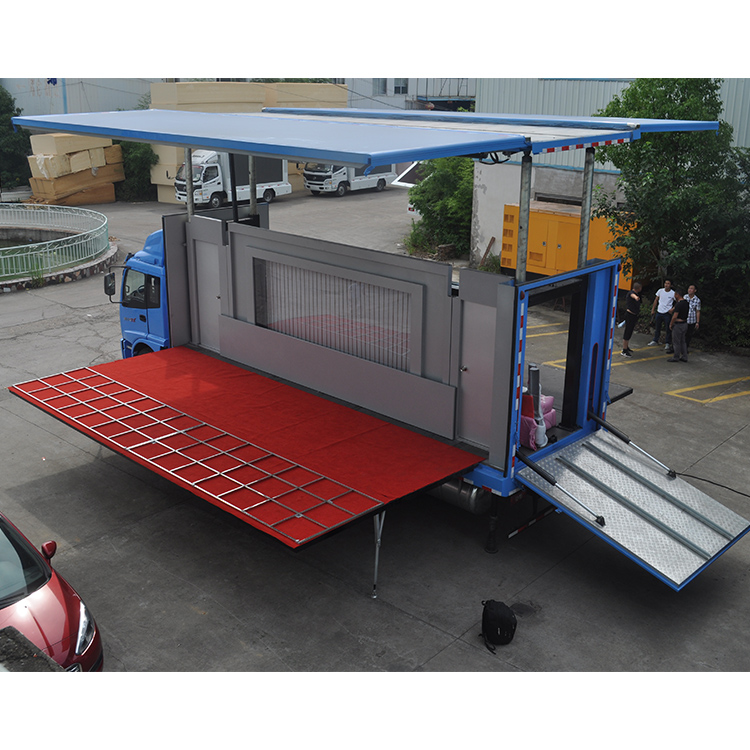

Stage and guardrail |
|||
|
Left stage size（Double fold stage） |
7500*3000mm |
The ladder |
1000 mm wide*2 pcs |
|
Stainless steel guardrail |
(3000mm+7500+1500mm)*1sets，The stainless steel circular tube has a diameter of 32mm and a thickness of 1.5mm |
Stage structure（Double fold stage） |
All around the big keel 100*50mm square pipe welding, the middle is 40*40 square pipe welding, the above paste 18mm black pattern stage board |
