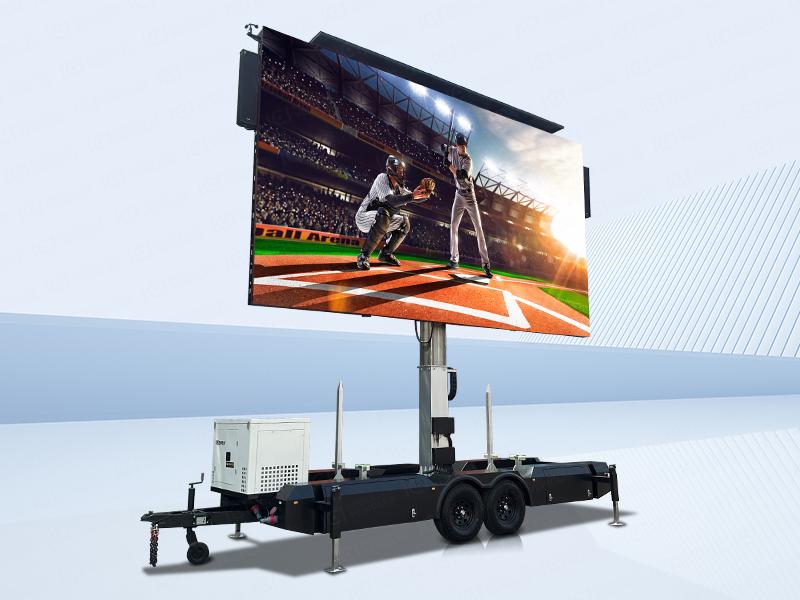

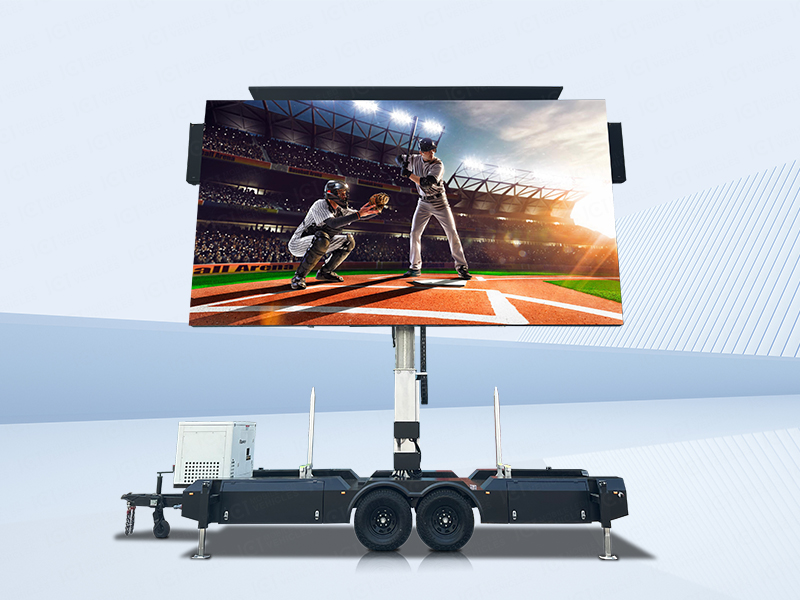

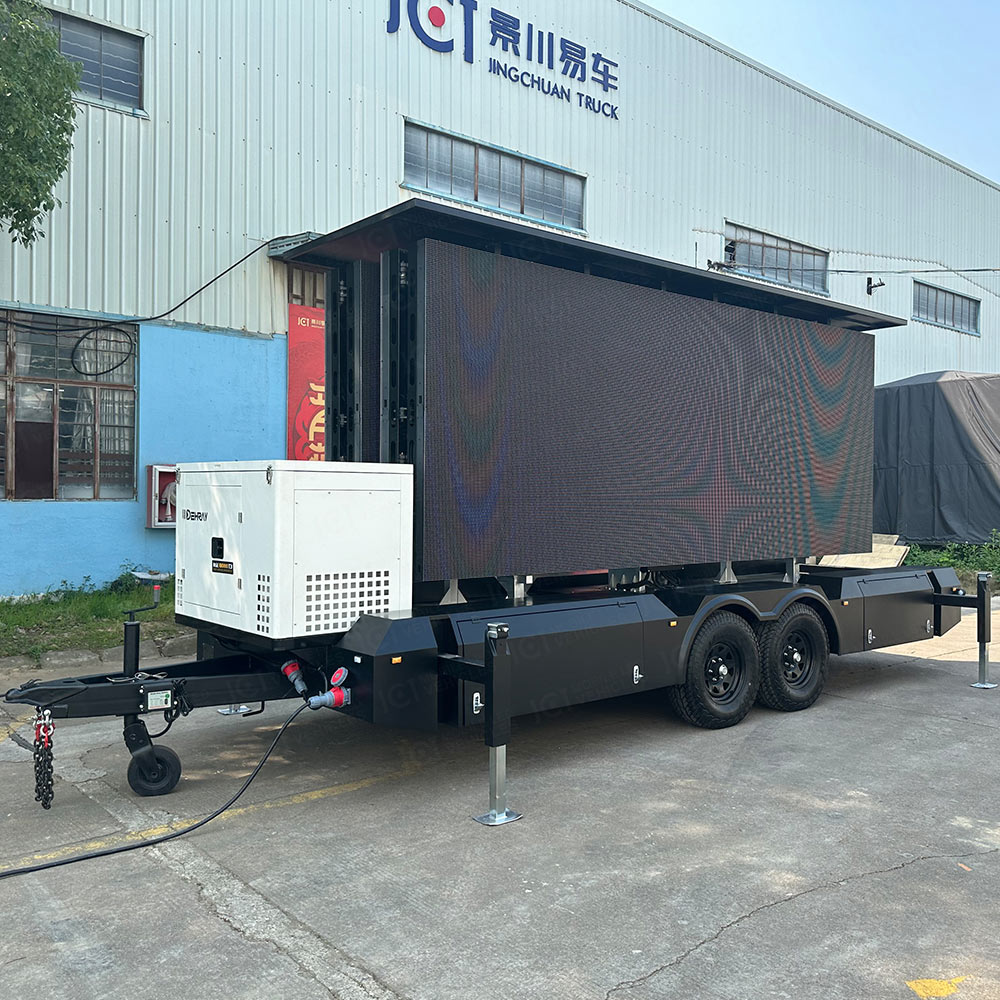

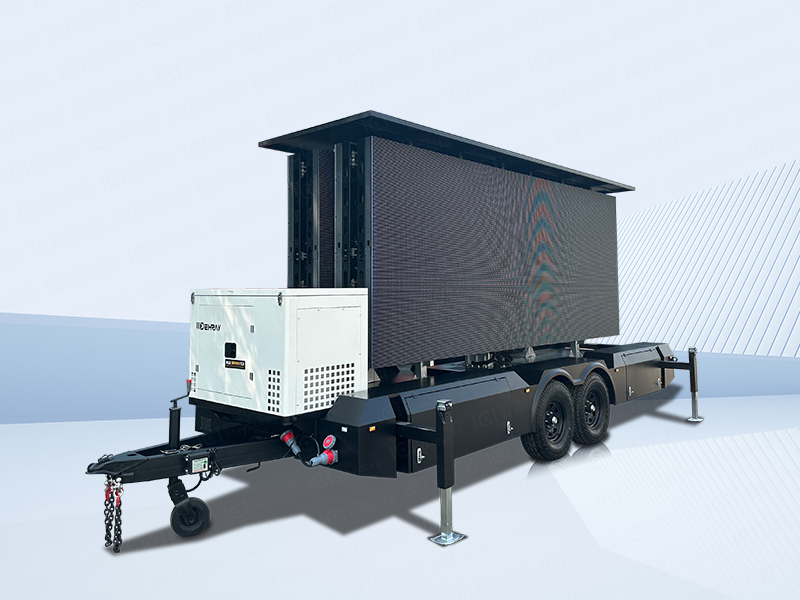

MBD-26S Platform 26 square meter mobile LED trailer stands out in the field of outdoor advertising display with its diversified performance and humanized design. The overall size of this trailer is 7500 x 2100 x 3240mm, but the huge body does not affect its flexible operation, which is very suitable for a variety of outdoor environments. And its LED screen area is reached 6720mm * 3840mm, providing enough space for the display of advertising content.

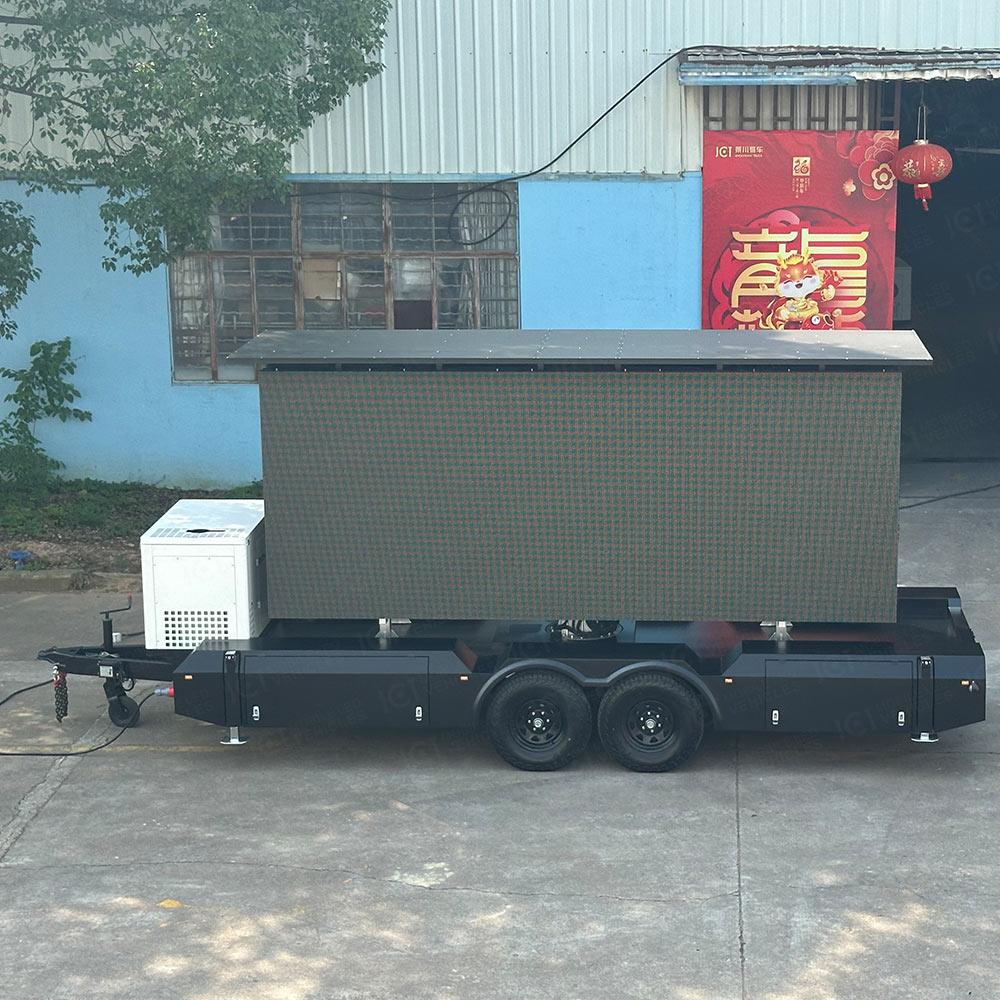

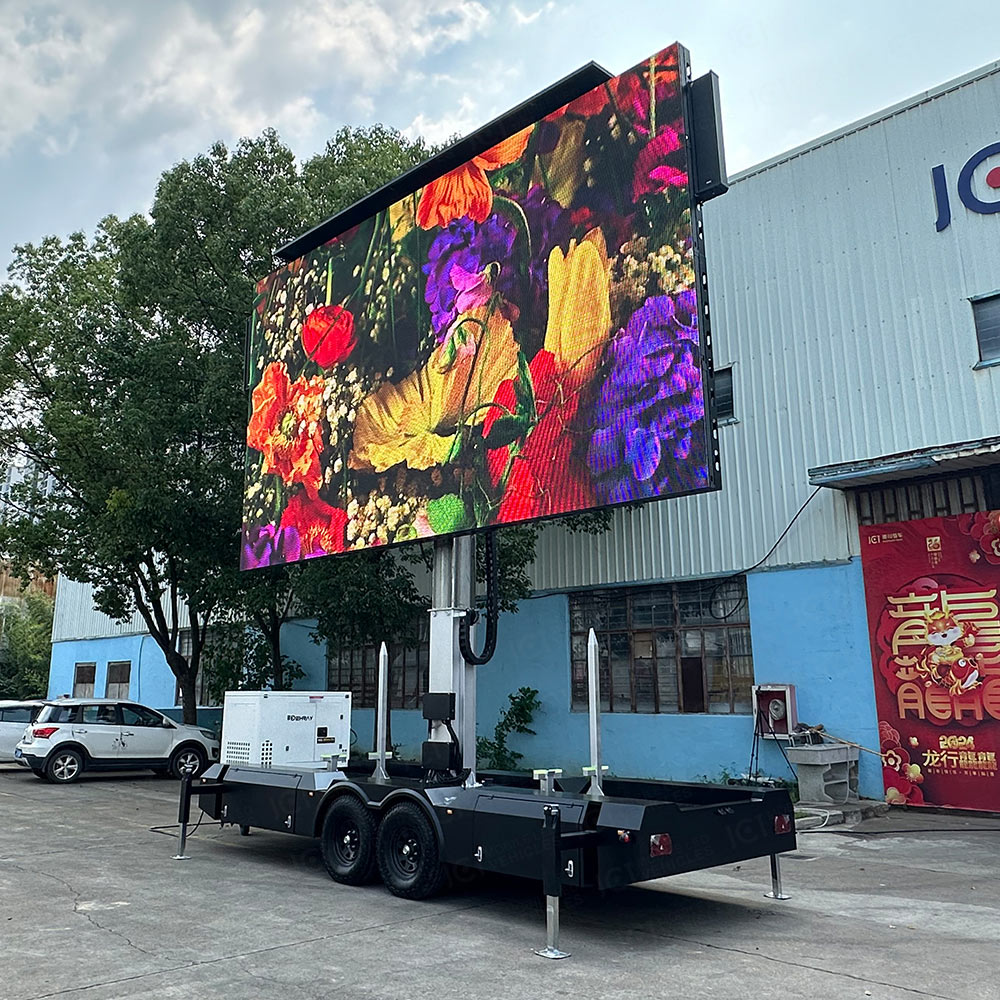

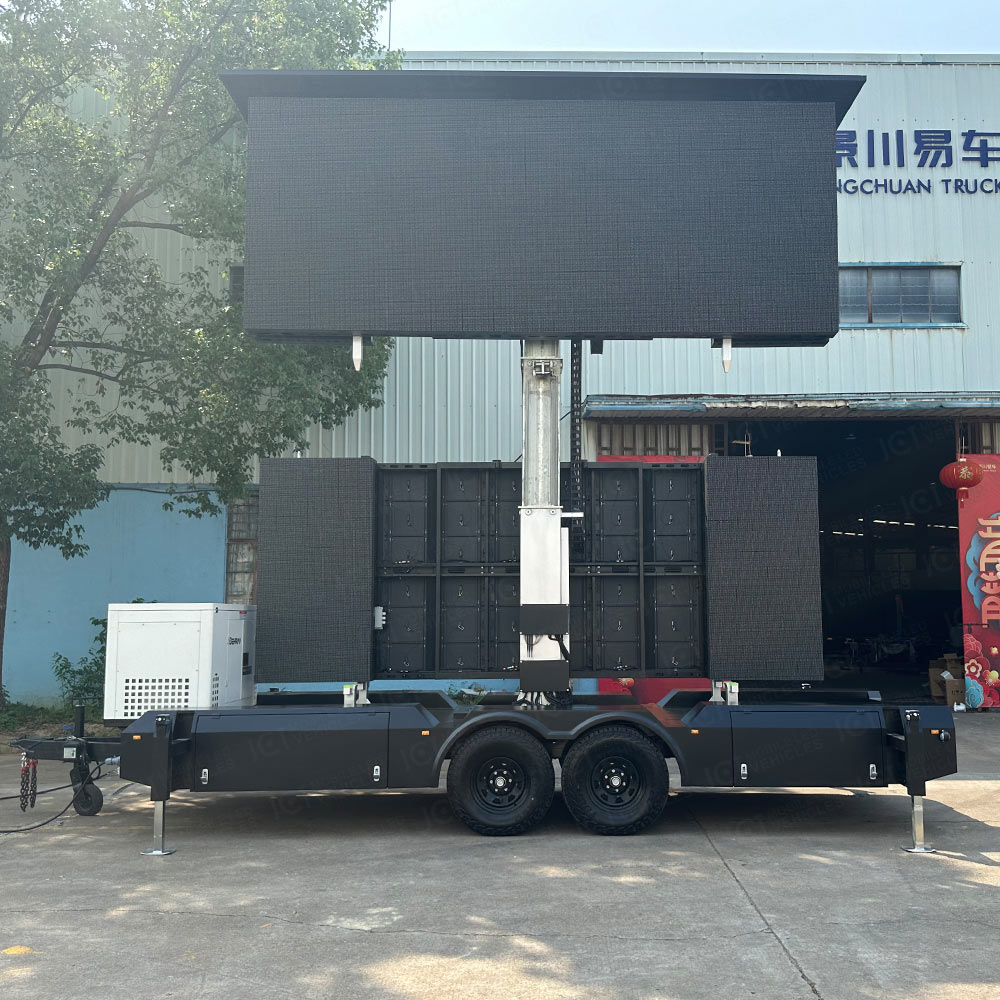

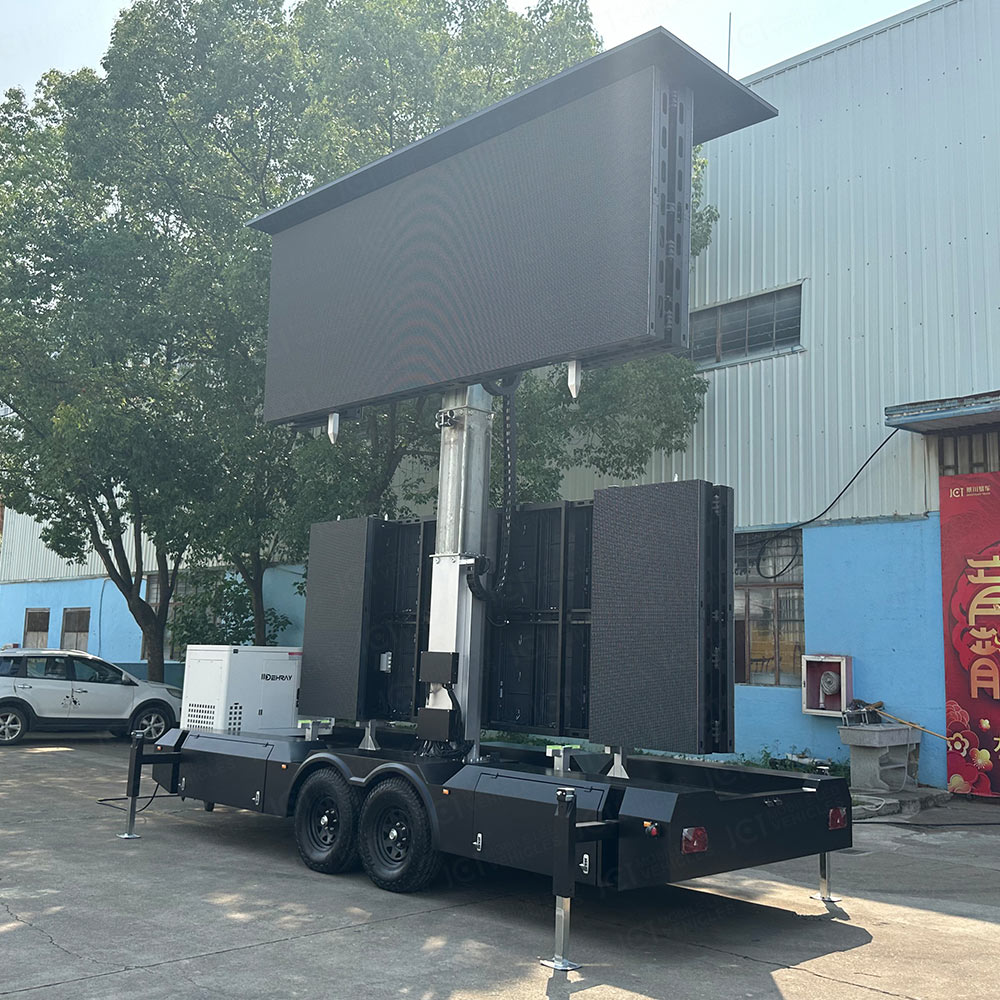

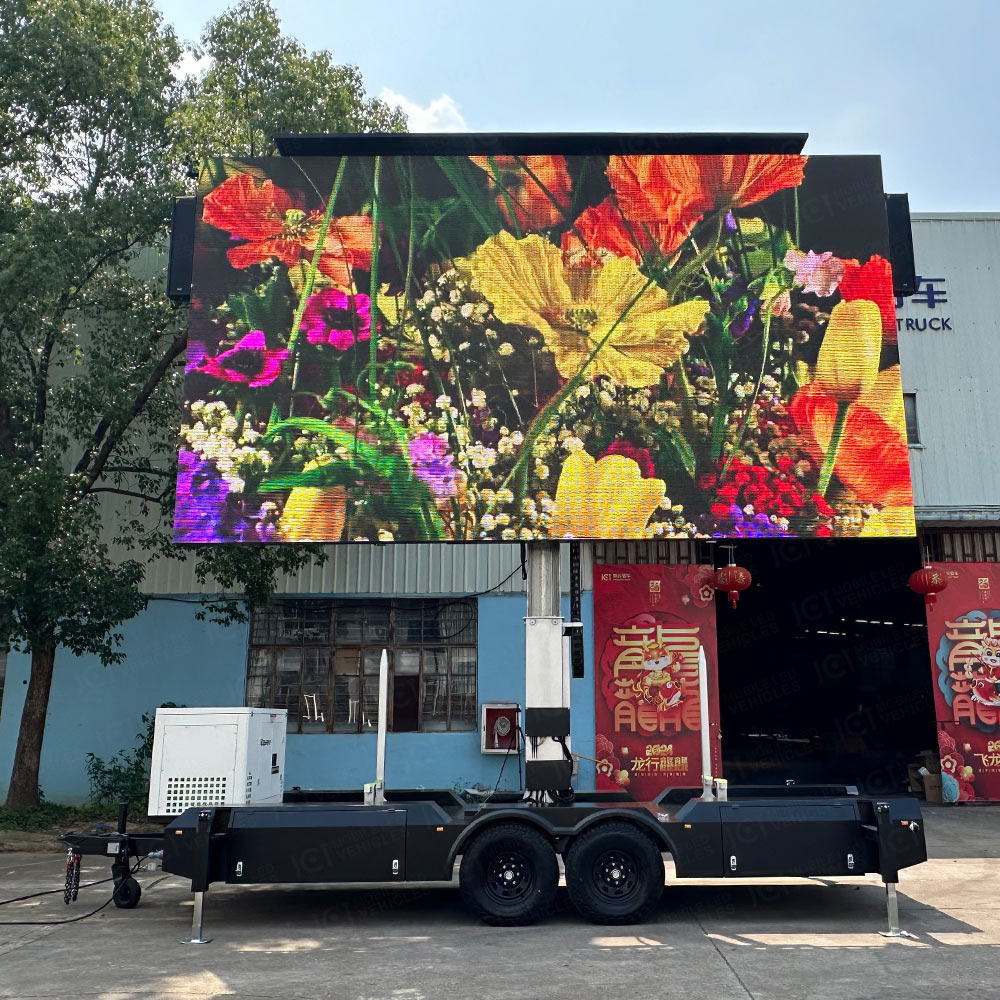

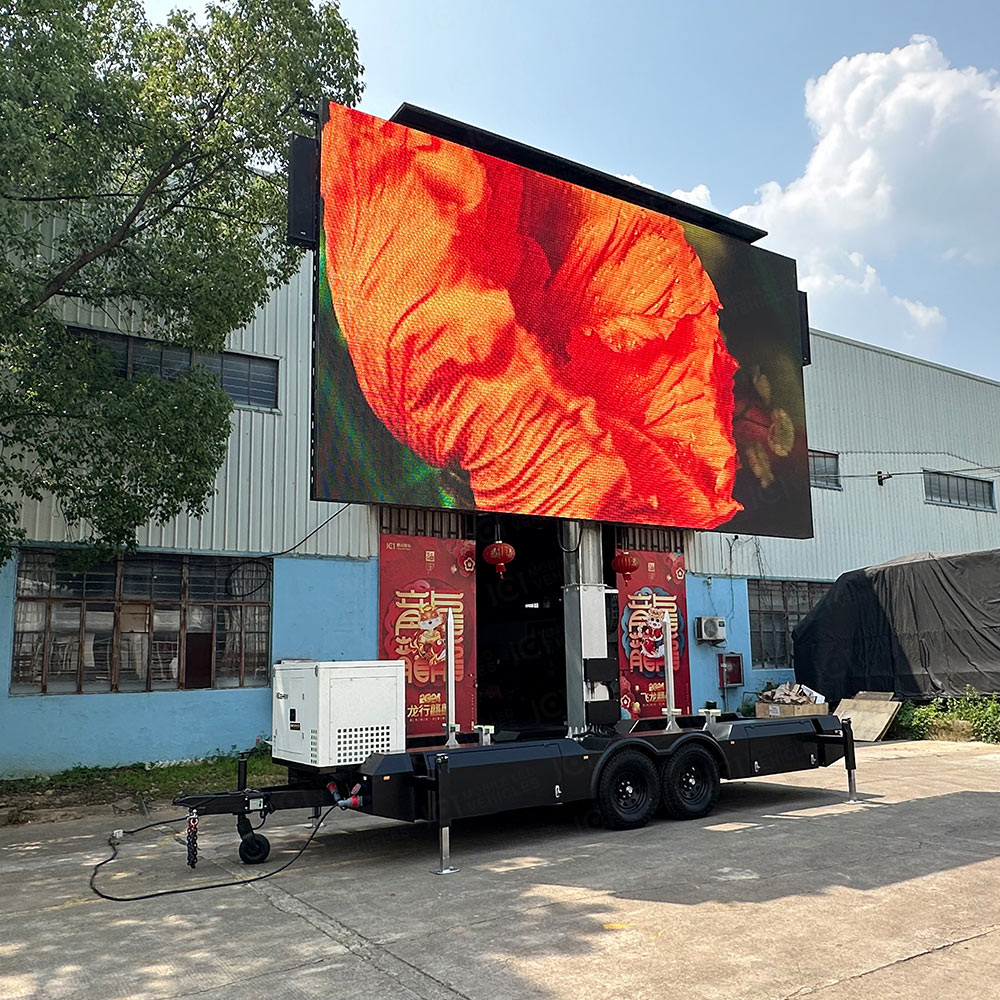

The highlight of this 26 square meter mobile LED trailer is its convenient one-click remote control operation. When the customer gently presses the start button, the main screen will automatically lift up. When the screen rises to the height set by the program, it will automatically rotate the 180 lock screen to lock the other LED screen below. And the hydraulic system then drives the screen up again until it reaches a predetermined display height. At this time, the folding screen on the left and right sides will also automatically unfold, forming a display screen with an overall size of 6720mm x 3840mm, bringing the audience a very shocking visual experience.
In addition, the MBD-26S Platform 26 square meter mobile LED trailer also has a 360 rotation function. No matter where the trailer is parked, the user can easily adjust the height and rotation Angle of the screen through the remote control button, to ensure that the advertising content is always oriented to the viewing position. This flexibility improves the effectiveness of advertising, enabling businesses to make full use of various outdoor Spaces for display.
It is worth mentioning that the whole operation process only takes just 15 minutes, saving users' time and money. This efficient operation mode not only makes users feel at ease, but also improves the efficiency and quality of outdoor advertising.
The MBD-26S Platform 26 square meter mobile LED trailer has also become an ideal choice for outdoor activities, exhibitions, sports events and other large-scale events with its versatility and extensive application scenarios. This trailer not only has excellent display effect, but also can easily deal with a variety of complex environment, bringing efficient publicity advantages to the business.
In outdoor activities, the MBD-26S Platform 26 square meter mobile LED trailer can easily attract people's attention with its huge LED screen area and high-definition picture quality. Whether it is product release, brand promotion or on-site interaction, this trailer can show the creativity and strength of the business, and enhance the brand image and visibility.
In the exhibition, LED trailers became the right-hand man of product information and advertising content. Businesses can easily adjust the height and Angle of the screen to ensure that the audience can clearly see the display. In addition, the folding screen design of the trailer can also flexibly adjust the screen size according to different exhibition needs, to meet the personalized display requirements of different businesses.
In sporting events, the 26 square meter mobile LED trailer can also play an important role. It can broadcast the game pictures, advertisements and other content in real time on the competition site, bringing more rich watching experience to the audience. At the same time, the trailer's high brightness and wide view characteristics ensure that the audience can clearly see the content on the screen even in the high-light environment outdoors.
MBD-26S-Platform | |||
Specification | |||
Trailer appearance | |||
Gross weight | 4500kg | Dimension (screen up) | 7500×2100×3240mm |
Chassis | German-Made AIKO | Max speed | 100Km/h |
Breaking | Hydraulic breaking | Axle | 2 axles,Bearing 5000kg |
LED Screen | |||
Dimension | 6720mm*3840mm | Module Size | 480mm(W)*320mm(H) |
Light brand | Nationstar Gold wire | Dot Pitch | 6.67mm |
Brightness | 7000cd/㎡ | Lifespan | 100,000hours |
Average Power Consumption | 150w/㎡ | Max Power Consumption | 550w/㎡ |
Power Supply | Meanwell | DRIVE IC | ICN2513 |
Receiving card | Nova MRV316 | Fresh rate | 3840 |
Cabinet material | Die casting aluminum | Cabinet weight | Aluminum 25kg |
Maintenance mode | Rear service | Pixel structure | 1R1G1B |
LED packaging method | SMD2727 | Operating Voltage | DC5V |
Module power | 18W | scanning method | 1/8 |
HUB | HUB75 | Pixel density | 22505 Dots/㎡ |
Module resolution | 72*48Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
Viewing angle, screen flatness, module clearance | H:120°V:120°、<0.5mm、<0.5mm | Operating temperature | -20~50℃ |
system support | Windows XP,WIN 7, | ||
Power parameter | |||
Input voltage | Three phases five wires 415V | Output voltage | 240V |
Inrush current | 30A | Average power consumption | 0.25kwh/㎡ |
Silent generator group | |||

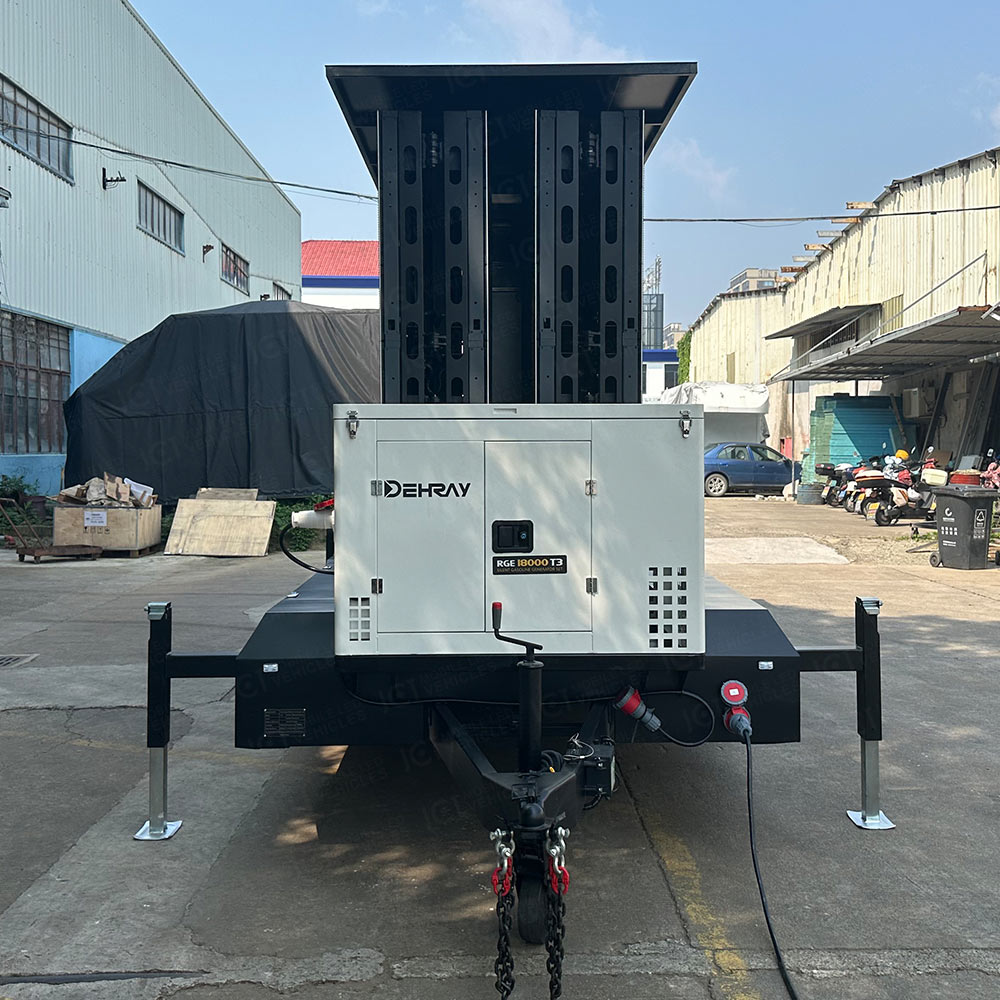

Dimension | 1300x750x1020mm | Power | 15KW GAS generator set |
Voltage and frequency | 415V/60HZ | Engine: | R999 |
Motor | GPI184ES | Noise | 66dBA/7m |
Others | electronic speed regulation | ||
Multimedia Control System | |||
Video processor | NOVA | Model | VX400 |
Luminance sensor | NOVA | Multi-function card | NOVA |
Sound System | |||
Power amplifier | 1000W | Speaker | 200W*4 |
Hydraulic System | |||
Wind-proof level | Level 8 | Supporting legs | Stretching distance 300mm |
Hydraulic Lifting and folding system | Lifting Range 4000mm, bearing 3000kg | Fold the ear screens on both sides | 4pcs electric pushrods folded |
Rotation | Electric rotation 360 degrees | ||
Others | |||
Wind speed sensor | Alarm with mobile APP | ||
Notes | |||
Maximum trailer weight :5000 kg | |||
Trailer width:2.1 m | |||
Maximum Screen height (top):8.5 m | |||
Galvanized chassis made according to DIN EN 13814 and DIN EN 13782 | |||
Anti slip and waterproof floor | |||
Hydraulic, galvanized and powder coated telescopic mast with automatic mechanical safety locks |
|||
Hydraulic pump with manual control (knobs) to lift LED screen up:3 phase | |||
360o screen manual rotation with mechanical lock | |||
Auxilary emergency manual control - handpump - screen folding without power according to DIN EN 13814 |
|||
4 x manually adjustable sliding outriggers:For very large screens it may be necessary to put out the outriggers for transport (you can take it to the car pulling the trailer). |
