Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

Product features:

  1. Configuration of COB HD screen: LED screen is a new COB screen, with high brightness, high contrast and resistance to environmental interference, ensuring that it can provide clear display effect in various weather and light conditions.

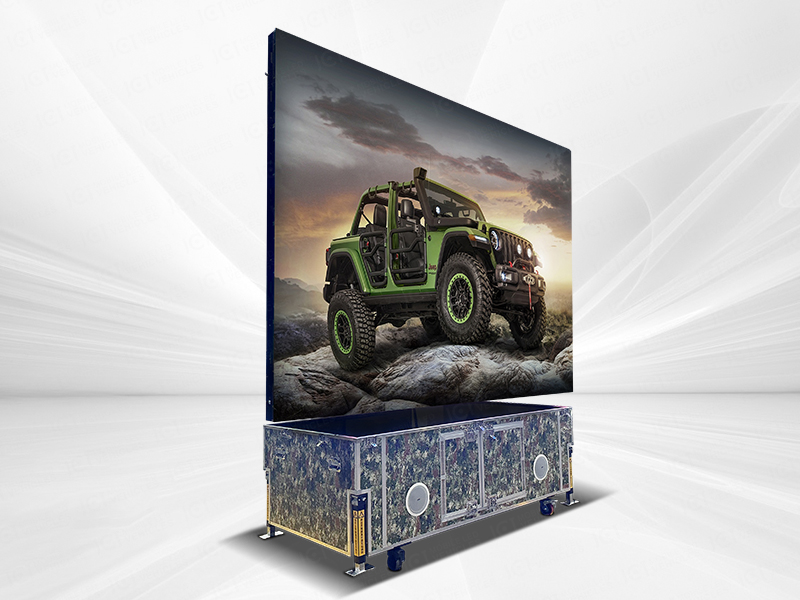

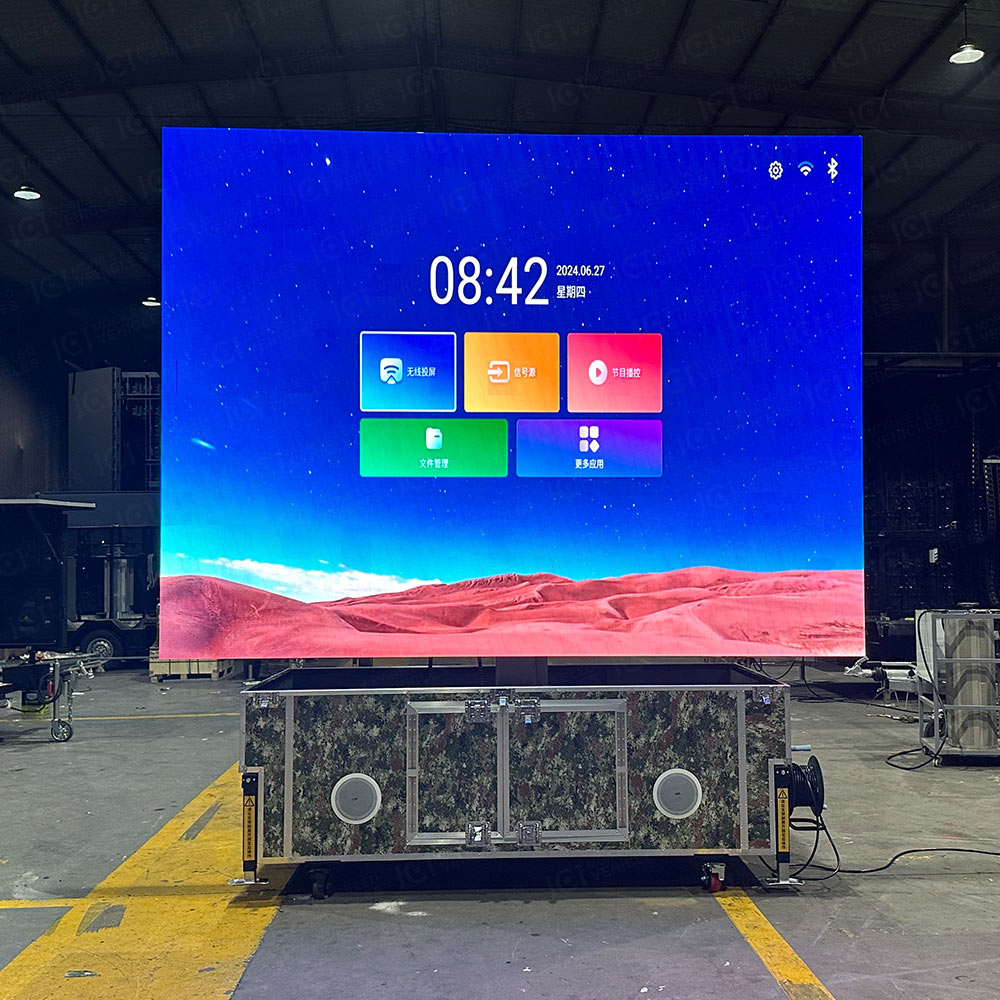

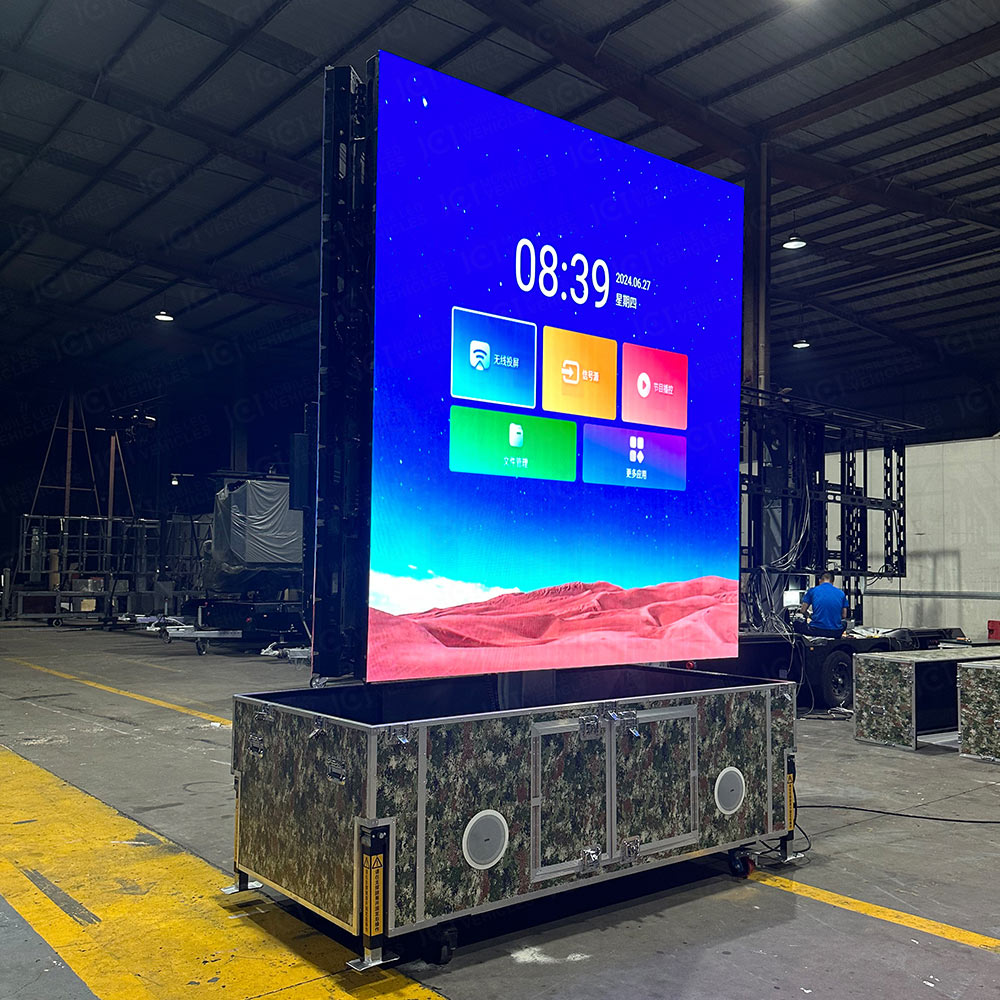

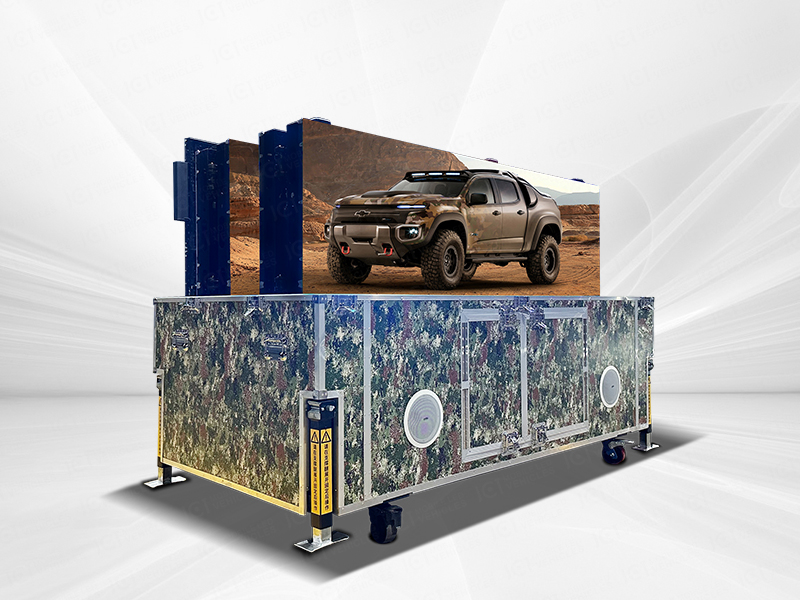

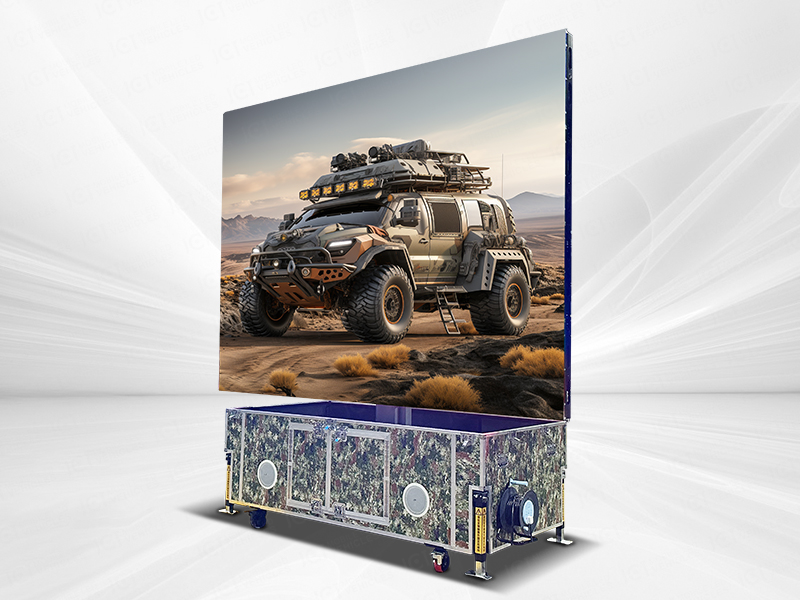

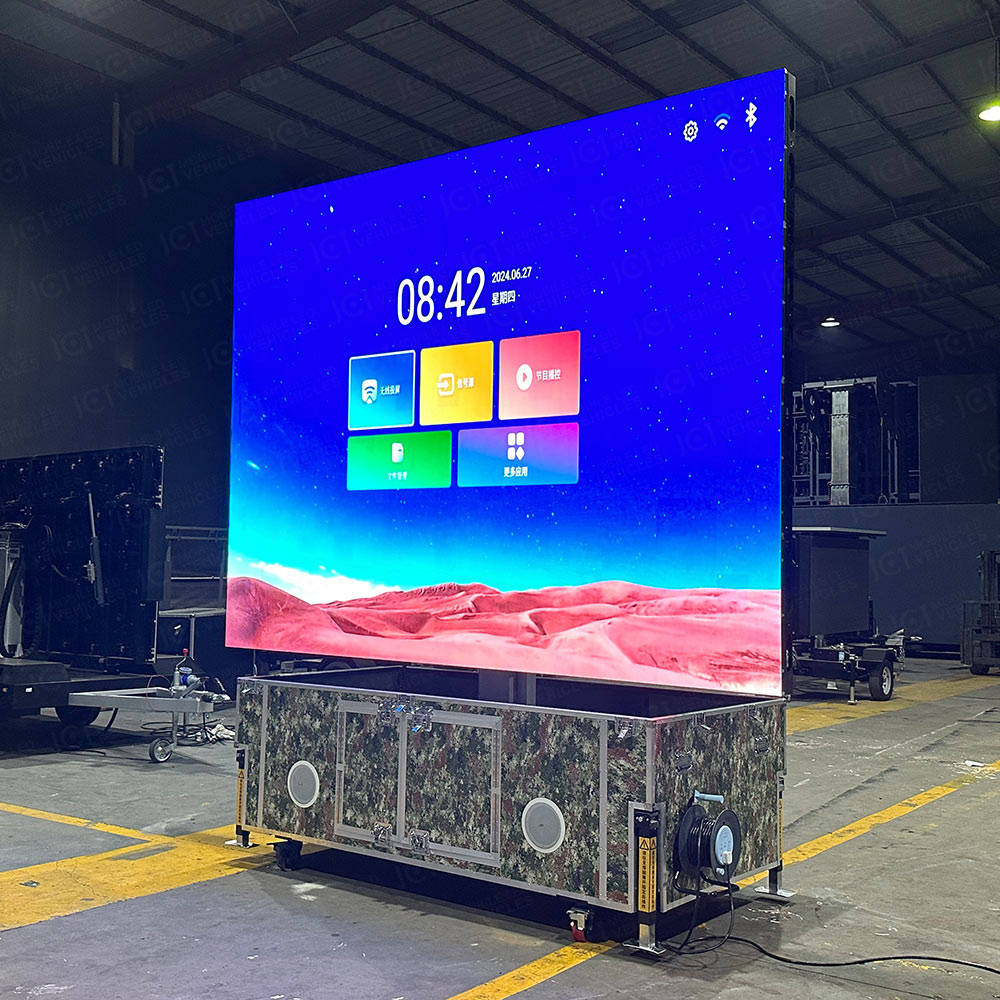

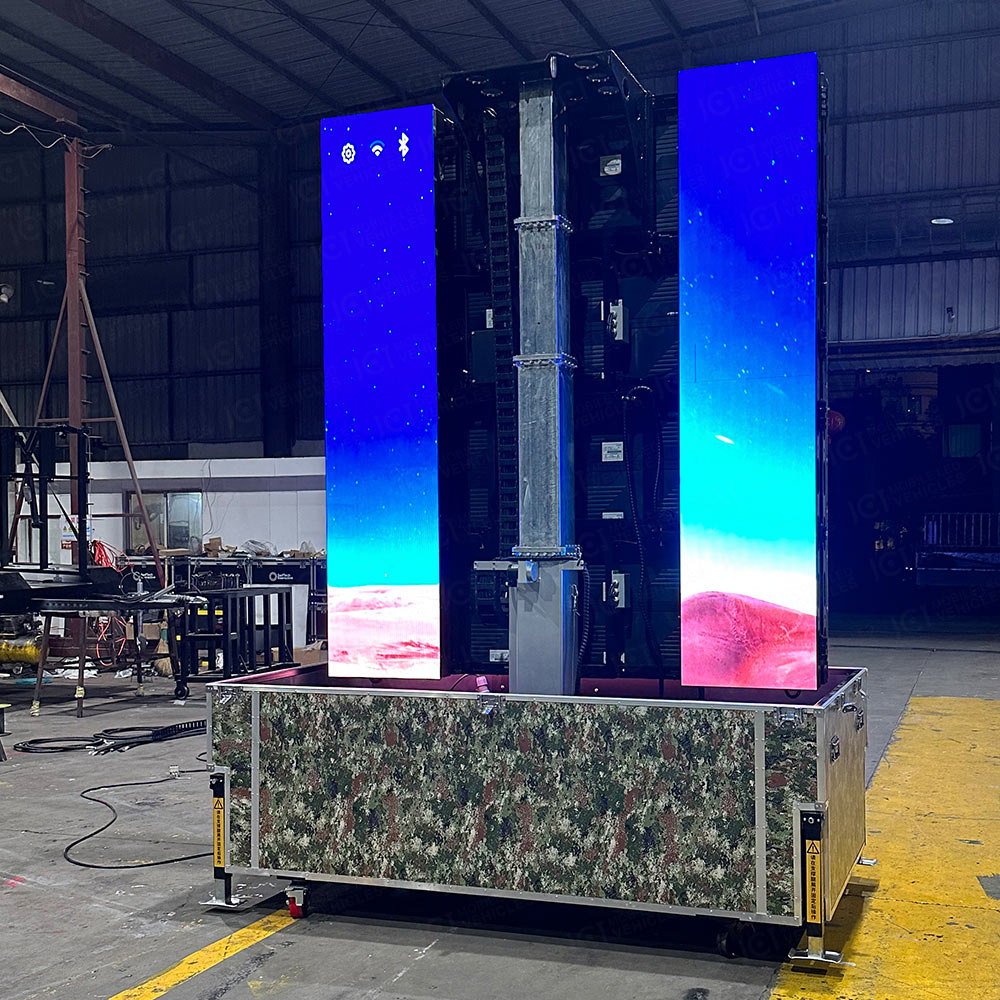

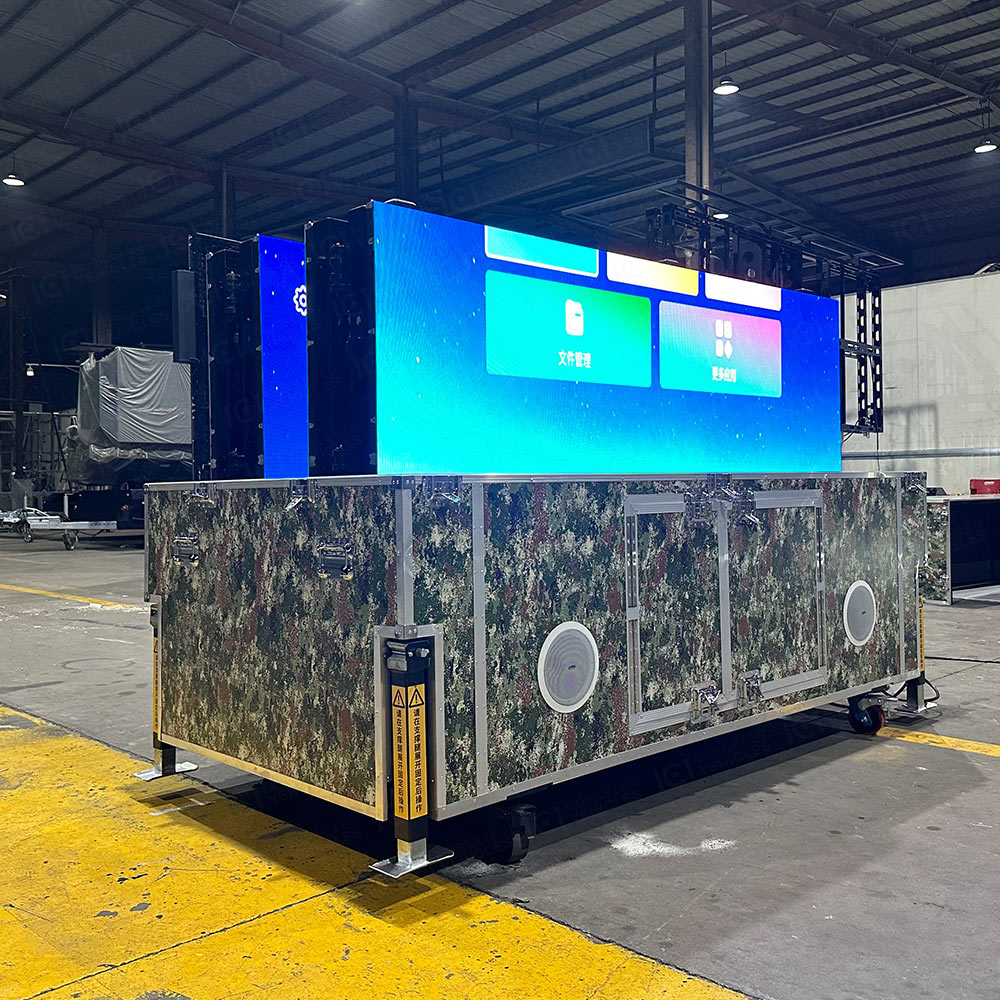

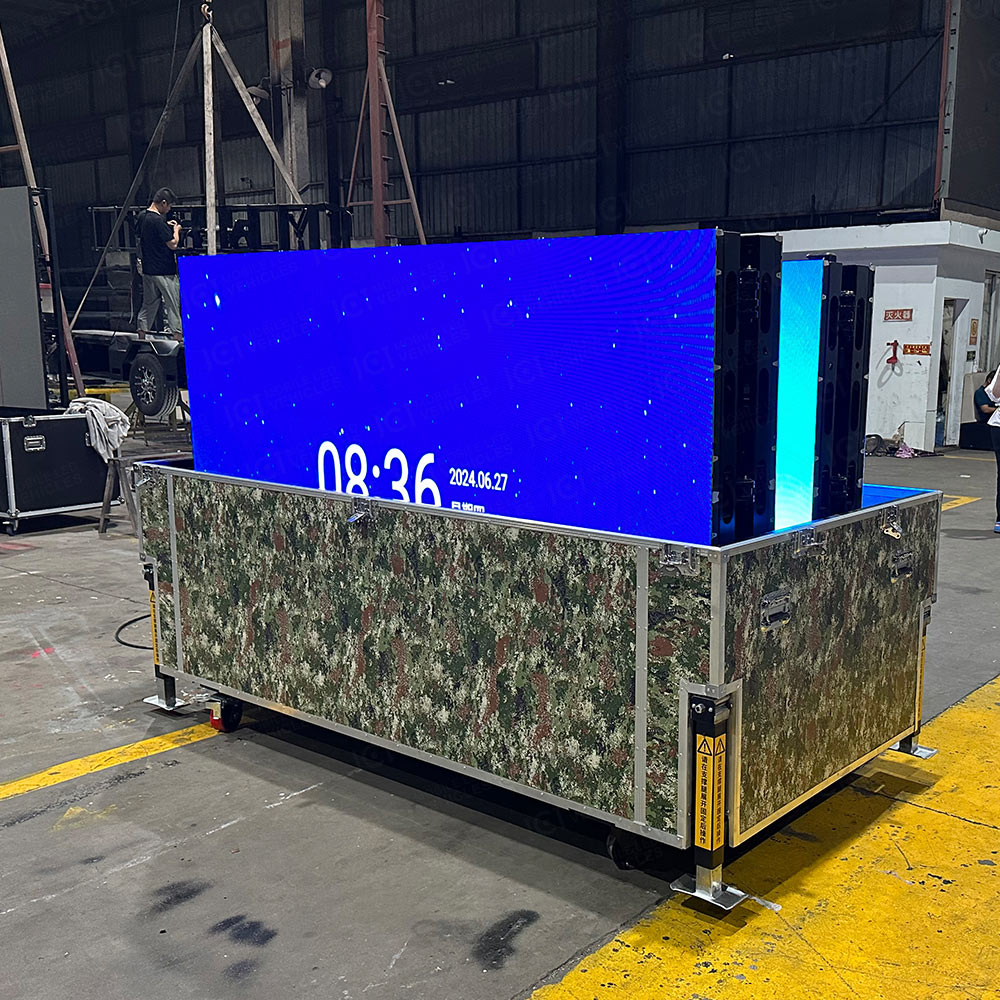

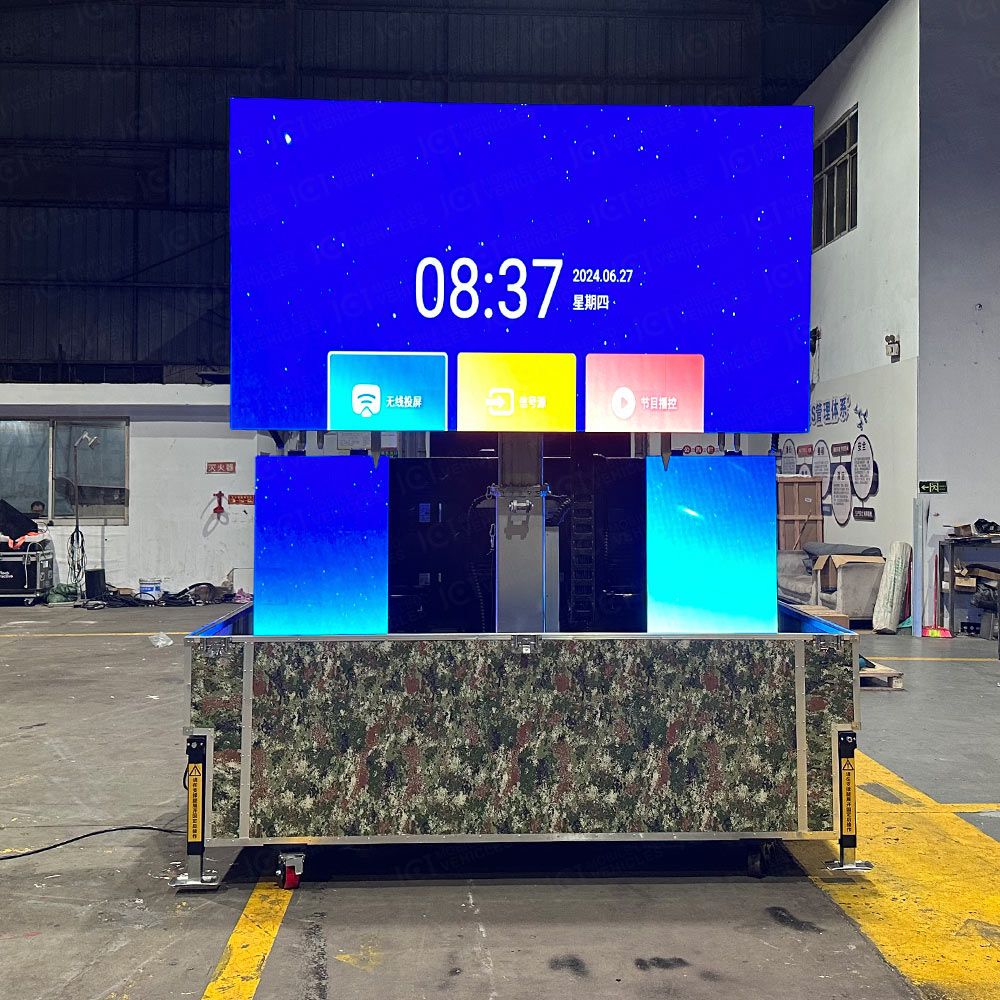

  2. 2, folding + rotation structure design: the screen is divided into upper and lower parts, Can be folded for storage, Easy to carry and transport; Functional structure design on the procurement of hydraulic lifting and manual rotation combined, When the main screen is raised to a predetermined height, Then manually rotate 180 degrees combined with another screen, Then drop the lock screen, Lock the two screens firmly together, Simplify the operation and improve the equipment safety; After the screen lock, The side screens on both sides begin to synchronize outward, Until fully deployed to form a size of 3600mm * 2700mm, A complete large screen of nearly 10 square meters, This size makes the PFC-10M portable folding LED screen suitable for a variety of major events, conferences or exhibitions, Provide enough display space to display all kinds of content.


Multi-scenario application, widely applicable
This PFC-10M portable folding LED screen is available for troops, hotels, pavilions, indoor stadiums and other occasions can deal with it. Its portability and high adaptability allow you to bring high-quality visual content to the audience anytime and anywhere.


1. Military occasions:
Portability: Troops often need to deploy and move quickly, and portable folding LED screens can be quickly installed and disassembled to meet the rapid response needs of troops.
Flexibility: As needed, the display screen can display important military information, instructions or propaganda content, providing instant communication and information display for troops.


2. Hotel Occasions:
Indoor activities: In a conference, exhibition or event held inside the hotel, the portable folding LED screen can be easily built in any necessary venue to display the conference content, advertising information or event process.
Outdoor promotion: the hotel can use the display screen to attract the attention of customers outdoors, such as playing hotel introductions and promotional activities at the door or in the parking lot.


3. Pavilion occasion:
Exhibition: In the exhibition hall, the portable folding LED screen can display exhibits information, enterprise introduction or activity arrangement, and improve the visiting experience of visitors.
Flexible layout: The display screen can be flexibly adjusted according to the site layout of the pavilion, which is suitable for different sizes and shapes of the exhibition area.


4. Indoor gymnasium occasions:
Game scoring: In basketball, football and other sports competitions, the portable folding LED screen can clearly show the game score and the game time, helping the audience to better understand the game situation.
Advertising display: During competitions or breaks, sponsors' advertisements or promotional videos can be played to provide strong support for brand publicity.


PFC-10M portable folding LED screen portability, flexibility and HD display effect make it an indispensable display tool for troops, hotels, pavilions, indoor stadiums and other occasions, providing more publicity channels for merchants and advertisers, and providing a better platform for the promotion of products and brands.

Parameters

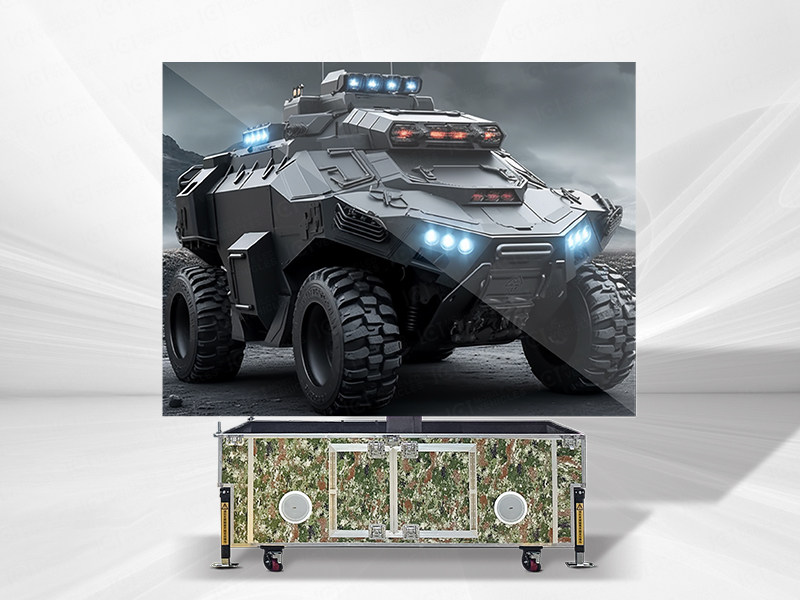

PFC-10M portable Flight  case led screen
Specification

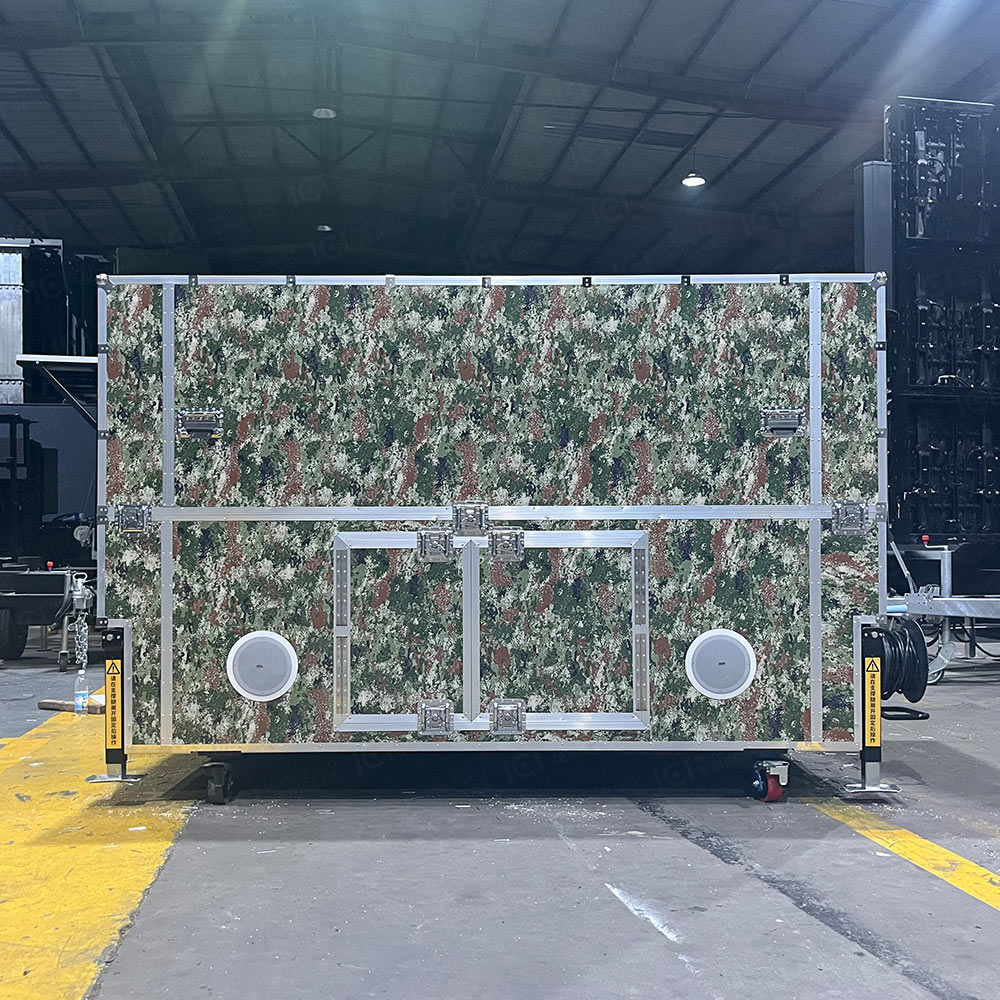

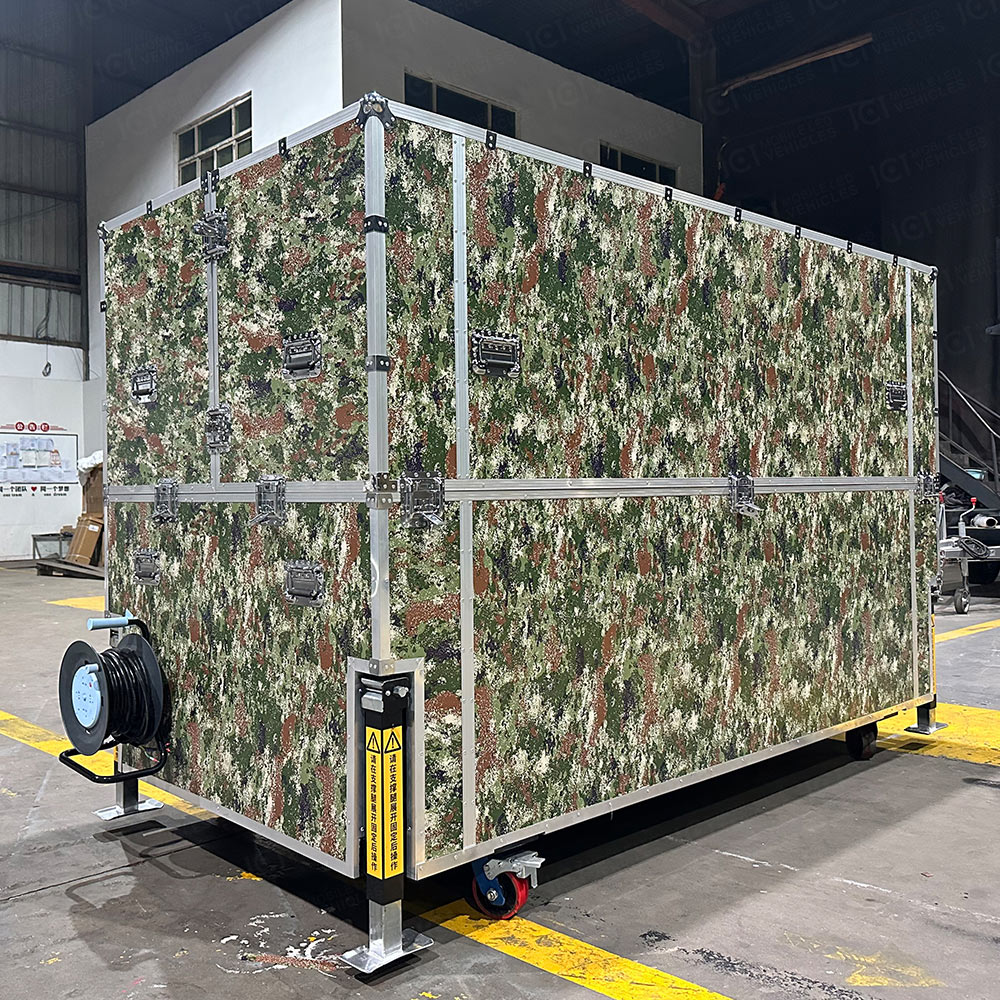

Flight case appearance
Flight casesize 2700×1345×1800mm Universal wheel 500kg,4PCS
Total weight 750KG Flight case parameter 1, 12mm plywood with black fireproof board
2, 5mmEYA/30mmEVA
3, 8 round draw hands
4, 6 (4 "blue 36-width lemon wheel, diagonal brake)
5, 15MM wheel plate
Six, six locks
7. Fully open the cover
8. Install small pieces of galvanized iron plate at the bottom
LED Screen
Dimension 3600mm*2700mm Module Size 150mm(W)*168.75mm(H),With COB
Light brand Kinglight Dot Pitch 1.875 mm
Brightness 1000cd/㎡ Lifespan 100,000hours
Average Power Consumption 130w/㎡ Max Power Consumption 400w/㎡
Power Supply E-energy DRIVE IC ICN2153
Receiving card Nova MRV208 Fresh rate 3840
Cabinet material Die casting aluminum Cabinet weight aluminum 6kg
Maintenance mode Rear service Pixel structure 1R1G1B
LED packaging method SMD1415 Operating Voltage DC5V
Module power 18W scanning method 1/52
HUB HUB75 Pixel density 284444 Dots/㎡
Module resolution 80*90Dots Frame rate/ Grayscale, color 60Hz,13bit
Viewing angle, screen flatness, module  clearance H:120°V:120°、<0.5mm、<0.5mm Operating temperature -20~50℃
system support Windows XP,WIN 7,
Power parameter (external prower supply)
Input voltage Single phase 120V Output voltage 120V
Inrush current 36A
Control system
receiving card 24pcs NOVA TU15 1 pcs
Hydraulic lifting
Hydraulic Lifting and folding system Lifting Range 2400mm, bearing 2000kg Fold the ear screens on both sides 4pcs electric pushrods folded
Rotation Electric rotation 360 degrees
