In the field of outdoor advertising, branding and visual presentation, an efficient, convenient and highly customized LED trailer is crucial. The ST3 type of outdoor mobile LED trailer, with its excellent performance and diversified configuration, is becoming a new favorite on the market.
ST3 outdoor Mobile LED trailer: a new option for energy efficient, portable and highly customized
Energy-saving battery power supply: make outdoor advertising carefree
Stable power supply is often a challenge for brands that require campaigns in remote areas or temporary sites. The ST3 LED trailer cleverly solves this problem. It is equipped with a cutting-edge, energy-efficient battery-powered system, which means that it works consistently and steadily, even without external power sources. Such a design not only ensures the continuity of advertising, but also makes the event site more attractive.
LED screen and vehicle size: the perfect balance between display and movement
An excellent advertising tool, its display effect of nature can not be underestimated. The ST3 outdoor mobile LED trailer is equipped with a 22401280mm LED screen, providing a clear and bright visual experience. At the same time, the size of the vehicle is 238218002074mm, compact and reasonable design makes it more flexible and convenient when moving, easy to cope with various transportation and site requirements.
Hand type lifting system: practical and convenient, double satisfaction
The manual lifting system does perform well in terms of economy and ease of operation. The significant cost advantage over the expensive hydraulic lifting system enables more customers, especially those domestic and foreign customers seeking good and inexpensive solutions, to enjoy high quality LED trailer service. In addition, the hand type lifting system of the simple operation is also a major highlight. Without complex training or professional skills, only one staff member can easily complete the lifting operation. This intuitive and easy to use feature allows the system to be quickly deployed and operational in a variety of application scenarios.
Customized function configuration: to meet the personalized needs
In addition to the above features, the trailer also offers a large screen 330 rotation and screen clarity configuration, allowing customers to customize their own outdoor mobile LED trailers according to their actual needs. Whether it's brand promotion, product presentation or live broadcast, it offers excellent visual experience and flexibility.
In short, the ST3 outdoor mobile LED trailer is becoming a popular choice in the market with its energy-saving battery power supply, reasonable size, economical and practical hand lifting system, and highly customized functional configuration. It can not only meet the needs of various outdoor activities, but also provide customers with a variety of choices and customized experiences.
ST3 |
|||
Specification |
|||

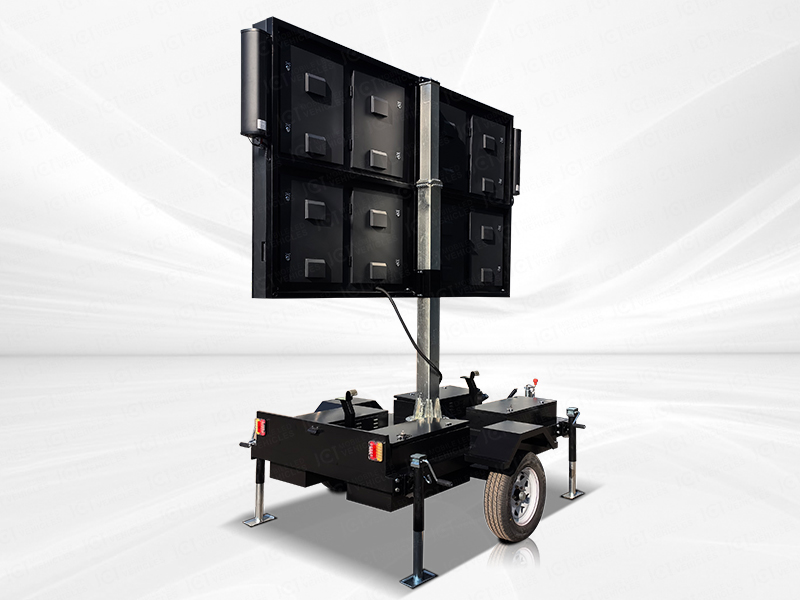

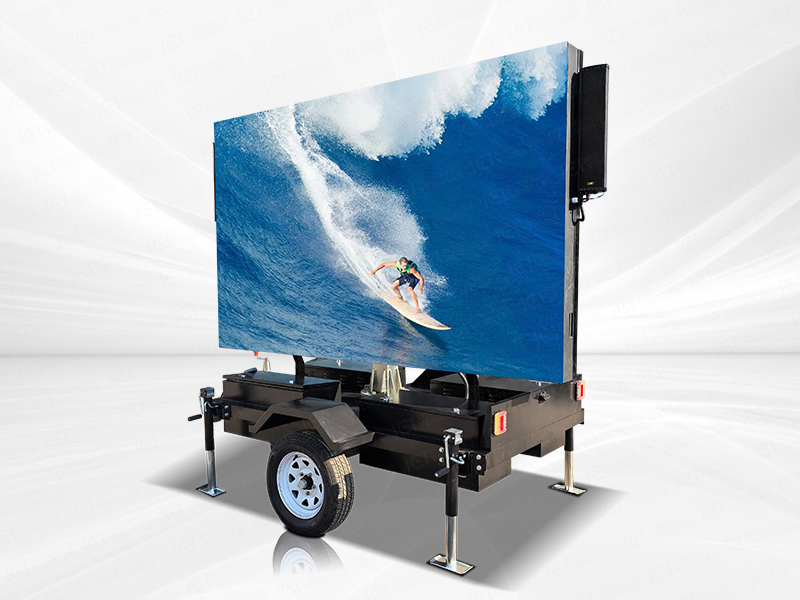

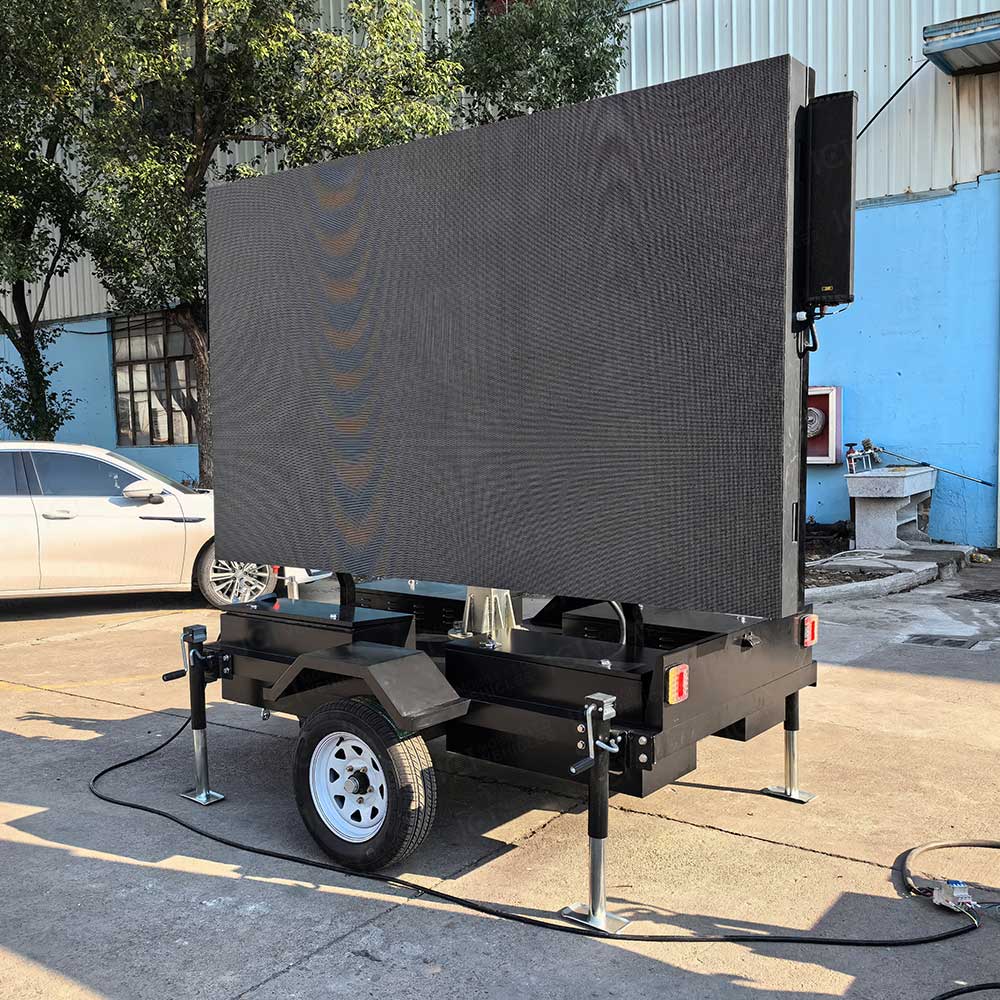

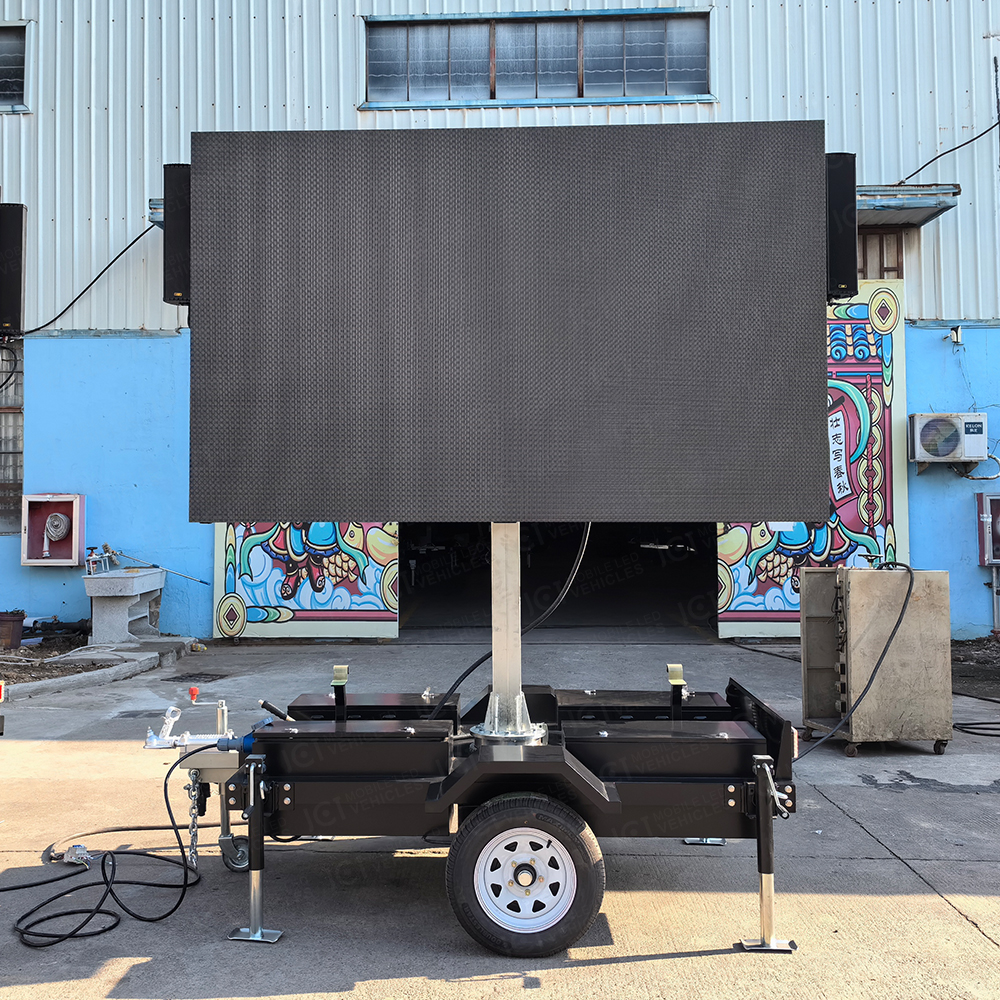

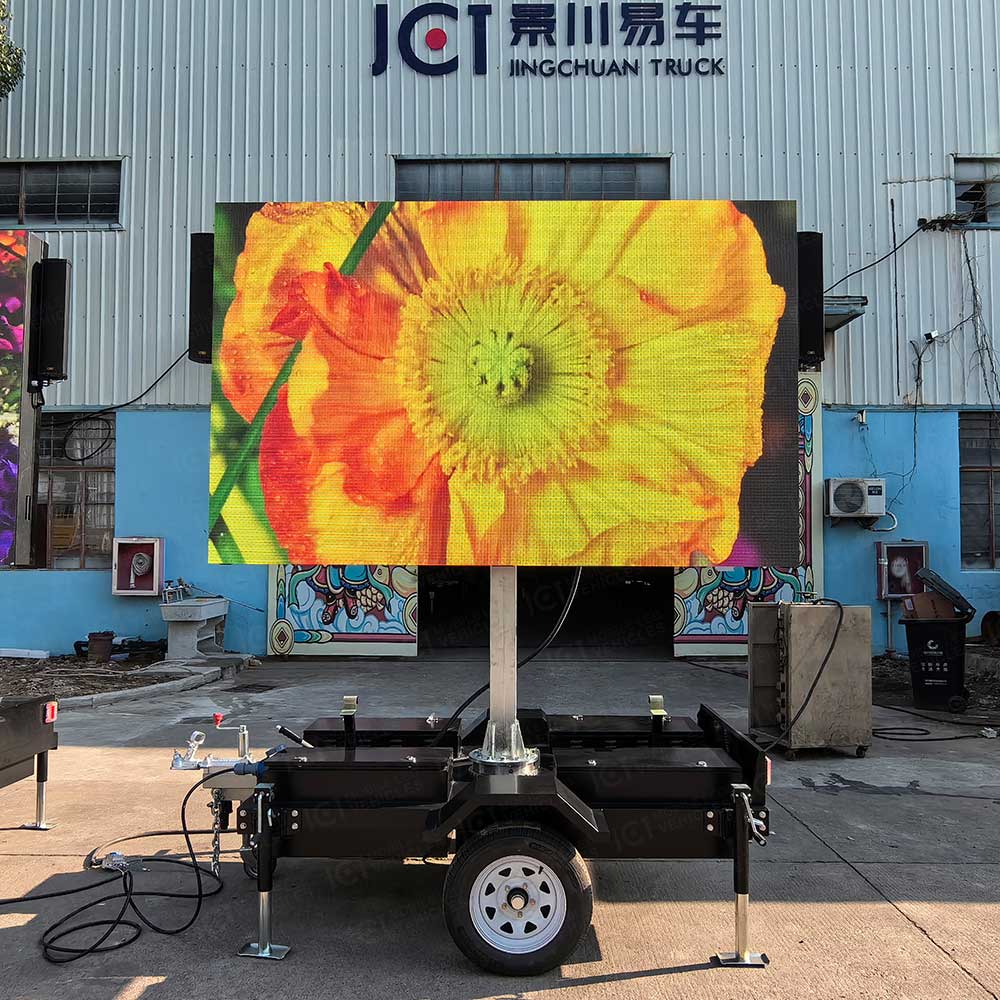

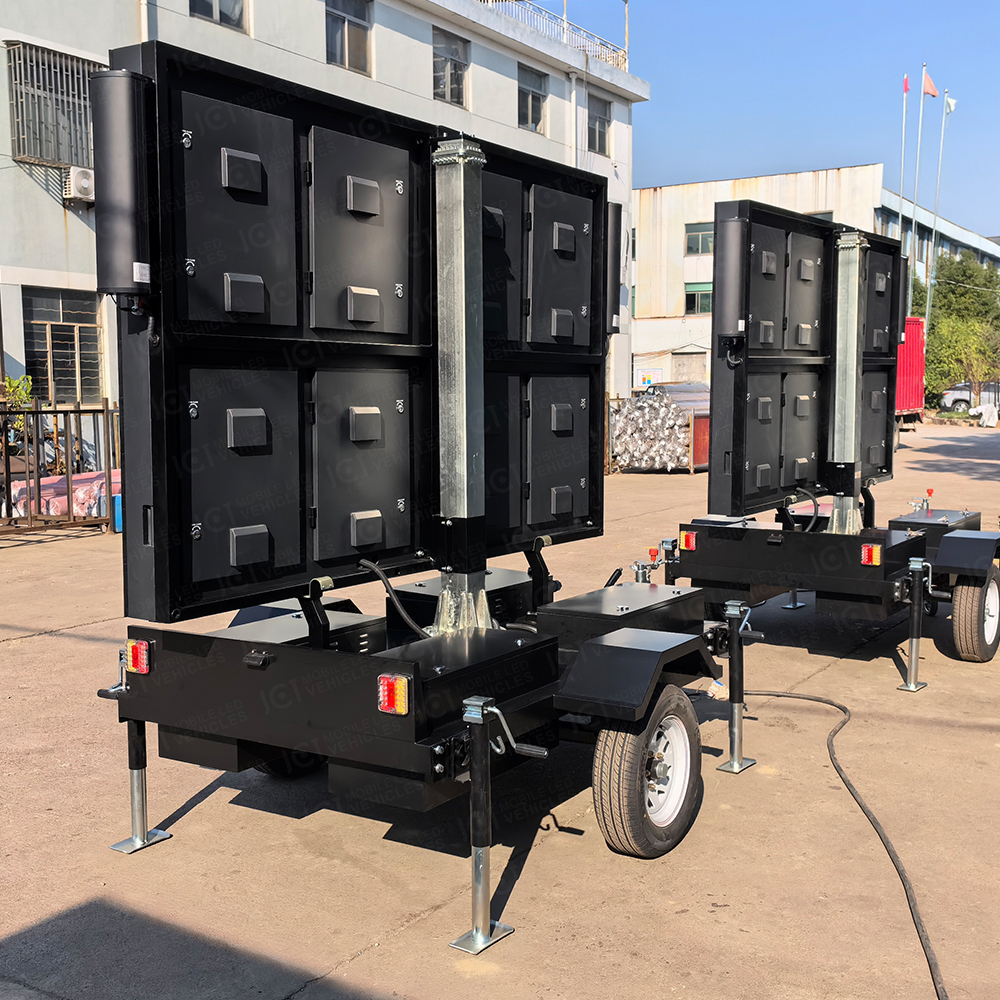

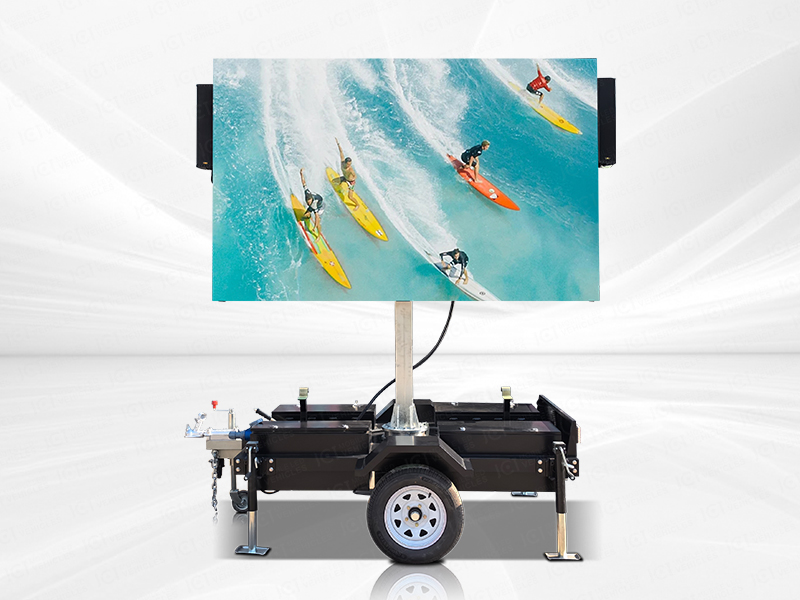

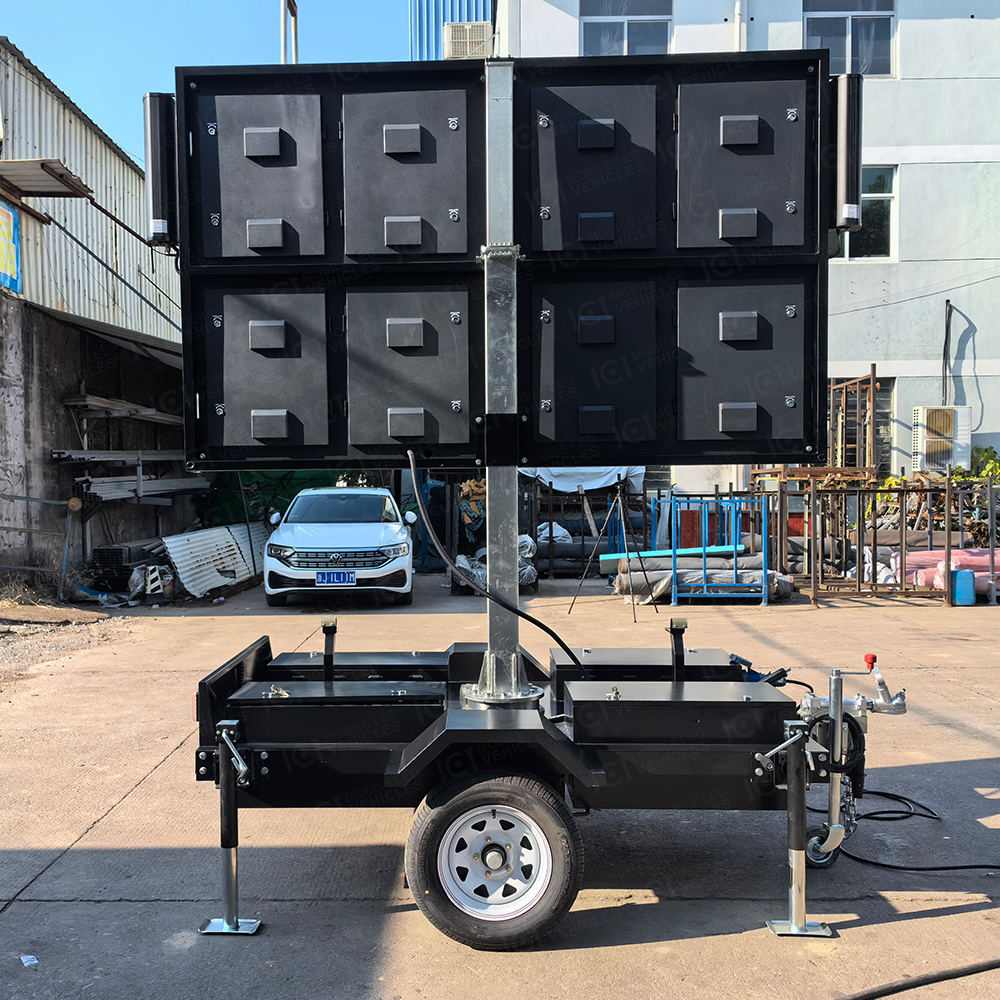

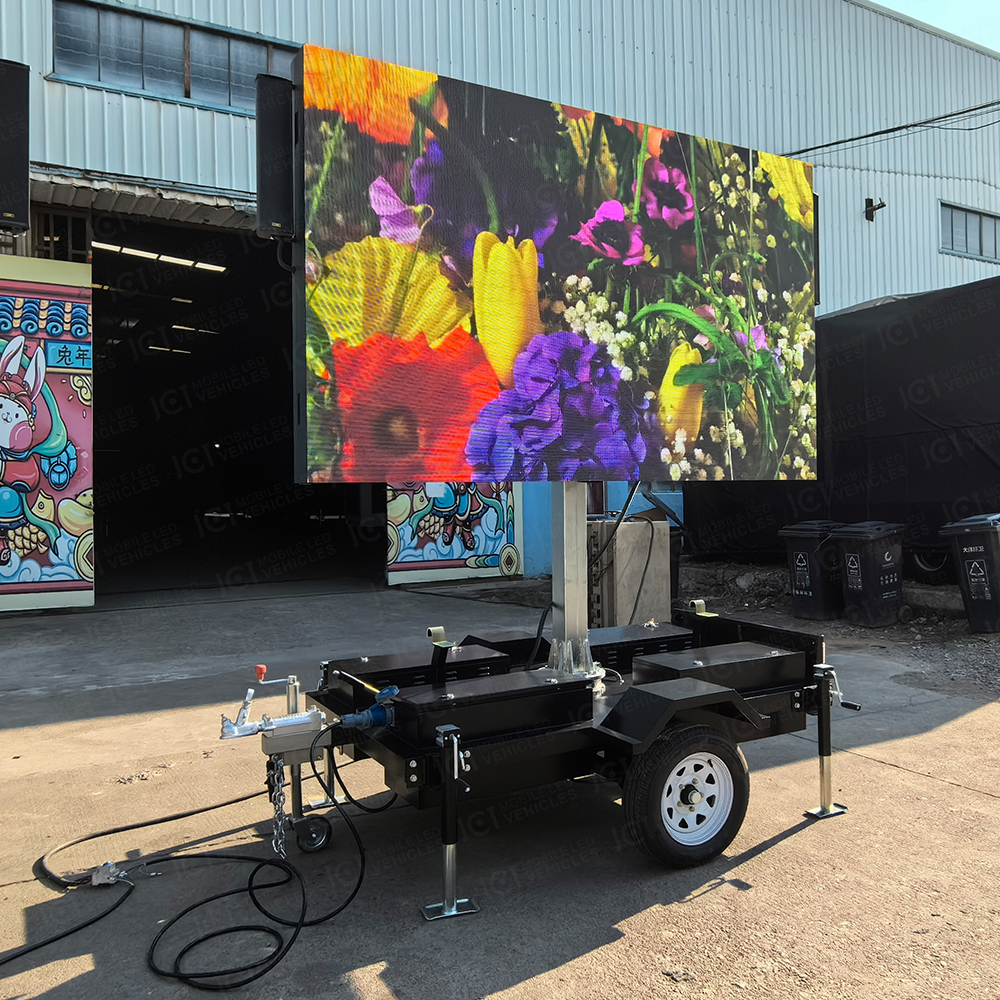

Trailer appearance |
|||
Trailer size |
2382×1800×2074mm |
Supporting leg |
440~700 load 1.5 tons,4 PCS |
Total weight |
629KG |
Tire |
165/70R13 |
Max speed |
120Km/h |
Connector |
50mm ball head, 4 hole Australian impact connector |
Breaking |
Hand brake |
Axle |
Single axle |
LED Screen |
|||
Dimension |
2240mm*1280mm |
Module Size |
320mm(W)*160mm(H) |
Light brand |
Kinglight |
Dot Pitch |
5/4mm |
Brightness |
≥6500cd/㎡ |
Lifespan |
100,000hours |
Average Power Consumption |
250w/㎡ |
Max Power Consumption |
750w/㎡ |
Power Supply |
Meanwell |
DRIVE IC |
ICN2153 |
Receiving card |
Nova MRV316 |
Fresh rate |
3840 |
Cabinet material |
Iron |
Cabinet weight |
Iron 50kg |
Maintenance mode |
Rear service |
Pixel structure |
1R1G1B |
LED packaging method |
SMD2727 |
Operating Voltage |
DC5V |
Module power |
18W |
scanning method |
1/8 |
HUB |
HUB75 |
Pixel density |
40000/62500 Dots/㎡ |
Module resolution |
64*32/80*40Dots |
Frame rate/ Grayscale, color |
60Hz,13bit |
Viewing angle, screen flatness, module clearance |
H:120°V:120°、<0.5mm、<0.5mm |
Operating temperature |
-20~50℃ |
system support |
Windows XP,WIN 7 |
|
|
Power parameter (external prower supply) |
|||
Input voltage |
Single phase 220V |
Output voltage |
220V |
Inrush current |
20A |
Average power consumption |
250wh/㎡ |
Multimedia control system |
|||
Player |
Nova TB30 |
receiving card |
Nova-MRV316 |
Manual lifting |
|||
Hydraulic lifting: |
800mm |
Manual rotation |
330 degrees |
