Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

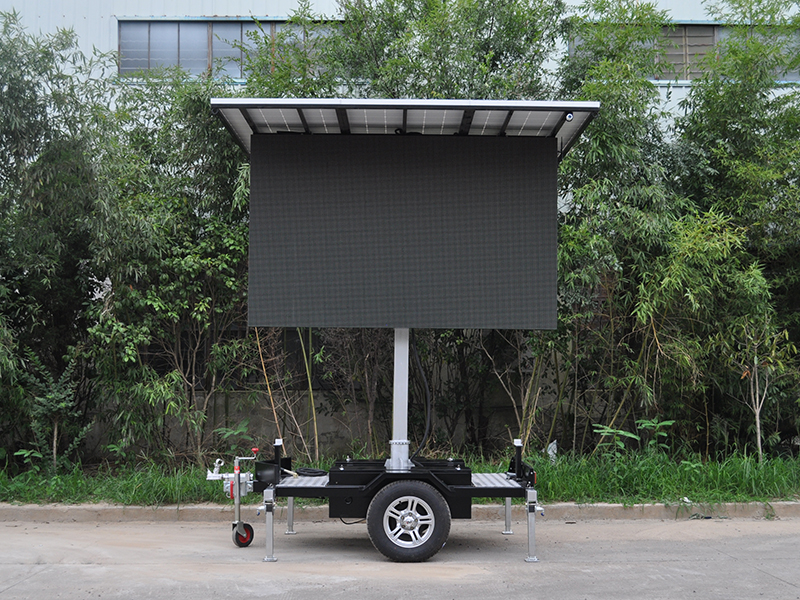

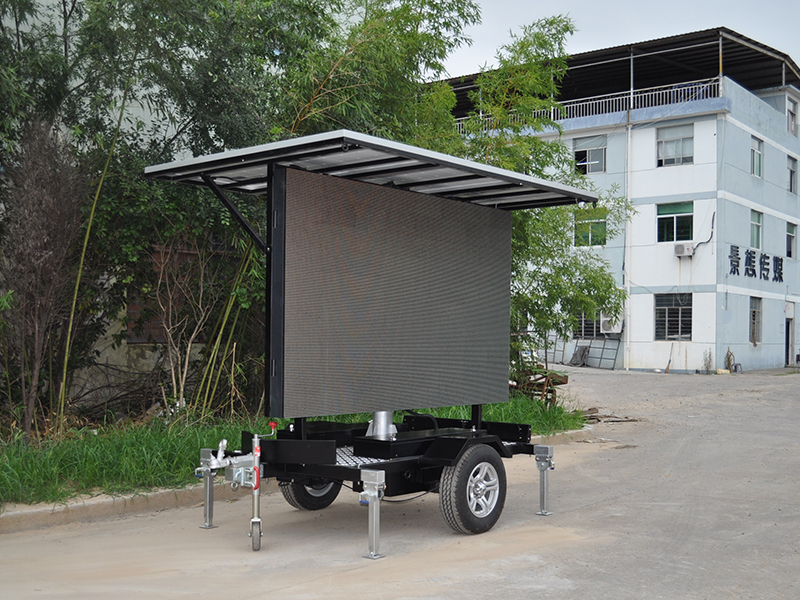

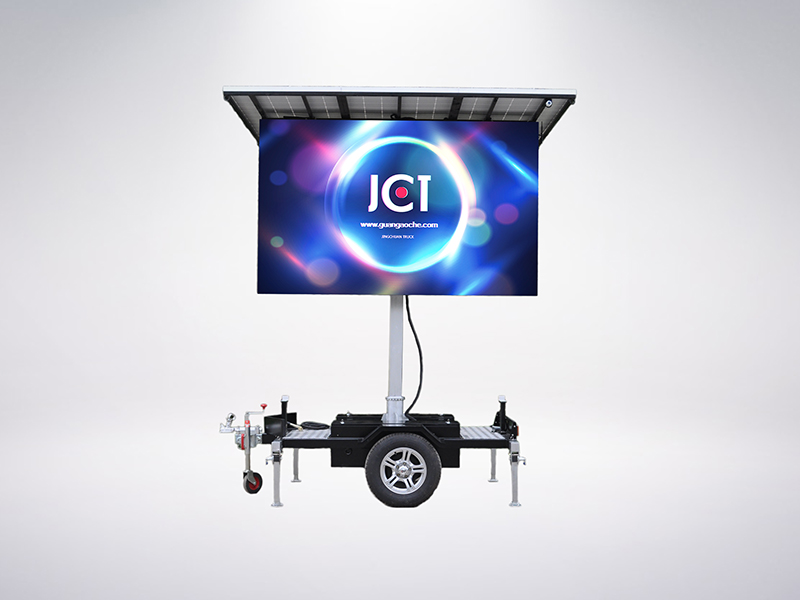

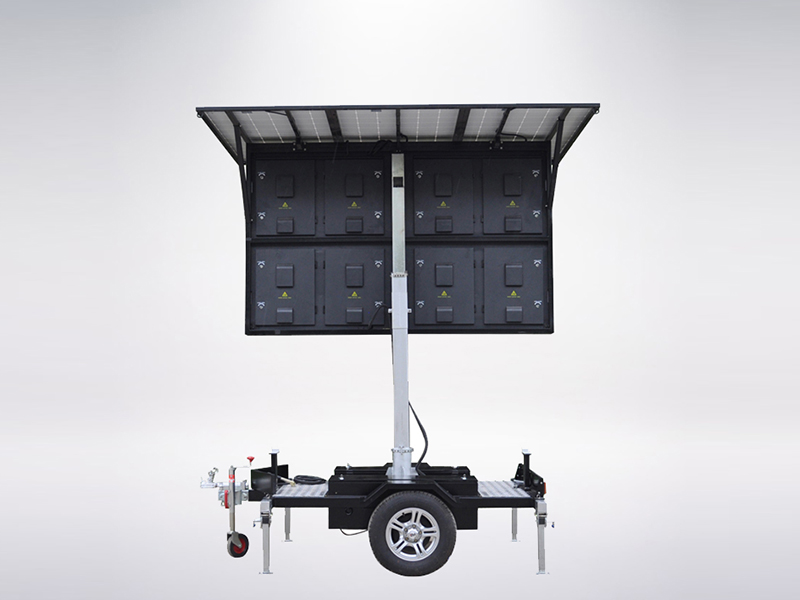

Mobile LED Trailer E-F4 creates IMPACT at your event!!
Great for experiential promotions or for placement in the centre of crowds
Independent power supply, high performance, uninterrupted power supply, no geographical limitations, safe and reliable, nonpollution, noiseless, environmentally friendly and beautiful, without much maintenance.
Mobile LED Trailer E-F4 creates IMPACT at your event!!
Great for experiential promotions or for placement in the centre of crowds
Independent power supply, high performance, uninterrupted power supply, no geographical limitations, safe and reliable, nonpollution, noiseless, environmentally friendly and beautiful, without much maintenance.
| Model | E-F4 Solar Panel | |||
| Chassis | ||||
| Brand | JCT | External Dimension | 2700mm(L)×1800mm(W)×2600mm(H) | |
| Brake | Handle/Hydraulic | Tire | Solid rubber tires | |
| Supporting legs | 4pcs | |||
| LED energy saving screen | ||||
| Screen SIZE | 2560mm(W)*1600mm(H) | Dot Pitch | 10 mm | |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥6000cd/ m² | |
| Max Power Consumption | 150w/㎡ | Lifespan | 100,000hours | |
| Hydraulic lifting System | ||||
| Hydraulic Lifting System | Lifting Range 1000mm | |||
| Hydraulic Rotating System | Screen can rotate 360degrees | |||
| Wing-against Level | Against Level 8wind after screen lift up 1000mm | |||
| Power parameter | ||||
| Power System | 48V，50AH | battery life | ≥6hours | |
| Inverter | 2000W | coulombmeter | 1 | |
| Input Voltage | 220V | Output Voltage | 48V | |
| Current | 15A | Average power consumption | 0.5kwh/㎡ | |

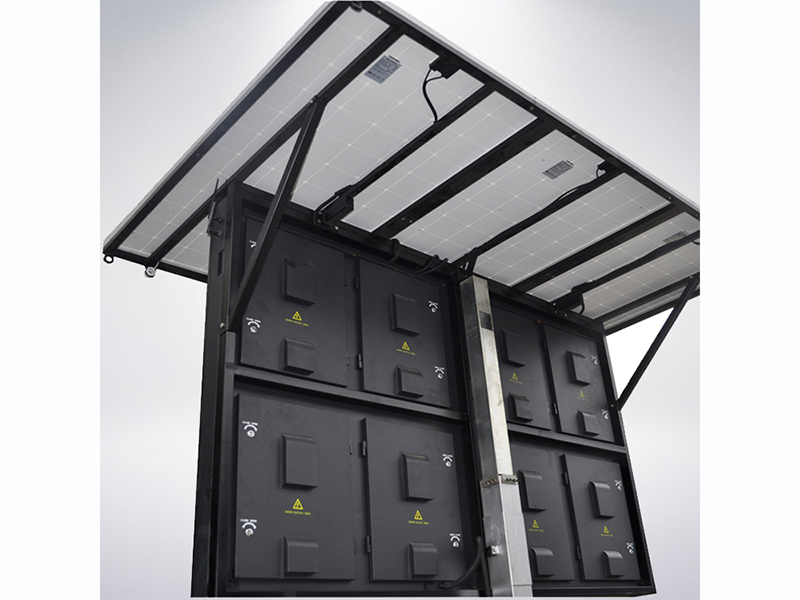

| Solar Panel | 1000*2000mm*3 | |||
| Multimedia Control System | ||||
| Optional configuration | LED Screen& Battery power & mechanical transmission is optional | |||
