Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.
The first design in China which the screen is 360° rotated and folded

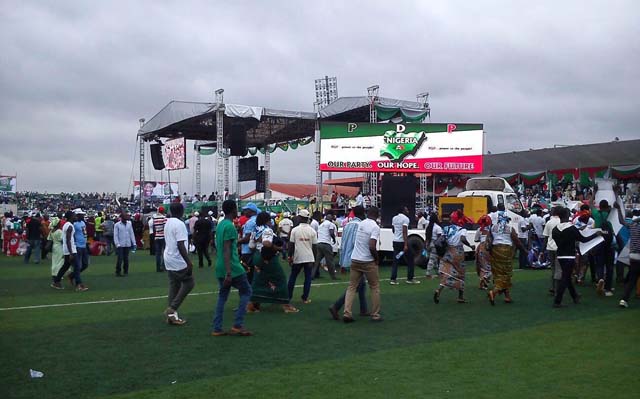

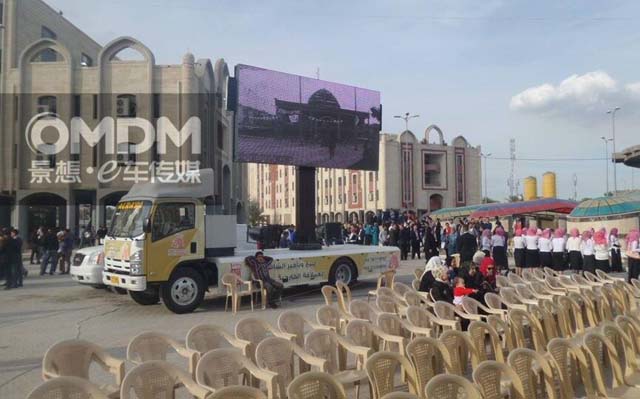

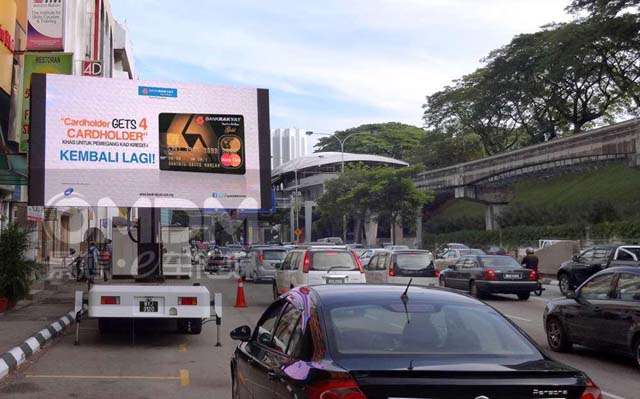

Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360 ° no blind Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.The technology applied successfully for the first time in the domestic car LED media industry.
The first design in China which the screen is 360° rotated and folded
Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360 ° no blind Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.The technology applied successfully for the first time in the domestic car LED media industry.
The media module integration
The first time bring in module integration concept, introduced to the LED screen, supporting lift system, media control, electrical control system integration, realize the modular installation, customers can choose to buy separate screen part from the chassis to install.
Comprehensive customized for customer
Broke traditional van models choosing size on the limitations of the equipment, customers in the generator model, on the choice of LED screen size and related configuration can realize autonomous selection, achieve full customization, unique.

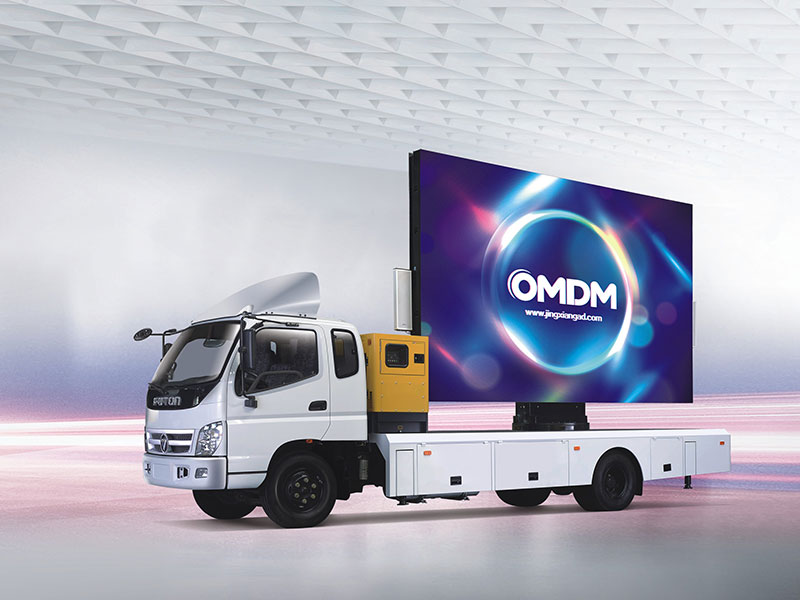

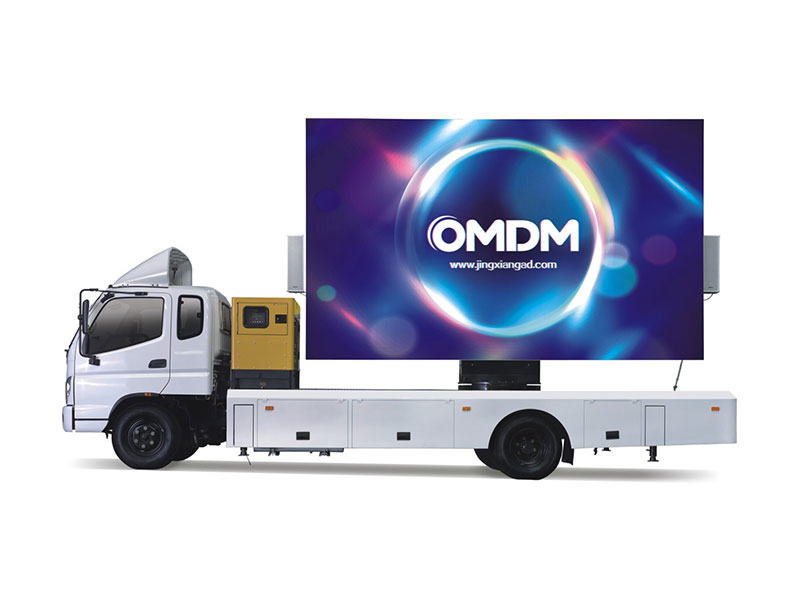

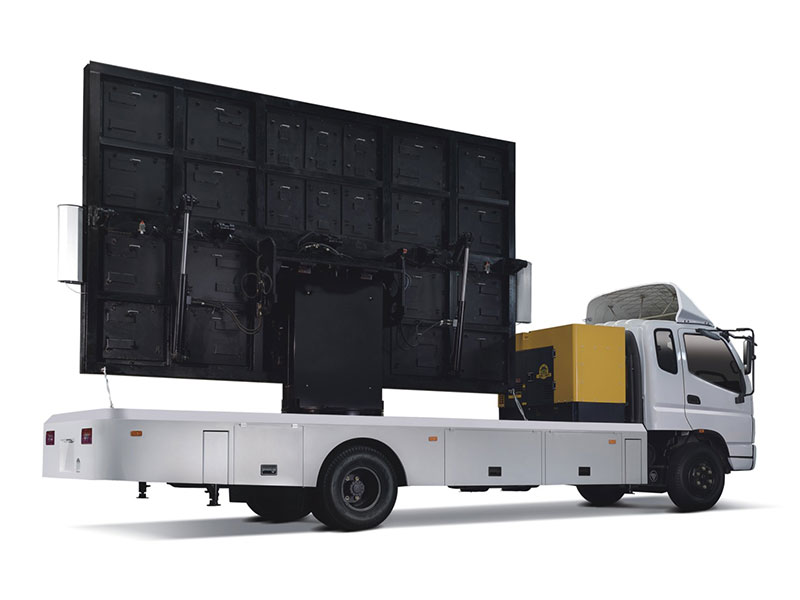

E-R360 Technical Parameters
Integrate support and lifting system, make sure LED screen visual range is 360 degree, widely used for downtown, rallies, and other outdoor sporting events and live crowded occasions.
| Model | E-R360 | ||
| Chassis | |||
| Brand | Fonton Ollin | External Dimension | 8170mm*2220mm*3340mm |
| Power | Cummins | Total Weight | 9995KG |
| Emission Standard | EuroⅤ | Curb weight | 9000KG |
| Wheel base | 4500mm | Seat | Single row 3seats |
| Hydraulic Lifting and Supporting System | |||
| Hydraulic Lifting System | Lifting Range 2000mm,bearing 5T | ||
| Hydraulic Rotating System | Screen can rotate 360degrees | ||
| Wing-against Level | Against Level 8wind after screen lift up 2000mm | ||
| Supporting leg | Stretch distance 300mm | ||
| LED Screen | |||
| Screen Size | 4800mm(W)*2400mm(H) | Dot Pitch | 6 mm |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
| Lifespan | 100,000hours | ||
| Silent Generator Group | |||
| Power | 16KW | ||
| Number of cylinders | Water-cooled inline 4-cylinder | ||
| Power parameter | |||
| Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V |
| Current | 35A | Average power consumption | 0.5kwh/㎡ |
| Multimedia Control System | |||
| Monitor | Support 8-way signal input | ||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
| Sound | 120W | Speaker | 200W |
