Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

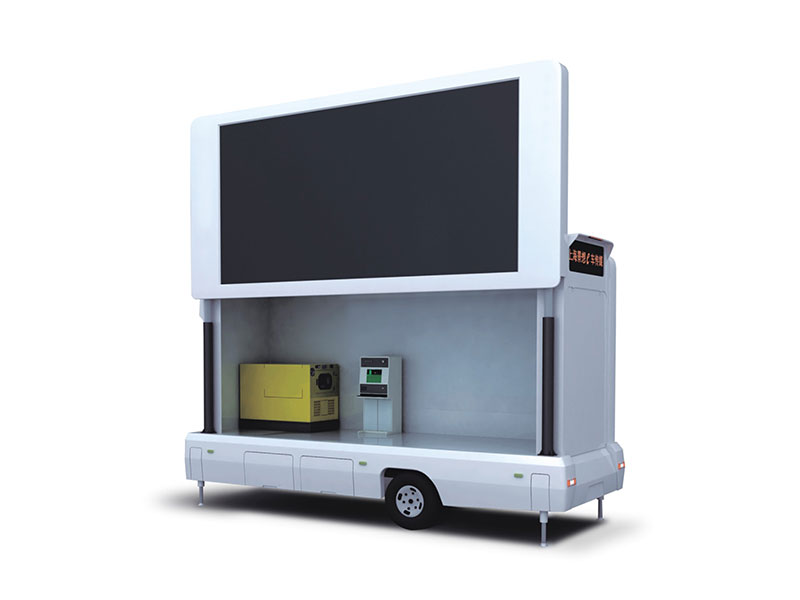

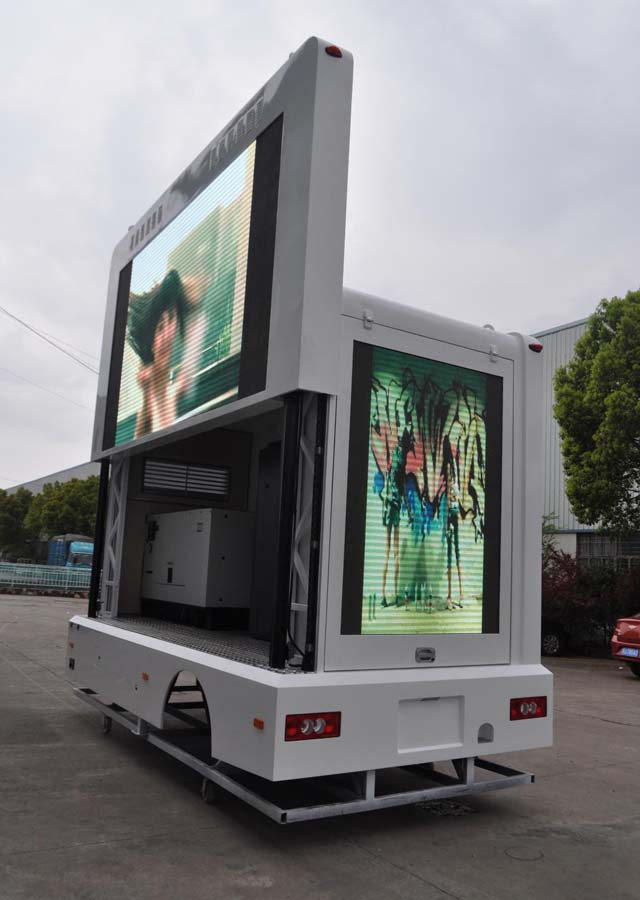

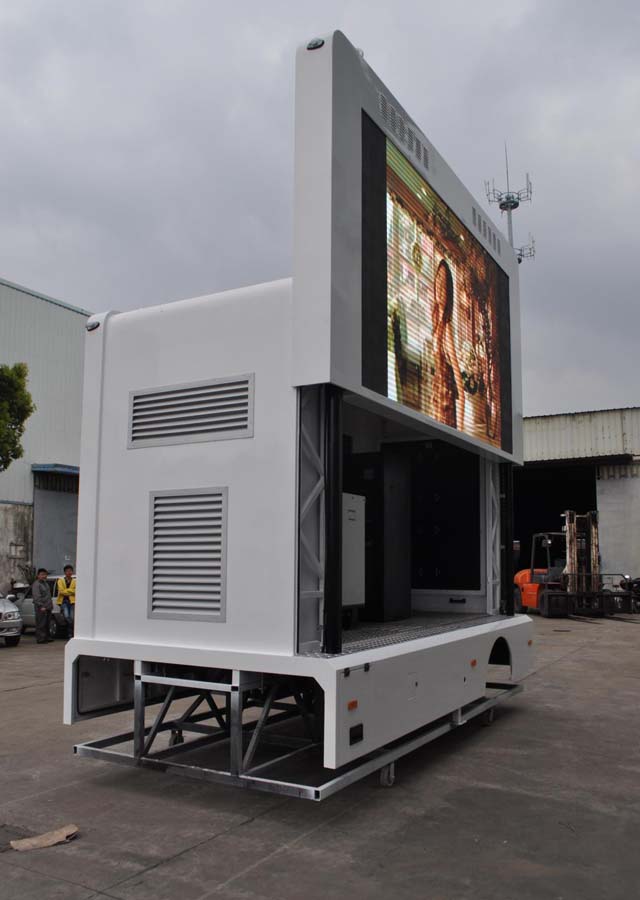

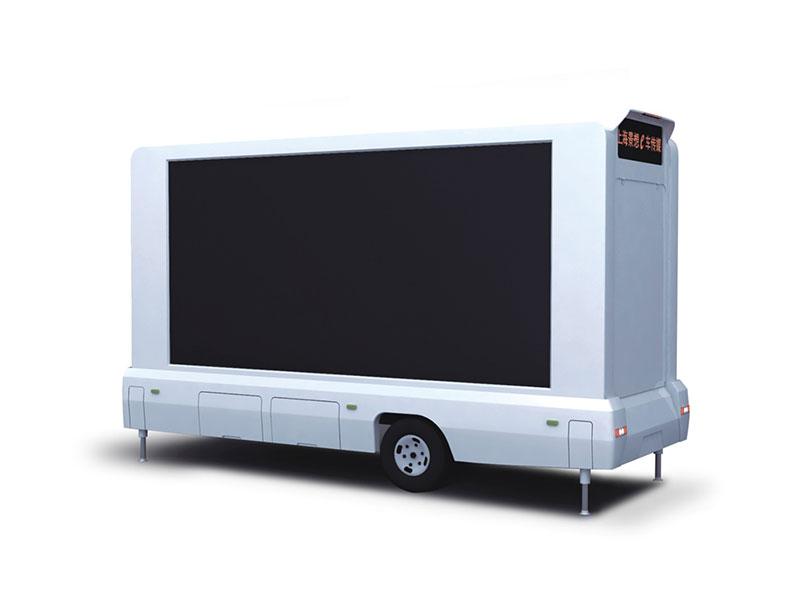

It is a kind of mobile move freely and timely change information and transform advertising communication strategy and the location of the terminal, is a set advertising, information release, in a televised new advertisement carrier. Suitable for all kinds of vehicle chassis, customized production, equipped with independently
It is a kind of mobile move freely and timely change information and transform advertising communication strategy and the location of the terminal, is a set advertising, information release, in a televised new advertisement carrier.
Suitable for all kinds of vehicle chassis, customized production, equipped with independently.
By moving to discard the traditional outdoor media attached to public buildings, public facilities spatial dependence.Break from the traditional outdoor media fixed point and position, make advertisement according to the properties of the product follow in the footsteps of the target audience locking terminal, entered the subway network, railway stations, tourist attractions, airports, shopping malls, business center, sports venues, the community and all the other commercial terminal can be obtained.Where regardless of location, environment more challenging, it can always move brings a unique way.
E-TW4700 Technical Parameters
| Model | E-TW4700 | ||
| Hydraulic Lifting System | |||
| Hydraulic Lifting System | Lifting Range 2000mm,bearing 3T | ||
| Wing-against Level | Against Level 8wind after screen lift up 2000mm | ||
| Supporting leg | Stretch distance 300mm | ||
| Silent Generator Group | |||
| Power | 12KW | Number of cylinders | Water-cooled inline 4-cylinder |
| LED Screen | |||
| Screen Size | 5120mm(W)*2400mm(H) | Dot Pitch | 6 mm |
| Module Size | 320mm(W)*320mm(H) | Brightness | ≥7500cd/ m² |
| Max Power Consumption | 680w/㎡ | Average Power Consumption | 288w/㎡ |
| Lifespan | 100,000hours | ||
| LED bar scree | |||
| Screen Size | Side led：5120mm×480mm Rear led：1280mm×1760mm | Dot Pitch | 10 mm |
| Dot Pitch | 10 mm | Brightness | ≥5000cd/ m² |
| Lifespan | 100,000hours | ||
| Roller light box | |||
| Canvas size | 5000mm×1500mm | Roller Diameter | 100 mm |
| Motor Power | ≥80W | Control modes | Intelligent remote |
| Power parameter | |||
| Input Voltage | Three-phase five-wire 380V | Output Voltage | 220V |
| Current | 30A | Average power consumption | 0.5kwh/㎡ |

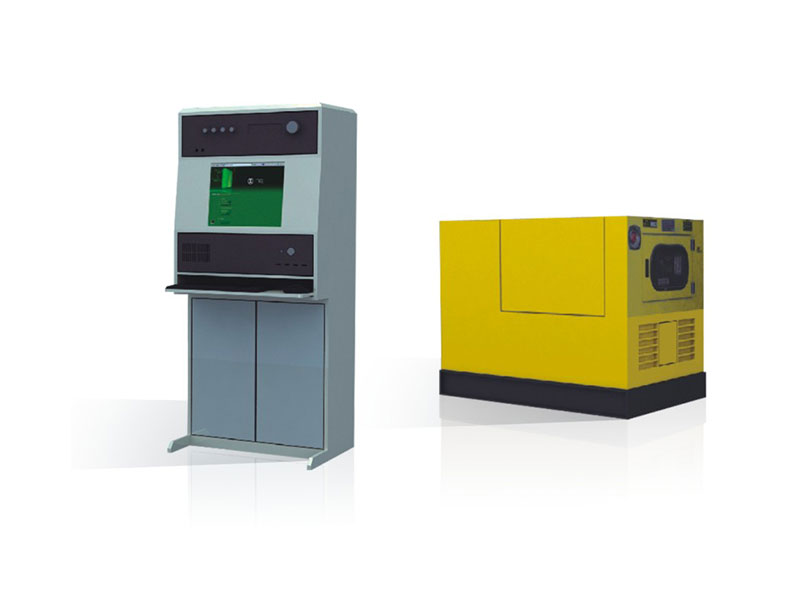

| Multimedia Control System | |||
| Video Processor | Support 8-way signal input,4output,fluent video source switching | ||
| Media player | with various kinds of common used video connector, be available for PC, camera and etc. | ||
| Sound | 120W | Speaker | 200W |
