Jingchuan as LED mobile media customized solutions provider, to provide customers with hundreds of different types of LED advertising car design, involving all types of chassis carriers, such as trucks, trailers, electric cars, etc .; all kinds Type of mechanical structure design, electrical structure design; different types of multimedia terminals and control, such as remote touch, multimedia interaction, 3D holographic projection; all kinds of size requirements, resolution requirements of the LED display, and other digital media types; Customized customer needs to provide professional solutions.

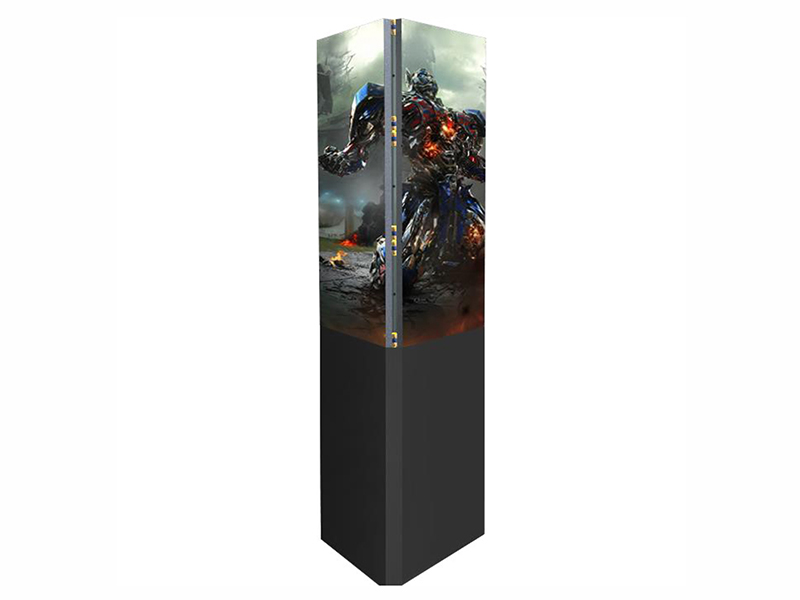

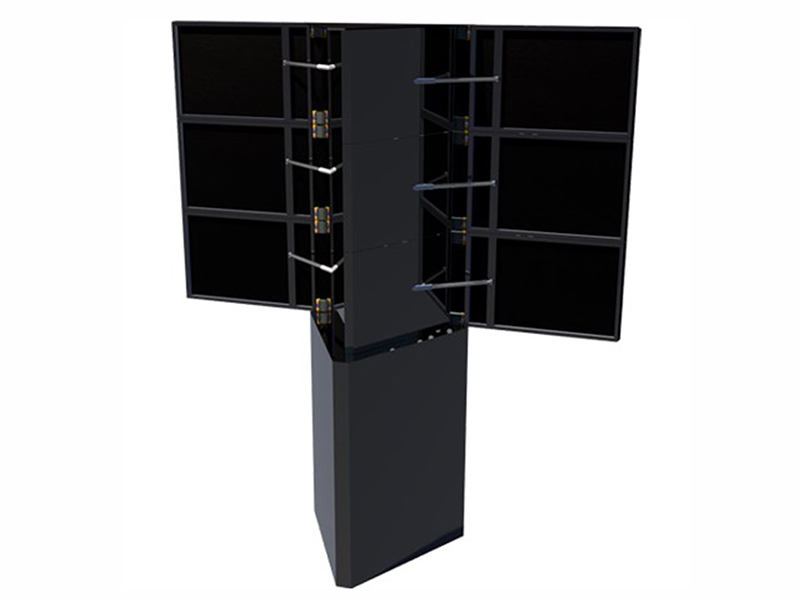

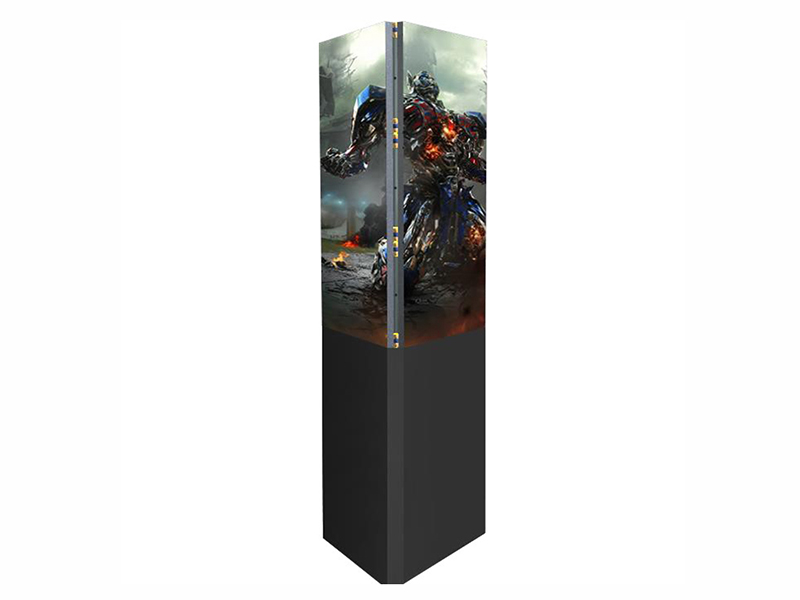

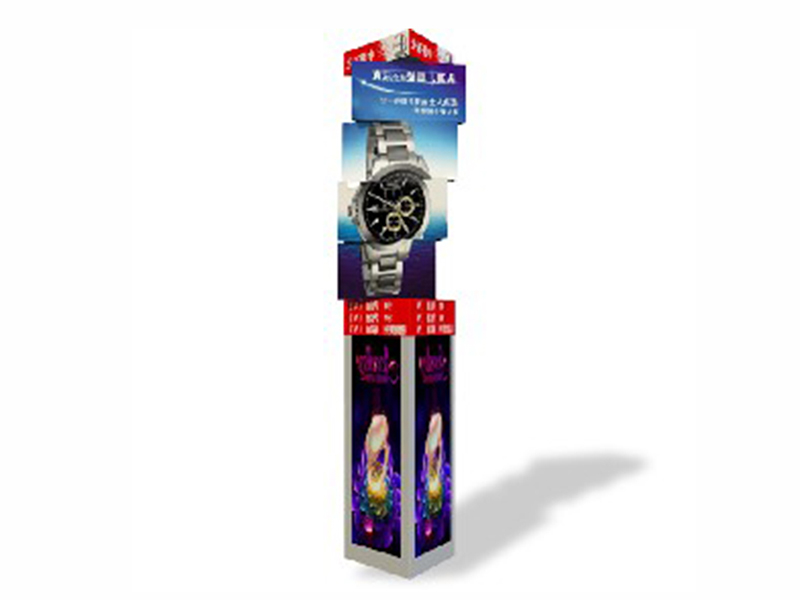

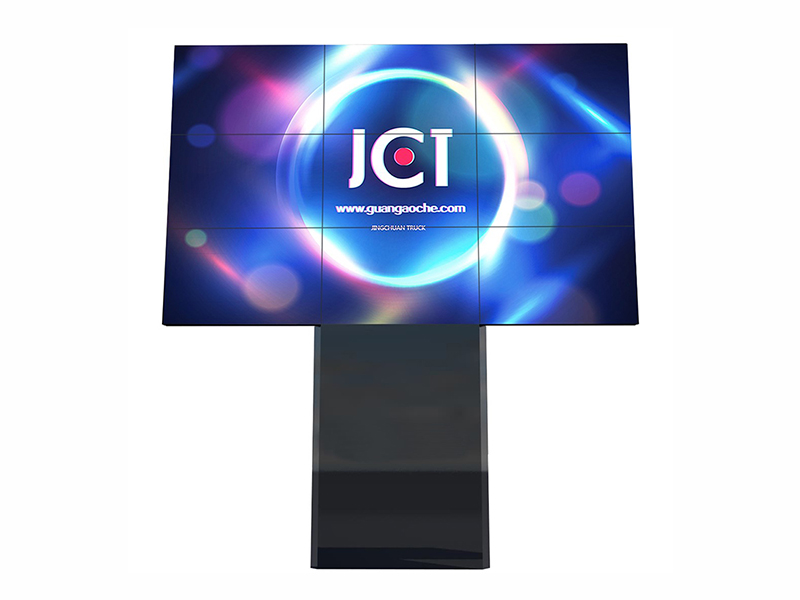

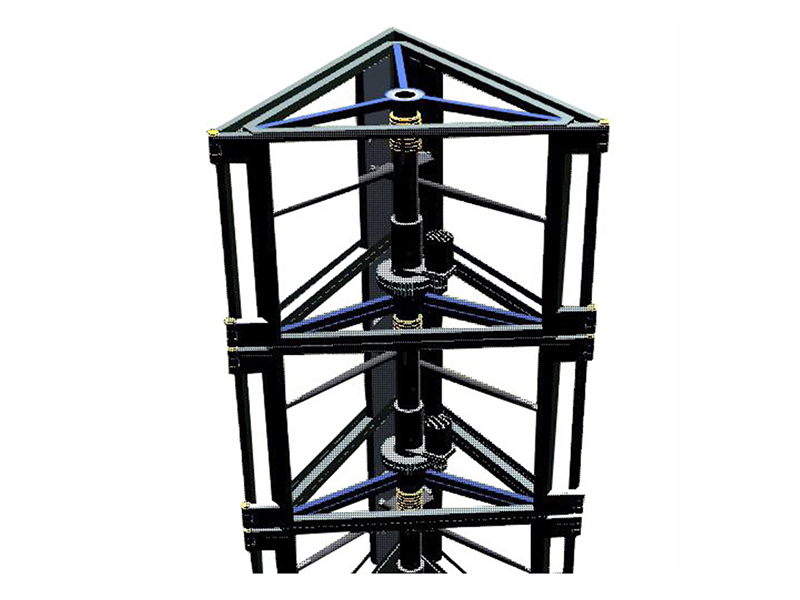

Jingchuan Rotating led display can be used both for indoor and outdoor. The three triangular shape structure can hold 9 small screens in total and each rotates in different speed. When rotation ends, all screen will be stopped and form a complete advertising images or broadcast video as you need. The unique design is perfect for major airport, railway station or high-end shopping center, squares, etc.

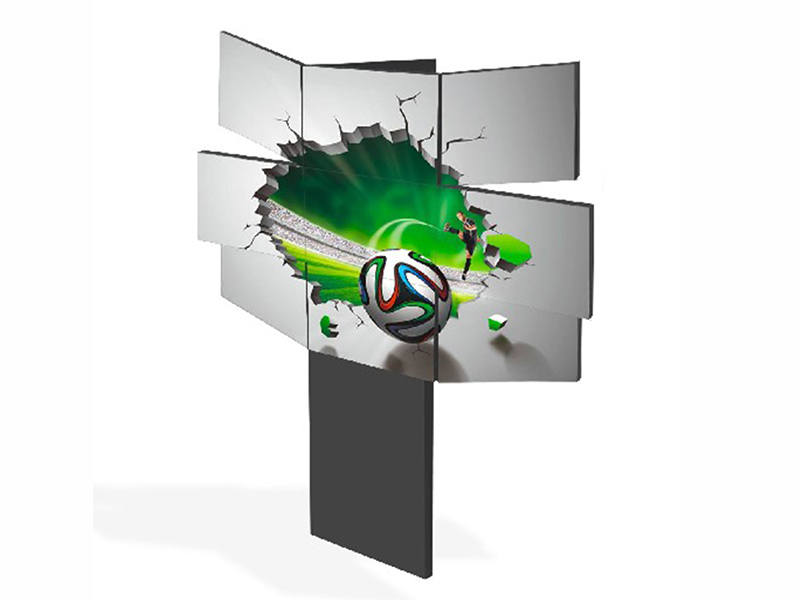

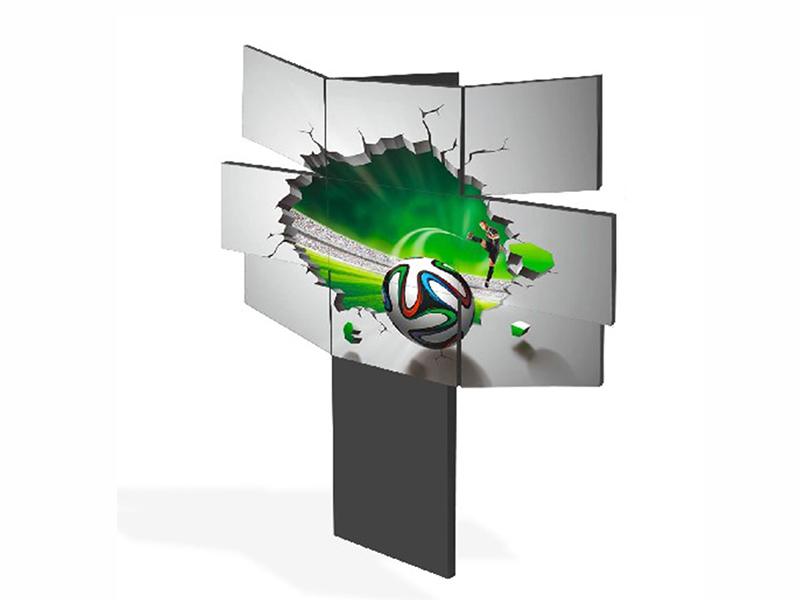

Nine small screens can be combined with video content simultaneously, or time-sharing action to produce unexpected visual effects.4.The screen system is novel and unique, with strong visual shock effect and high technology content, catering to the good combination of video content and action script, giving people a new audio-visual experience.
|

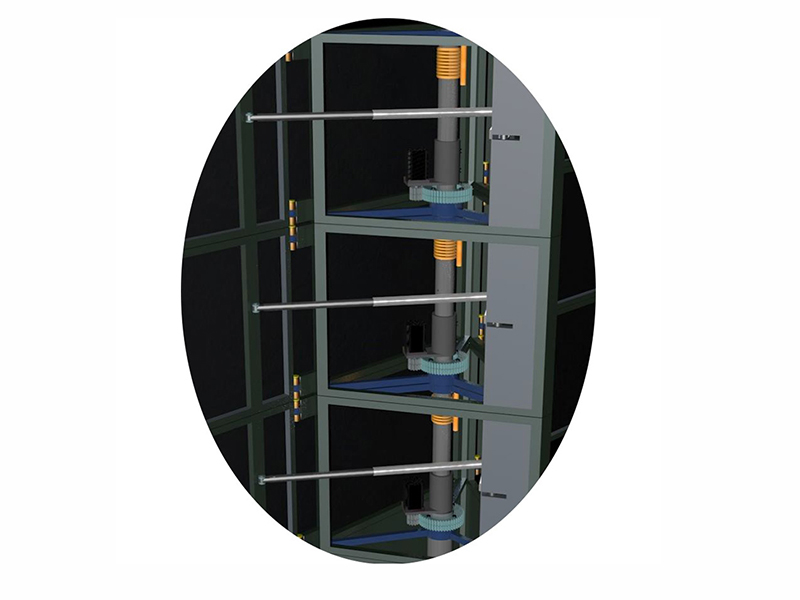

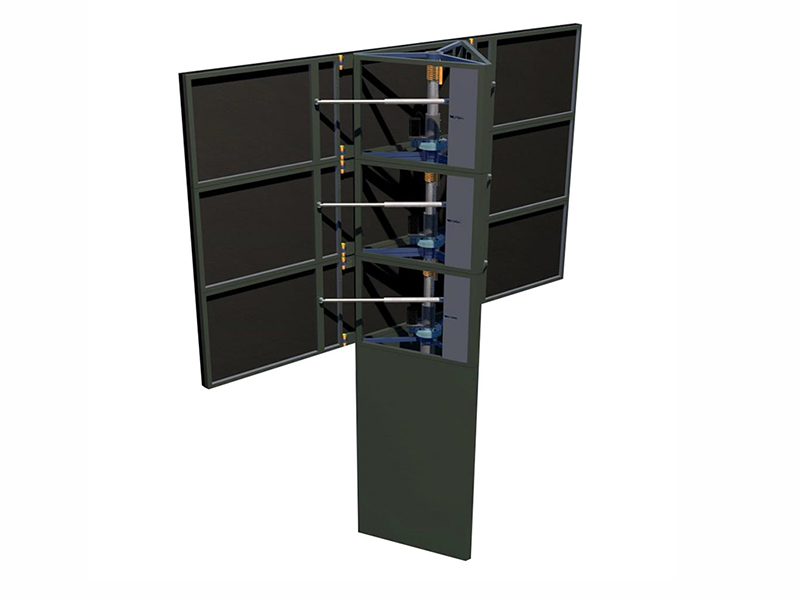

JCT Rotating LED Display Parameters |
|||||
|
Order |
Type |
Name |
Specification |
Number |
Unit |
|
1 |
Steel Structure |
High precision triangular stainless iron screen frame |
Width2460mm*hight1500mm |
3 |
set |
|
2 |
SpindleA |
diameter800mm*6m，thickness15mm |
1 |
set |
|
|
3 |
SpindleB |
diameter400mm*6m，thickness16mm |
1 |
set |
|
|
4 |
Flange |
diameter800mm*thickness20mm |
3 |
set |
|
|
5 |
Swivel bearing |
Machining，Outer diameter500mm |
6 |
set |
|
|
6 |
Motor mount |
Machining，Outer diameter440mm |
3 |
set |
|
|
7 |
LOGO、Light box |
material2mm Stainless iron, machining |
3 |
set |
|
|
8 |
other materials |
Stainless steel hinge |
18 |
set |
|
|
9 |
Stainless steel door lock |
12 |
set |
||
|
10 |
2000NGas Spring |
6 |
set |
||
|
11 |
12.9 level screw |
some |
set |
||
|
12 |
Rotary fine gear |
3 |
set |
||
|
13 |
|
|
set |
||
|
14 |
Electric appliance |
Stepper motor |
500WFour phase |
3 |
set |
|
15 |
PLC |
PLC |
1 |
set |
|
|
16 |
Conductive ring |
Custom 20 ring, signal ring, power ring |
3 |
set |
|
|
17 |
sensor |
Omron |
3 |
set |
|
|
18 |
Switching power supply |
24V/5A |
3 |
set |
|
|
19 |
Lighting |
Philips5W |
3 |
set |
|
|
20 |
Origin sensor |
Omron |
3 |
set |
|
|
21 |
Wire |
panda |
1 |
set |
|
|
22 |
power distribution |
customize |
1 |
set |
|
|
23 |
procedure |
customize |
1 |
set |
|
