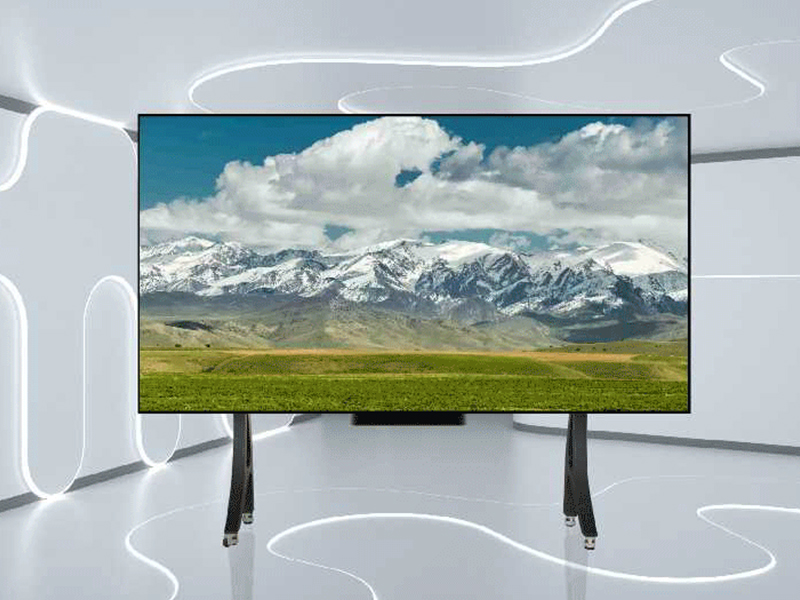

Standard Giant Screen, Considerable

Giant LED display of standard size, applicable to 320 * 160 standard size module, 114,116, 141, 144, 169, 172, 200 and 225 inches are optional.

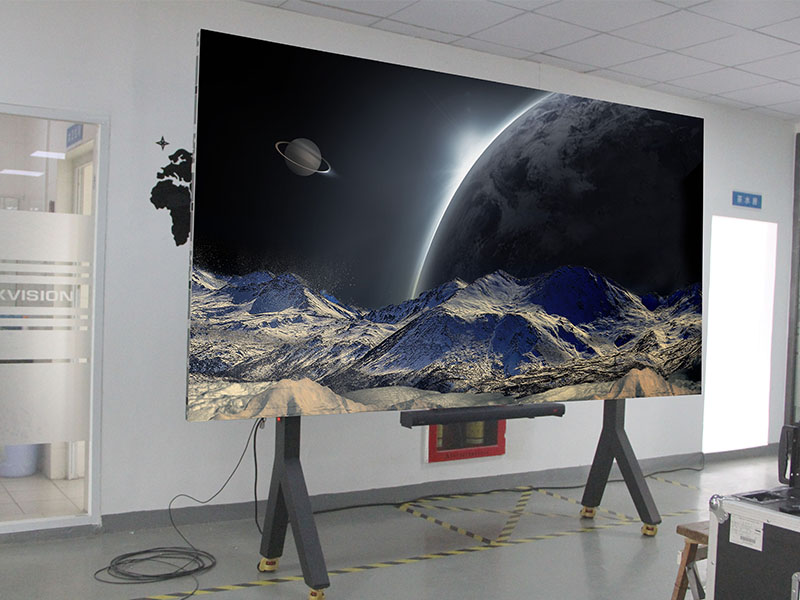

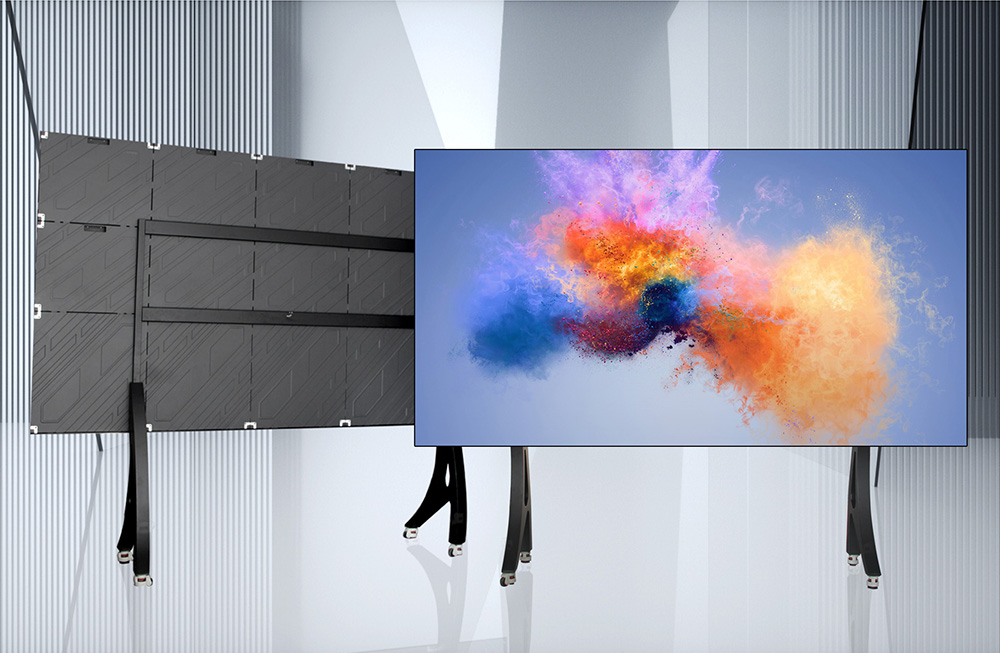

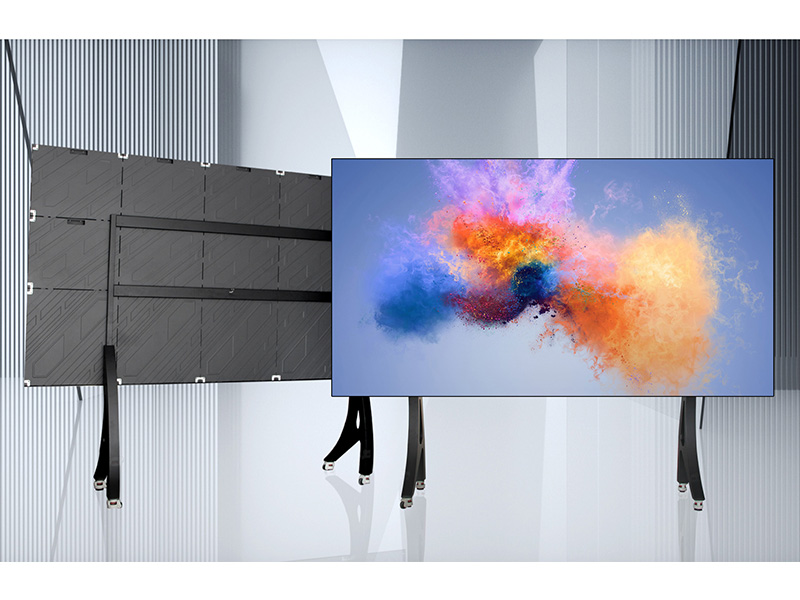

Quick Installation And Easy Maintenance

Two types of installation: wall mounted and bracket. The quick installation design does not require professional technical engineers. Ordinary people who have received simple training can complete the installation in no more than 2 hours, which is as simple as installing a TV.

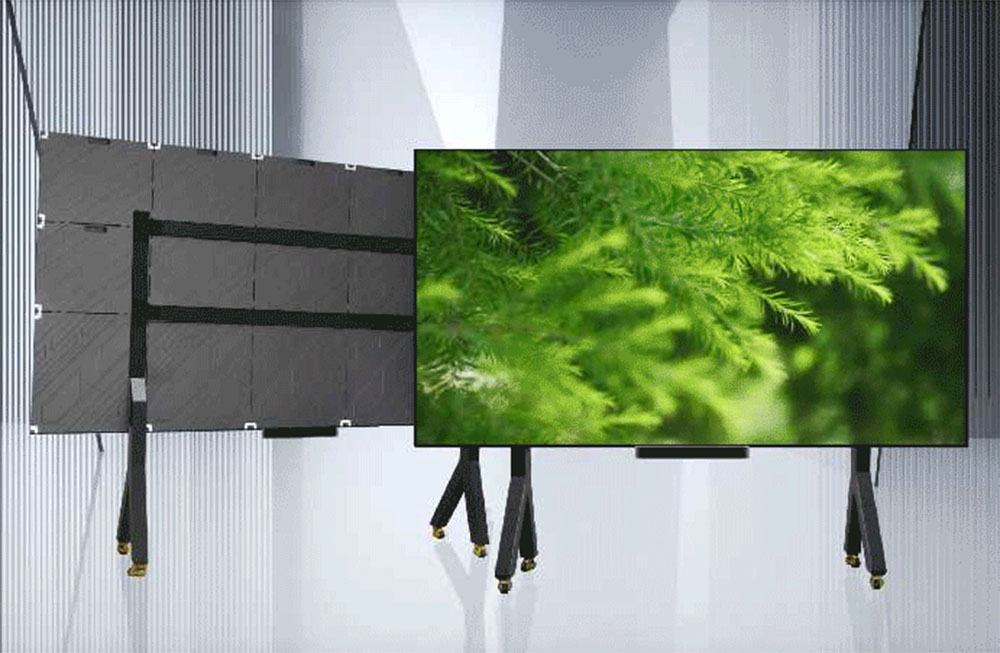

Real Color And Superior Picture Quality

Seamless large screen, wide viewing angle and true color are more colorful than TV.

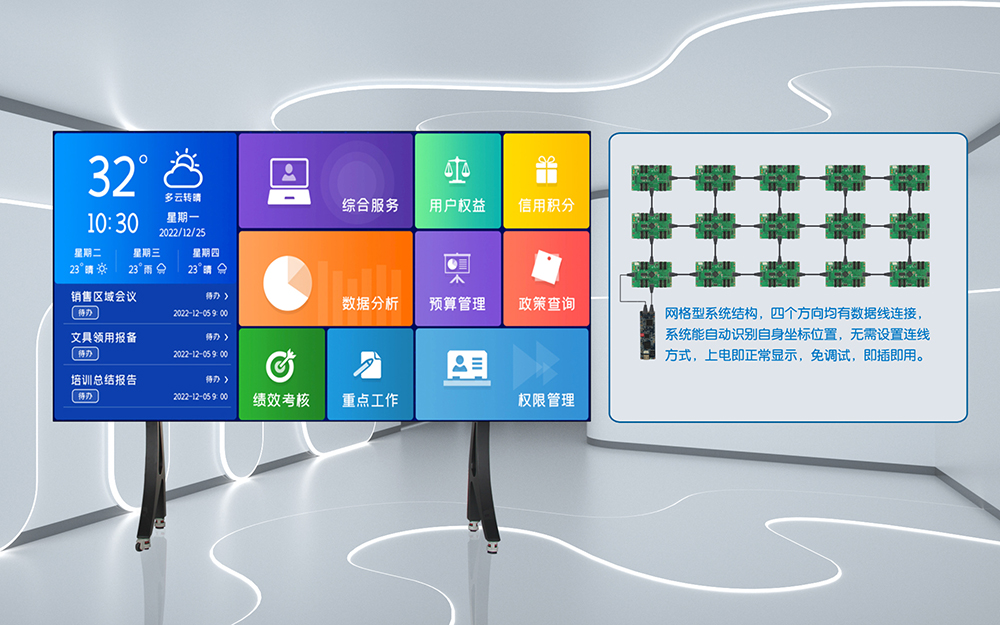

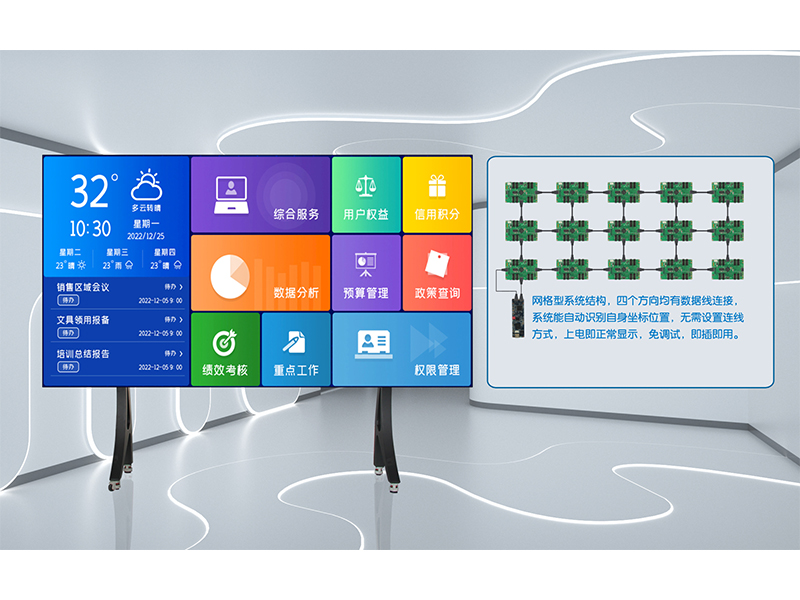

The Intelligent System Does Not Need Debugging

The grid structure intelligent control system can be displayed on power without debugging,and can be installed by ordinary people without professionals.

Wireless Projection, One Point On The Same Screen

There is no need to scan the code and install app. It supports PC mode. Mobile phones,iPads and computers are displayed on the same screen, making the meeting easier

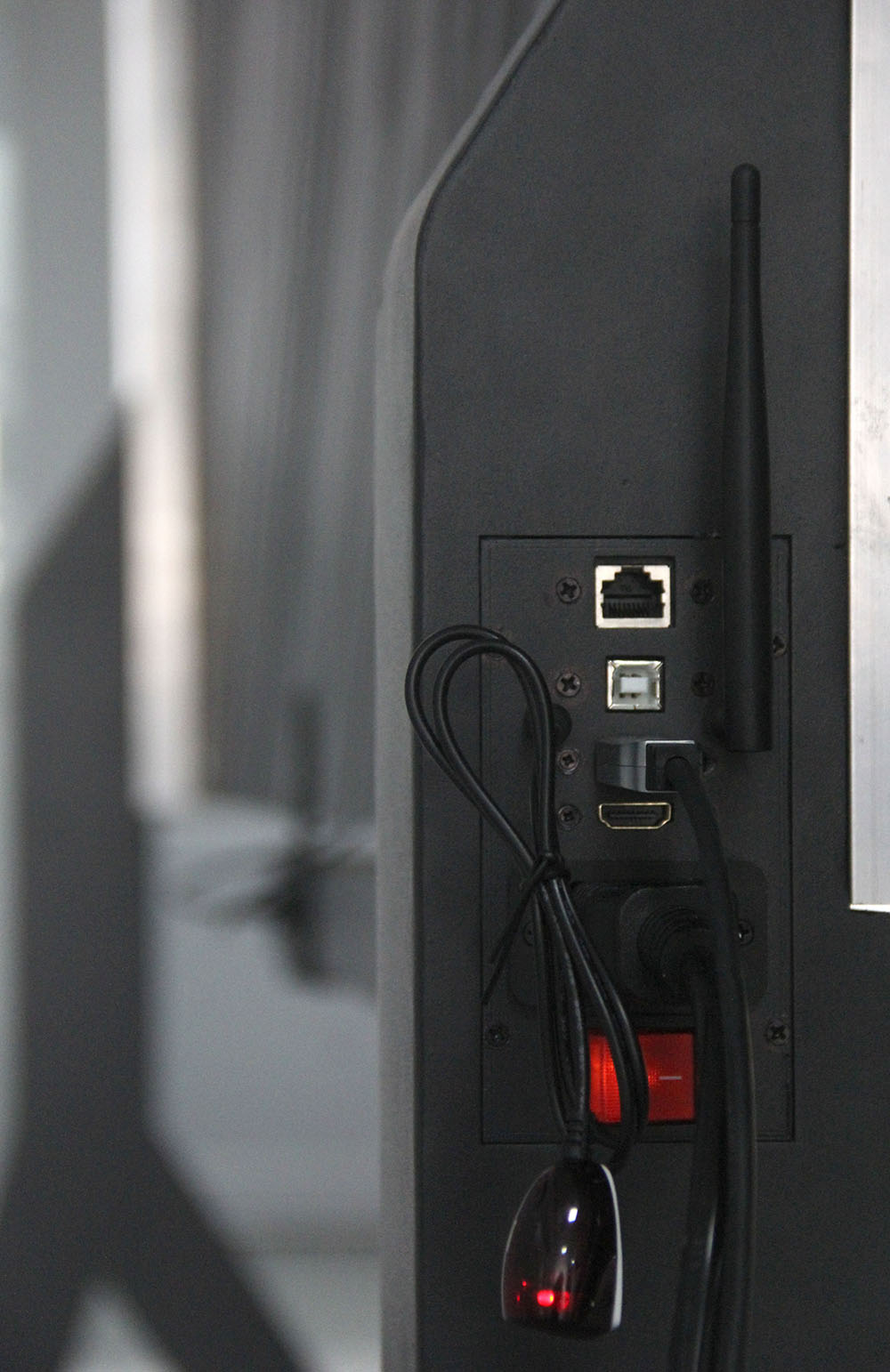

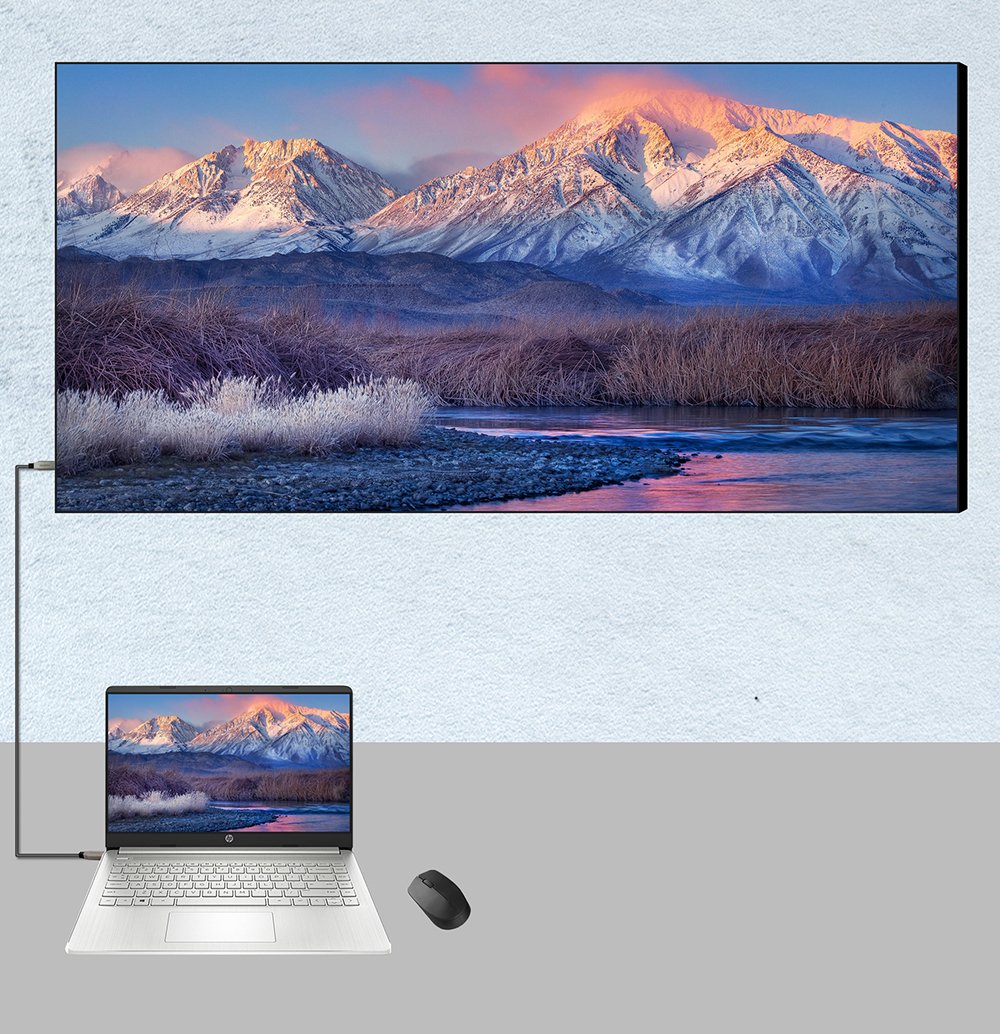

HDMI Interface , Plus And Play

Multiple HDMI standard interfaces, such as monitor (TV),Desktop, notebook, set-top box and conference system can be used directly.

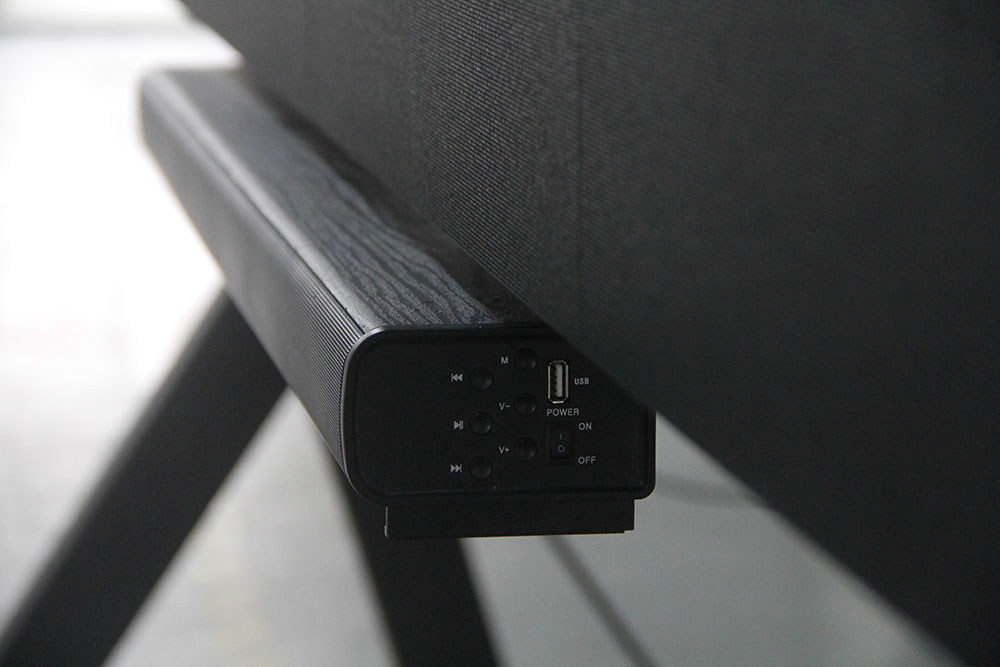

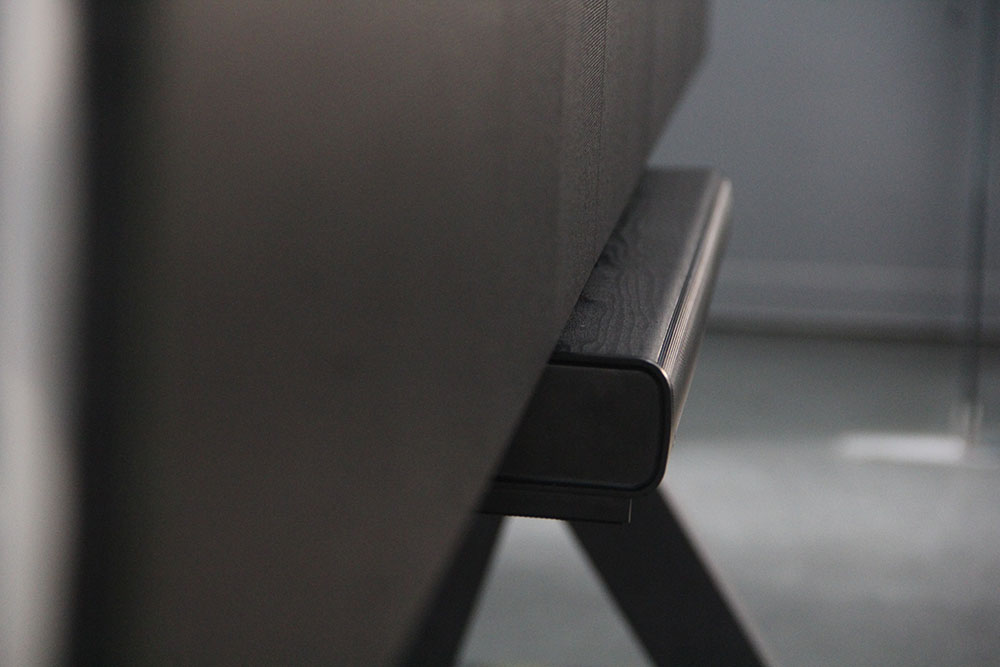

Outstanding Sound Quality And Dynamic Native

Audio frequency response range 20Hz-20KHz.Enjoy surging bass without connecting a separate subwoofer

Integrated Wireless Microphone

The Meeting Was Even Louder

Nano Moisture Proof, Superior Quality

Nano moisture-proof technology can improve moisture-proof performance, effectively eliminate caterpillar on-site, effectively improve the uneven surface of lamp, eliminate flower lamp, improve contrast, better display and longer service life

Wide Application Scenarios

Meeting Room/Classroom/Auditorium/Station Hall/Lobby/Stage /Advertising


Specification Parameters T-112 T-140 T-169 T-220
Basic Parameters Display Size(inch) 112 140 169 220
Pixel Pitch(mm) 1.25 1.86 2.5
Appearance Dimension
(W/H) (mm)
2560*1280 3200*1600 3840*1920 4800*2880
Screen Resolution(W*H) 2048*1024 2080*1040 2064*1032 1920*1152
Maintenance Front servic Front servic Front servic Front servic
Machine Weight 89 145 205 385
Colour Black Black Black Black
Input Voltage 220V 220V 220V 220V
MAX.Power Consumption(W) 1600 2000 3500 6500
AVE.Power Consumption(W) 480 600 1000 2000
Installation Mode Wall Hanging+Bracket Wall Hanging+Bracket Wall Hanging+Bracket Wall Hanging+Bracket
Packaging Details Wooden box
+Carton+Bubble cotton
Wooden box
+Carton+Bubble cotton
Wooden box
+Carton+Bubble cotton
Wooden box
+Carton+Bubble cotton
Display Parameters Encapsulation Type SMD1010 SMD1212 SMD1514 SMD2020
White Balance Brightness(nits) 400(Adjustable) 400(Adjustable) 400(Adjustable) 400(Adjustable)
Frame Change Frequency(Hz) 50/60 50/60 50/60 50/60
Refresh Rate(Hz) 3840 3840 3840 3840
Grey Scale(bit) 14 14 14 14
Contrast Ratio 6000:1 6000:1 6000:1 6000:1
Viewing Angle(°) H:160° / V:160° H:160° / V:160° H:160° / V:160° H:160° / V:160°
Screen Interface HDMI HDMI1.4 HDMI1.4 HDMI1.4 HDMI1.4
